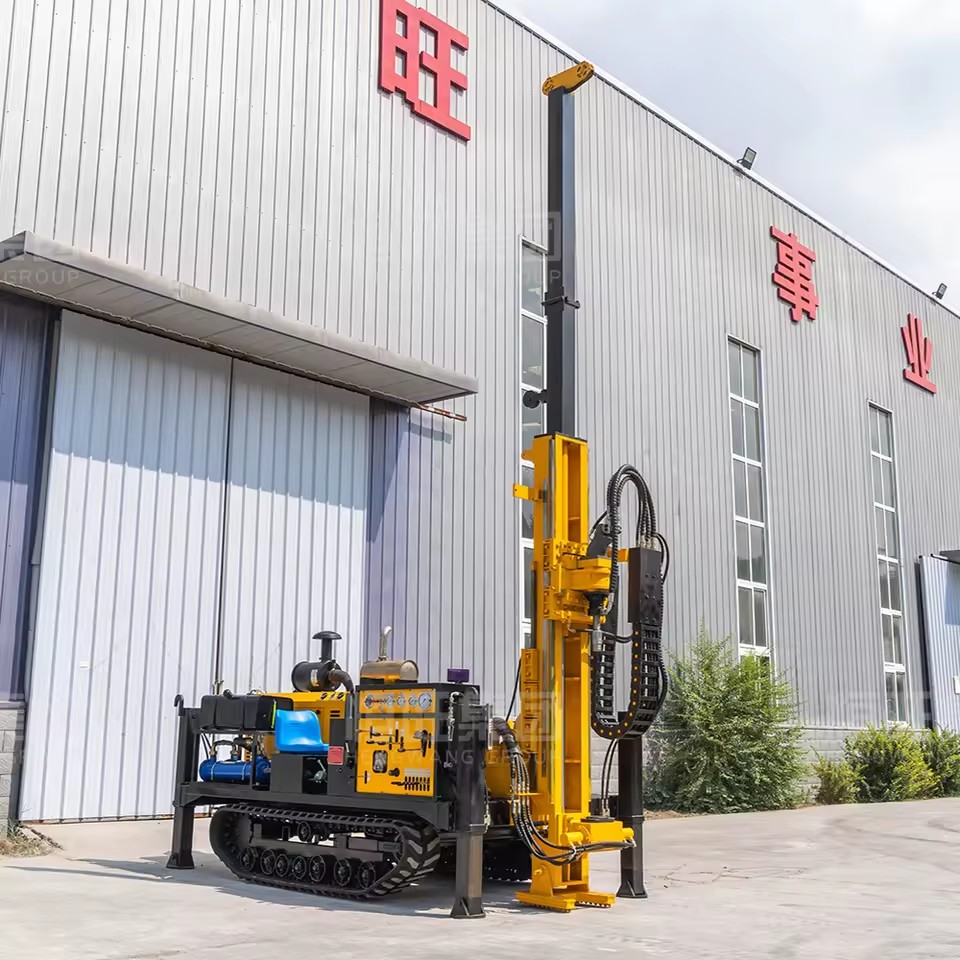

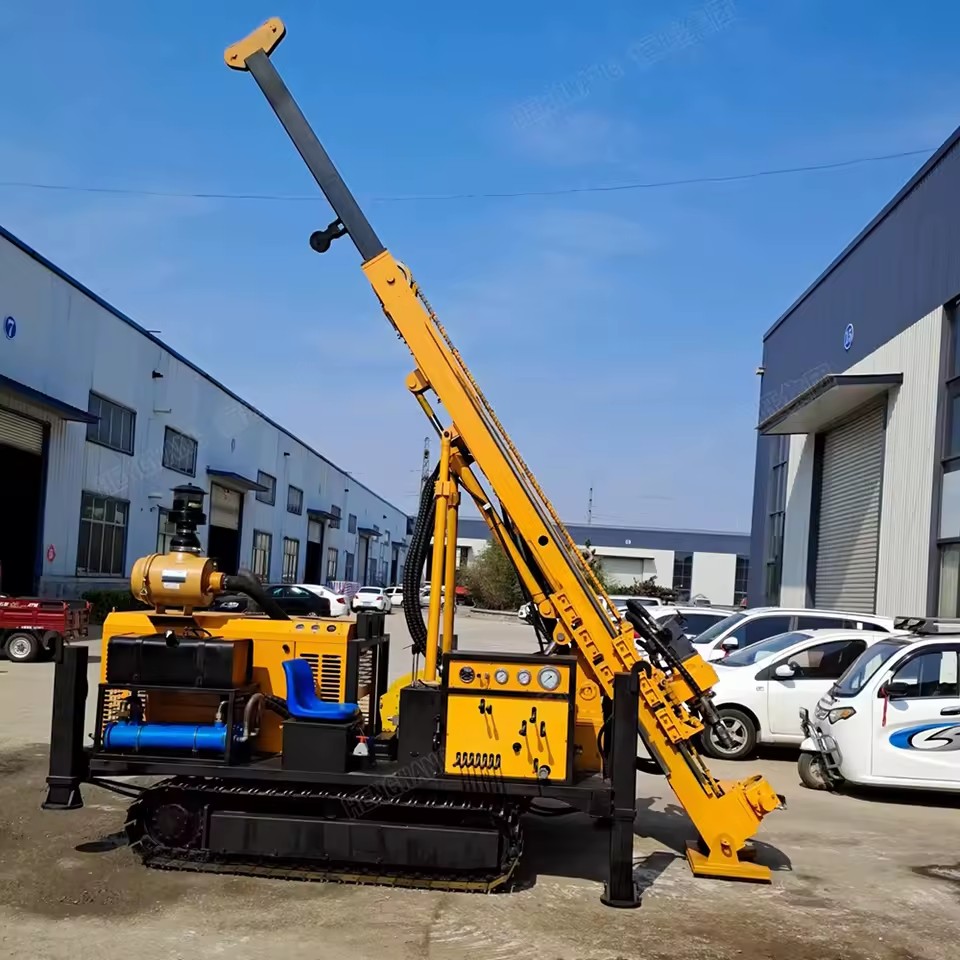

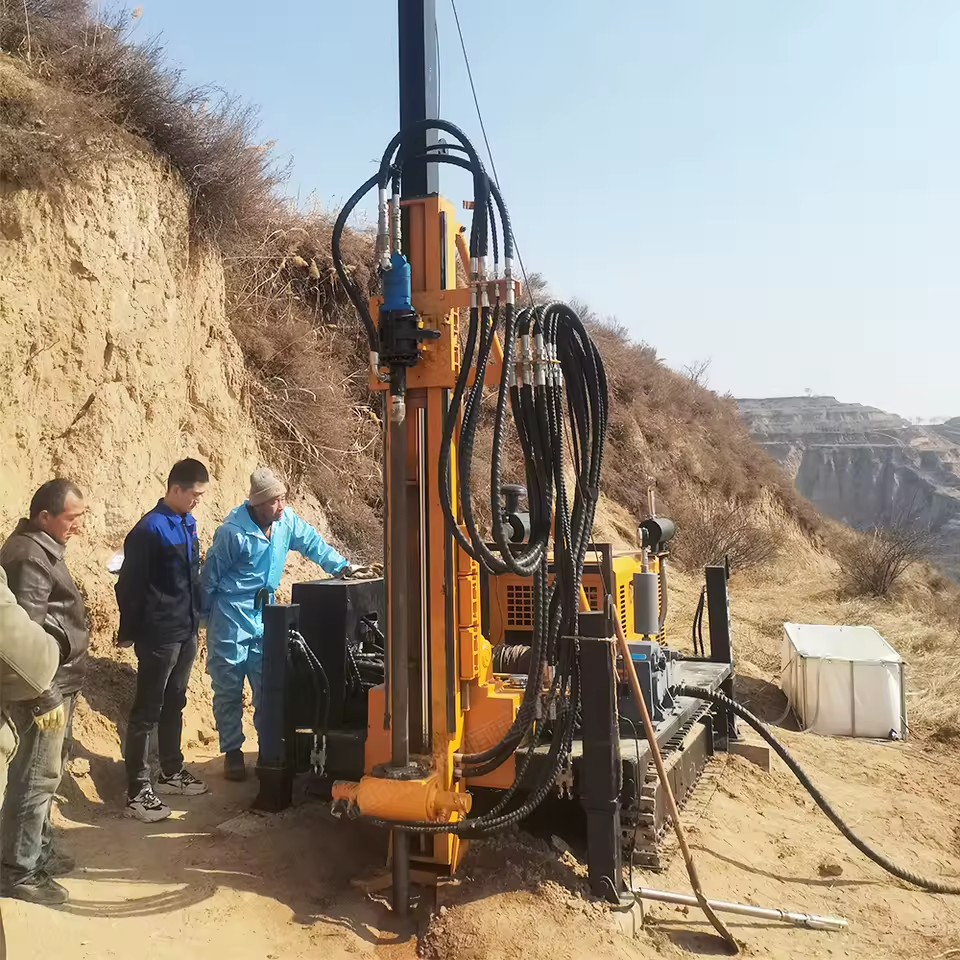

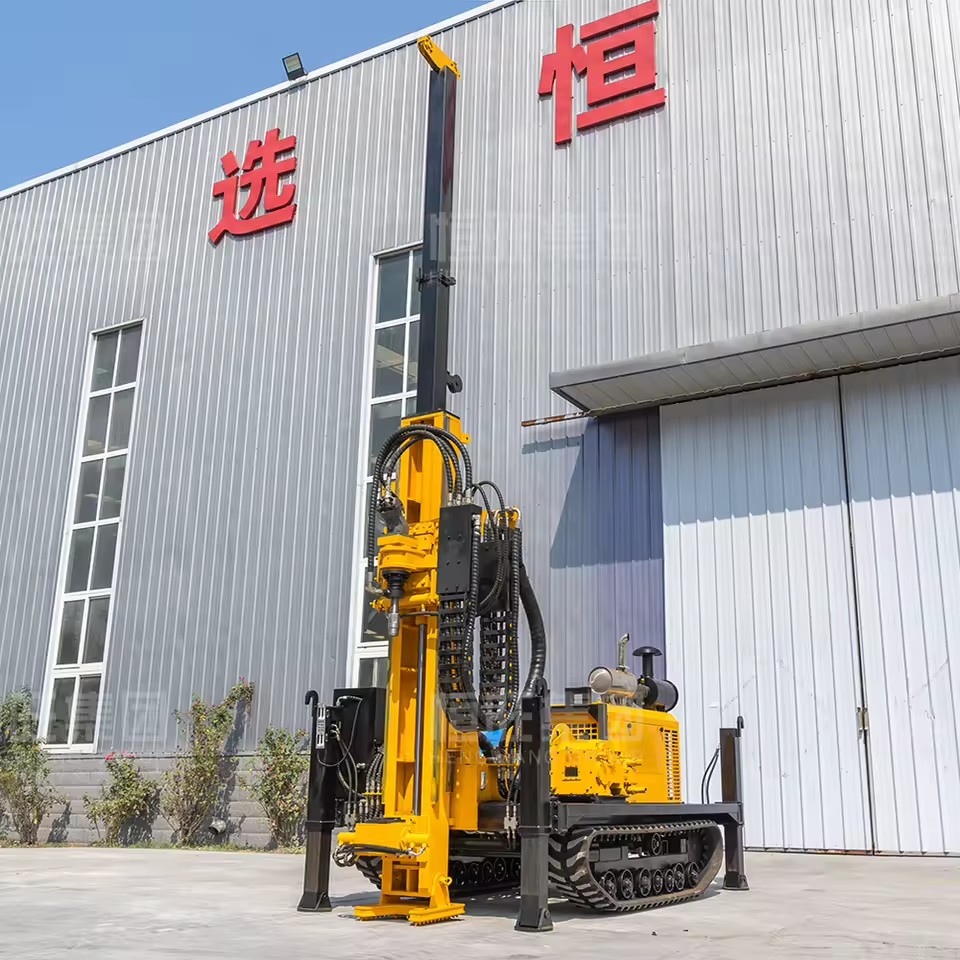

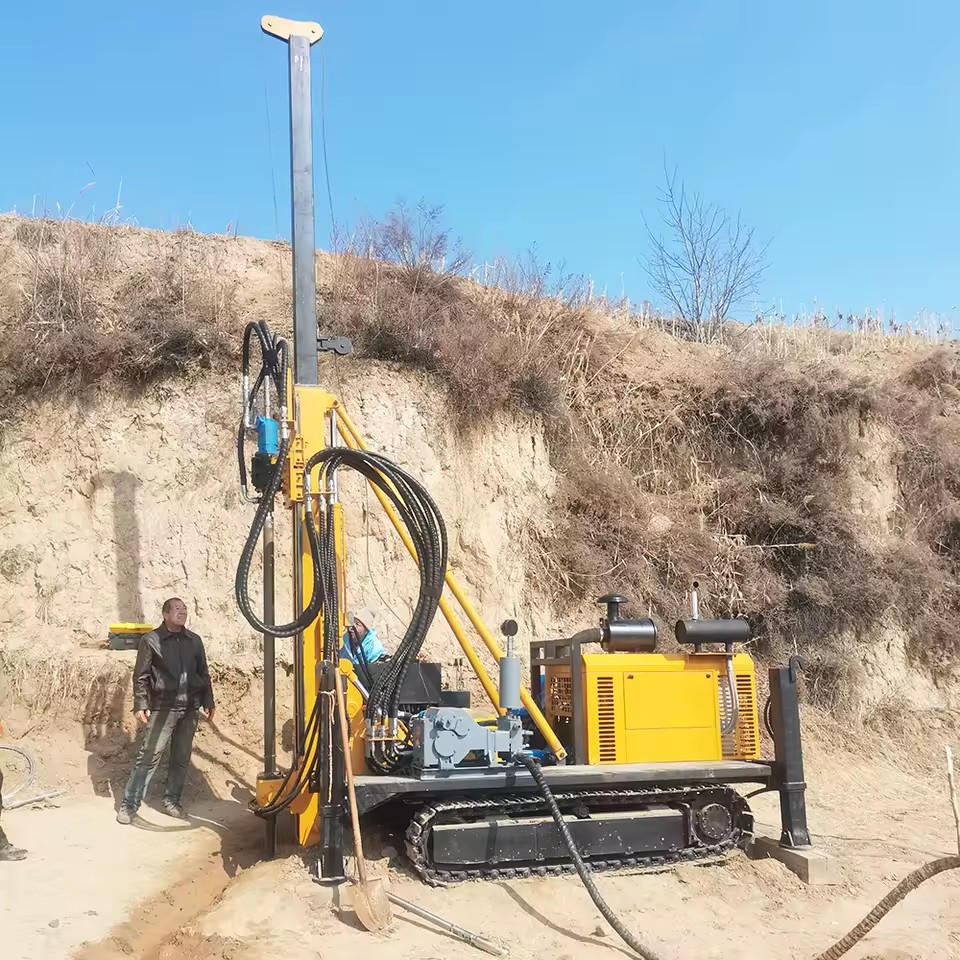

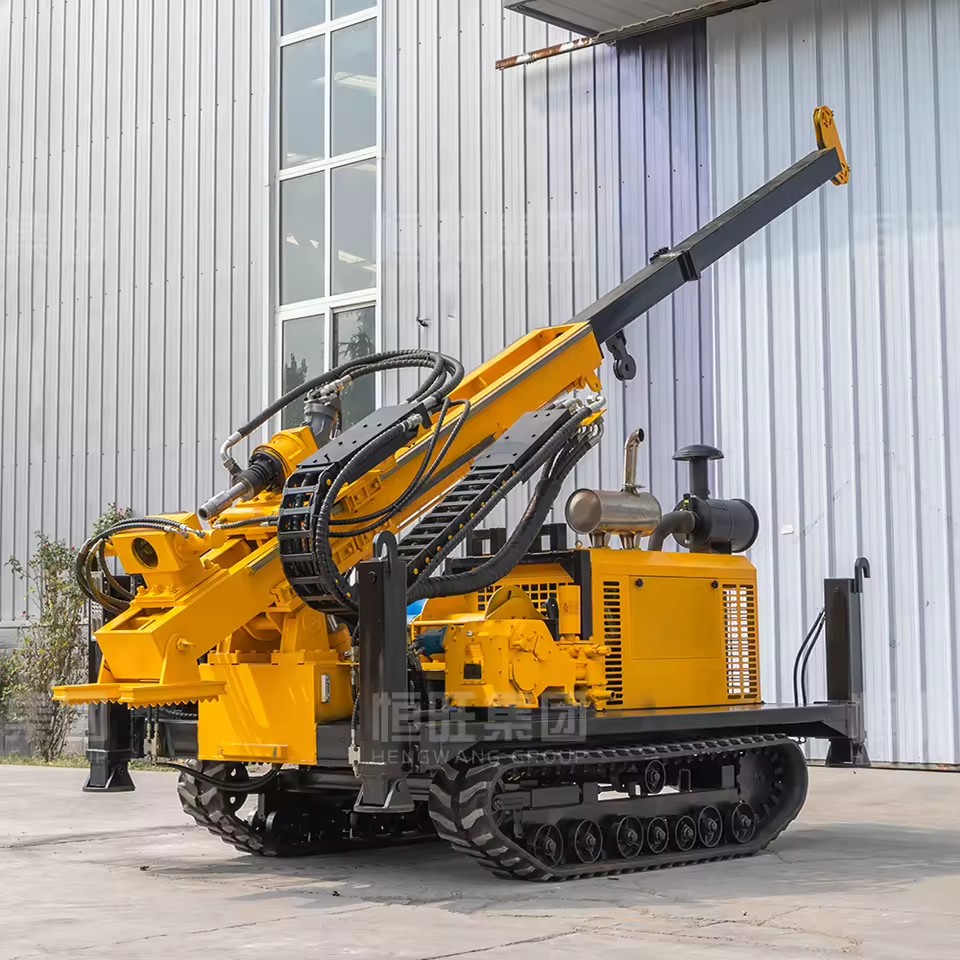

Hydraulic Full Drill Rig for Mining Exploration 600M 800M 1000M with NQ BQ Featuring Pump and Engine Core Components

Available for enquiry 0.0 · 0 reviews
USD

$ 2,490.00 2490.0 USD $ 2,490.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.1000m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in)
Power Type
Diesel
Voltage
380V
Product description

Note

ModelHW-400XLHW-600XL/GLHW-800S/GLHW-1000GL
Drilling capacity
DiameterHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTW
Depth(m)180-400-500200-600-650400-800-1000500-1000-1100
Hydraulic system
Rated pressure(Mpa)21212528
Rated flow(L/min)168192260300
Cooling typeAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water cooling
Engine
BrandYuchaiYuchaiYuchaiCummins
TypeTurbochargeTurbochargeTurbochargeTurbocharge
Rated rotary speed(rpm)2400240024002400
Rated power(KW)789292 (6 cylinders)154
Power head
Maximum torque(Nm)300-500450-1000950-13001000-3500
Maximum rotary speed(rpm)1300130013001300
Feeding stroke(mm)1900190024003500
Drilling tower
TypeGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling tower
Drilling angle(°)45-9045-9045-9045-90
Lifting force(T)12162430
Feeding force(T)681215
Winch
Lifting force(KG)5006006001000
Rotary speed(rpm)100-240100-300100-300100-301
Wire rope diameter(mm)6666
Rope capacity(m)5006008001000
Traveling

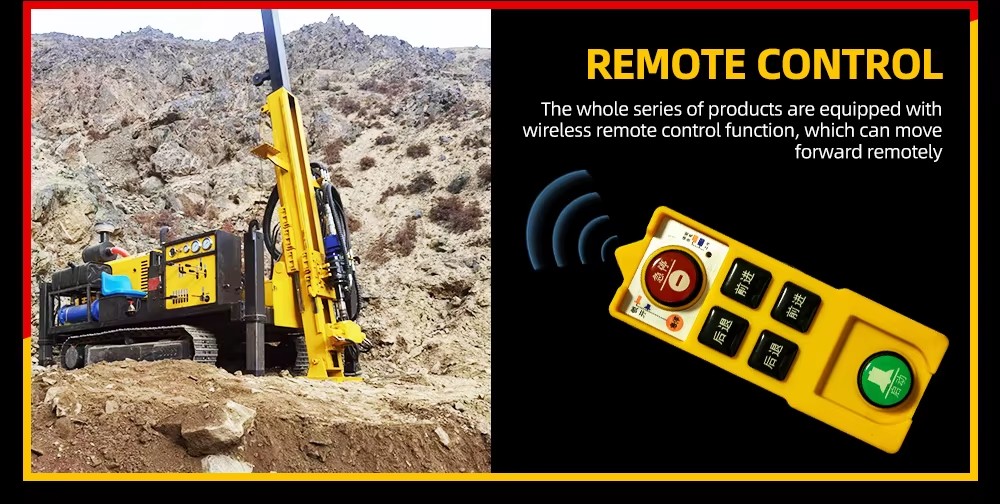

TypeManual + remote controlManual + remote controlManual + remote controlManual + remote control
Traveling speed(km/h)2.53.53.53.5
Climbing angle(°)45454545
Hydraulic mud pump
Flow(L/min)30-9030-9090-18090-180
Pressure(Mpa)4-74-74-74-7
Transport dimension(mm)4000*1900*18004000*2000*18005500*2100*20006000*2200*2400
Weight(T)4.34.5/5.56.57.5
Description images

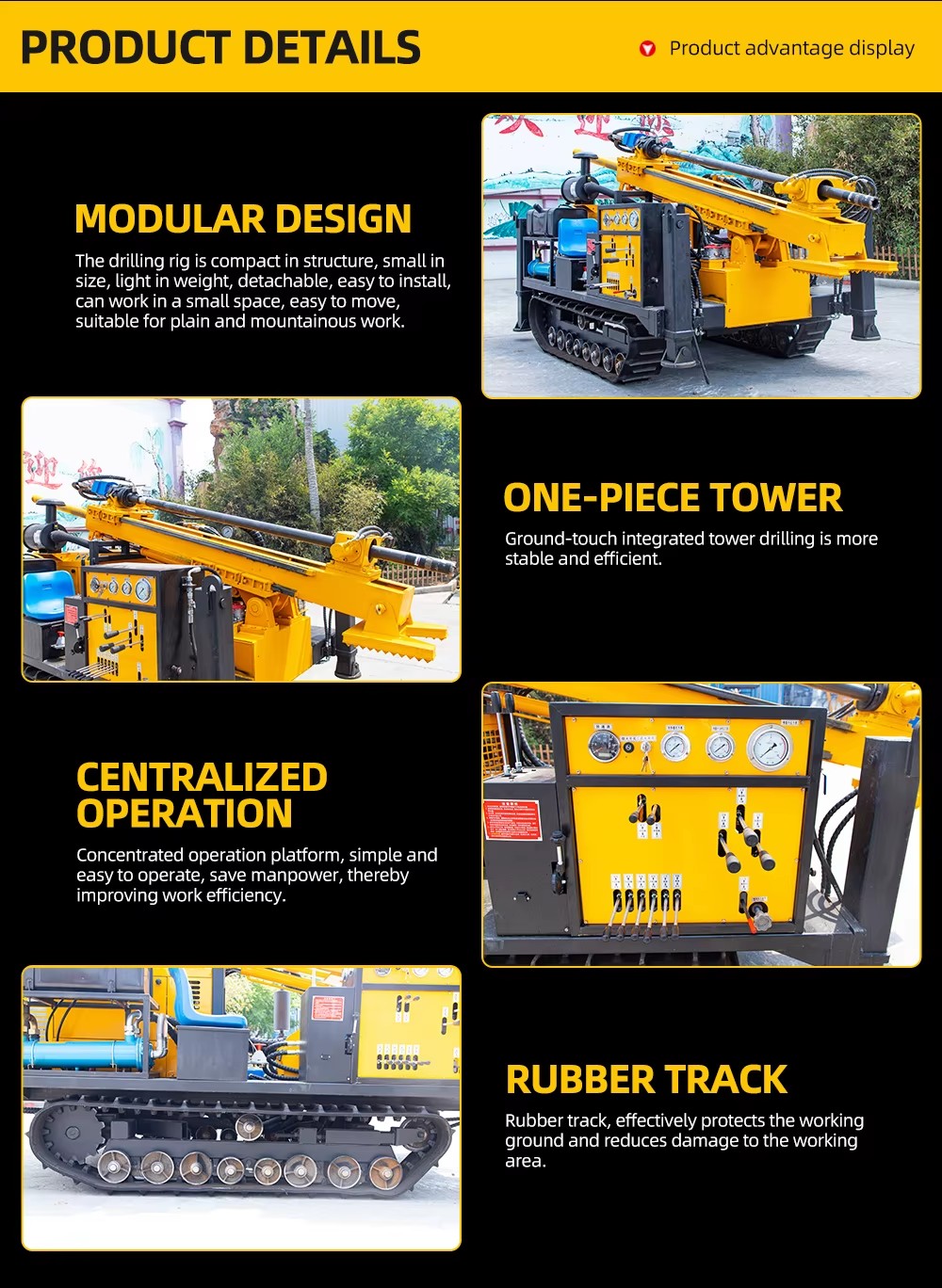

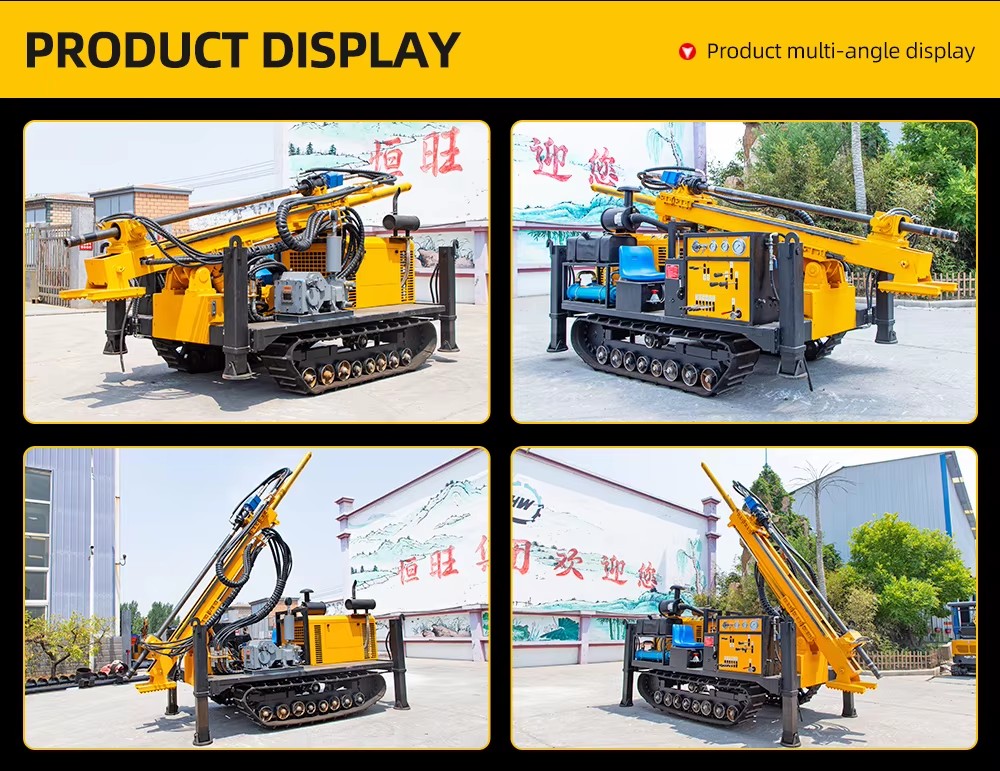

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.1000m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in)
Power Type
Diesel
Voltage
380V
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
China, Shandong
Weight
5500 kg(12125.42lb)
Dimension (L*W*H)
4000*2000*1800mm(157.48*78.74*70.87in)
Diameter
HTW-NTW-BTW
Depth
200m-600m-650m
Rated pressure
21Mpa
Rated flow
192L/min
Cooling type
Air cooling + Water cooling
Engine type
Turbocharge
Rated power
92KW
Traveling speed
3.5km/h
Power head Maximum torque
450-1000Nm
Power head Feeding stroke
1900mm
Selling Units
Single item
Single package size
400X200X180 cm
Single gross weight
5500.0 kg
Model number
HWCORE1-HW-YDX-600XL
Power (W) (Product option)
92KW(123.37hp)
Lead time
15 days
Minimum order
1 Units
