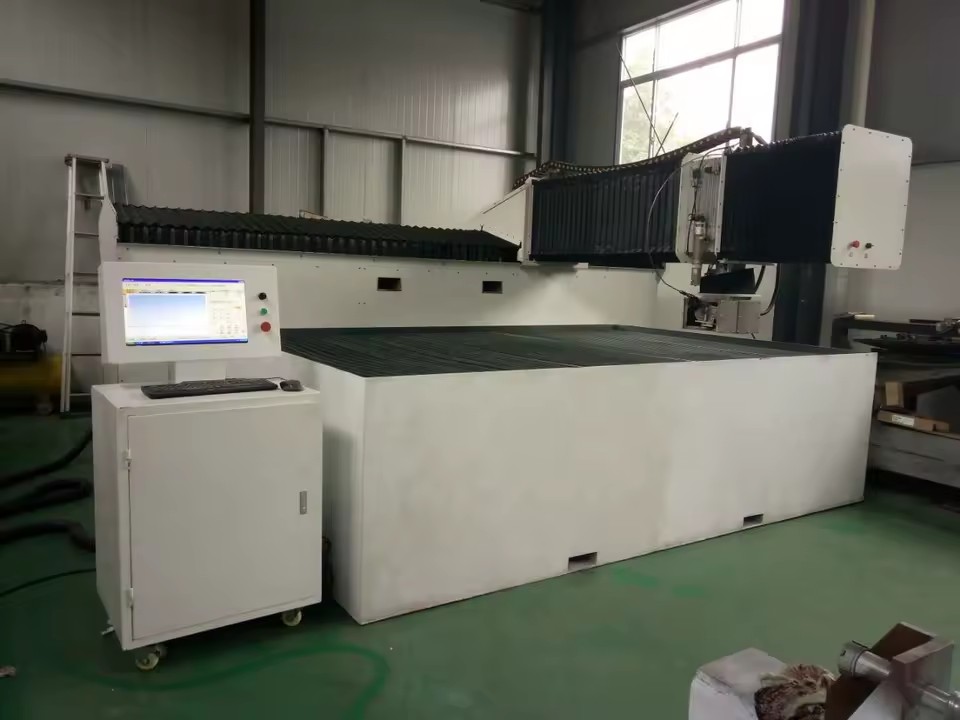

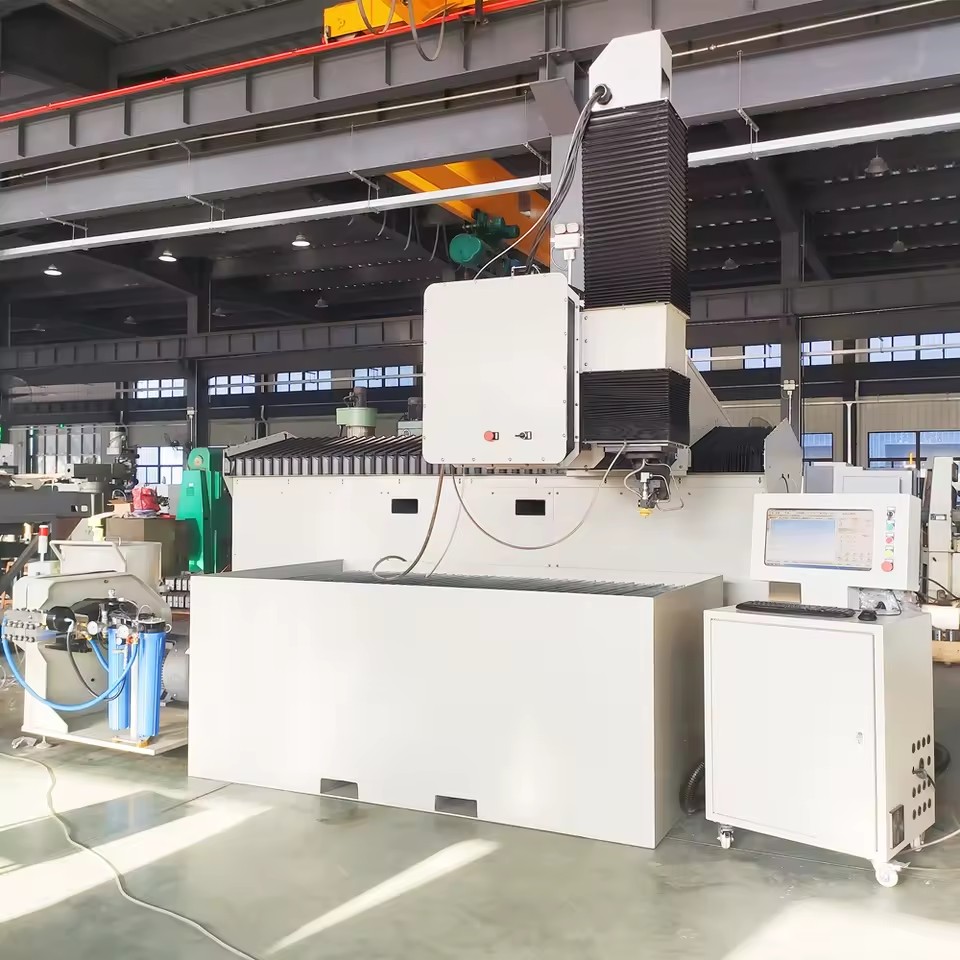

Factory Price Supplier Water Jet Cutting Machines Prices for Marble Granite Stone Cutting

Specifications\

Cutting table

Model

1313

2015

3020

4020

6020

Customized

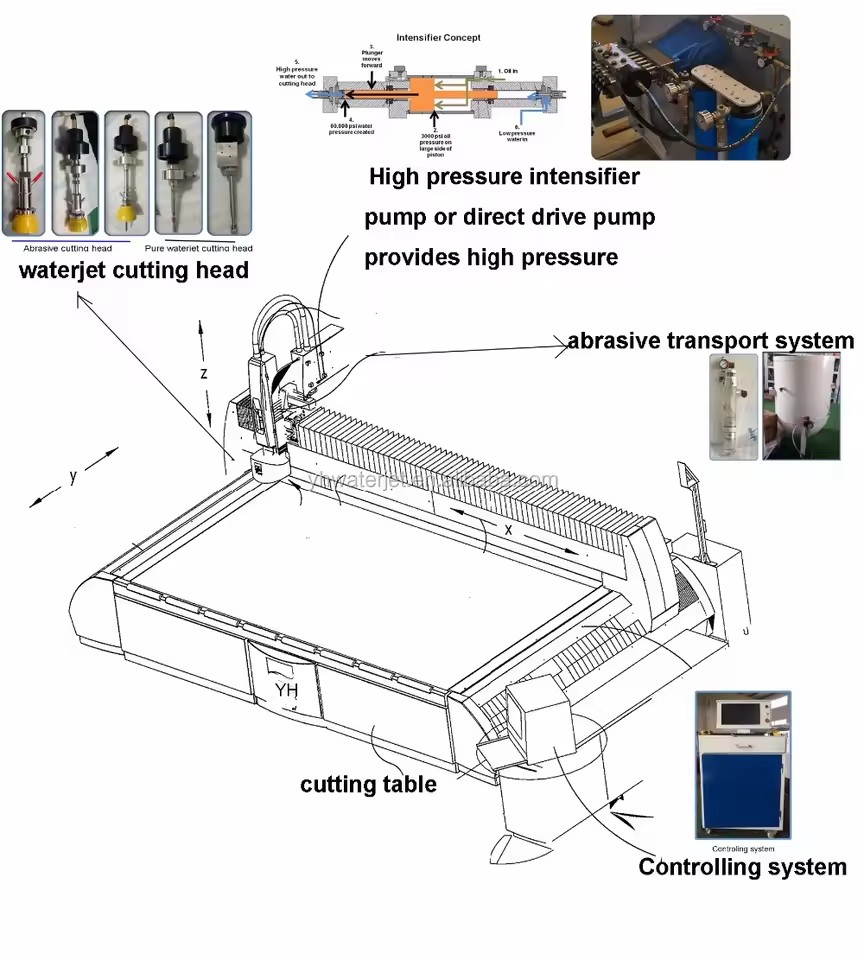

Structure

Gantry water cutting platform/cantiler series cutting platform

Travel

X Axis

1300mm

2000mm

3000mm

4000mm

6000mm

Y Axis

Cutting Head

3 axis / 5 axis Movement: Linear motion/Rotary motion

CNC Controller

System simple operation, import the code or standard parts DXF(CAD) Documents, can be processed. Feed rate online adjustment,10%~250%. Operating Systems: Microsoft® Windows 7 Supported Languages: English, Chinese, French, German, Italian, Japanese, Korean

System simple operation, import the code or standard parts DXF(CAD) Documents, can be processed.

Feed rate online adjustment,10%~250%.

Operating Systems: Microsoft® Windows 7

Supported Languages: English, Chinese, French, German, Italian, Japanese, Korean

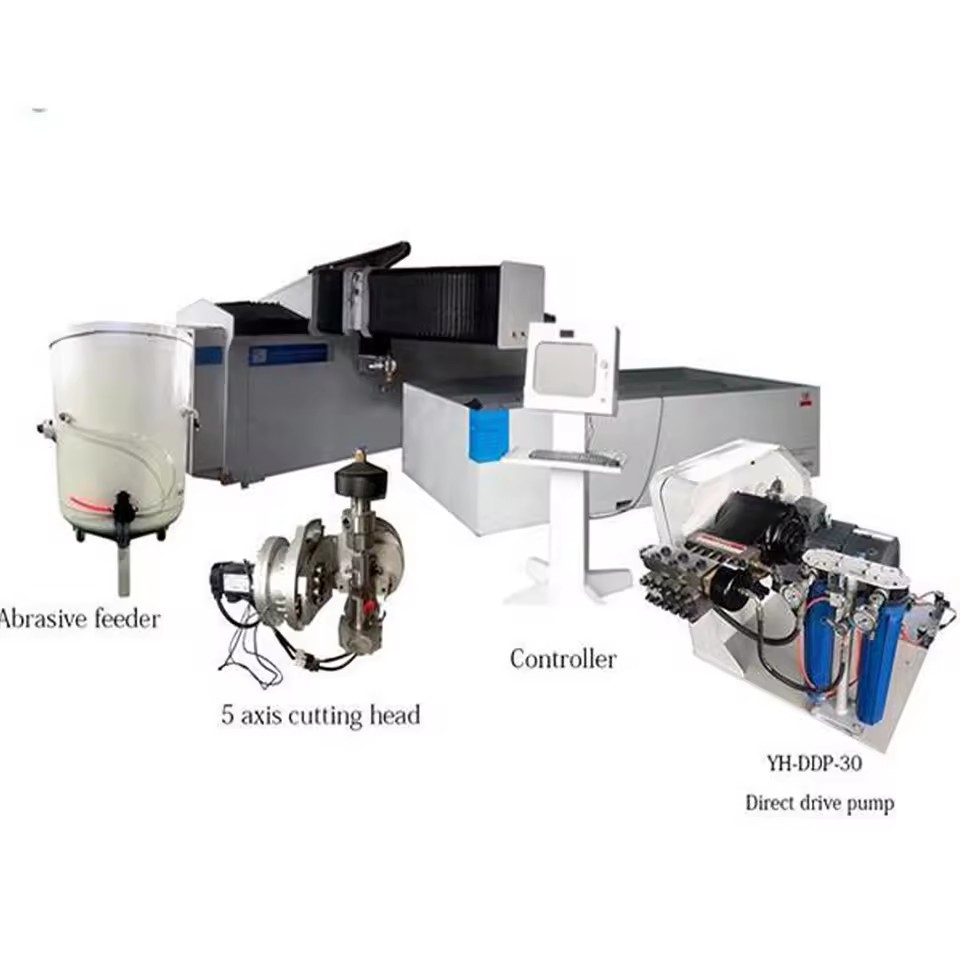

Abrasive Feeder

Max. inlet air pressure: 0.2-0.4 Mpa Min. inlet air flow:0.028m3/min Abrasive capacity:170 L

Max. inlet air pressure: 0.2-0.4 Mpa

Min. inlet air flow:0.028m3/min

Abrasive capacity:170 L

Intensifier pump

Reted power: 50HP (37 KW) Max.pressure: 60000psi (4137 bar) Control voltage and cuttent: 24DC,10AMPS Ambient temperature: 5-40 ℃ Fuel tank capacity: 114L Cooling flow: 11.4L/MIN Attenuation: 1L Length: 1473 MM Width: 1205 MM Weight: 1056 MM Weight: 1025KG

Reted power: 50HP (37 KW)

Max.pressure: 60000psi (4137 bar)

Control voltage and cuttent: 24DC,10AMPS

Ambient temperature: 5-40 ℃

Fuel tank capacity: 114L

Cooling flow: 11.4L/MIN

Attenuation: 1L

Length: 1473 MM

Width: 1205 MM

Weight: 1056 MM

Weight: 1025KG

Water jet cutting machine spare part package: soft packing inside,carton packing outside. Water jet cutting machine package: wooden package The package ways is also can according to the requirement of customer.

(1) Are you a manufacturer or Trade Company? We are a professional manufacturer and have our own International Trade Department, so we can better understand customer's needs and offer a reasonable price. (2) Is the price offered changeable? We always offer best price for every our customers. Price could be variable depends on purchasing amount and other factors. (3) How about the quality? All parts and raw materials are all supplied by professional and reputable companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement. (4) What kind of material can your machine cut? There are a variety of materials that our cutting machines can cut, such as metal, stone, glass, tiles and so on. (5) When are you shipping? We are sure to receive payment after 3-5 days in the delivery date. (6) What kinds of payment do you accept? It depends on the region.

Product Description

3 axis / 5 axis

Movement: Linear motion/Rotary motion

Company Information

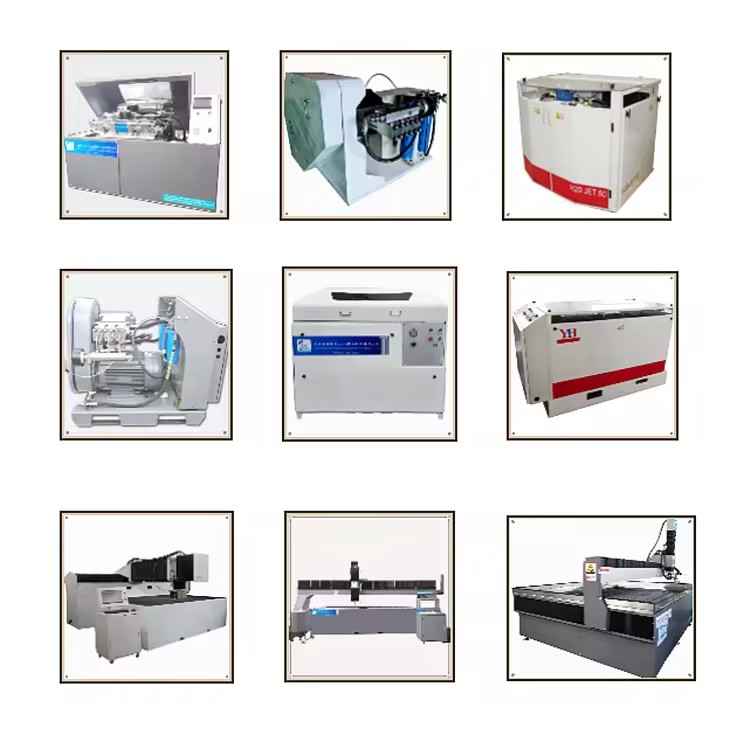

water jet equipment reserach and development, production, sales, service as one of the water jet equipment supplier.

We are one of the best manufactures about water jet cutting machine, more than 10 years experience let us get good

reputation from customer. Our main products are water jet cutting machine,waterjet cutting head (3 axis and 5 axis), water

jet cutting pump (Intensifier pump and Direct drive Pump), water jet spare parts, water jet cleaning parts, Laser cutting

machine and so on. Our customers are all over the world. The, Britain

Africa, Elbania,,, and other places have our customers.Our main markets are Africa,Oceania

Domestic Market,South Asia,Mid East,Southeast Asia,Northern Europe,Southern Europe,Eastern Asia,South America

Eastern Europe,North America,Central America,Western Europe.

Shanghai Yuanhong will in liner with "

customer first, quality first

" the idea,the full use of the various water knife

essence, according to the customer need to configure the best solutions and services for the user.

Packaging & Shipping

Water jet cutting machine spare part package: soft packing inside,carton packing outside.

Water jet cutting machine package: wooden package

The package ways is also can according to the requirement of customer.

Our Services

WHY CHOOSE US?

1. High quality

a. We use the components from their own factories, can guarantee a stable work, long service life.

b. The no trouble shorting working time can be over 1000 hours

c. Can guarantee the cutting precision

2. New function development

The company in addition to the water cut of all products, also the AD hoc ultrahigh pressure r&d center, hired former domestic and foreign well-know water knife cutting company technical personnel as the research and development personnel, and hired well-know Dr Materials of colleges and universities to provide technical support, including Beijing university of aeronautics and astronautics and so on.

AFTER SALE SERVICE

Professional service team and 24 hours online to solve your problems, give quick and professional guide.

Guarantee that provide technical service and training in time.

The maintenance is free within guarantee period, but if it is caused by human factors, you will pay for it to YH.

If it is not in the guarantee period, whatever reason for damaging the device, you will pay for it.

Installation and training: customer can be in our factory for learning,4-5days is ok.

The quality will be guaranteed due to 12 years working experience in water jet cutting machine an spare parts field.

FAQ

(1) Are you a manufacturer or Trade Company?

We are a professional manufacturer and have our own International Trade Department, so we can better understand customer's needs and offer a reasonable price.

(2) Is the price offered changeable?

We always offer best price for every our customers. Price could be variable depends on purchasing amount and other factors.

(3) How about the quality?

All parts and raw materials are all supplied by professional and reputable companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.

(4) What kind of material can your machine cut?

There are a variety of materials that our cutting machines can cut, such as metal, stone, glass, tiles and so on.

(5) When are you shipping?

We are sure to receive payment after 3-5 days in the delivery date.

(6) What kinds of payment do you accept?

It depends on the region.
