Nairobi Picking Diecrtly Bamboo Wood Tooth Pick Stick Toothpick Making Maker Machine

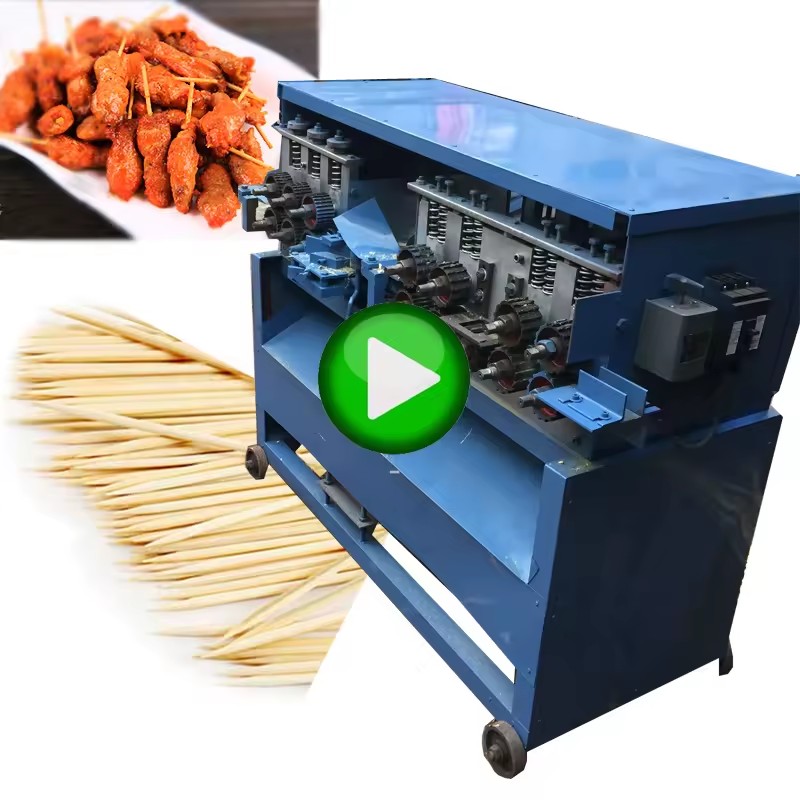

Nairobi Picking Bamboo Wood Tooth Pick Stick Toothpick Making Machine

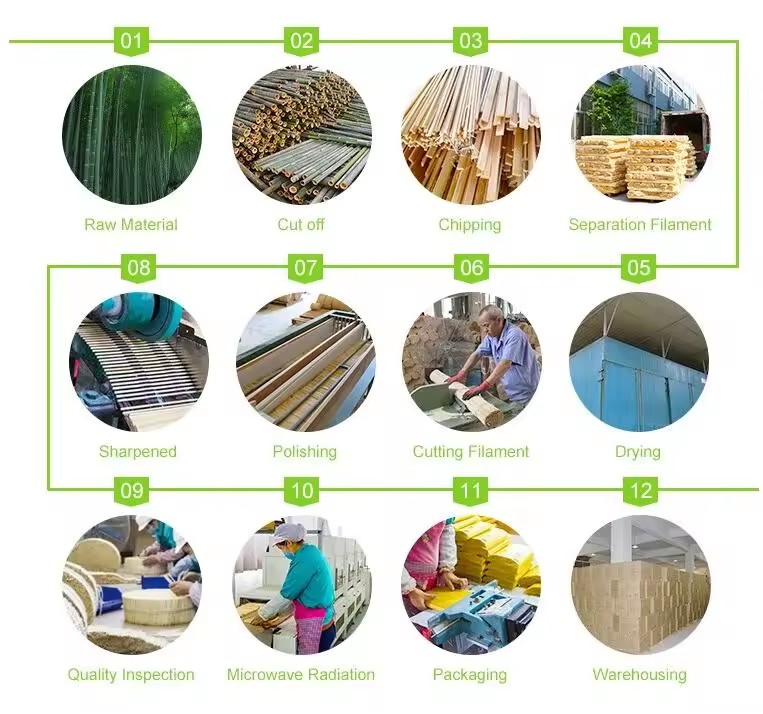

Flow chat

Original bamboo - picking sawing - cutting bamboo stick - section open piece of fixed width into silk, bleaching, drying, cutting off - length - polishing - neat - remove the defect to sign - nib - remove the defect sign, packaging, warehousing (factory).

Note: The size of the final bamboo toothpicks with diameter 2.2mm and length 65mm with two sharpened ends.The capacity is 8 00000 pcs/8 hours.We also match the machine according to clients’ need.

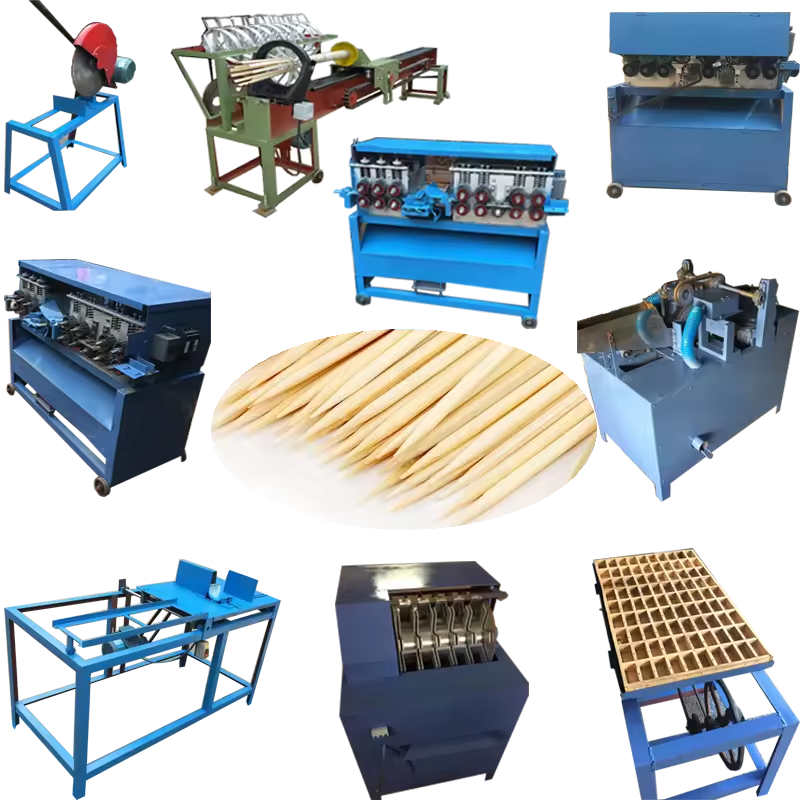

Description of toothpick process machine

1. Bamboo Sawing Machine: It is used to cut bamboo into certain length.

2. Bamboo Cutting Machine: This machine is used to split the bamboo into strips.

3. Fixed Width Slicer: Used for width and thickness setting and knot removing, separating green layer from yellow layer, ensures the surface quality of processed material.

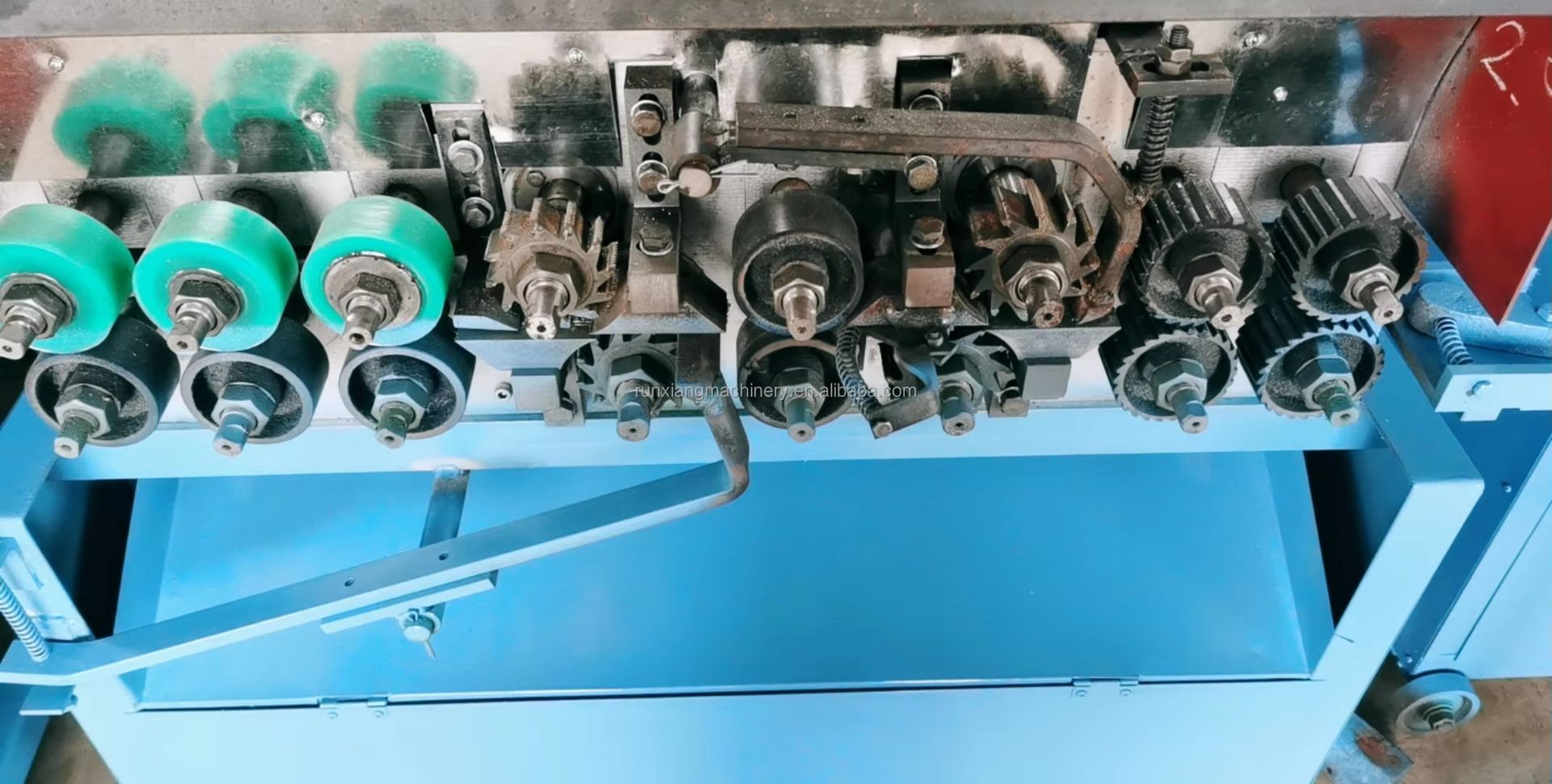

4. Bamboo Stick Shaping Machine: This machine is used for making thick bamboo strip into thinner one.

5. Bamboo Stick Size Setting Machine: Special equipment for bamboo stick or wood stick fixed size cutting, especially for round stick size set.

6. Bamboo Toothpick Cutting Machine: Length setting for bamboo toothpick

7. Toothpick Polishing Machine: It is to make the surface of toothpicks more smooth.

8. Toothpick Finishing Machine: Dedicated equipment for tidying toothpicks. Through vibration, tidy the irregular toothpicks to achieve the effect of packaging.

9. Toothpick Sharpening Machine: Used for sharpening bamboo toothpicks.

10. Blade Sharpening Machine: Used for blade grinding.

Technical Data of bamboo toothpick processing machine

Except semi automatic toothpick stick making machine line

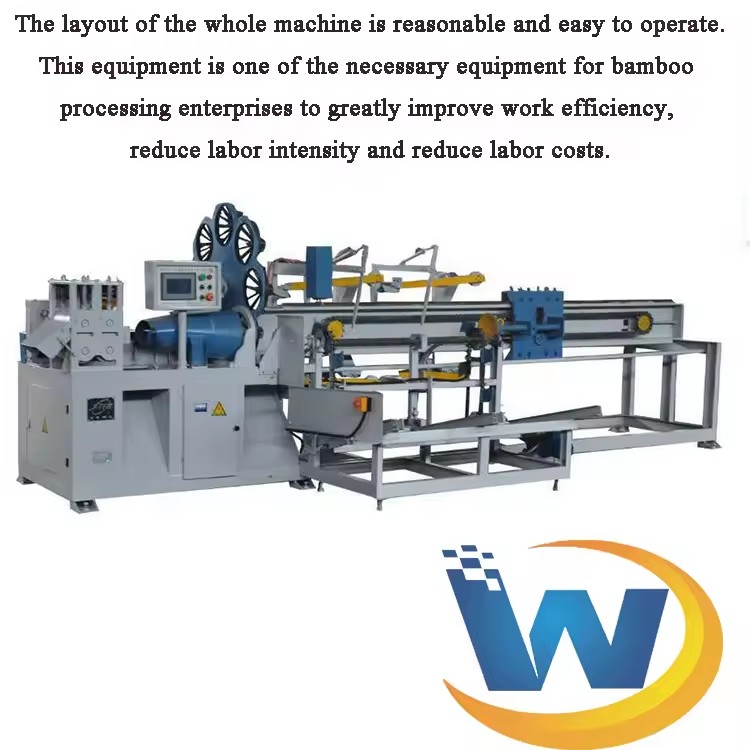

This machine adopts imported PLC system control and touch screen man-machine interface and photoelectric switch and proximity switch system control. The bamboo tubes of different sizes, equal thickness and length are manually placed on the automatic loading rack of the equipment, and the automatic feeding is adopted. The feeding device of the rack sends the bamboo tube to the top of the automatic loading rack, and after measuring the outer diameter of the bamboo tube by the electronic ruler, it is automatically replaced with the required width of the bamboo piece, and then the automatic cutting machine changes the required tool through the internal system command. The bamboo tube is automatically cut into the material of the automatic bamboo cutting machine, and the bamboo tube is clamped by the clamping arm device of the automatic centering material, and then automatically pushed to the cutter by the collision bowl to carry out the bamboo tube cutting bamboo, and the bamboo tube is cut into bamboo pieces. After that, the bamboo piece is sent to the bamboo piece receiving rack through the automatic discharging device.

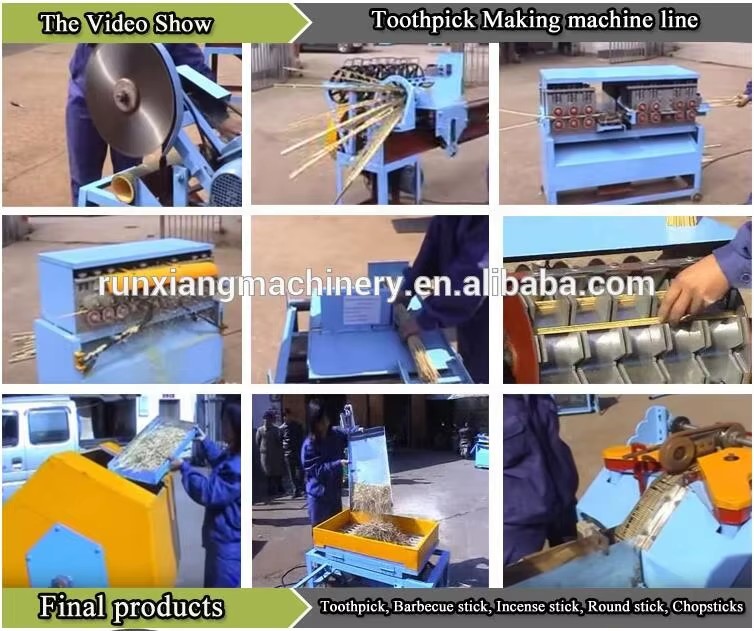

We also provide the whole line to make bamboo toothpick and stick.

FAQ

Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to

Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you. Q: How can I know your machine is designed for my product? A: You can send us samples of your product and we test it on machine.

A: Before delivery, we shall test the machine working condition for you.

Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.

Q: Do you have a CE certificate? A: For every model of machine, it has a CE certificate. Your Satisfaction is Our Honor!

Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.
