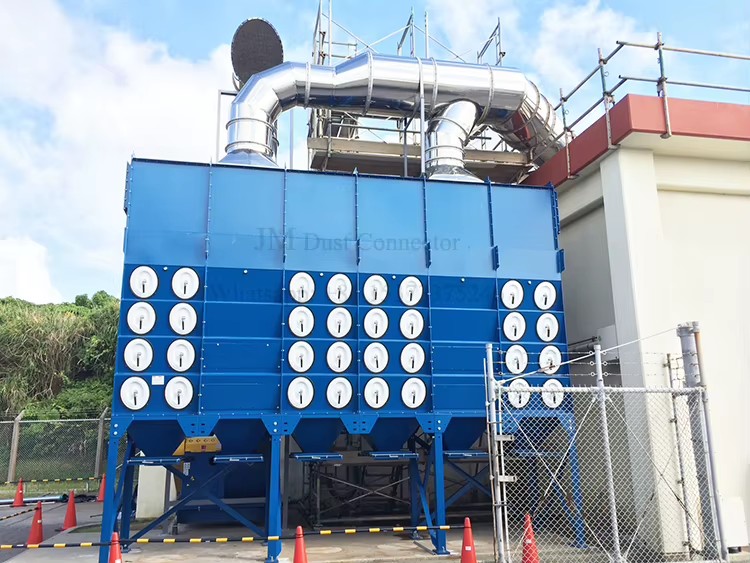

Energy Saving Air Dust Removal Equipment with Engine and Motor Core Components

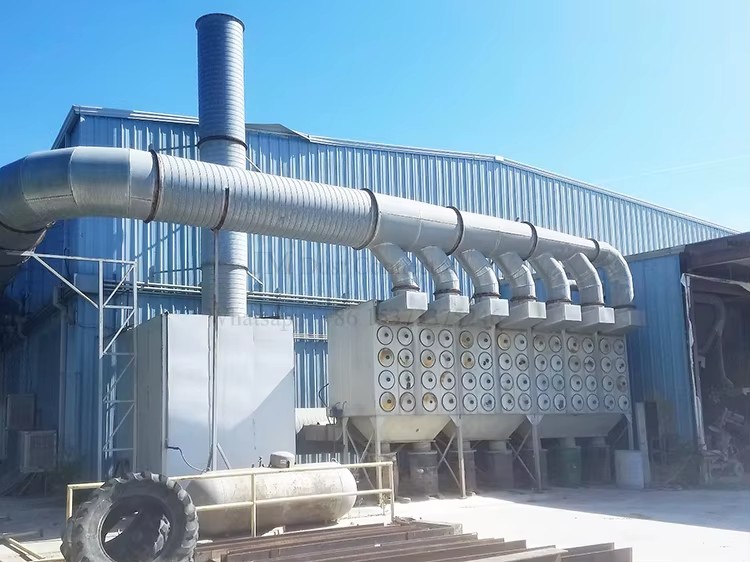

JM Cartridge Filter Dust Collector

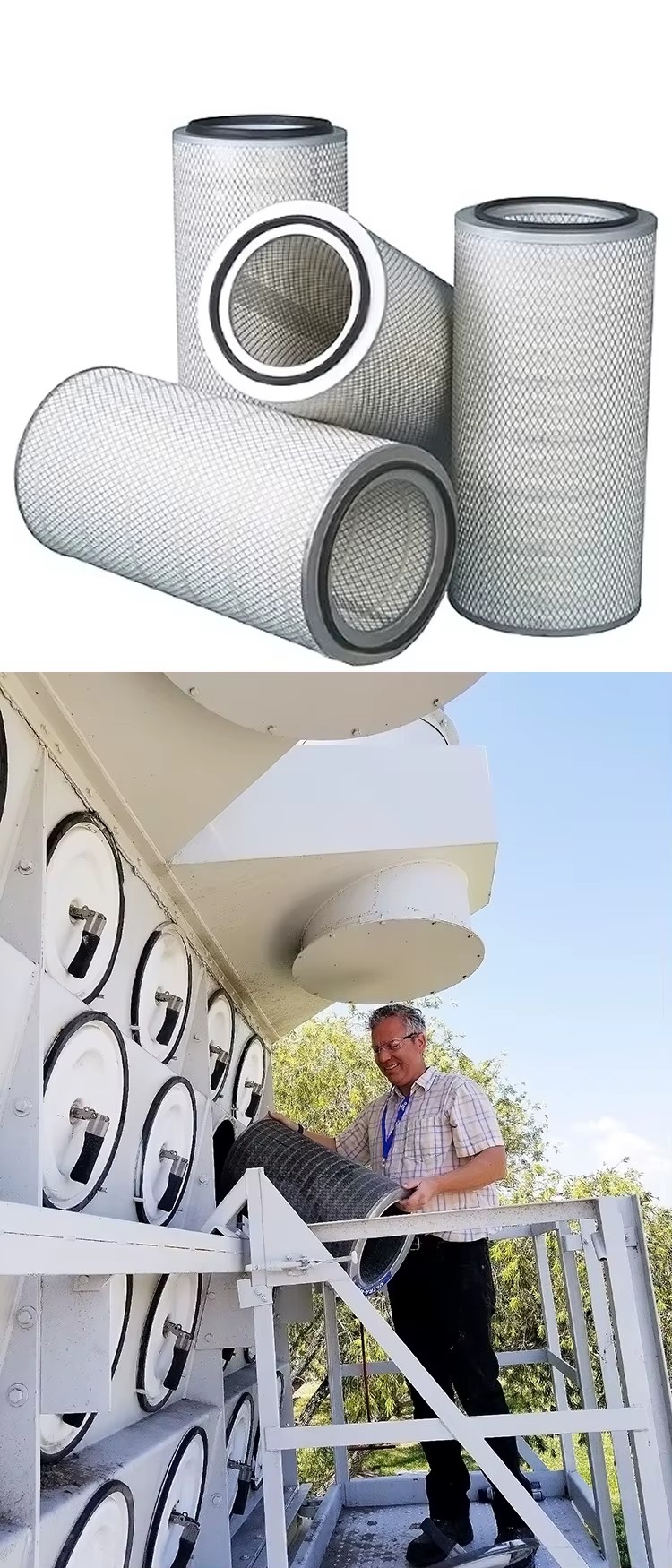

JM 's premium filter engineered to provide the best filtration protection for your plant and employees. A widened pleat and proprietary filter media help deliver top performance.

cartridge filter parameters

What is cartridge dust collector?

It is one kind of dust-removal equipment which is made up of several cartridge filters and adopts pulse back flushing. According to the way of installation of the cartridge filter, it has four types. They are sideways installed cartridge filter dust collector, endways installed cartridge filter dust collector, ceiling mounted cartridge filter dust collector and top mounted cartridge filter dust collector.

Working Principle

1.These air valves deliver momentary burst or pulse of high compressed air through the manifold pipe into the filter tube. This push of air creates reverse flow of air, which expands these filter cartridges to remove the collector dust.

2.The cleaning procedure occurs on a row by row basis,therefore only a fraction of cartridges are interrupted for cleaning which makes sure of continuous ventilation.

3.The dust cake when pulsed from the filter cartridges falls directly into the bucket at the bottom where it is removed.

4.An exhaust fan is suitable for air volume 1000 cubic feet per minute and is mounted on the top of dust collector, which generates the negative draft throughout the process

Main Features

1.The complete installation is designed to occupy a minimum amount of floor space and overhead room. can be assembled on site without any requirement of the expertise manpower.

3.The units are fully welded construction. It has no moving part, which guarantees a long life.

Our service

1.Eight experienced engineers to consider every possibility for customers.some of them have over 10 years knowledge of casting technology.

2. 3D software for auxiliary design will show every design detail in front of you.

3.Experienced technicians for production installation,commissioning&service.

4.All machine parts are out sourced from professional CNC machining company with strict quality control procedure.
