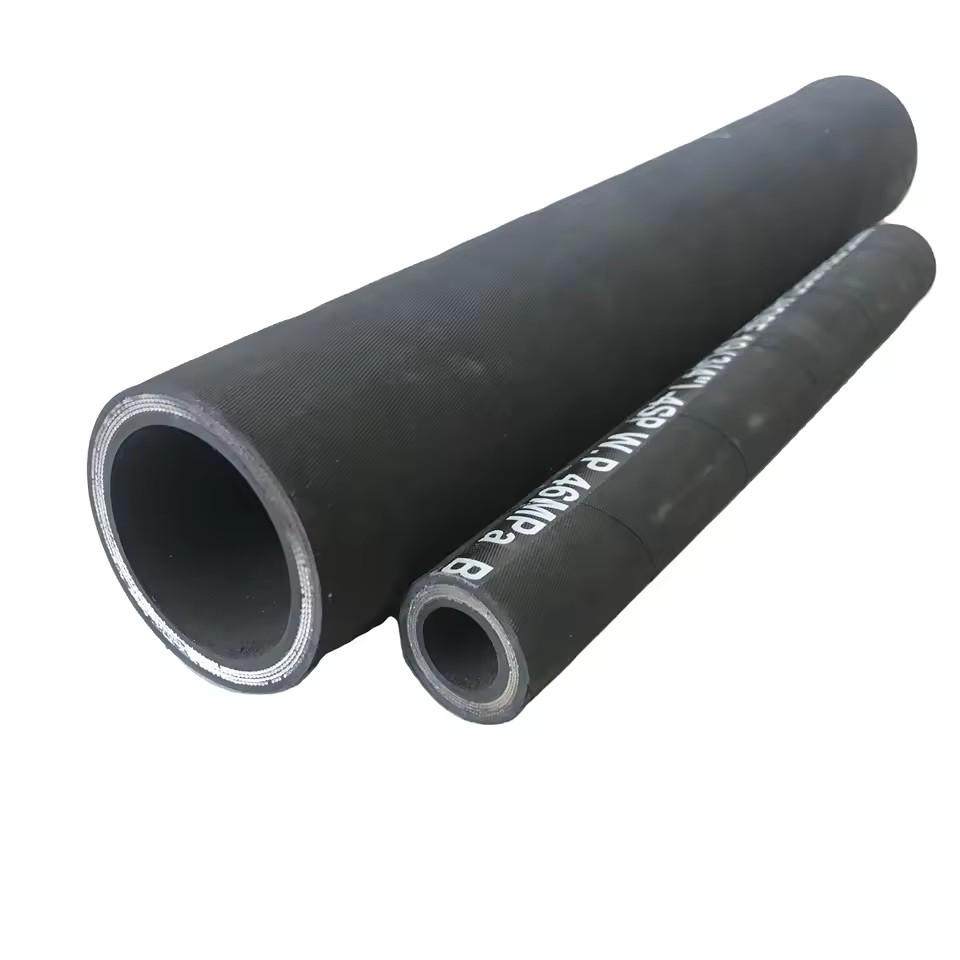

High Pressure 3/8 Inch Hydraulic Oil Hose SAE100r1at EN853 1SN Made of NBR Material Custom Cutting Service

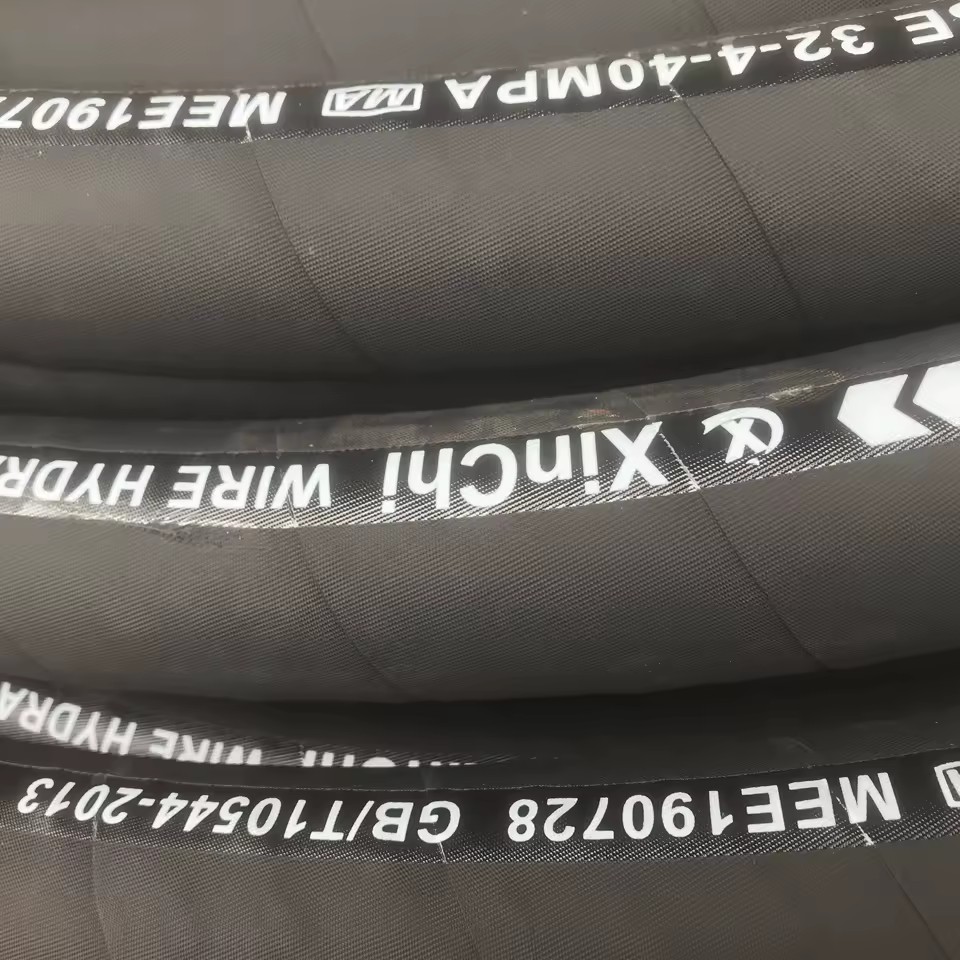

Product Importer Gallery 01 · 9b3b229778

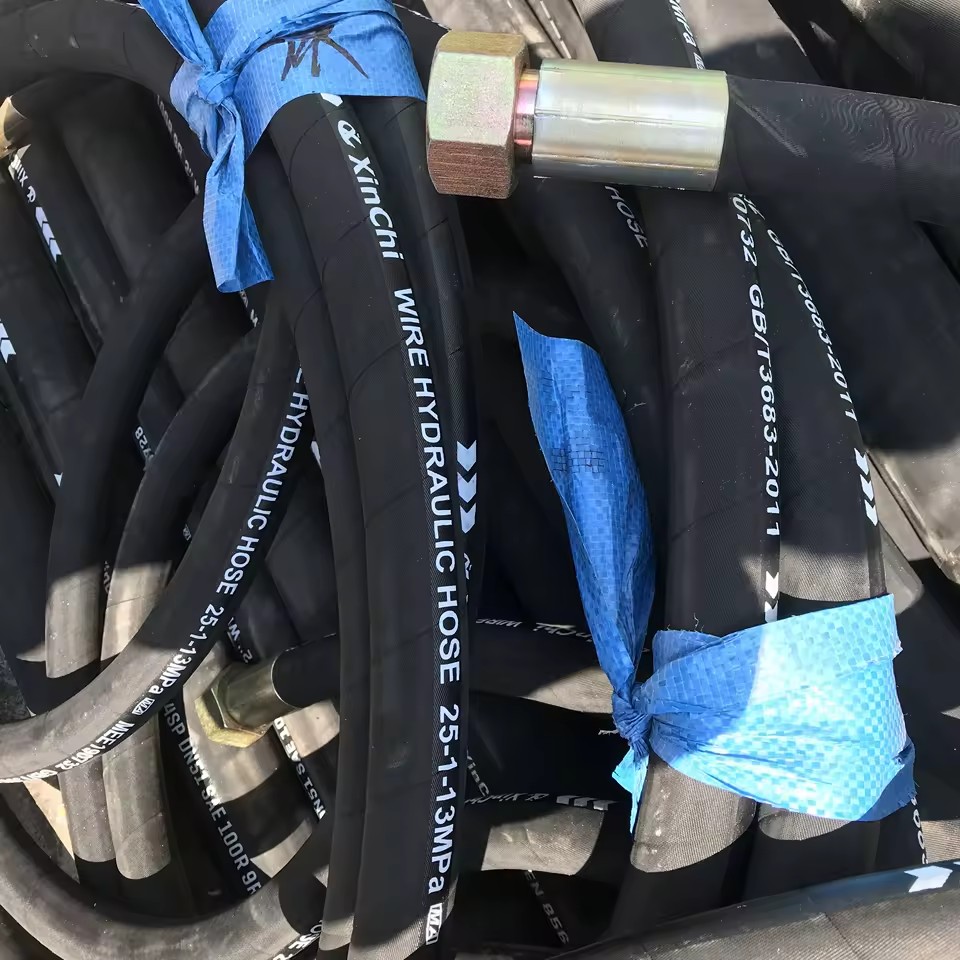

Product Importer Gallery 02 · 57932a0033

Product Importer Gallery 03 · 495588d4be

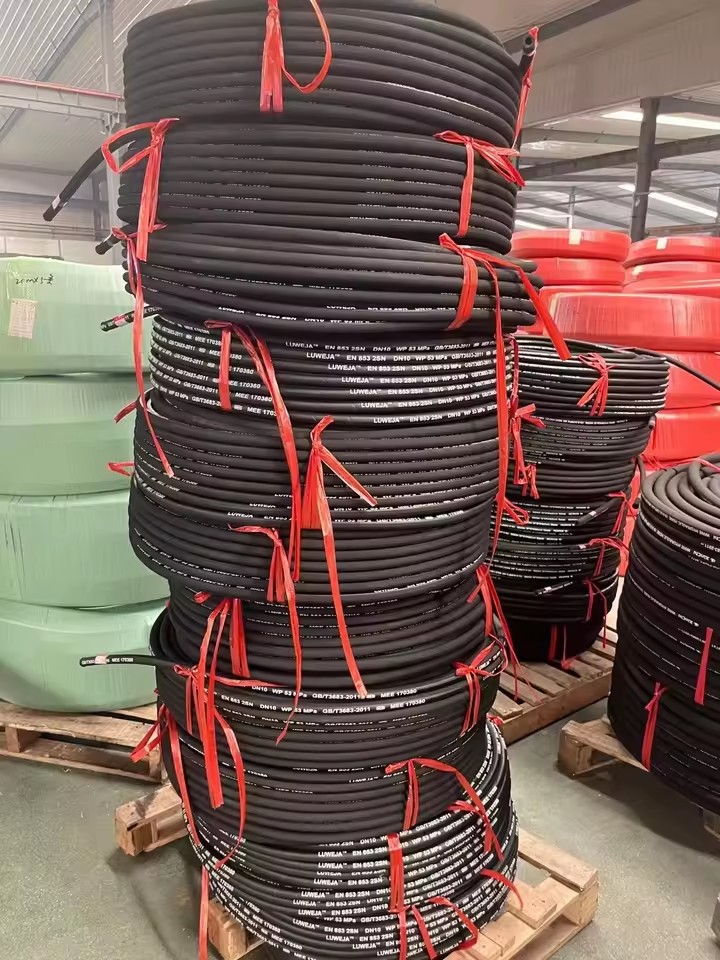

Product Importer Gallery 04 · 53ac9fbe98

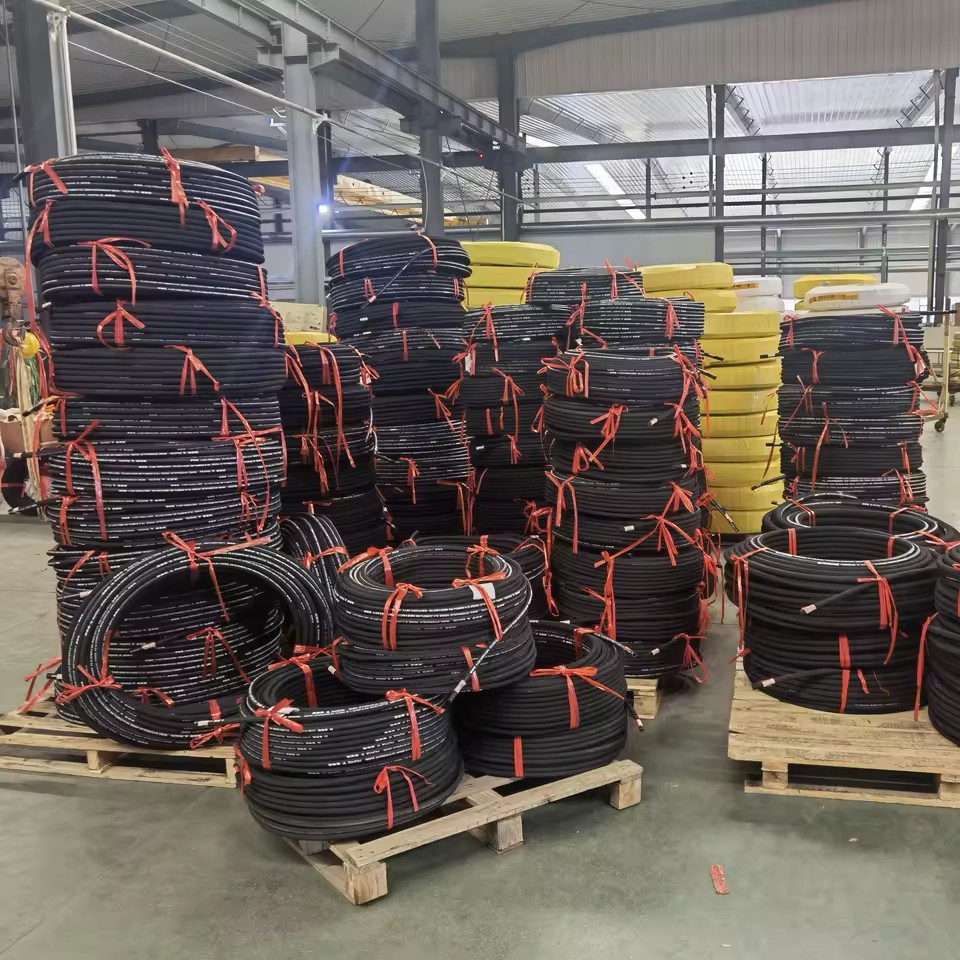

Product Importer Gallery 05 · e6814b2de2

Product video

Certifications CCC

High Pressure 3/8 Inch Hydraulic Oil Hose SAE100r1at EN853 1SN Made of NBR Material Custom Cutting Service

Name: High Pressure 3/8 Inch Hydraulic Oil Hose SAE100r1at EN853 1SN Made of NBR Material Custom Cutting Service
SKU: ZMZM-3YP9-TP8X
Price: 20.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews 2697 sold

USD

$ 20.00 20.0 USD $ 20.00

Minimum order quantity: 100 Units

Key attributes

View all

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Material

NBR

Size

Customized Size

Color

Black

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Approx. shipping fee: $ 63.45 for 100 meters · Estimated delivery: Sep 30–Oct 24 (22–46 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

item	value
Place of Origin
Hebei
Brand Name	XINCHI
Model Number	DIN
Processing Service	Moulding, Cutting
Material	NBR
Size	Customized Size
Color	Black
MOQ	1pcs
Length	Customized Length
Standard	SAE100/DIN EN853
Warranty	1 Year
Quality	100% Product Testing
Sample	Free(Customer Pays Freight)
OEM	OEM Services Provided

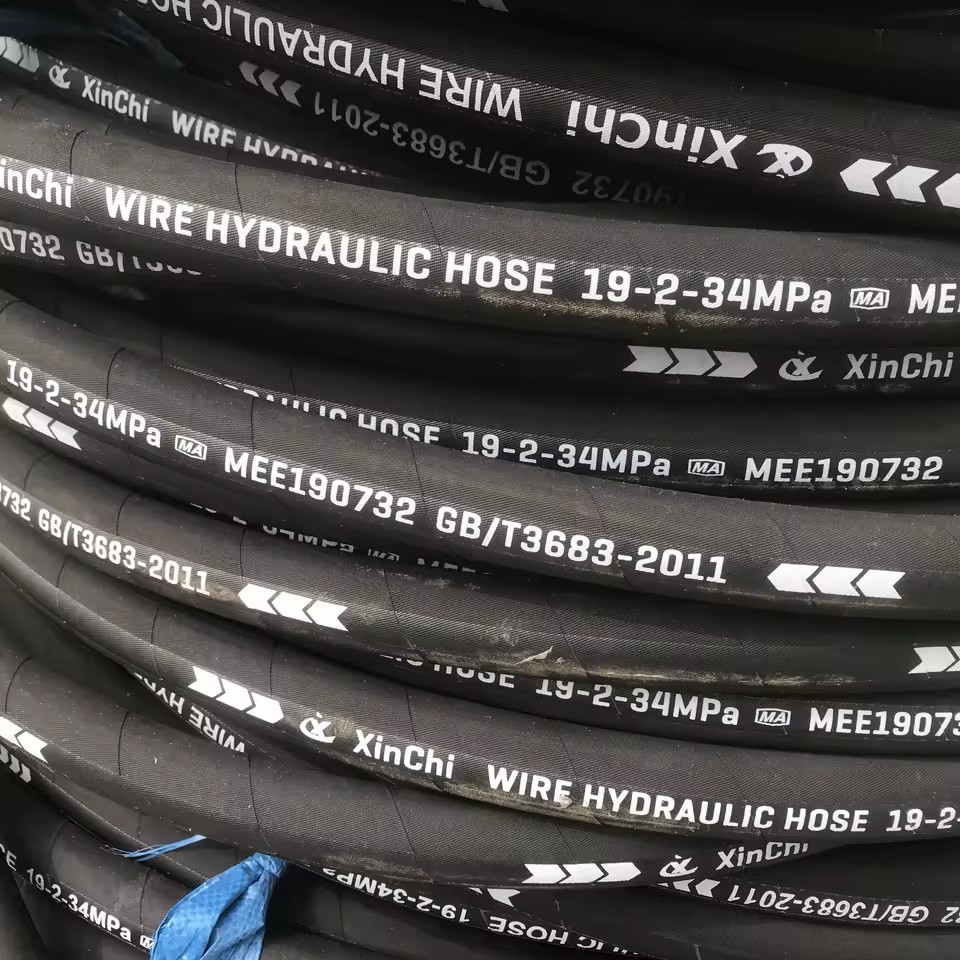

High Pressure Rubber Hose

Reinforcement	Number
One steel wire braided	SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK DIN/EN 1SN WG, DIN 1SC, SAE R5, SAE 100R17
Two steel wire braided	SAE R2AT/DIN 2SN, SAE R2AT/DIN 2ST, DIN 2SNK, DIN 2SC
One/two wire braided	SAE R16
Four steel wire spiral	SAE R9AT, SAE R10, SAE R12, DIN 4SP, DIN 4SH
High flexibility nylon or thermoplastic	SAE R7, SAE R8

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	9	10	11.1	13	25	50	100	85
6.3	1/4	10.6	11.6	12.7	14	22.5	45	90	100
8	5/16	12.1	13.3	14.3	16	21.5	43	86	115
10	3/8	14.5	15.7	16.7	18	18	36	72	130
12.5	1/2	17.5	19.1	19.8	21	16	32	64	180
16	5/8	20.6	22.2	22.9	25	13	26	52	200
19	3/4	24.6	26.2	26.9	29	10.5	21	42	240
25	1	32.5	34.1	34.6	37	8.8	17.6	35.2	300
31.5	1-1/4	39.3	41.7	42.2	45	6.3	12.6	25.2	420
38	1-1/2	45.6	48	49.1	52	5	10	20	500
51	2	58.7	61.7	62.5	66	4	8	16	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
5	3/16	10.6	11.6	12.7	14	41.5	83	166	90
6.3	1/4	12.1	13.3	14.3	16	40	80	160	100
8	5/16	13.7	14.9	15.9	17	35	70	140	115
10	3/8	16.1	17.3	18.3	20	33	66	132	130
12.5	1/2	19	20.6	21.4	23	27.5	55	110	180
16	5/8	22.2	23.8	24.6	26	25	50	100	200
19	3/4	26.2	27.8	28.5	30	21.5	43	86	240
25	1	34.1	35.7	37.3	39	16.5	33	66	300
31.5	1-1/4	43.3	45.7	47.1	50	12.5	25	50	420
38	1-1/2	49.6	52	53.3	56	9	18	36	500
51	2	62.3	64.7	66	69	8	16	32	630

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
10	3/8	16.9	18.1	20.6	22.2	44.5	89	178	180
12.5	1/2	19.4	21	23.8	25.4	41.5	83	166	230
16	5/8	23	24.6	27.4	29	35	70	140	250
19	3/4	27.4	29	31.4	33	35	70	140	300
25	1	34.5	36.1	38.5	40.9	28	56	112	340
31.5	1-1/4	45	47	49.2	52.4	21	42	84	460
38	1-1/2	51.4	53.4	55.6	58.8	18.5	37	74	560
51	2	64.3	66.3	68.2	71.4	16.5	33	66	660
64	2-1/2	76	78	83.1	85.5	35	70	140	990
76	3	100	103	105.1	108	35	70	140	1200
89	3-1/2	114	115.5	118	122	35	70	140	1300
102	4	126	128	131	134.2	35	70	140	1400

I.D	W.D	O.D	W.P	P.P	B.P	MIN B.R
mm	Inch	Min.	Max.	Min.	Max.	MPa	MPa	Mpa	mm
19	3/4	27.6	29.2	31.4	33	42	84	168	280
25	1	34.4	36	37.5	39.9	38	76	152	340
31.5	1-1/4	40.9	42.9	43.9	47.1	32.5	65	130	460
38	1-1/2	47.8	49.8	51.9	55.1	29	58	116	560
51	2	62.2	64.2	66.5	69.7	25	50	100	700

Certifications & compliance

CCC

Flame Retardant Material

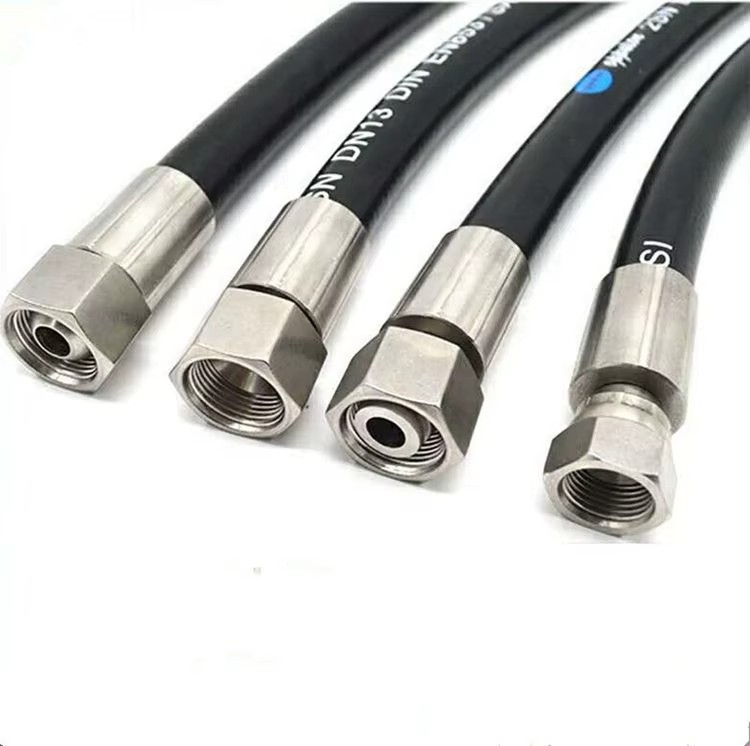

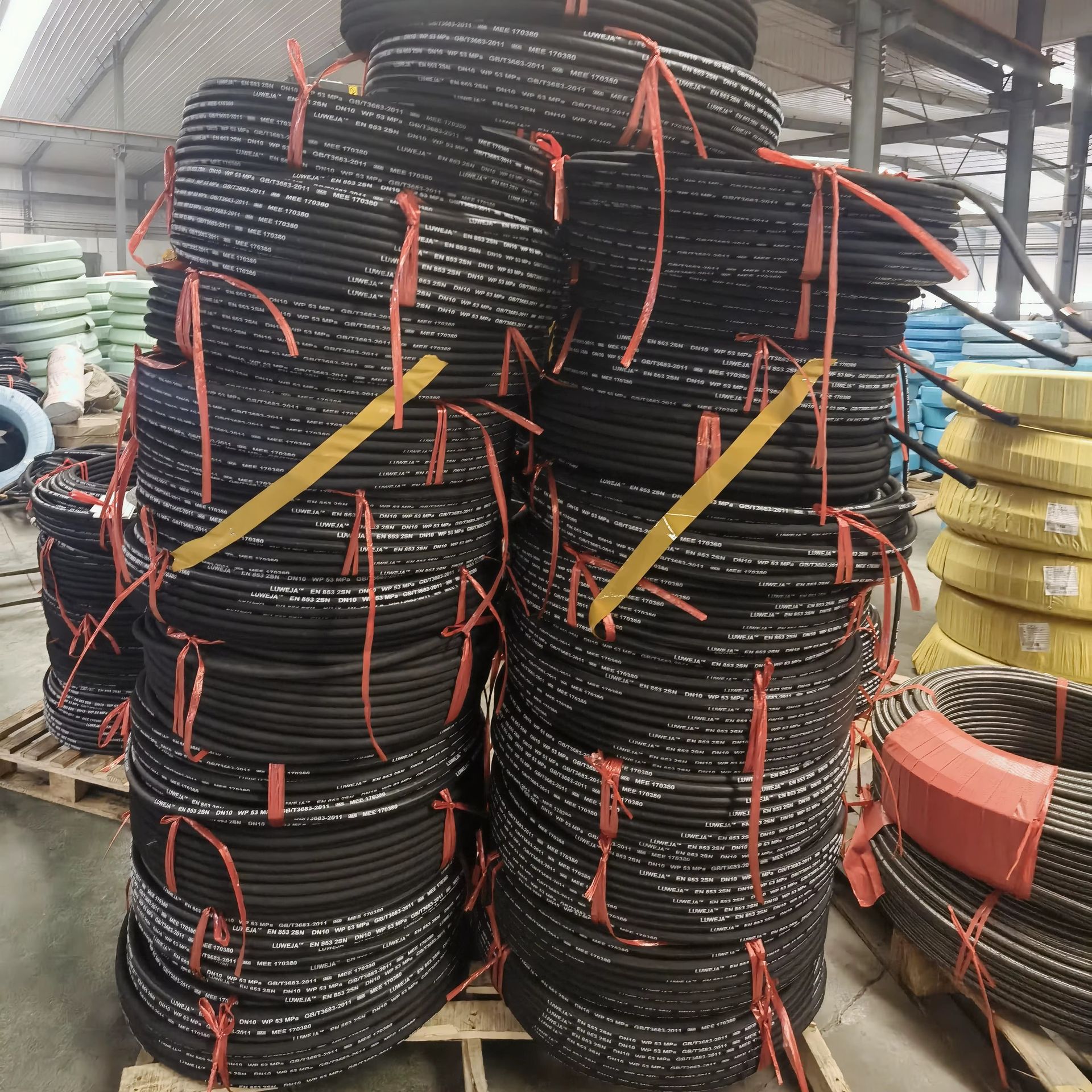

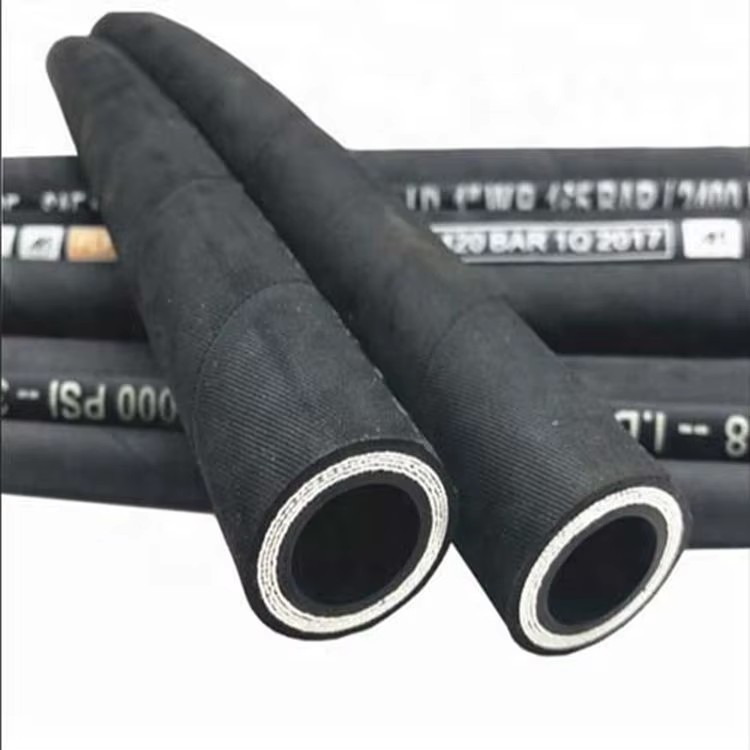

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

8 days
Step 3

Packaging and dispatch

Economy · Approx. shipping fee: $ 63.45 for 100 meters · Estimated delivery: Sep 30–Oct 24 (22–46 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 17 fields

Processing Service

Moulding, Cutting

Place of origin

China, Hebei

Model number (Specification)

DIN

Material

NBR

Size

Customized Size

Color

Black

MOQ

1PCS

Length

Customized Length

Standard

SAE100/DIN EN853

Warranty

1 Year

Quality

100% Product Testing

Sample

Free(Customer Pays Freight)

OEM

OEM Services Provided

Selling Units

Single item

Single package size

0.5X0.5X0.5 cm

Single gross weight

0.5 kg

Certifications & Compliance

CCC

Lead time

8 days

Minimum order

100 Units
