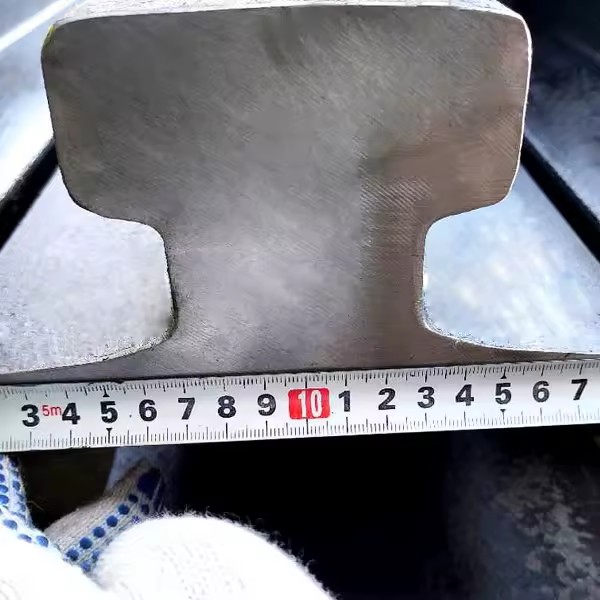

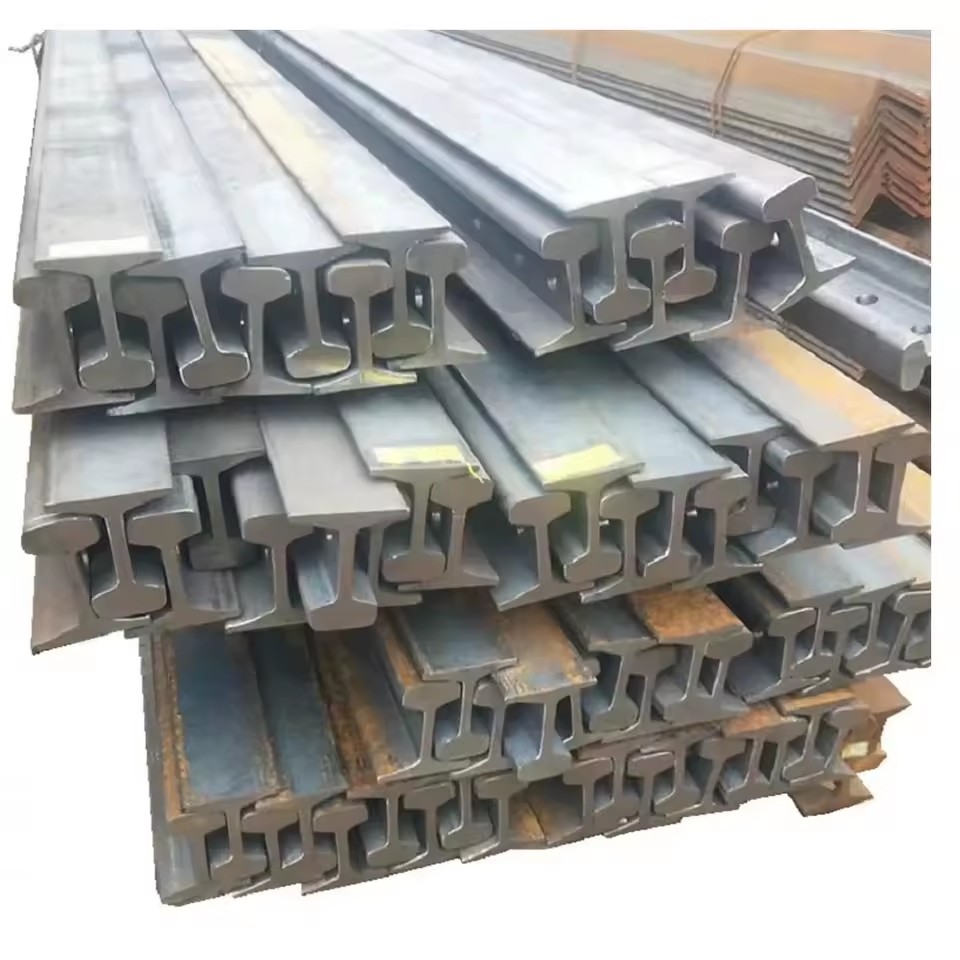

| DIN 536 Standard A65 Crane Steel Rail | |
| Standard | AiSi ASTM bs DIN GB JIS EN(GB3426-82) |
| Grade | 700/900A/1100 |
| Rail Heigth | 95mm or Customer's requirements |
| Bottom Width | 200mm or Customer's requirements |
| Web Thickness | 60mm or Customer's requirements |
| Head Width | 100mm or Customer's requirements |
| Place of Origin | |
| Zhejiang | |
| Type | Crane Steel Rail |
| Weight | 22.1kg/m |
| Usage | Railway Mining,Architectural decoration,Structural pipe making, Gantry Crane, Train |
| Secondary Or Not | Non-secondary |
| Tolerance | ±1% |
| Delivery Time | 8-14 days |
| Samples | Freely |
| Length | 10-12m or Customer's requirements |
| Payment Term | T/T 30% Deposit |
| MOQ | 1 TON |
| Product Name | Type | Section Size/mm | N.W. KG/M | Material | Length | |||
| Height | Bottom Width | Head Width | Waist Thick | |||||
| Crane rail | A45 | 55 | 125 | 45 | 24 | 22.1 | 700/900A/1100 | 10-12M |
| A55 | 65 | 150 | 55 | 31 | 31.8 | 700/900A/1100 | 10-12M | |

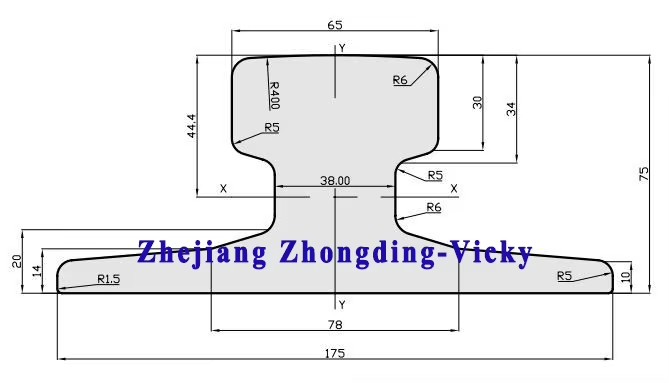

| A65 | 75 | 175 | 65 | 38 | 43.1 | 700/900A/1100 | 10-12M | |
| A75 | 85 | 200 | 75 | 45 | 56.2 | 700/900A/1100 | 10-12M | |
| A100 | 95 | 200 | 100 | 60 | 74.3 | 700/900A/1100 | 10-12M | |
| A120 | 105 | 220 | 120 | 75 | 100 | 700/900A/1100 | 10-12M | |
| A150 | 150 | 220 | 150 | 80 | 150.3 | 700/900A/1100 | 10-12M |
| Crane rail size | Minimum tensile strength N/mm2 | C % | Si % max | Mn % | P % max | S % max |
| A45, A55, A65, A75, A100, A120, A150 | 690 | 0.40-0.60 | 0.35 | 0.8-1.2 | 0.045 | 0.045 |
| A75, A100 | 880 | 0.60-0.80 | 0.50 | 0.80-1.30 | 0.045 | 0.045 |
| A120, A150 | 880 | 0.55-0.75 | 0.50 | 1.30-1.70 | 0.045 | 0.045 |
Q:Do you provide free samples? A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs. Q:Do you accept small orders? A:You don't need to worry about this problem,just consult. Q:Do you accept the third party inspection? A:Yes absolutely we accept. Q:How could you guarantee your products? A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality. Q:What are the advantages of your company? A:(1): Prime quality and reasonable price. (2): Wide excellent experiences with after-sale service. (3): Every process will be checked by responsible QC which insures every product's quality. (4): Professional packing teams which keep every packing safely. (5): Trial order can be done in one week. (6): Samples can be provided as your requirements. Q:What is your terms of payment? A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight. Q:How about our price? A:Our price is very competitive because we are a factory.Pls feel free to
A:Yes,we can provide a free sample for testing,buyer should bear all the shipping costs.
A:You don't need to worry about this problem,just consult.
A:Yes absolutely we accept.
A:Each piece of products is manufactured by certified workshops,inspected by Linxu piece by piece according to national QA/QC standard.We also could issue the warranty to customer to guarantee the quality.
A:Payment<=1000USD,100% in advance.Payment>=1000USD,30% T/T in advance,balance based on BL copy or LC at sight.
A:Our price is very competitive because we are a factory.Pls feel free to
A:Different products have different delivery time.The products will be delivered as soon as possible on the basis of the quality ually the delivery time is within 7 days after we received your deposit.





-
Step 1
Payment and order readiness
Minimum order: 1 Units
Payment terms, specifications, and order details are confirmed before preparation begins.
-
Step 2
Preparation
4 days
-
Step 3
Packaging and dispatch
Air + Express via FLY Logistics · Approx. shipping fee: $ 8.00 for 1 ton · Transit time: Est. 8-9 days
Final packing, freight, and delivery dates are confirmed before dispatch.
