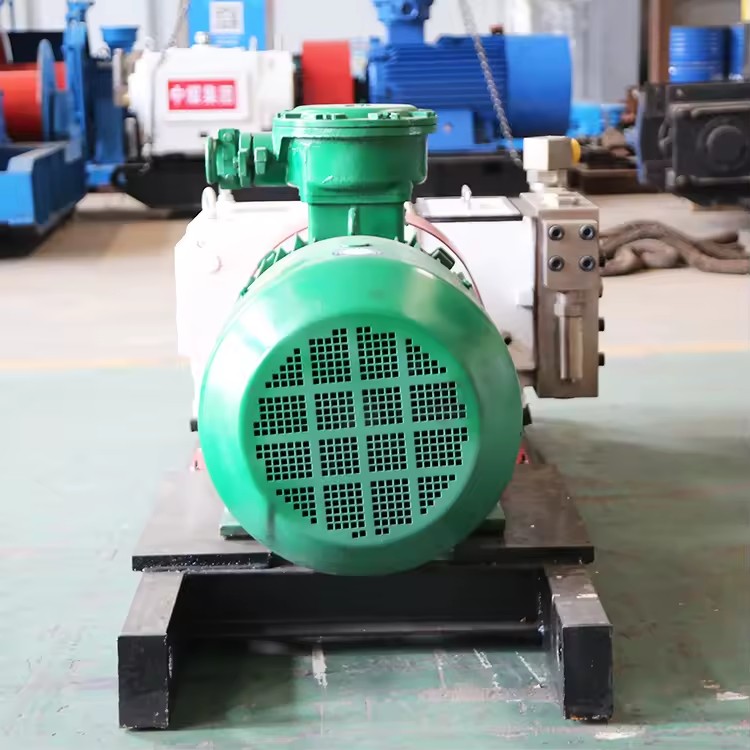

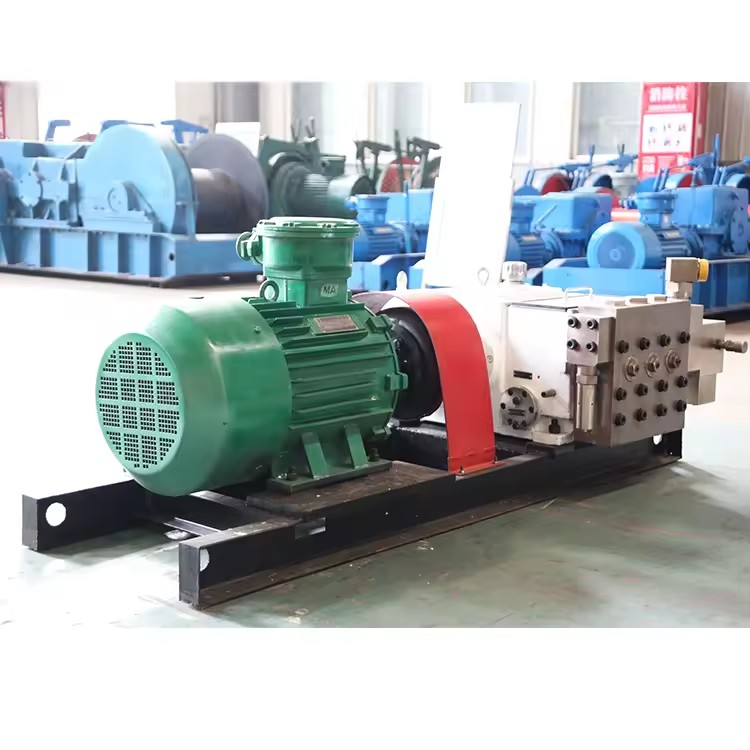

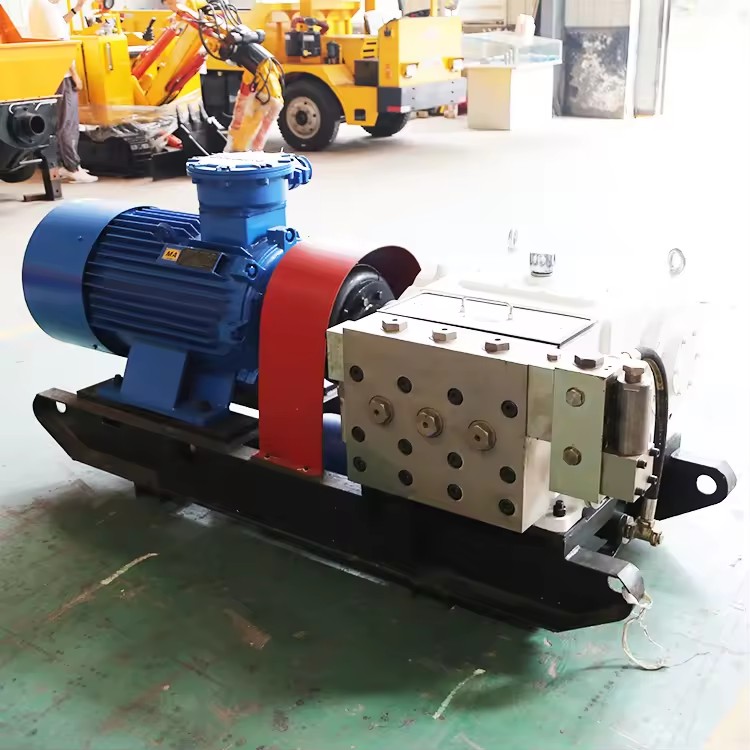

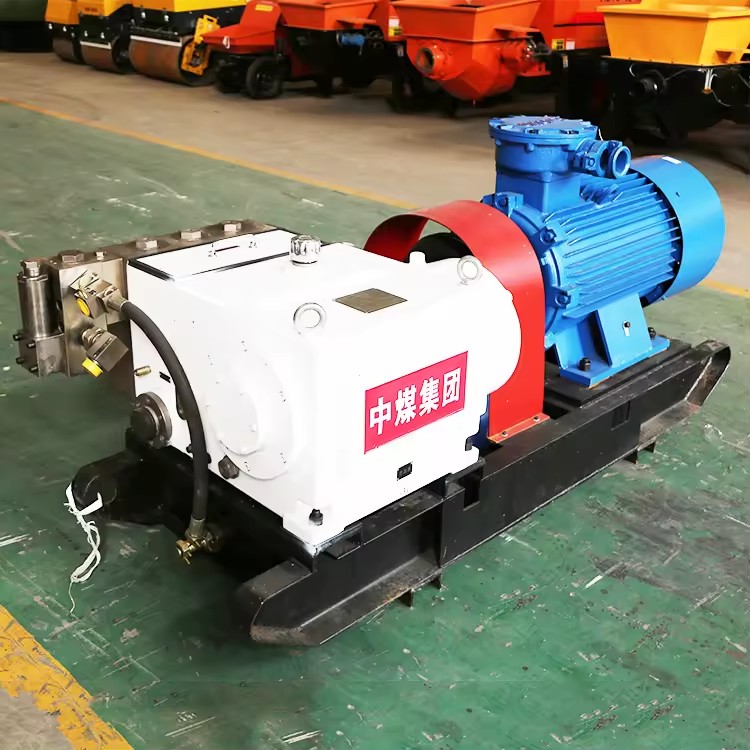

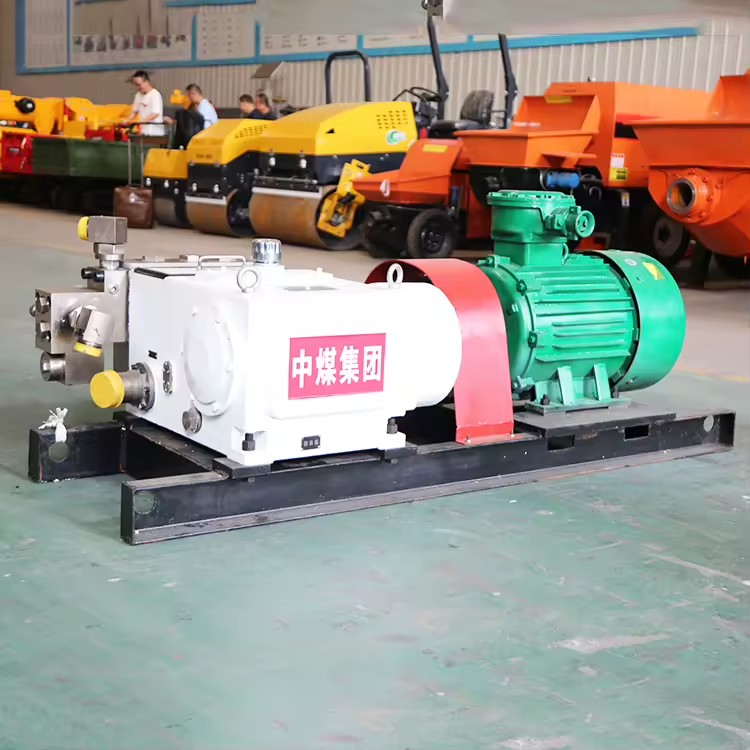

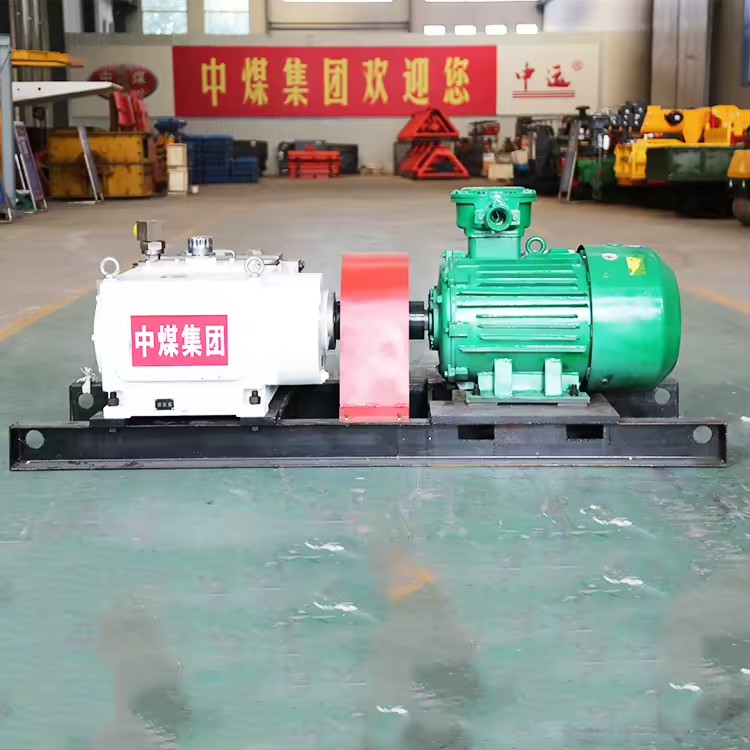

Name: Zhongmei 3 Plunger 20 Mpa High Pressure Emulsion Pump with 37 KW Engine for Mine Support and Ground Equipment
SKU: B2B-30065
Price: 1970.0 USD
Availability: PreOrder

Product description

Your Premier Destination for mining equipment

Model	BRW80/20	BRW80/35	BRW125/20C	BRW125/31.5C	BRW160/20A	BRW160/25A	BRW160/31.5A
Input pressure	Normal pressure
Nominal pressure Mpa	20	31.5	20	31.5	20	25	31.5
Nominal flow L/min	80	80	125	125	160	160	160
Crankshaft speed r/min	517	517	561	561	561	561	561
Number of plungers	3	3	3	3	3
Plunger diameter mm	32	32	40	40	45	45	45
Plunger stroke mm	70	70	66	66	66	66	66
Motor Power KW	37	55	55	75	75	75	110
Motor Rotating speed r/min	1470	1470	1480	1480	1480	1480	1480
Motor Voltage V	440/660	660/1140	660/1140	660/1140	660/1140	660/1140
Dimension	Pump L×B×H mm	760×680×432	832×770×454	832×770×454	832×770×454	832×770×454	832×770×454
Assembly L×B×H mm	1873×760×880	2166×838×980	2166×838×980	2166×838×980	2180×838×980	2180×838×1050
Weight	Pump kg	460	580	580	580	580	580
Assembly kg	923	1023	1560	1600	1600	1600	1720
Emulsified tank volume L	630	1000	1600(1000)	2000(1000)	2000(1000)	2000(1000)
Working medium	Emulsion (neutral water mixture containing 3%-5% emulsified oil)	Emulsion of emulsified oil and neutral soft water in a weight ratio of 5:95
Safety valve beginning adjustment pressure Mpa	22	34.7	22	27.5	34.7
Unloading valve beginning adjustment pressure Mpa	20	35	20	31.5	20	25	31.5
Unloading valve to restore pressure	Pump rated pressure 75-85%
Matching liquid tank	XR40/6.3	X10RX

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Core components

Engine

Machinery test report

Provided

Warranty

1.5 year

Video outgoing-inspection

Provided

Weight (kg)

1560

Place of origin

China, Shandong

Nominal Pressure

20 Mpa

Nominal flow

80 L/min

Crankshaft speed

517 r/min

Plunger diameter

32 mm

Plunger stroke

70 mm

Motor power

37 KW

Motor Rotating speed

1470 r/min

Motor voltage

440/660 V

Pump L*B*H

760*680*432 mm

Pump Weight

460 kg

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

BRW160/31.5A, BRW160/25A, BRW160/20A, BRW125/31.5C, BRW125/20C, BRW80/35, BRW80/20

Lead time

7 days

Minimum order

1 Units
