Name: ZEGA 420T-1 Blasting Mine Drilling Rig Mining DTH Hammer Drilling Hole Diameter 90-140 mm Engineering Drilling Rig
SKU: B2B-39248
Price: 30.0 USD
Availability: PreOrder

Product description

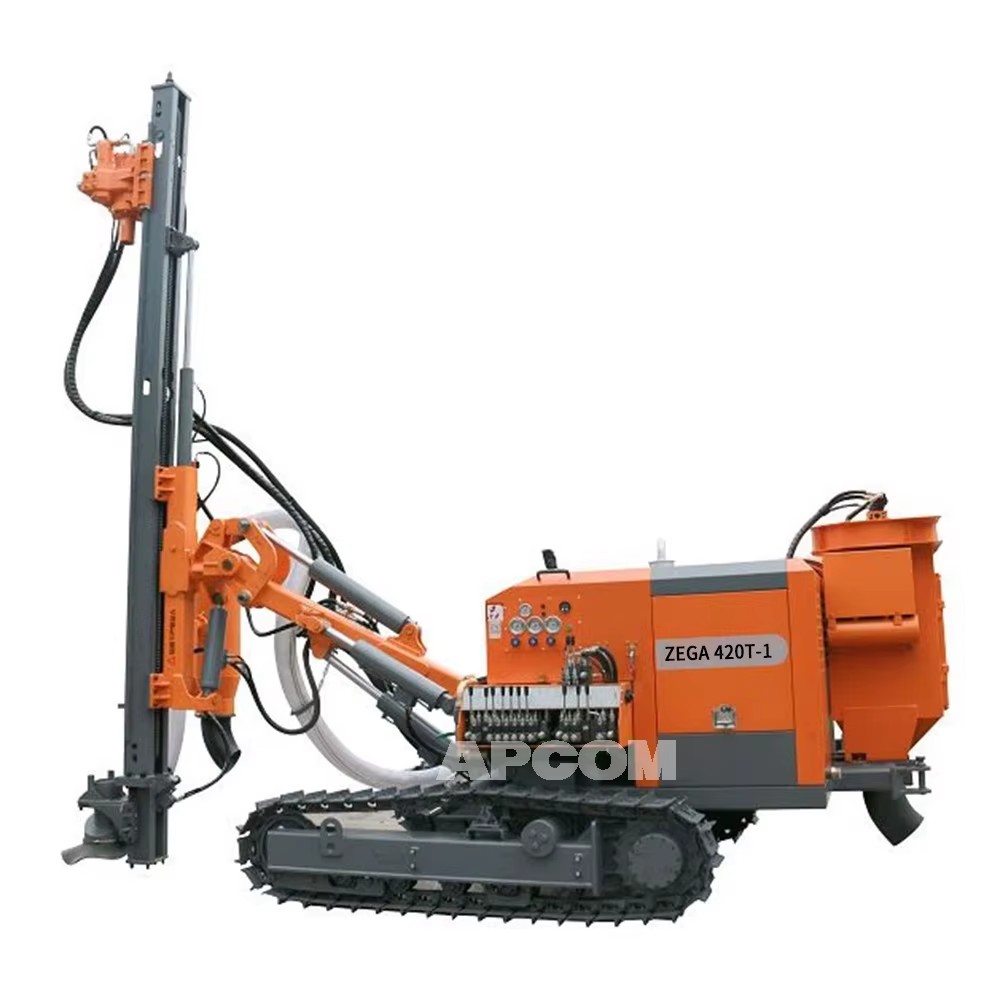

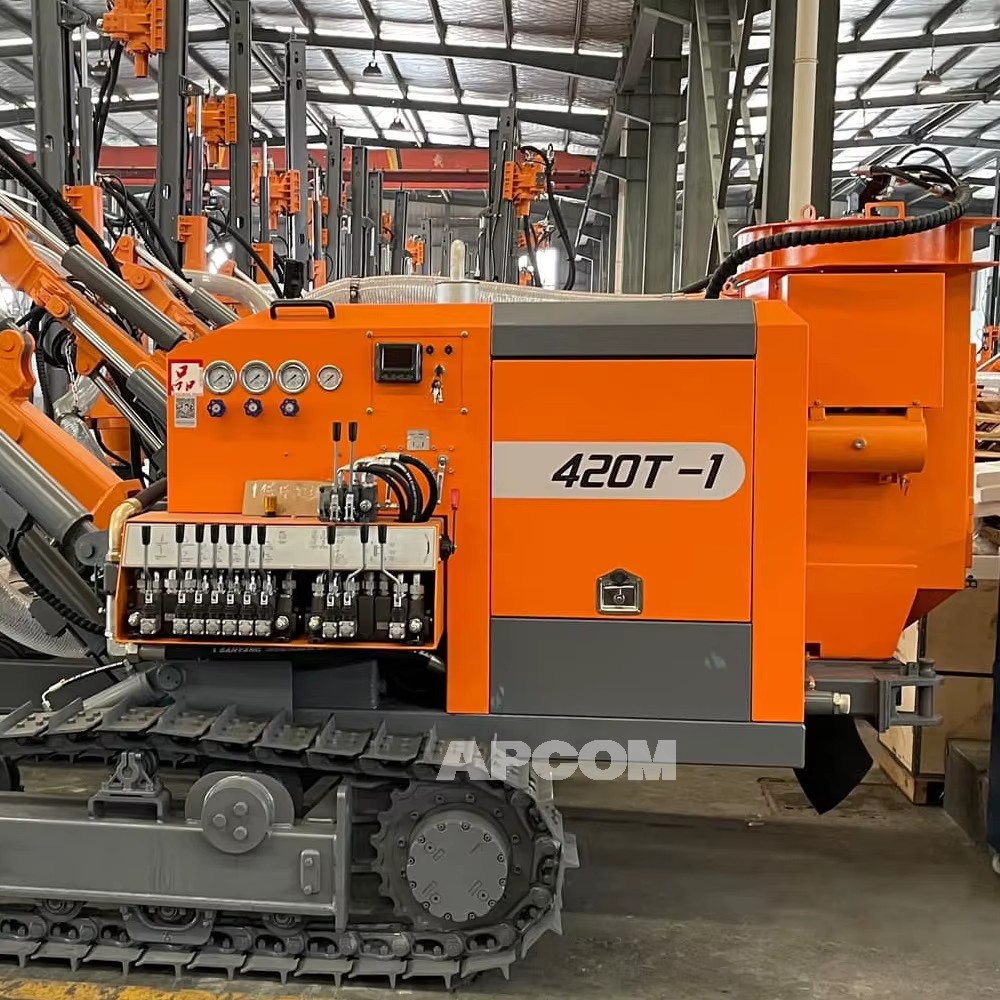

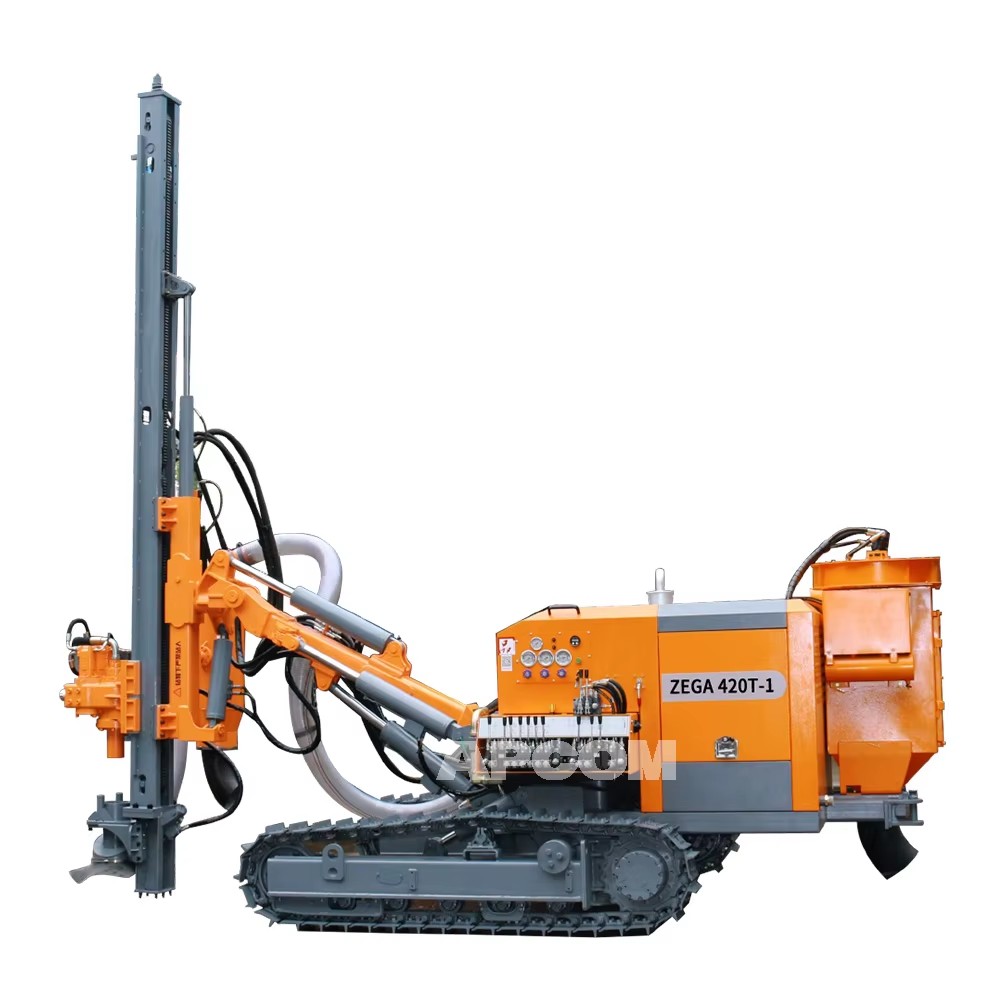

Separated DTH Surface Drill Rig ZEGA-420T-1

Mode	ZEGA 420T	ZEGA 420T-1	ZEGA 425-1	ZEGA 430	ZEGA 430-1
Engine	Yuchai/73.5
Rotation torque	3200 N.m	3500 N.m
Drilling hole diameter	Φ90-138 mm	Φ115-152 mm
DTH hammer	4"
Drilling rod	Φ76*3,000 mm
tank volume	70 L	80 L	110 L
dust collector	No	Yes	Yes	No	Yes
Weight	5280 kg	6230 kg	6460 kg
Dimensions	5,4202,3082,500 mm	7,0002,2502,700 mm	7,1202,4503,540 mm

Separated DTH surface Drill Rig without Air Compressor (Model with -1 with dust collector)
Mode	Engine	Rotation torque	Drilling hole diameter	DTH hammer	Drilling rod	tank	Weight	Dimensions
CLICK ON	(kW)	(N.m)	(mm)	(mm)	(L)	(kg)	(mm)
ZEGA 412B	Yuchai/58	1,650	Φ90-115	3.5"	Φ60*2,000	115	3,850	4,4502,0802,460
ZEGA 412B-1	Yuchai/58	1,650	Φ90-115	3.5"	Φ60*2,000	115	3,850	4,4502,0802,460
ZEGA 416T	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 416T-1	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 420B	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 420B-1	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 420T	Yuchai/73.5	3,200	Φ90-138	4"	Φ76*3,000	70	5,280	5,4202,3082,500
ZEGA 420T-1	Yuchai/73.5	3,200	Φ90-138	4"	Φ76*3,000	70	5,280	5,4202,3082,500
ZEGA 425-1	Yuchai/73.5	3,200	Φ90-138	4"	Φ76*3,000	80	6,230	7,0002,2502,700
ZEGA 430	Yuchai/73.5	3,500	Φ115-152	4"	Φ76*3,000	110	6,460	7,1202,4503,540
ZEGA 430-1	Yuchai/73.5	3,500	Φ115-152	4"	Φ76*3,000	110	6,460	7,1202,4503,540
ZEGA 431	Yuchai/73.5	3,500	Φ115-152	4"	Φ76*3,000	156	7,340	7,0002,3002,800
ZEGA 845-1	Yuchai/73.5	3,500	Φ115-165	4"	Φ76*3,000	156	7,460	7,0002,3002,800

Anchor drill rig without Air Compressor (diesel-electric dual power) Electric Motor 55KW
Mode	Engine	Rotation torque	Drilling hole diameter	DTH hammer	Drilling rod	Tank	Weight	Dimensions
CLICK ON	(kW)	(N.m)	(mm)	(mm)	(L)	(kg)	(mm)
ZEGA 420ST	Yuchai/58	5,000	Φ90-203	4"	Φ76*3,000	80	5,340	6,5002,2802,400
ZEGA 425S	Yuchai/73.5	5,600	Φ110-203	4"	Φ76*3,000	105	7,070	6,9002,2702,210
ZEGA 430S	Yuchai/73.5	8,000	Φ110-250	5"	Φ76*3,000	105	6,870	7,3002,2803,000
ZEGA 435S	Yuchai/73.5	8,000	Φ110-250	5"	Φ76*3,000	105	8,030	7,3002,3702,700

DTH surface Drill Rig with Air Compressor
Mode	Engine	Rotation torque	Drilling hole diameter	DTH hammer	Drilling rod	tank	Compressor F.A.D	Compressor Pressure
CLICK ON	(kW)	(N.m)	(mm)	(mm)	(L)	(m 3 /min)	(bar)
ZEGA 421TA	Yuchai / 162	1,500	Φ90-127	3.5"	Φ60*3,000	250	12	18
ZEGA 421H	Yuchai / 162	1,500	Φ90-127	3.5"	Φ60*3,000	250	12	18
ZEGA 452T	Yuchai / 191	2,200	Φ90-138	4"	Φ76*3,000	300	15	18
ZEGA 452H	Yuchai / 191	2,200	Φ90-138	4"	Φ76*3,000	300	15	18
ZEGA 453T	Weichai / 220	2,800	Φ90-138	4"	Φ76*4,000	480	18	22
ZEGA 454T	Cummins/ 264	4,000	Φ115-152	5"	Φ89*5,000	480	20	22

Tophammer Surface Drill Rig with Air Compressor
Mode	Engine	Drifter model	Drifter power	Drilling hole diameter	Drilling rod	tank	Compressor F.A.D	Compressor Pressuer
CLICK ON	(kW)	(kW)	(mm)	(mm)	(L)	(m 3 /min)	(bar)
ZEGA 650A	Cummins/119	ZY103	15	Φ45-102	T38/T45*3660	280	5	8
ZEGA 655	Cummins/154	ZY104H	20	Φ64-115	T45/T51* 3660	340	7	8

Cummins Engine Blasting Drilling Rig for Mine
Model Click on	Borehole Diameter	Drill depth	DTH Hammer	Pipe	Cummins Power	Cummins Model	Air Compresor	Automatic Rod Change
V3	90-130mm	30m	3.5-4 inches	683m 763m	154kw	QSB5.9-C210	16bar 500cfm
V3A	90-130mm	21m	3.5-4 inches	76*3m	154kw	QSB5.9-C210	16bar 500cfm	6+1
V5	90-138mm	21m	3.5-4 inches	76*3m	194kw	QSC8.3-C260	17bar 550cfm	6+1
V6	90-138mm	21m	3.5-4 inches	76*3m	194kw	QSC8.3-C260	20bar 650cfm	6+1
V7	90-138mm	21m	3.0-4 inches	76*3m	264kw	QSL8.9-C360	18bar 550cfm	6+1 Cabin
V8	90-138mm	32m	3.0-4 inches	89*4m	264kw	QSL8.9-C360	20bar 700cfm	7+1 Cabin
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine
Model Click on	Hole	Depth	Drill pipe	Compresor	Cummins Power	Impactor parameter	Note
T5	45-90mm	25m	T38 T45	8bar 220cfm	134kw	Epiroc YYG14L	145bar 30kN	Cabin
T7	76-115mm	25m	T51	9bar 370cfm	194kw	AtlasCopco RD18S	200bar 20kN	Cabin

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Usage

Ore

Type

Rotary Drilling Rig

Drilling Depth

Max.30m

Drilling Diameter

90 mm(3.54in), 125mm(4.92in), 140 mm(5.51in), 115 mm(4.53in)

Power Type

Diesel

Voltage

No need

Core components

PLC, Engine, Diesel Engine, Air-end, Hydraulic motor, air compressor host

Warranty

1 years

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Shanghai

Weight

5280 KG(11640.41lb)

Dimension (L*W*H)

5,420*2,308*2,500 mm

Mobility

Crawler Type

New design

Rotary Drilling

New features

Low Maintenance Cost

New technology

For Hard Rock

New products

Crawler Mounted

New manufacturing

High Efficiency

New process

Hydraulic Drilling

Compressor Air-end warranty

1.5 years

Diesel Engine warranty

1 year
