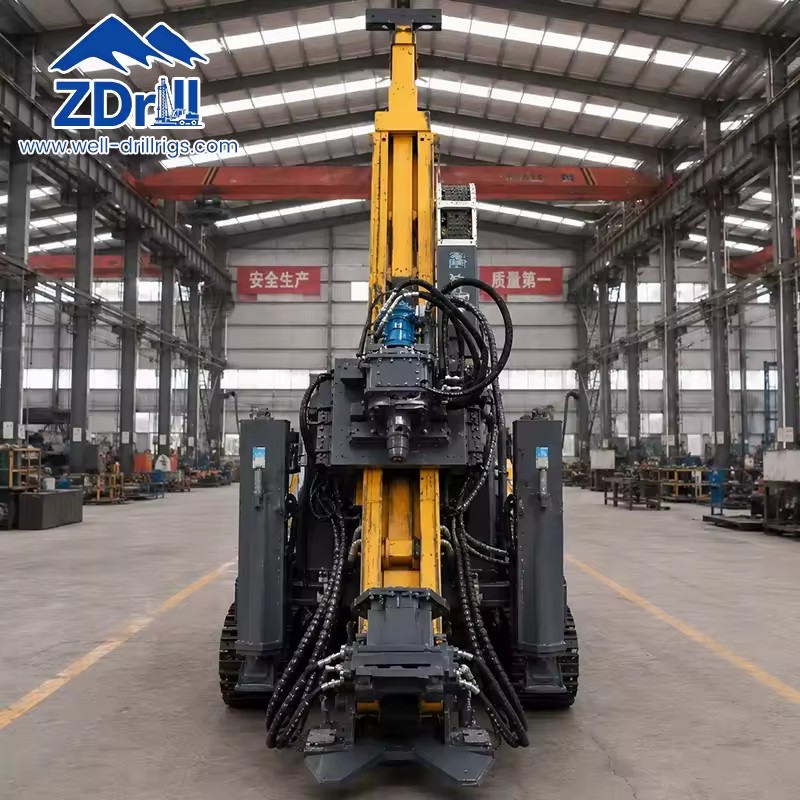

Name: ZDC1000 Full Hydraulic Steel Crawler 1000m Drilling Depth Mining Drilling Rig for Geological Prospecting Mining Exploration
SKU: B2B-40203
Price: 67830.0 USD
Availability: PreOrder

Product description

Built for deep‑hole geological coring work, ZDC1000 wireline core drill rig supports NQ/HQ/PQ coring tools, reaching max 1000m drilling depth with NQ specification. The heavy‑duty steel crawler chassis delivers stable performance in mountainous and rugged mining sites. Two‑gear power head offers wide range rotation speed and high torque output, adapting to various hard rock formations, improving rock‑core sampling efficiency for mineral exploration projects.

The reinforced high‑strength drill tower is designed for heavy onsite load, supporting long single drill rod handling. Adjustable drilling inclination allows both vertical and inclined coring tasks to be completed smoothly. Powered by high‑performance diesel power unit, the drill rig can sustain stable continuous output, perfectly suited for remote field locations where municipal power sources are unavailable.

It adopts mature integrated hydraulic assembly with well‑selected core components. The whole hydraulic system runs steadily under heavy‑duty continuous working scenarios and helps lower potential breakdown risks. Supporting mud pump forms effective flushing circulation system, which cools down working bits and discharges rock debris, contributing to qualified rock core recovery under complicated geological environments.

Crawler travelling structure enables flexible position shifting within construction sites. Optimized whole‑machine weight distribution guarantees good balance status throughout deep drilling procedures. This multi‑purpose drilling equipment fits mineral prospecting, geotechnical investigation and infrastructure‑related geological survey projects. Matching drilling accessories are available for one‑stop procurement.

Category	Item	Specification
Drilling Capacity	N	1000 m
H	700 m
P	500 m
Power Head Output Speed	Gear 1	10–550 r/min
Gear 2	20–1060 r/min
Power Head Output Torque	Gear 1	1410–3530 N·m
Gear 2	740–1845 N·m
Max. Torque	4590 N·m
Main Winch	Wire Rope Diameter	20 mm
Reel Capacity	26 m
Lifting Force (Single Wireline)	85 kN
Lifting Force (Double Wireline)	170 kN
Lifting Speed (Single Wireline)	35 m/min
Lifting Speed (Double Wireline)	17 m/min
Wireline Winch	Wire Rope Diameter	6 mm
Reel Capacity	1100 m
Lifting Force	14 kN
Lifting Speed	110–200 m/min
Feeding System	Feeding Method	Hydraulic Cylinder Feeding
Feeding Stroke	3500 mm
Feeding Force	55 kN
Lifting Force	150 kN
Drill Tower	Height	9960 mm
Load Capacity	300 kN
Maximum Lifting Length of Drill Rod	6 m
Drilling Inclination	45°–90°
Vertical Method	Hydraulic Cylinder Lifting & Lowering
Diesel Engine	Power	154 kW
Rotation Speed	2200 rpm
Hydraulic System	Main Pump Working Pressure	26 MPa
Auxiliary Pump Working Pressure	21 MPa
Clamp	Clamping Range	56–146 mm
Mud Pump	Model	BW-160
Drifter Travel	Moving Mode	Crawler Type
Travel Speed	2.5 km/h
Climbing Capacity	0–30°
Total Machine Weight	10000 kg

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Usage

coal

Type

Core Drilling Rig

Drilling Depth

Max.1000m

Drilling Diameter

89mm

Power Type

Diesel

Core components

Bearing, Motor, Gear, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Hebei

Weight

10000 kg

Mobility

Crawler

Engine

Yuchai, Weichai, Cummins, Quanchai

Mud pump model

BW-160

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

ZDC1000

Power (W) (Product option)

Engine:Cummins, Yuchai, Weichai, Quanchai, 154 kW

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
