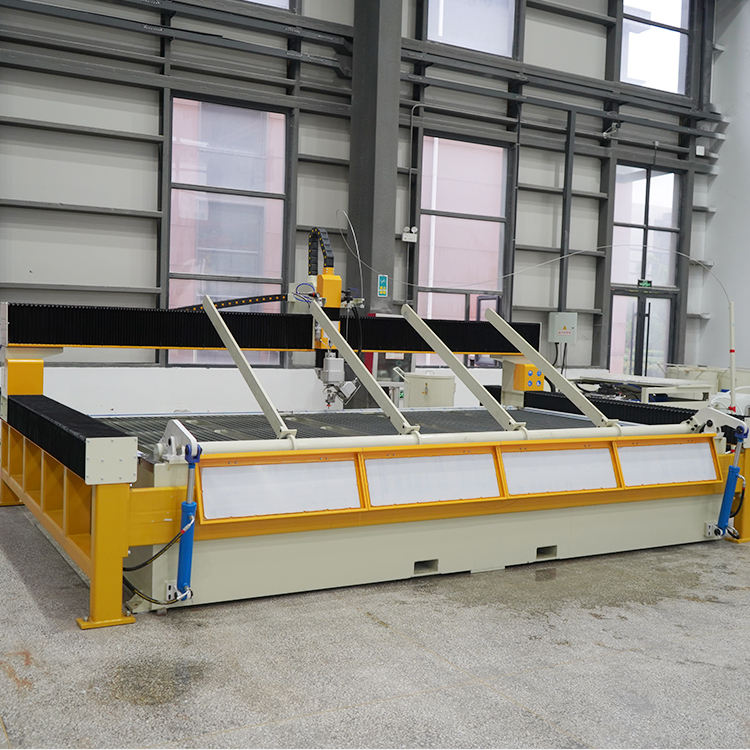

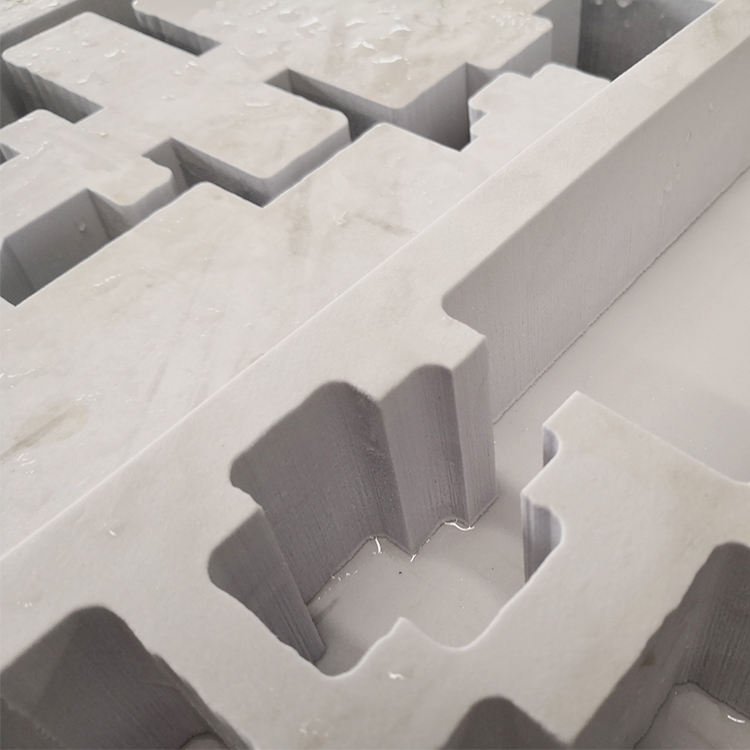

5 Axis 3d Water Jet Machine Cnc Waterjet Cutting Machine for Marble Granite Glass Cutting Water Jet Cutter With Laser Sensor
Price
$
49410.00
Product information
Attributes
Voltage
380 V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.05mm
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
520*320*250cm(204.72*125.98*98.43in)
Key selling points
High-Accuracy
Rated power
30KW(40.23hp)
Place of origin
China, Shandong
Weight (kg)
3900
Table travel (x) (mm)
4000
Table travel (y) (mm)
2000
Table travel (z) (mm)
150
Cutting accuracy(mm)
±0.1mm
Max pressure
600MPa / 420MPa
Max cutting thickness
300mm

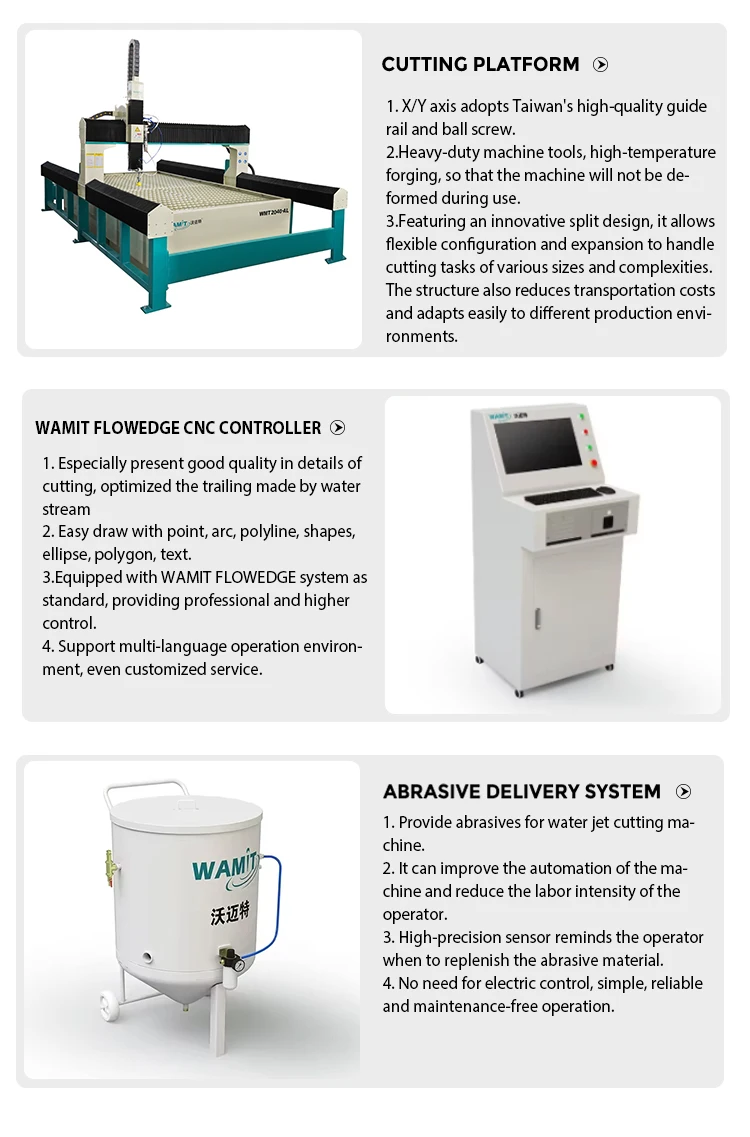

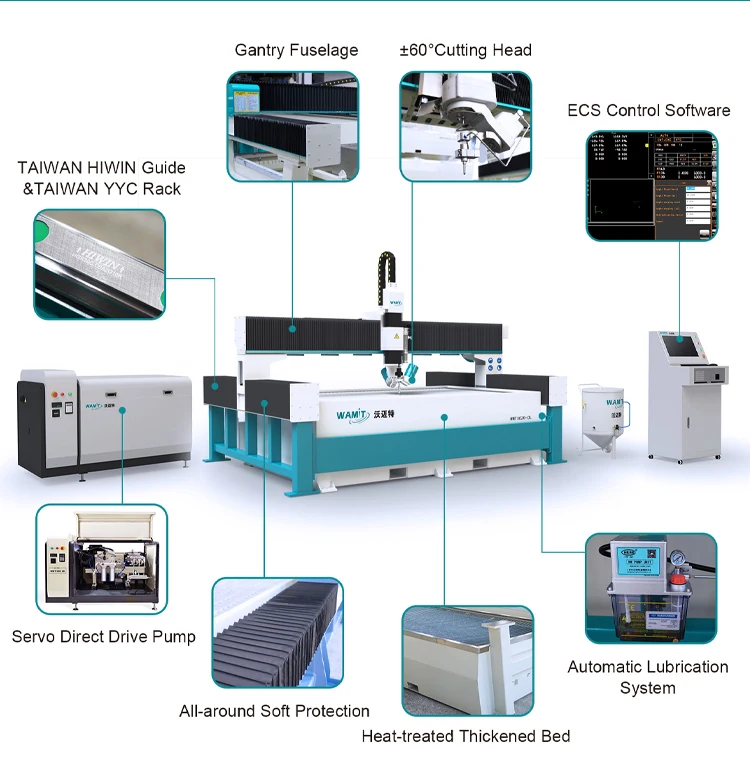

CNC System & Software
FLOWEDGE / ECS
SERVO MOTOR
Japan Brand / INOVANCE
Electrical Components
Schneider
PLC
Siemens
Linear Guide & Ball Screw
HIWIN
Rack & Pinion
YYC
Auto-lubrication System
HERG
Certification
CE & ISO
Selling Units
Single item
Single package size
520X320X250 cm
Single gross weight
3900.0 kg
Model number
WMT300 4020
Effective cutting range (mm)
4000×2000
Fulfilment
Delivery
Lead time
40 days
Shipping and estimated delivery
Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days
