portable water jet specilized in field cutting conditon to help customers to solve complex cutting needs. Our factory has a rich experience on portable water jet cutting for a long terms.
Especially customized portable waterjet cutting machine has got a higher praise from our customer. Portable water jet design help our many customer solve portable cutting problem. Now, let me introduce our portable machine to you.
Portable water jet cutting machine mainly applied for pipeline, gas pipe,petrol pipe,oil tank, etc complex, dangerous cutting condition.
There are two types of portable water jet cutting machine in the worldwide, now compared two type of portable water jet cutting machine
1.waterjets pressurize water to high pressure and then mix water with abrasive just before water exits the cutting. Abrasive is accelerted by high speed water in a mixing tube to receive kinetic energy. can meet complex cutting situation, ensure long time cutting.
2.The other working principle for portable water jet cutting machine is pre-mix abrasive with water before it gets pressurized,this type can't continuously work and parts broken easily, add cost.
Advantages of portable water jet cutting machine.
1.This water jet system applied varity aspects, such as gas pipe cutting, bomb etc.
2. This portable water jet operates easily, without heat effect,help to achieve safe cutting.
n be used in cutting dangerous chemical objects directly, it is the first choice of using in various kind of emergent cutting.
4.Weight of the system light enough to be moved to any place for working purposes.
The portable water jet cutting machine is composed of intensifier pump, travel device and cutting, high pressure tube, sand delivery system, water tank,etc.

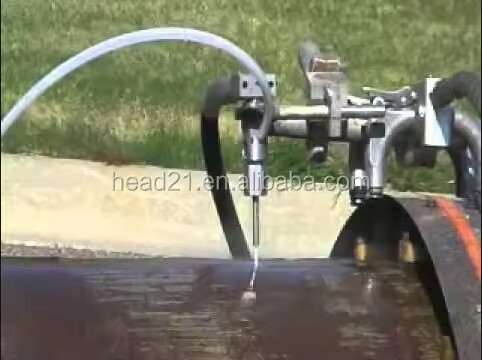

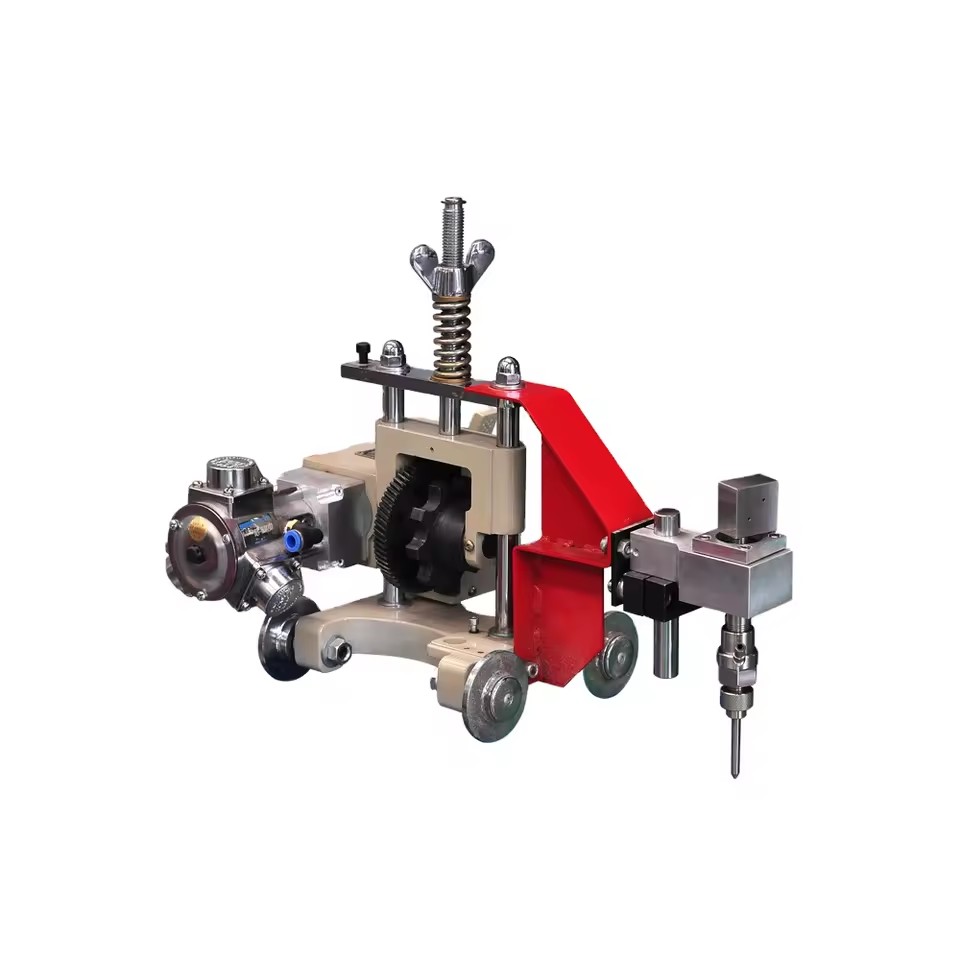

1. portable water jet cutting machine for pipe
Pipe cold cutting machine technical data
item
technical data
dimension
420mm*610mm*400mm
cutting pipe range
320-3000mm
main machine weight
17kg
cutting accuracy
1mm
total weight
24kg
cutting direction
Two way
rated power
60w
cutting groove
±45 degree
voltage
AC 220V/50hz
horizontal cuttting range
0-250mm
Features of portable water jet cutting machine
1mm Super high cutting accuracy
Adopt track+ motion system to ensure perfect cutting.
Auto error compensate to ensure 1mm accuracy
Remote control available
Any shape pipe can cut freely.

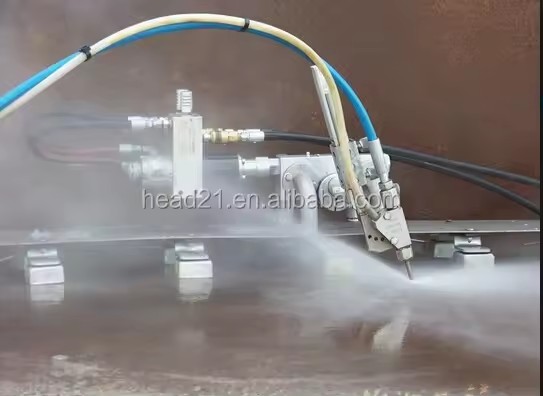

2. portable water jet cutting machine for Sheet or plate
CNC portable cutting machine
screen size
5.7inch
weight
80kg
power
180w
valid cutting range
1200*2000mm
CNC system
High accuracy and stable transmission
Both manual and auto programmed available
USB and RS232 support

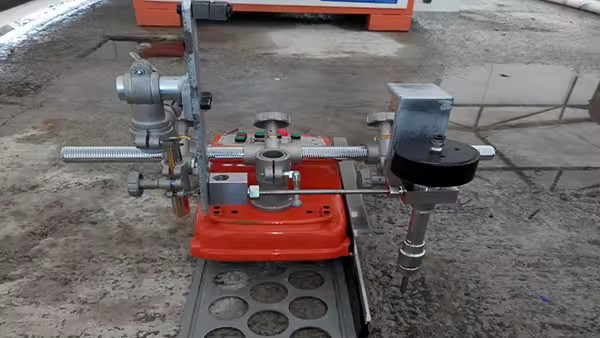

3. portable water jet cutting machine for More than diameter 200mm circle
circle and line cutting machine
470mm*230mm*240mm
16kg
0.1mm
1. Machine body is made of aluminum by high precision press.
2. Speed adjustment adopt SCR
3. Tube assembly install button to improve efficiency
4. Main cutting line and more than diameter 200mm
Intensifier Pump
Main technical parameter of water jet cutting machine
Parameter
Model
HEAD42037Z
Brand
ACCUSTREAM
Method of Direction Regulation
Electronic Direction Regulation
Pressure Range
300-420MPA
Maximum Flow of Hydraulic Pump
106L/min
Maximum Discharge Capacity
3.8L/min
Maximum Diameter of Gem Nozzle
0.33mm
Power of Master Motor
37KW(50Hp)
Power Source
380V/50HZ
Quality Control
To ensure high quality machine, our engineers will check every machine quality before delivery. Engineer is responsible for his checking machine quality. ONE MACHINE FOR ONE ENGINNER
ONE: UHP pump testing
1. every intensifier pump will be tested by our engineers including ultra high pressure stable, continuous pressure time etc.
2. Servo motor data adjustment to ensure machine to operate perfectly in our customer factory.
TWO: CUTTING DEVICE
1. every detail including loadbearing table,liner guide accuracy etc will be checked by our engineers.
2. We introduced laser interferometer to ensure cutting table high accuracy.
Every machine will be strictly tested by our works and engineers before delivery.
portable water jet cutting m achine: Soft packing, by sea, any port, safe and reliable!
Overseas service is avaiable. Our engineers will help you install and commision in your factory.
7 days per week, 24 hours per day, We are all here for you.
Technical Training
1. UHP Intensifier principle
2. Introduction of every parts
3. Wear parts replacement
4. Elimination of normal troubles
5. Table maintenance
6. On-off valve, cutting and abrasive controller maintenance.
7. Equipment operating
We get CE and ISO certificate.
