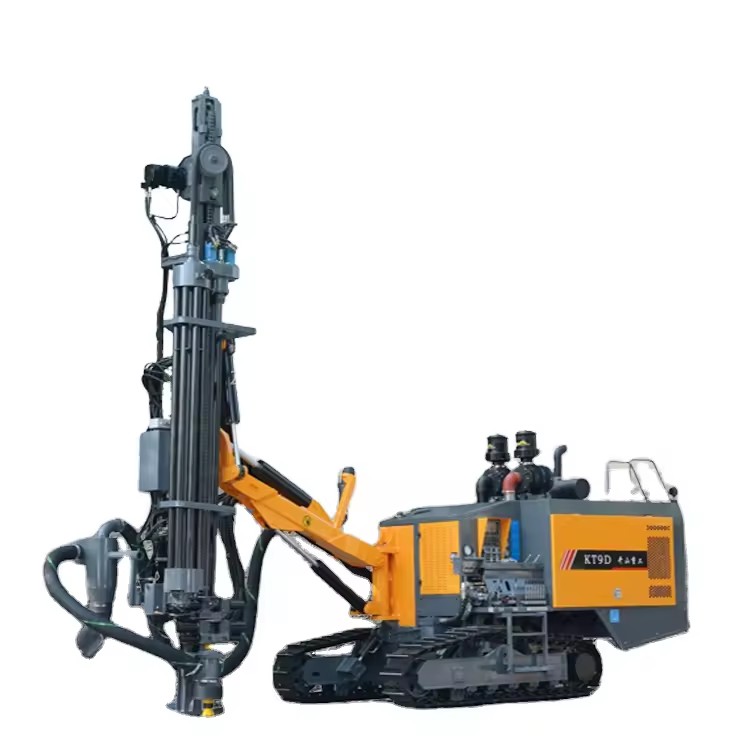

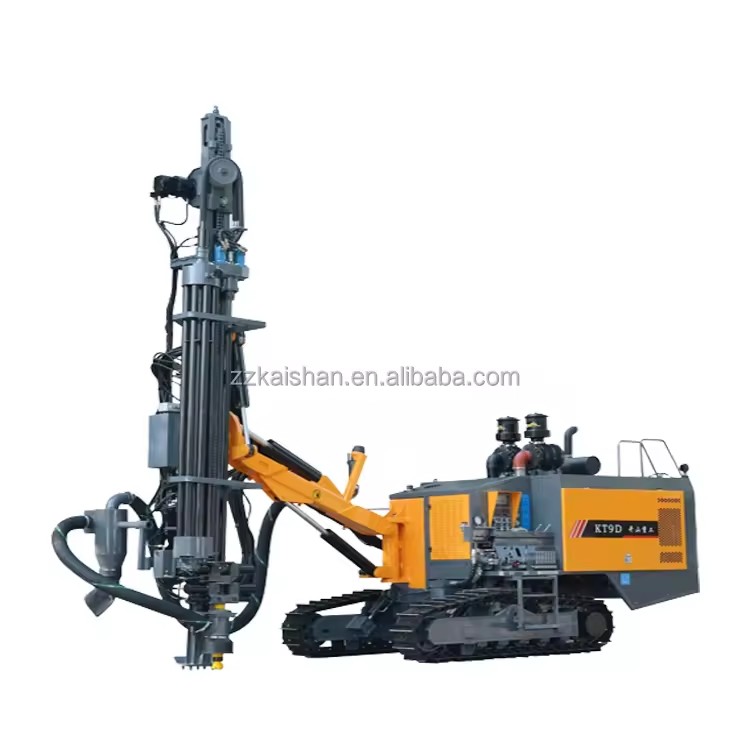

Mine Drilling Rig Kt9c Kt9d Integrated Blast Hole Drilling Rig for Rock Mining Open-pit Drilling Rig for Blasthole

Available for enquiry 0.0 · 0 reviews
USD

$ 97,040.00 97040.0 USD $ 97,040.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
UNIQUE SELLING POINT
High operating efficiency
Core components
PLC, Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Weight (kg)
11000
Product description
ModelKT9CKT9D
Drilling hardnessf=6~20f=6~20
Borehole rangeΦ115~165mmΦ115~165mm
Economic borehole depth24m24m
Travel speed0~3Km/h0~3Km/h
Climbing ability≤25°≤25°
Ground clearance430mm430mm
Auxiliary diesel engineYCK09360-T400YCK09360-T400
Overall power265KW/2200r/min265KW/2200r/min
Screw machine parameters20m3/min/22bar20m3/min/22bar
Overall dimension8000×2500×2900mm8000×2500×2900mm
Vehicle weight12500Kg12500Kg
Gyrator speed120Rpm120Rpm
Maximum turning torque3500N•m3500N•m
Maximum pushing force25KN25KN
Lifting Angle of drill armdown20°up47°down20°up47°
Slide elevation Angle120°120°
Swing Angle of slide frameleft95°right35°left95°right35°
Drill arm swing Angleleft50°right20°left50°right20°
Frame leveling Angle±10 °±10 °
Single advance length3590mm3590mm
Frame compensation length900mm900mm
impactor5inches5inches
Drill pipeΦ76×3mΦ76×3m
Propulsion modeMotor + roller chainMotor + roller chain
Connecting rod systemConnecting Rod ModeAutomatic receiving and unloading drill pipe
Dust collector16 filter elements16 filter elements
Description images

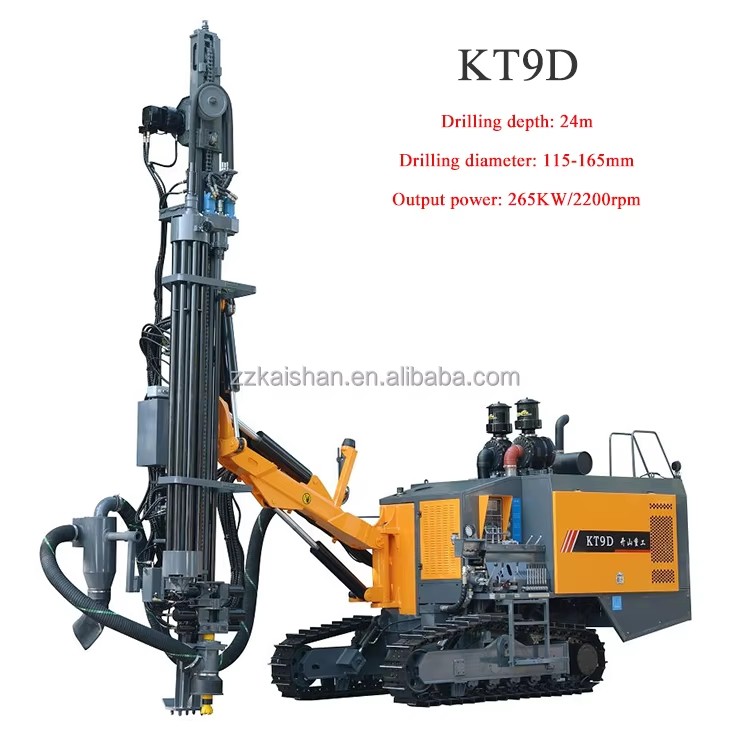

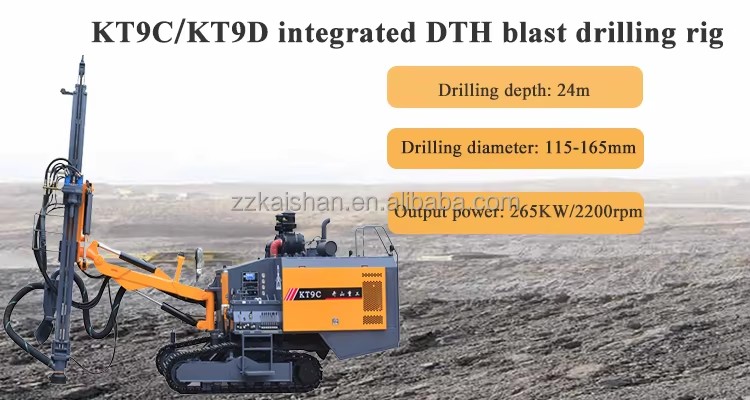

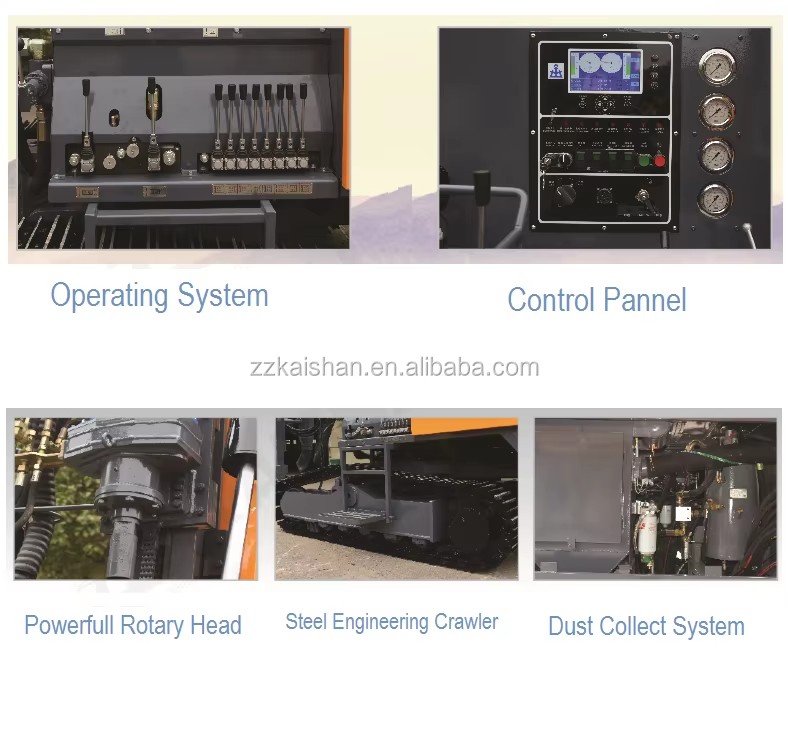

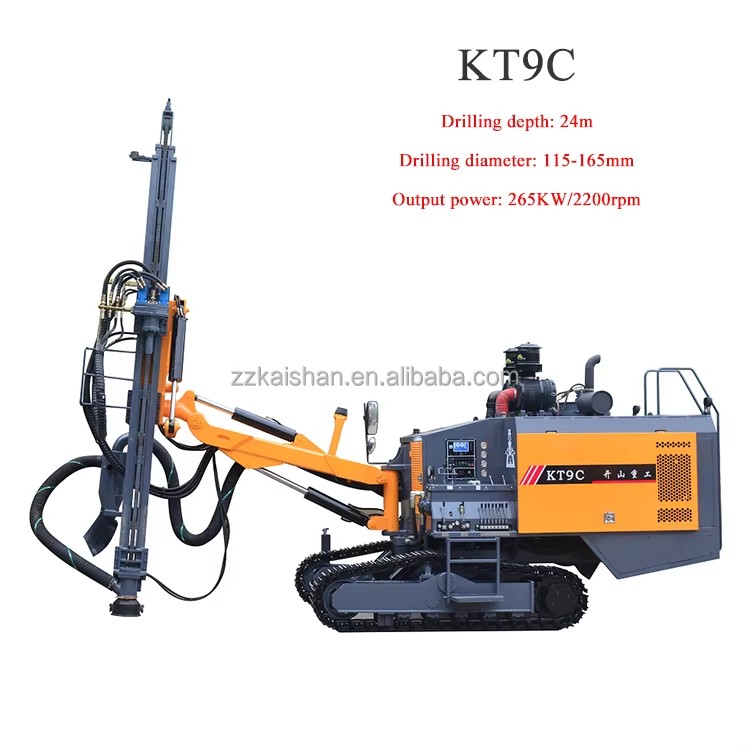

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    75 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
UNIQUE SELLING POINT
High operating efficiency
Core components
PLC, Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Weight (kg)
11000
Place of origin
Zhejiang, China
Drilling Hole Diameter
100-125mm
Drilling Depth
25m
Working pressure
17bar
Air compressor
17m3/min
Diesel engine model
QSL8.3-C260-30
Engine Power
194kw/2200RPM
Travelling speed
2.5/4 km/h
Rod
76/89*3000mm
Bit
115mm
Application
mines
Selling Units
Single item
Single package size
8100X2300X3000 cm
Single gross weight
15000.0 kg
Model number
KT9C
Lead time
75 days
Minimum order
1 Units
