Product Overview
The Pasta Extruder Machine is a fully automatic single body machine designed for continuous production of pasta and macaroni. The machine ensures uniform dough mixing, stable extrusion pressure, and consistent pasta shape using precision dies with Italian inserts.
It is suitable for industrial pasta production with high efficiency and reliable performance.
Technical Specifications
| Parameter | Specification |
|---|
| Application Use | Pasta and Macaroni |
| Machine Type | Fully Automatic Single Body Machine |
| Production Capacity | 200 Kg per hour |
| Installed Power | 21 KW |
| Power Supply | 415 V, 3 Phase, 50 Hz |
| Machine Material | Stainless Steel SS304 |
| Brand |
| Control System | Schneider Control Panel |
| Drive System | Delta Drive |

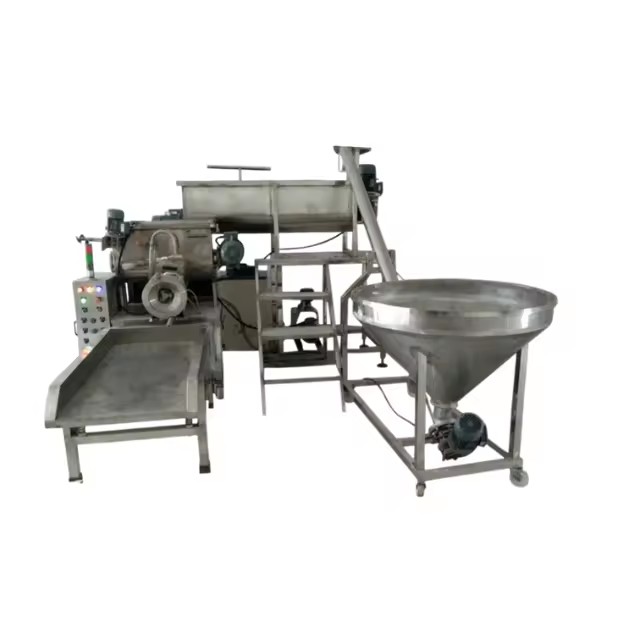

Main Machine Components
Dry Material HopperScrew ConveyorExtruder UnitChiller SystemOil Vacuum Pump with Moisture FilterMain Screw with Barrel (Single Piece – Thread Milling)VibratorMoisture MixerCutter SystemPasta Dies (3 Nos with Italian Inserts)Electrical Components
| Component | Brand |
|---|
| Motors | Crompton |
| Electrical Control Panel | Schneider |
| Drive or Inverter | Delta |
Optional Equipment
SifterChain Pulley SystemPLC Touch Screen Control Panel / AutomationMachine Features
Fully automatic operationHeavy-duty extrusion screw with precision thread millingStainless steel SS304 food-grade constructionStable pressure for uniform pasta shapeCompatible with multiple pasta dies (all dies are solid SS304)Energy-efficient designEasy cleaning and maintenanceSuitable Products
The machine can produce
MacaroniPenneFusilliShell PastaElbow PastaSpaghettiOrzoRigateVermicelli100+ pasta shapes (by changing dies)Export
1. Machine Preparation Before Packing
Clean the machine completely to remove flour, oil, and dustApply anti-rust oil or VCI spray on exposed metal surfacesDisconnect fragile components (motors, control panels, sensors)Lock all moving parts (extruder screw, cutting system, conveyors, vibrator trays)Cover electrical panels and control systems with waterproof plasticUse VCI protection and moisture barriers to prevent rust during long sea transportation2. Inner Protection Layer
VCI film or VCI paperBubble wrap or foam sheetStretch wrappingAluminum barrier film (for sea shipment)Silica gel or desiccant bags3. Base Frame / Skid Design
Mount machine on heavy-duty wooden or steel skidSecurely bolt machine to skidInstall rubber pads or foam cushioning to absorb vibrationProvide lifting points for crane/forkliftSkid distributes load and prevents movement during transportation4. Export Wooden Crate
ISPM-15 heat-treated woodThick plywood panelsSteel strapping reinforcementInternal blocking and bracingAll wooden packaging follows ISPM-15 standards to avoid customs rejection5. Crate Marking (Important for Export) Each crate must include
Buyer nameDestination countryMachine nameGross and net weightCrate size (L × W × H)“This Side Up” marking“Keep Dry” markingCentre of gravity markExample: 200 Kg/hr Automatic Pasta Production Machine Destination: Crate No: 1 of 3 Gross Weight: 1400 kg Size: 2300 x 1600 x 1800 mm
6. Container Loading
Single pasta extruder → LCL cargoPasta extruder + dryer → 20 ft containerComplete pasta production plant → 40 ft HC containerUse ratchet straps or lashing belts to secure the machineFill empty gaps with wooden blocks or cushioning materialsEnsure the machine cannot move during transportation7. Export Documents Required
Commercial InvoicePacking ListBill of LadingCertificate of OriginFumigation Certificate for wooden packingInsurance CertificateHS Code Declaration8. Example Packing for 200 Kg/hr Pasta Production Machine
| Crate | Item | Weight |
|---|
| 1 | Pasta Extruder Machine | 900 kg |
| 2 | Dryer Unit | 1100 kg |
| 3 | Cutting System & Spare Parts | 200 kg |
Total Shipment Weight: 2300 kg
Recommended Packing Method
Extruder machine → Closed wooden crateDryer unit → Open skid packingSpare parts & electrical panel → Separate wooden boxThis packing method reduces freight cost and simplifies installation at the customer site.
Our Services 1. Pasta Processing Machinery Manufacturing
We design and manufacture complete pasta production machinery for industrial food processing plants.
Our equipment includes
• Pasta Extruder Machines • Continuous Pasta Dryers • Cooling Towers • Vibrators & Conveying Systems • Automatic Cutting Systems • Heat Pump Drying Systems • Food Mixing and Processing Equipment
Our machines are engineered for high production efficiency, reliable performance, and consistent pasta quality.
2. Food Processing Machinery
We manufacture and supply machinery for a wide range of food processing applications, including
• Vermicelli Making Machines • Noodle Production Machines • Finger (Snack) Production Machines • Soya Badi (Soya Chunk) Machines • Roaster Machines • Food Mixing and Processing Equipment
These machines are suitable for small, medium, and large-scale food production units.
3. Packaging Machinery Solutions
We provide modern packaging solutions for hygienic and efficient product packing.
Our packaging machines include
• Automatic Packing Machines • 2-Head Weighing Packing Machines • 4-Head Weighing Packing Machines • Multi-Product Packaging Systems • Labeling Machines • Batch Coding & Date Printing Machines
These systems ensure accurate weighing, faster packing speed, and professional product presentation.
4. Customized Plant Design
We provide complete customized pasta plant solutions according to customer requirements.
Our services include
• Production capacity planning • Factory layout design • Utility planning (power, air, water) •
Example plant capacities: 100 kg/hr – 1000 kg/hr pasta production lines
5. Machine Installation & Commissioning
Our experienced technical team provides
• Machine installation • Complete
This ensures that the plant runs efficiently from the first day of operation.
6. Operator Training
We provide professional training to customer staff, including
• Machine operation training • Pasta production process guidance • Cleaning and maintenance procedures • Troubleshooting support
Proper training helps maintain consistent product quality and longer machine life.
7. Export
For international customers, we provide export-standard packing and logistics support, including
• Export-grade machine packing • ISPM-15 certified wooden crates • Moisture protection packaging • Container loading support
Our machines are safely shipped worldwide.
8. After-Sales Technical Support
Our service continues even after machine delivery.
Support includes
• Online technical assistance • Spare parts supply • Maintenance guidance • Production process improvement support
9. Spare Parts Supply
We provide original spare parts to ensure smooth machine operation.
Available spare parts include
• Extruder screws and dies • Cutting blades • Vibrator components • Sensors and electrical parts • Vacuum Pumps • Chillers • Heat Pumps
Fast spare parts availability ensures minimum production downtime.
