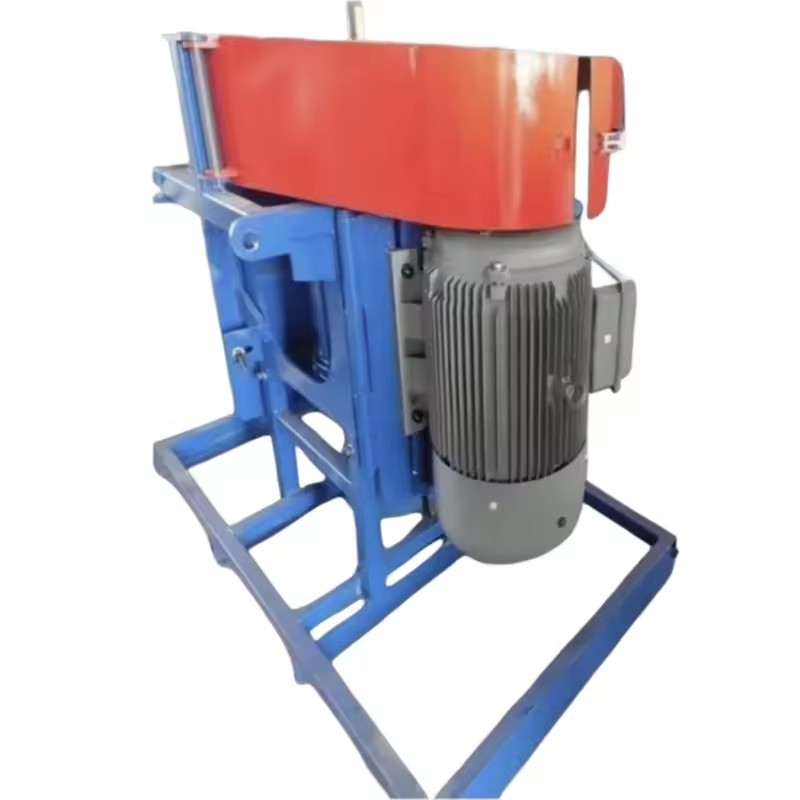

Product Importer Gallery 01 · 477335615f

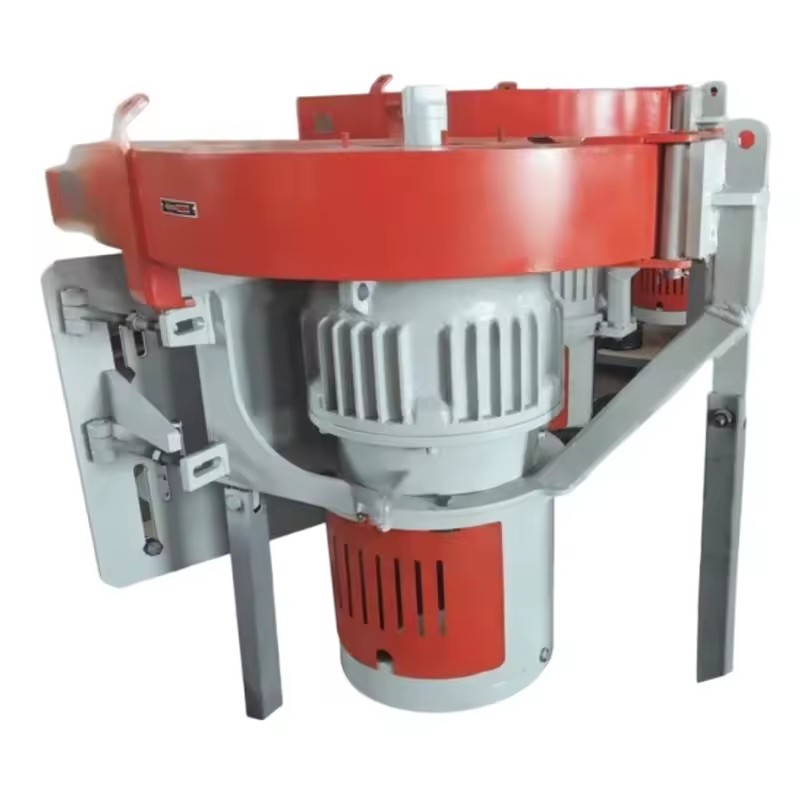

Product Importer Gallery 02 · 65517e213a

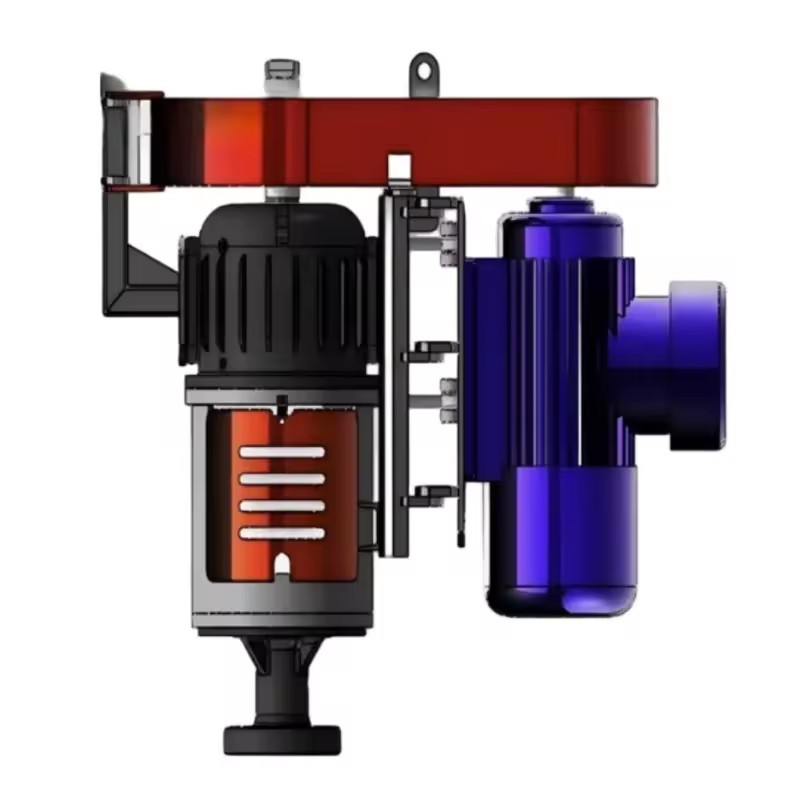

Product Importer Gallery 03 · 4af96e5bef

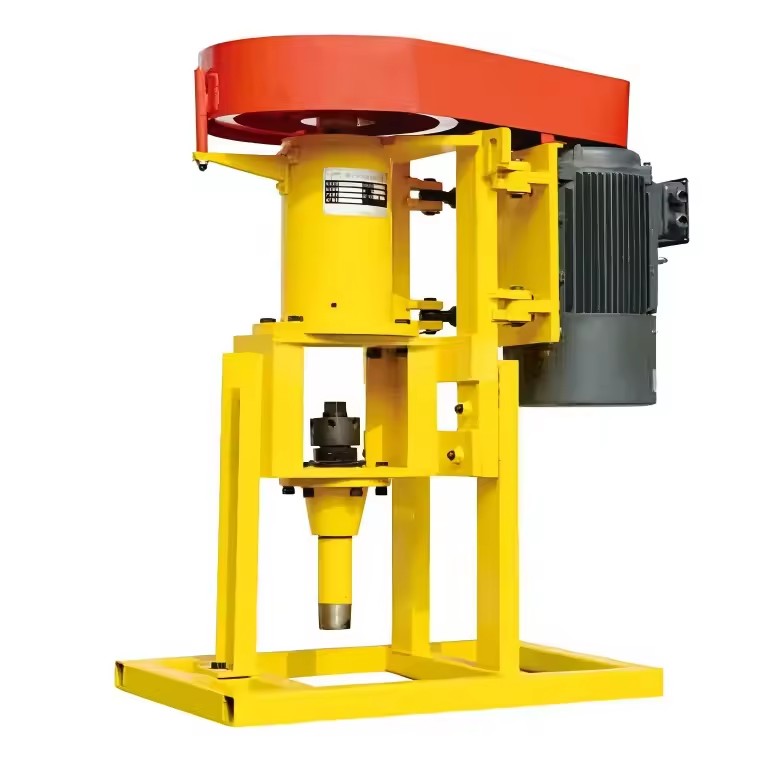

Product Importer Gallery 04 · 052a4cbfbd

Oilfield Centrifugal Surface Drive Progressive Cavity Pumps Drive Head - Wear-Resistant for Drilling Operations

Name: Oilfield Centrifugal Surface Drive Progressive Cavity Pumps Drive Head - Wear-Resistant for Drilling Operations
SKU: YWY7-W2RX-54E3
Price: 13470.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 13,470.00 13470.0 USD $ 13,470.00

Minimum order quantity: 1 Units

Key attributes

View all

Machinery test report

Provided

Core components

Motor

Video outgoing-inspection

Provided

Warranty

1 Year

Type

Mechanical

Place of origin

China, Shandong

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

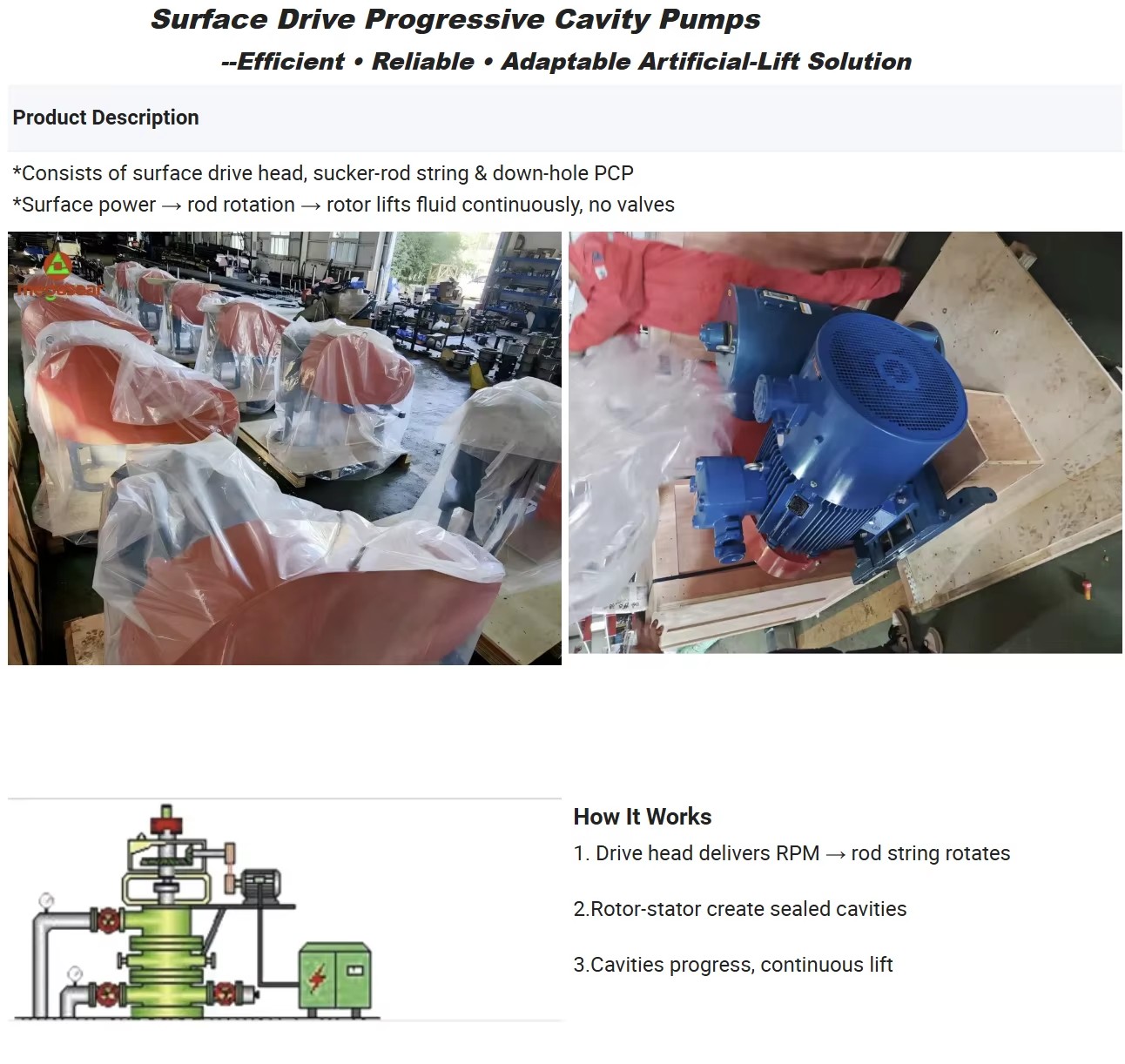

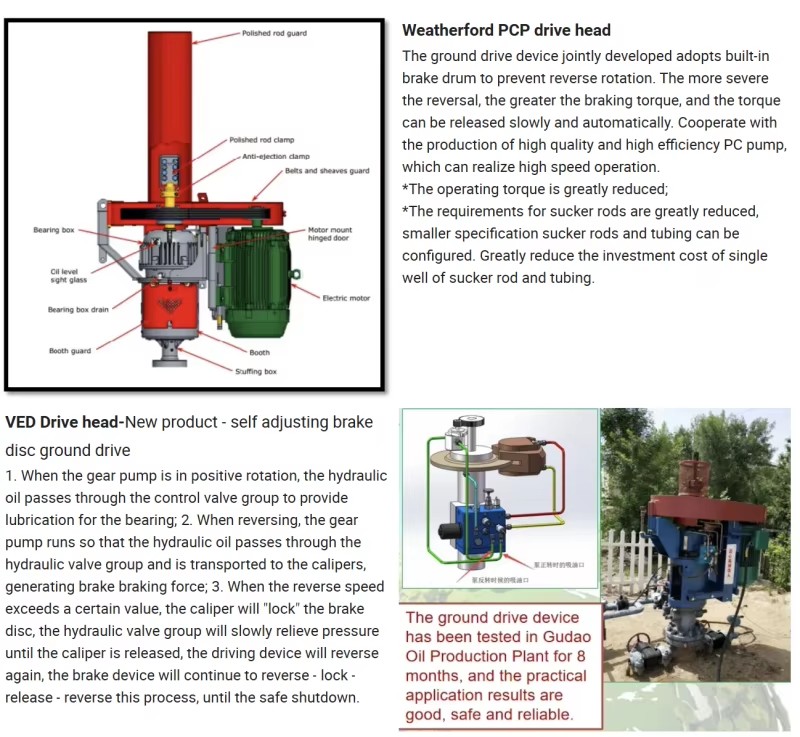

The oilfield progressive cavity pump surface drive head is the surface power unit that transmits torque and speed to the downhole PCP rotor via sucker rods, enabling continuous, uniform fluid lifting in oil & gas wells. It integrates a prime mover, gearbox, braking system, stuffing box, and control system-core to safe, stable PCP operation.

Drive Type Gear direct drive / belt drive / hydraulic drive

Prime Mover Electric motor (15-75 kW, 380/400V AC, IP55)

Gear Ratio 5:1-20:1 (customizable)

Max Torque 300-3,000 Nm

Max Axial Load 150-300 kN

Polished Rod Size 25-42 mm

Max Rotation Speed 300-600 r/min

Braking System Oil-immersed centrifugal brake / mechanical / hydraulic Sealing Type Packing seal / mechanical seal (zero-spill optional)

Protection Grade IP55 (motor); IP65 (cabinet) Compatible Tubing Size 2 7/8"-5 1/2" API tubing

Frequently asked questions

You can

After you confirm our PI, we will request you to pay. T/T and Western Union are the most usual ways we are using.

First we discuss order details, production details by

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 17 fields

Machinery test report

Provided

Core components

Motor

Video outgoing-inspection

Provided

Warranty

1 Year

Type

Mechanical

Place of origin

China, Shandong

Model NO

GBF

Transmission

Mechanical

Pumping Way

With Rod

Daily Liquid Production

1.59~400m3/D

Crude Oil Viscosity

≤5000 MPa S

Scope of Application for Well Fluids

Wax Bearing Wells, Sand Cut Wells or Viscous Oil

Presence of Gas Lock

No Gas Lock

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

GBF

Lead time

35 days

Minimum order

1 Units
