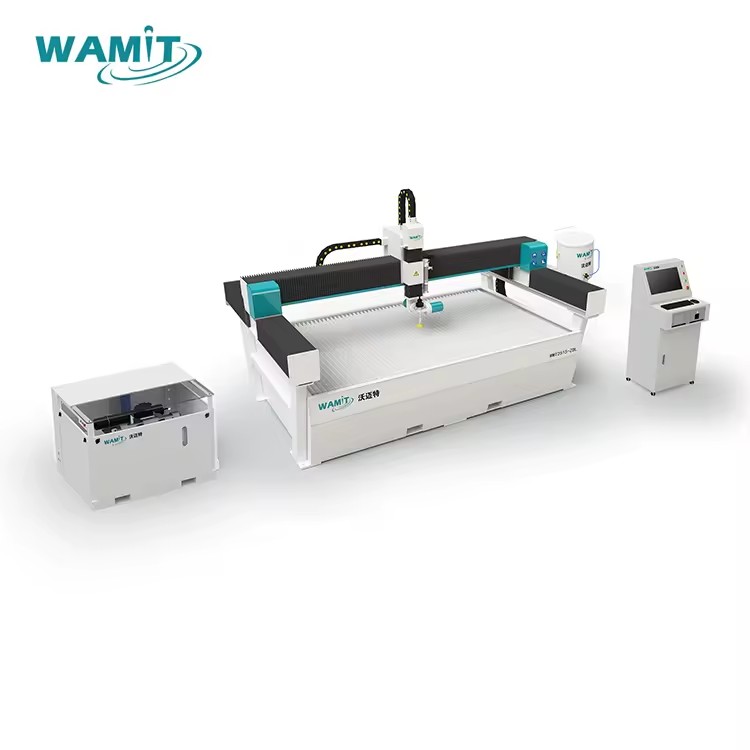

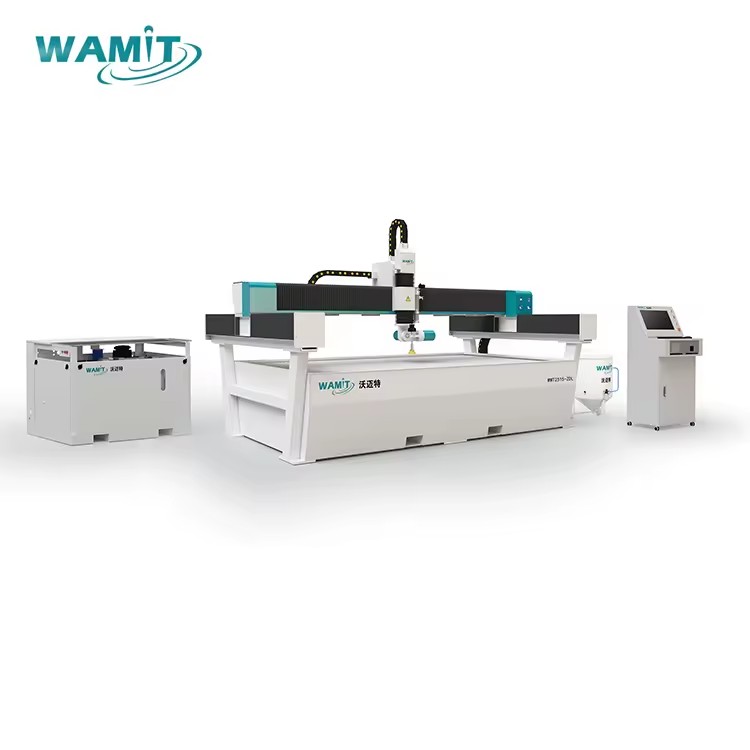

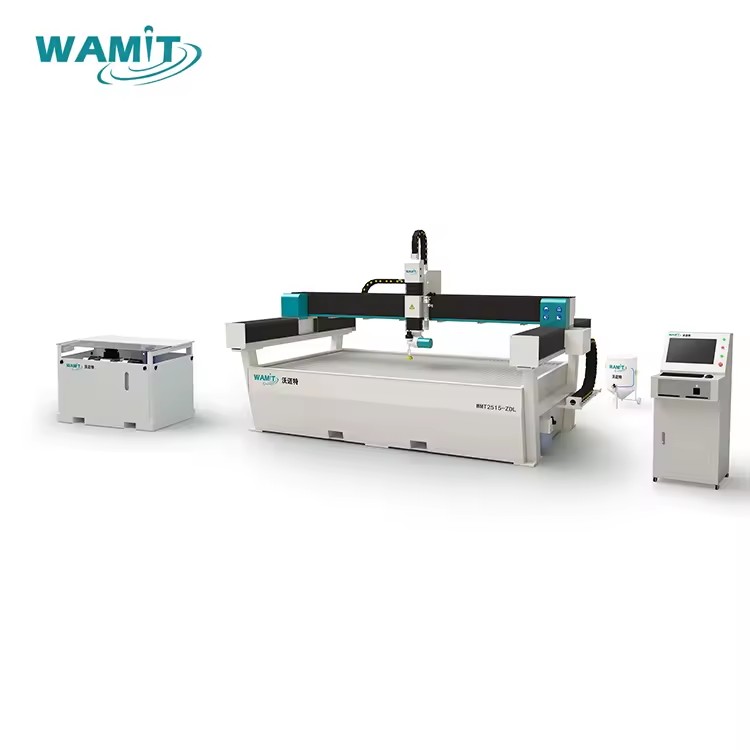

Robust Construction 3 Axis 5 Axis CNC Water Jet Cutting Machine for Marble Glass Tile

Product Importer Gallery 01 · 1fe95c7671

Product Importer Gallery 02 · cb5c4fe6b7

Product Importer Gallery 03 · 4bd2f36710

Product Importer Gallery 04 · a38a83aedc

Product Importer Gallery 05 · 4bab475683

Product video

Robust Construction 3 Axis 5 Axis CNC Water Jet Cutting Machine for Marble Glass Tile

Name: Robust Construction 3 Axis 5 Axis CNC Water Jet Cutting Machine for Marble Glass Tile
SKU: YWM3-QY8E-X2HZ
Price: 47860.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 47,860.00 47860.0 USD $ 47,860.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380 V, 220 V, 110 V

Number of axes

Repeatability (x/y/z) (mm)

±0.05

Core components

Motor, Engine, Pump

Machinery test report

Provided

Warranty

1 Year

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

WMT200 SERIES

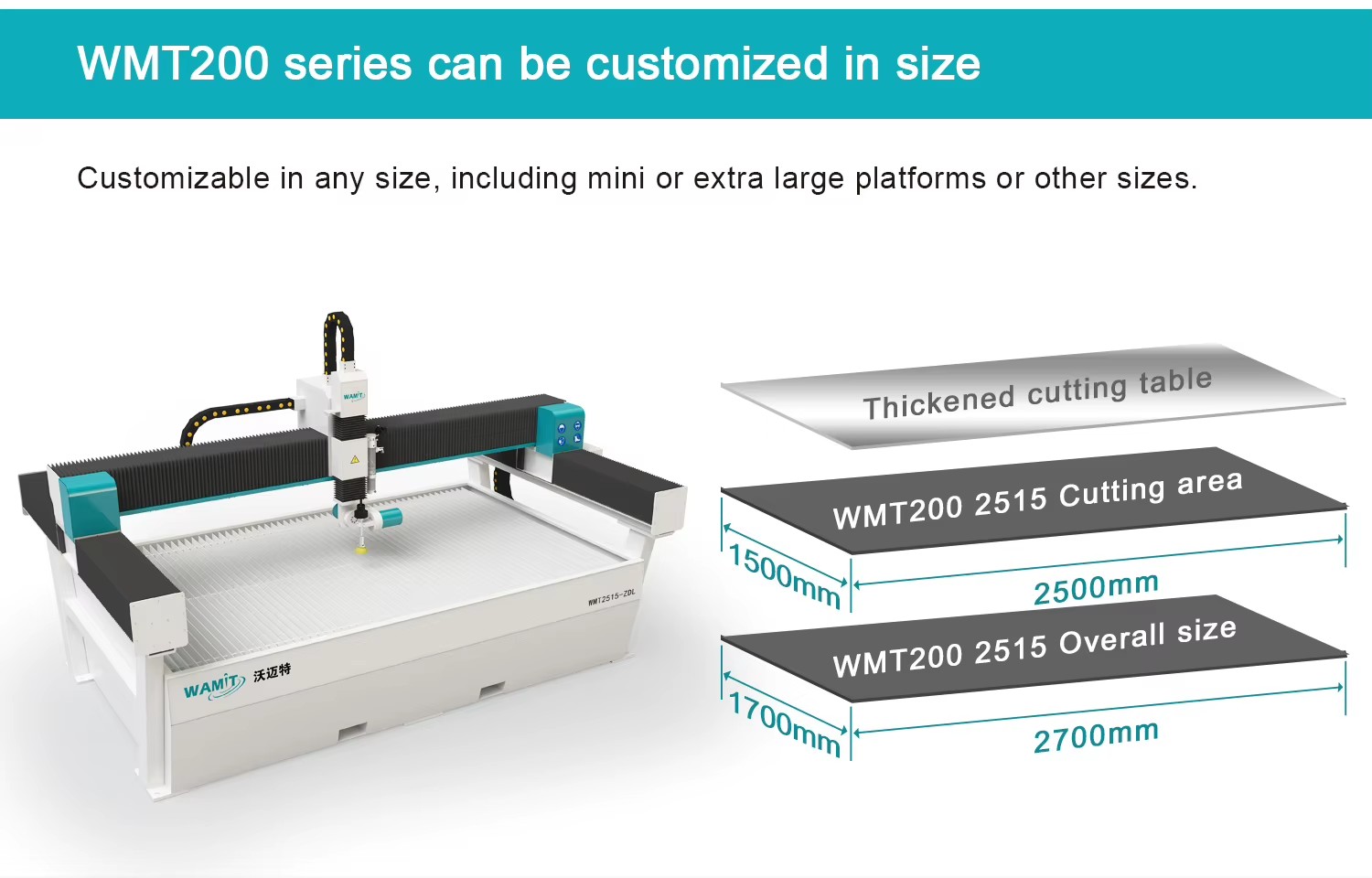

Model	WMT200 1515	WMT200 2015	WMT200 2515	WMT200 3020	WMT200 4020
Table size	X axis(mm)	1700	2200	2700	3200	4200
Y axis(mm)	1700	1700	1700	2200	2200
Cutting Size	X axis(mm)	1500	2000	2500	3000	4000
Y axis(mm)	1500	1500	1500	2000	2000
z axis(mm)	150	150	150	150	150
Cutting accuracy	±0.1mm
Repeated positioning accuracy	±0.05mm
Driving mode	alternating current servo
Maximum operating speed	50000mm/min

$16,999-26,666 / set

A:You need to offer the size of the materials you want to process or the size of the cutting table.

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Voltage

380 V, 220 V, 110 V

Number of axes

Repeatability (x/y/z) (mm)

±0.05

Core components

Motor, Engine, Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

High-Accuracy

Rated power

15KW/37KW

Place of origin

China, Shandong

Weight (kg)

4000

Table travel (x) (mm)

3000

Table travel (y) (mm)

2000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Cutting accuracy

0.1mm

Cutting thickness

0-200mm

Max pressure

420Mpa

Continuous Working Pressure

350-380mpa

Power Requirement

(415v/50hz), 380V/50HZ, ( 220v/60hz), 3 phrase

Intensifier assembly

imported from USA

Linear guider

HIWIN

Way of drive

servo motor and driver

Working area (Specification)

2000*3000mm

Keyword

Waterjet Cutting Machine

Selling Units

Single item

Single package size

320X220X100 cm

Single gross weight

4000.0 kg

Model number

WMT200

Effective cutting range (mm)

3000×2000

Lead time

35 days

Minimum order

1 Units
