Structural Excellence
CNC water-Jet Cutting machine(L=Gantry type)
Model
Unit
L3020
L4020
L3040
L2060
Efficient Cutting Area
mm
3000*2000
4000*2000
3000*4000
2000*6000
Axis Transmission
X
3000
4000
2000
Y
6000
Z
150-180
Cutting Accuracy
±0.1（Upper surface)
Positioning Accuracy
±0.025
Running Speed
m/min
as to detail material and thickness
Parameter
Specification
Rated Voltage
220/380/400V, 3ph, 50/60hz
Rated Power
30KW/37KW/55KW, 40/50/75hp
Cutting materials
stone,plastic,Stainless steel, brass, aluminum, glass.etc
High pressure
300-400mpa
Max.flowrate
3.7 L/Min
Core components
motor, pressure vessel, pump
Brand name
YCWJ
Drive system
AC servo and screw,guideway
Abrasive name
Garnet
Warranty Period
1 Year
Dimension (L * W * H)
According to machine model
Weight
Products Description
CNC water-jet cutting machine (standard configuration) is composed of cutting table and cutting head, HP pump, CNC control system with software, automatic abrasive feeding system and air cooling system.

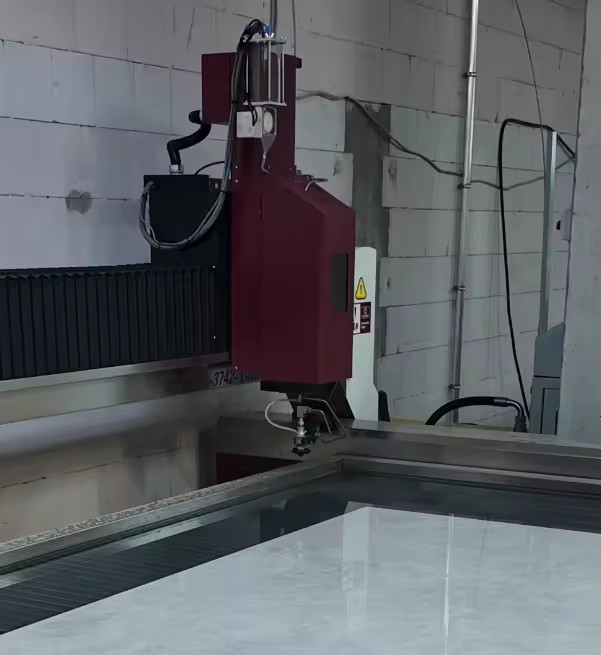

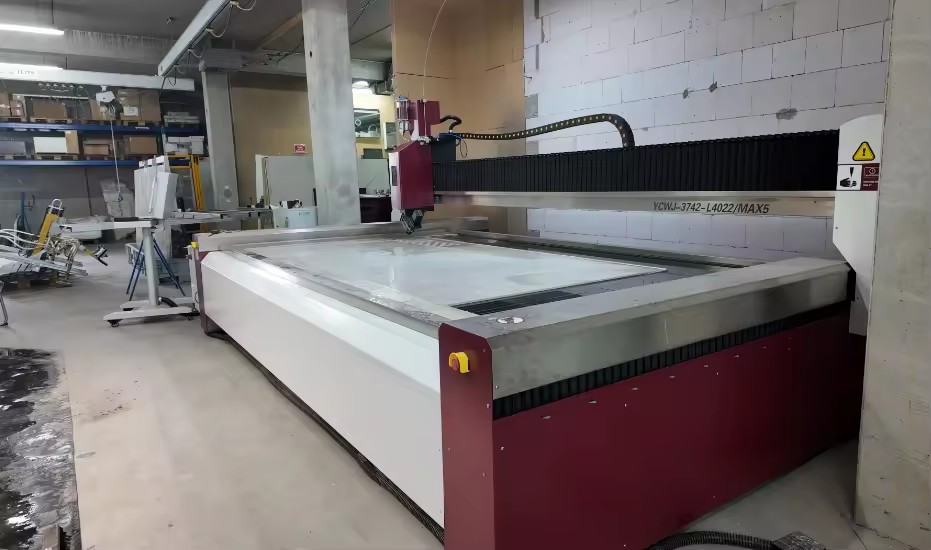

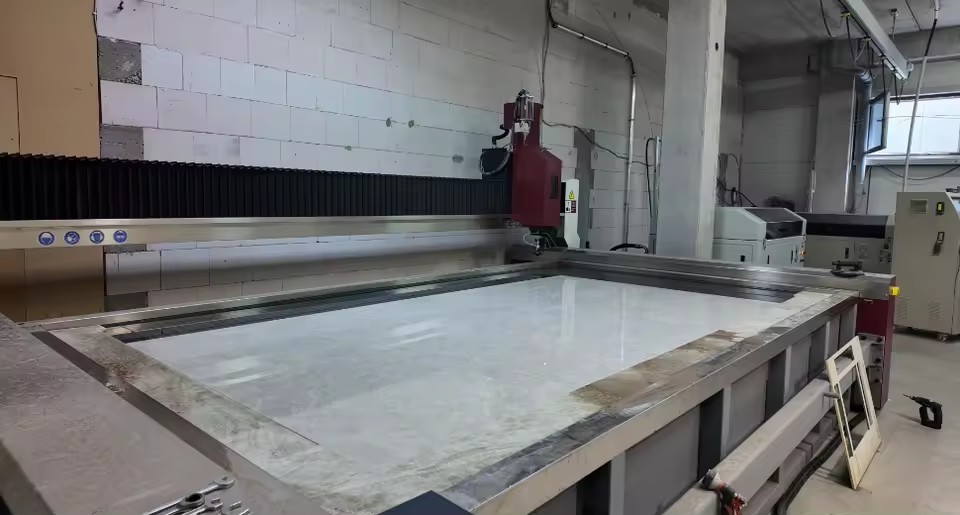

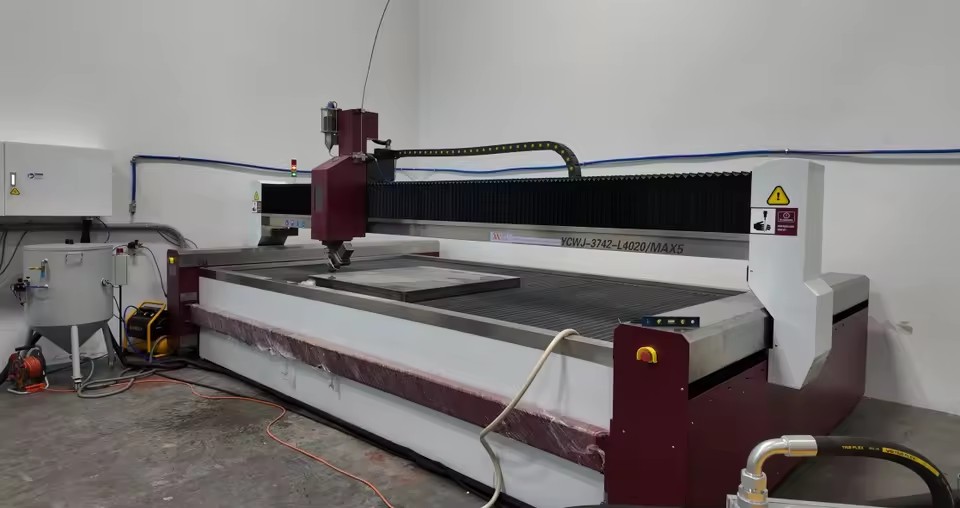

Max5 Axis L Series Cutting Table
The Y-axis features an integrally cast crossbeam and base frame, optimized via finite element analysis to ensure long-term machining precision and stability. The detachable bed and water tank effectively isolate moving components from abrasive water
mixtures and machining debris, extending equipment lifespan.
The monolithic Y-axis base, stress-relieved and precision-machined, offers superior rigidity and vibration damping while facilitating transportation and on-site assembly. Both X/Y axes are equipped with C5-grade precision ball screws and heavy-duty
linear guides, achieving positioning accuracy of ±0.02mm and repeatability of ±0.01mm.

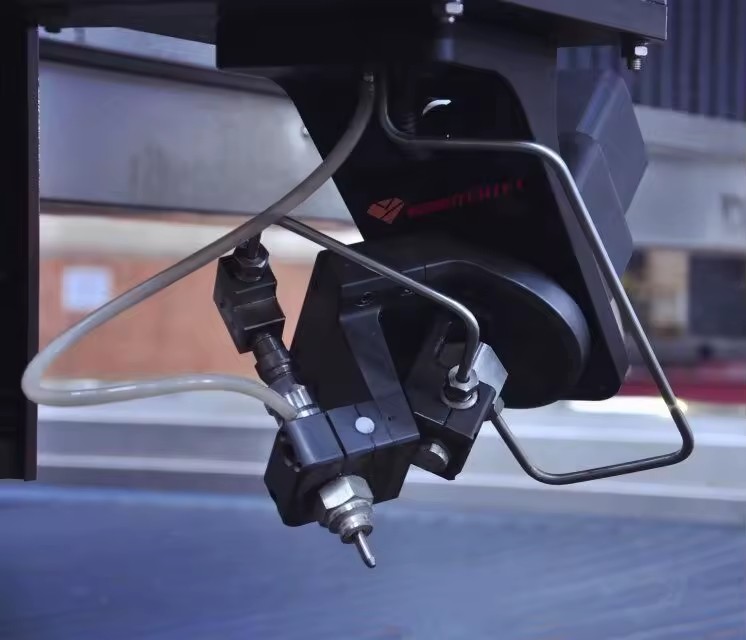

\Max 5 axis waterjet cutting head is based on the standard three-axis (x-axis Y-axis Z-axis) and adds the a-axis (rotation around x-axis) and the c-axis (rotation around z-axis), which can achieve large-angle deflection。By using state-of-the-art technology and
Italian ECS control system, it can produce 0-±45° or more inclined cuts with a maximum rotation angle of up to ±540°.Therefore, it can achieve the effect of 3d waterjet cutting.
The YC HP pump
is uniquely designed for easy installation and maintenance while ensuring stable working pressure and high efficiency. Available in 30KW/40HP, 37KW/50HP, and 75KW/100HP models, you can select the appropriate pump based on your cutting material and thickness. To enhance performance, critical components like the supercharger assembly and valve parts are directly imported from the US. Beyond our own pumps, we also supply renowned foreign brands such as KMT, Hypertherm, and BFT to meet diverse customer needs.
The YCG-SERVO high pressure pump system
is an efficient servo-driven system for precise pressure/flow control. It uses a servo control system (oil pump/motor) paired with a high-pressure sensor to measure pipeline pressure/flow states in real-time, forming a closed-loop control that automatically matches the selected cutting nozzle diameter via pressure/flow settings. The motor can accelerate to 2700 RPM within 50-60 milliseconds and stops to save energy when the cutting head is closed.
The WEIHONG-V9 water jet cutting operation system
Can directly support G code, PLT code format, ENG code format, DXF file format generated by various CAD/CAM software such as UG, MASTERCAM, AUTOCAD, etc
Continuation of breakpoints, program skipping execution Small aperture, automatic deceleration, pause and other functions for small arcs, sharp corners, and corners.
Real time simulation and simulation of graphics
Predict processing time, pre load processing trajectory, and dynamically display tracking.
Italian ECS-905 system
/suitable for all sheet metal cutting applications：
Oxygen cutting, plasma arc cutting Water cutting, laser cutting, and drilling; Can achieve 16 axis control Gantry axis control; 5-axis cutting torch control; AMD Hardware Architecture; Industrial computer, high performance, low power consumption
IGEMS Programming nesting software
IGEMS is a professional team dedicated to water jet cutting. IGEMS is also a modern software that makes part design and cutting on water jet cutting machines easier.
Product Paramenters
Recommend Products
view more >>
Recommended by seller
$32,780-39,500
set
$30,000-31,000
$51,100-53,200
$40,800-42,600
$35,000-37,000
meter
$18,000-20,000
$5,000-8,000
$128,000-131,300
Core compoenent options
Featuring a low noise, no pollution, high precision and high reliability
Waterjet Cutting Table
1.
S Series
2.
L Series
3.
G Series
Cutting Head
Max 5 cutting head
Dynamic 5 cutting head
Multi-head
High Pressure Pump
1. YC Pumps (40hp/50hp/100hp)
2. Hypertherm
Waterjets - Controller & Software
1. WEIHONG CNC SYSTEM
2. NESTING &PROGRAMMING
3. ECS CONTROLLER
Cutting sample
Packaging & Delivery
Company Profile
Location Advantages
Situated in Wuxi, Jiangsu— a core city of the Yangtze River Delta Economic Circle— the company is 160 km west of Nanjing and 140km east of Shanghai. Adjacent to Wuxi Shuofang International Airport (4E class), its logistics network covers major global ports and hubs.
Company Overview
Founded in 1999, initially focused on R&D and manufacturing of automated conveyor systems, including paper handling lines and home appliance production solutions. In 2005, a specialized team was established to develop ultra-high pressure waterjet cutting equipment, expanding our technological portfolio.
Technology & Partnerships
Technical Integration
Integrating technologies from top European and American water jet brands, we have maintained a deep cooperation with Accustream/Hyperthem () for over 10 years, enabling full-chain customization from design to production.
Process Advantages
Using internationally advanced cold cutting technology, our solutions feature no thermal deformation and high precision, suitable for high-end fields such as aerospace and automotive manufacturing.
Global Market & Service Network
Export Coverage
Products are sold to over 70 countries and regions, covering major economies in Asia, Europe, America, etc., with support for cross-border customized services.
After-Sales Guarantee

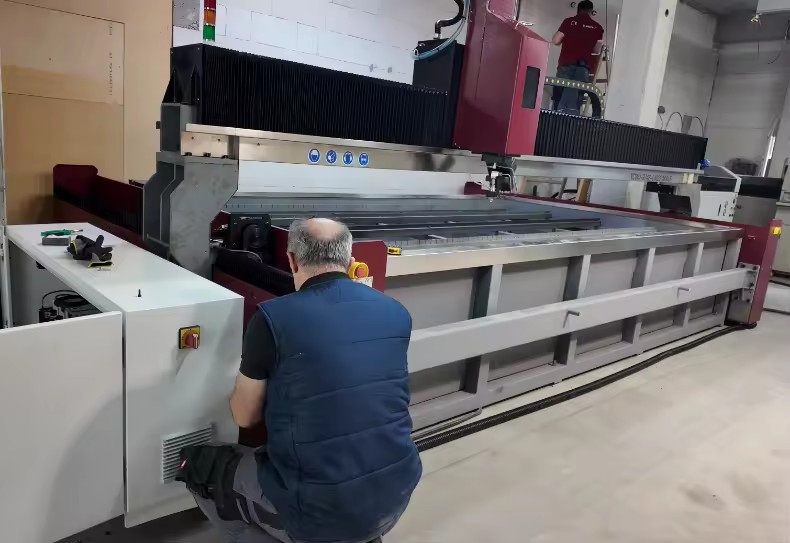

We provide equipment site installation & debugging, technical training, and remote maintenance support to ensure full-cycle worry-free use for overseas customers.
YC has more than enough in production facilities to ensure your order of waterjet cutting machine will never be held up waiting for production.
Our Chief engineer Mr. Tian has more than 25 years experience in water jet cutting field, he started his research of water jet cutting machine when he was a university student. There are two electrical engineers and one mechanical engineer who have 20 years experience in water jet cutting field. So our technical team can provide you professional support of waterjet machine.
YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers, absorb advanced technology and ideas of water jet cutting industry.
