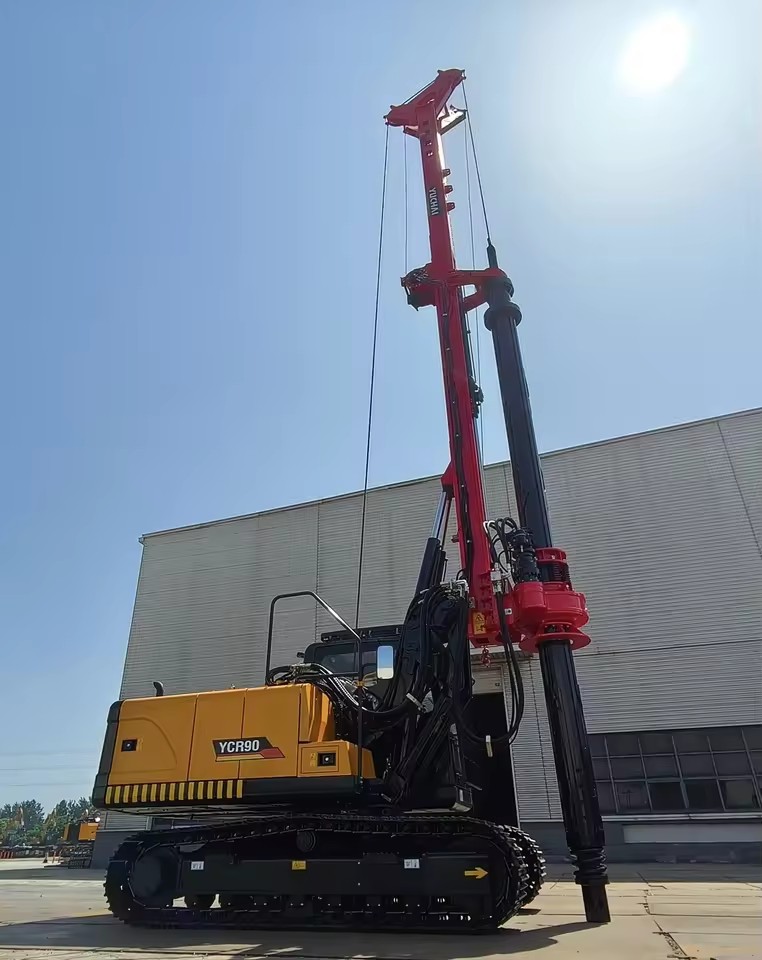

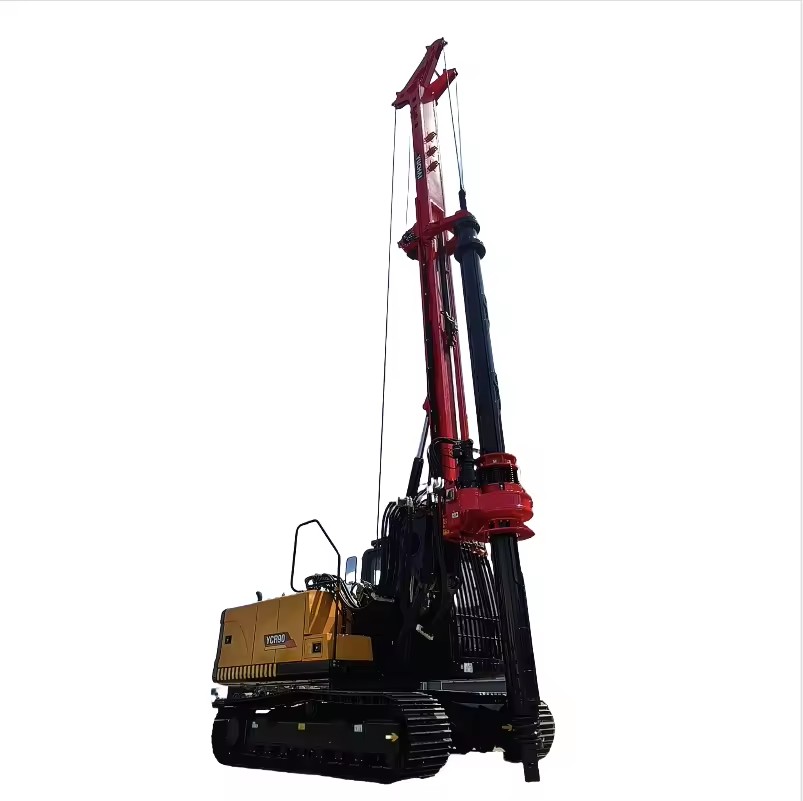

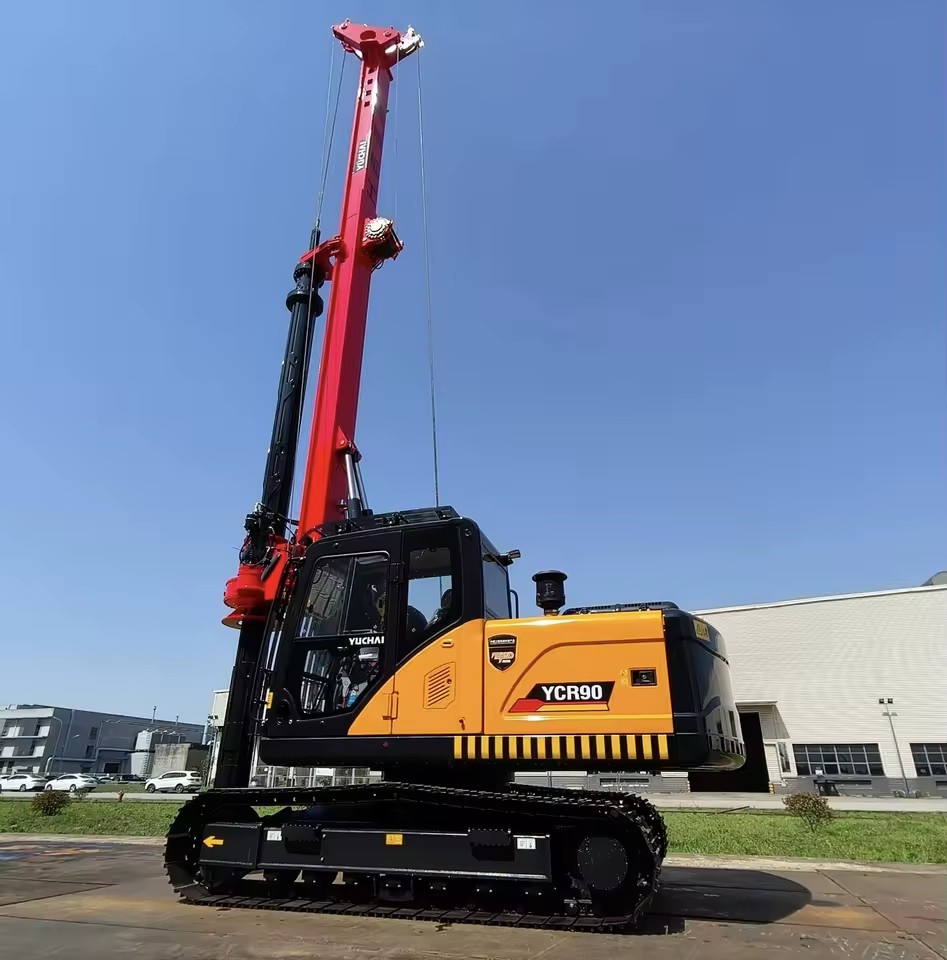

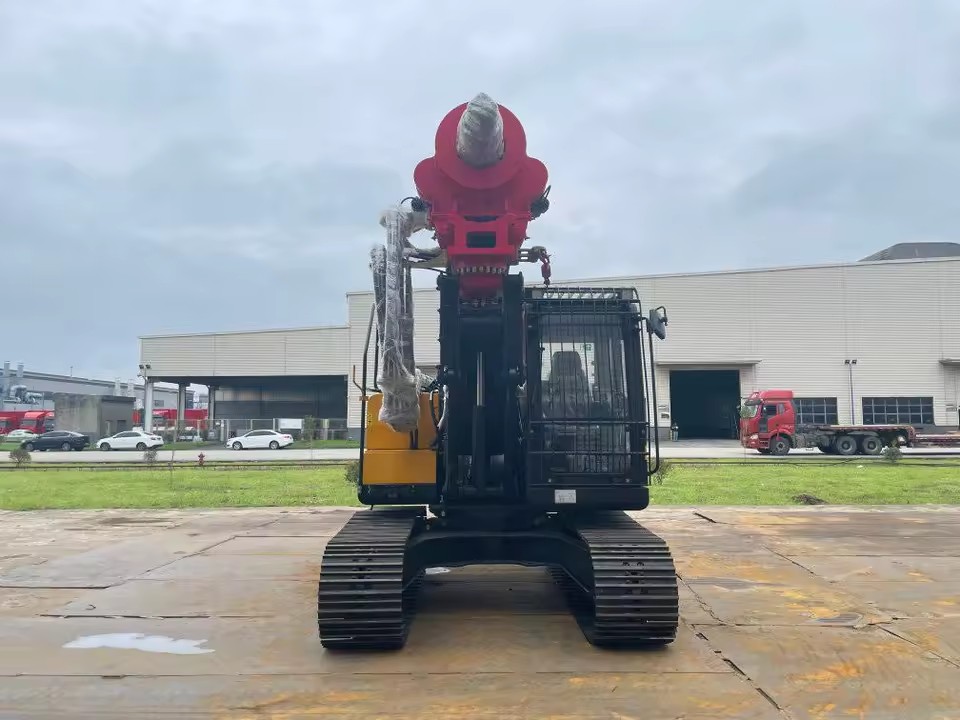

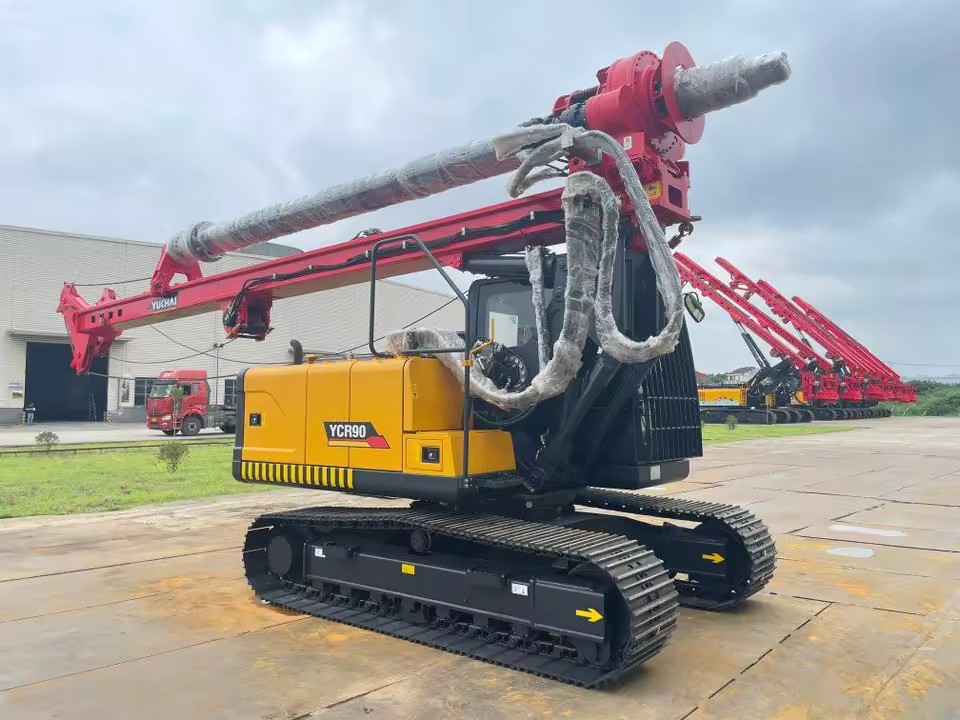

High Quality YCR90 Rotary Drilling Rig with Powerful Engine for Mining Excavation in Stock

Available for enquiry 0.0 · 0 reviews
USD

$ 104,410.00 104410.0 USD $ 104,410.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal, Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.24m
Drilling Diameter
1200mm(47.24in), 1200mm
Power Type
Diesel
Voltage
380 V, 220 V
Product description
Chasis
Engine modelYUCHAI
Rated powerkW/rpm86/2200
Rotary drive
Max.output torquekN.m90
Rotary speedrpm36
Max.pull-down piston pusht9
Max.pulling forcekN10
Max.pull-down piston strlkemm2000
Main winch
Max.pulling forcet9
Max.pulling speedm/min60
Wire rope diametermmΦ20
Auxuliary winch
Max.pulling forcet5
Max.pulling speedm/min40
Wire rope diametermmΦ16
Mast pake
Forwards backwards°5
Forwards backwards°90
Side backwards±4
Drilling hole
Max.drilling diametermm1200
The max.drilling depthm24
Main machine
Machine weightt23

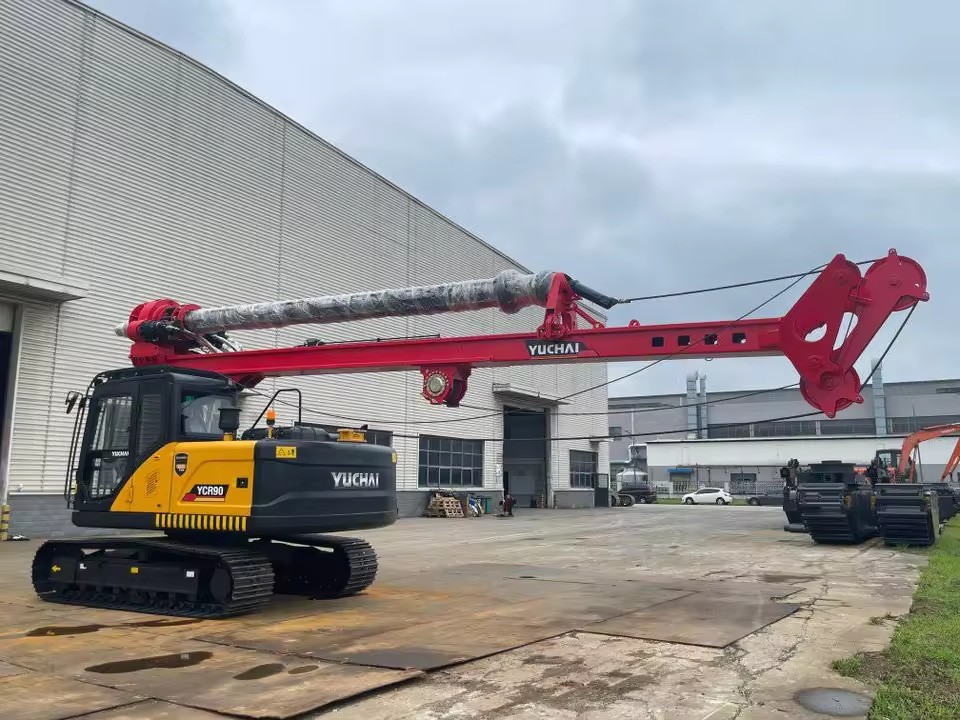

Transporting state sizemm11580*2700*3170
Working state sizemm5000*2700*12750
Recommended drill pipe type
Drill pipe configurationΦ299-4x6.7m

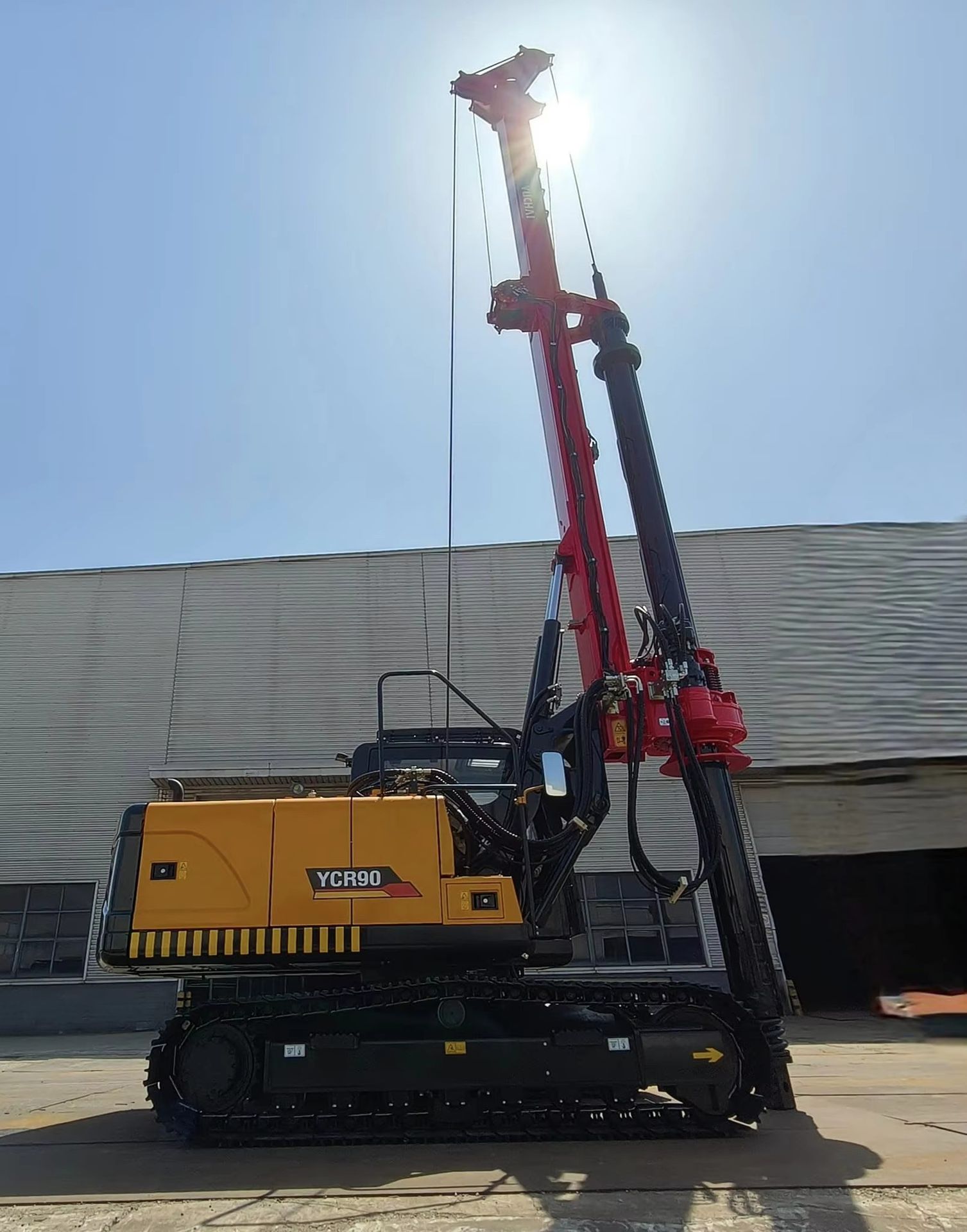

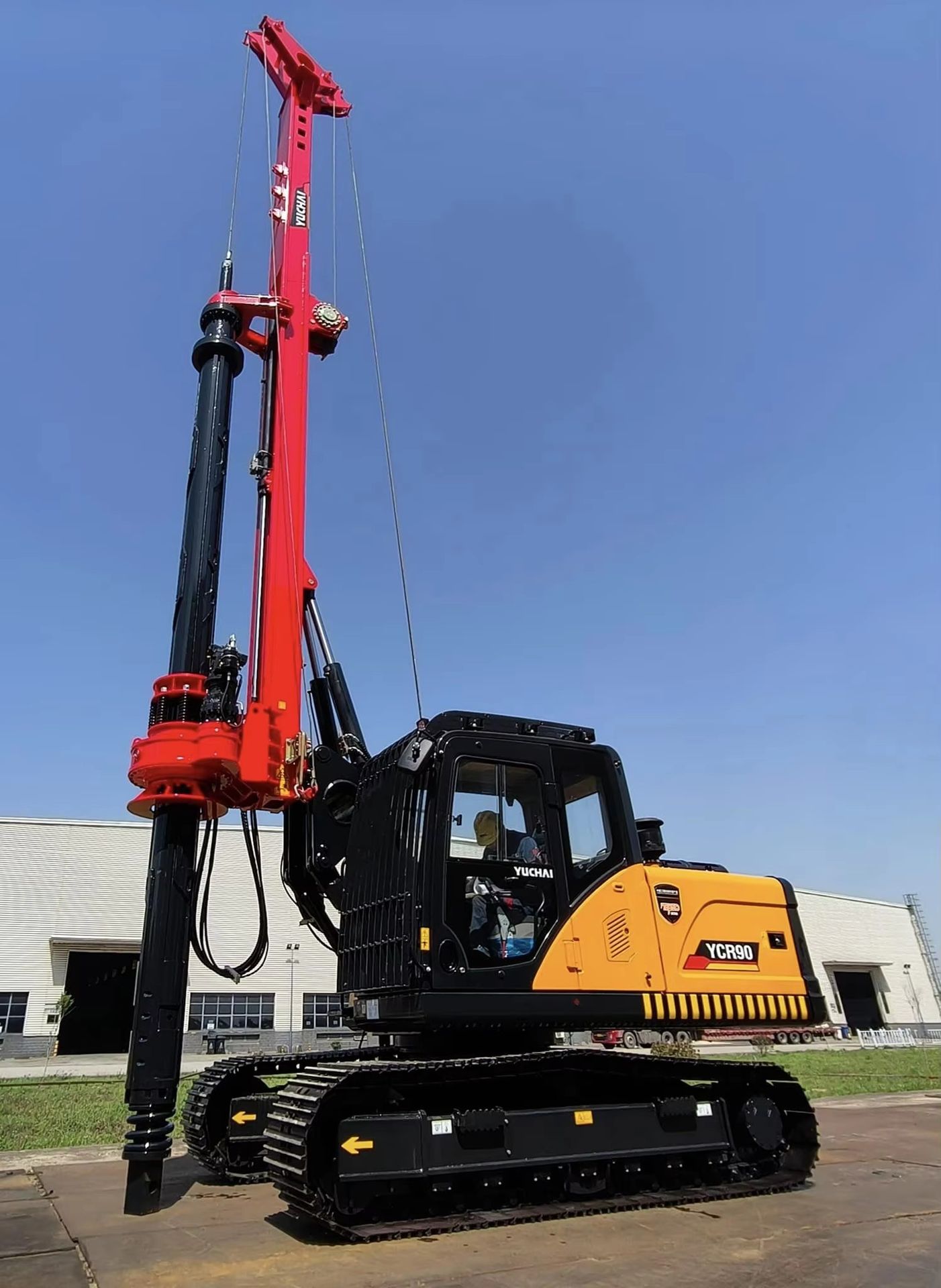

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    31 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
coal, Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.24m
Drilling Diameter
1200mm(47.24in), 1200mm
Power Type
Diesel
Voltage
380 V, 220 V
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic
Place of origin
China, Shanghai
Weight
23000 KG(50706.32lb)
Dimension (L*W*H)
5000*2700*12750mm(196.85*106.30*501.97in)
Max pulling force
20t
Total working weight
23 ton
The maximum drilling depth
24m
Power/ revolution
86/2200kw/rpm
Friction rod configuration
299-4*7.6m
Max.output torque
90KN.m
Rotary Speed
36rpm
Max.pulling force
10 kN
Main winch max. pilling force
5t
Selling Units
Single item
Single package size
50X50X50 cm
Single gross weight
5000.0 kg
Model number
YCR90
Power (W) (Product option)
86/220KW/rpm
Lead time
31 days
Minimum order
1 Units
