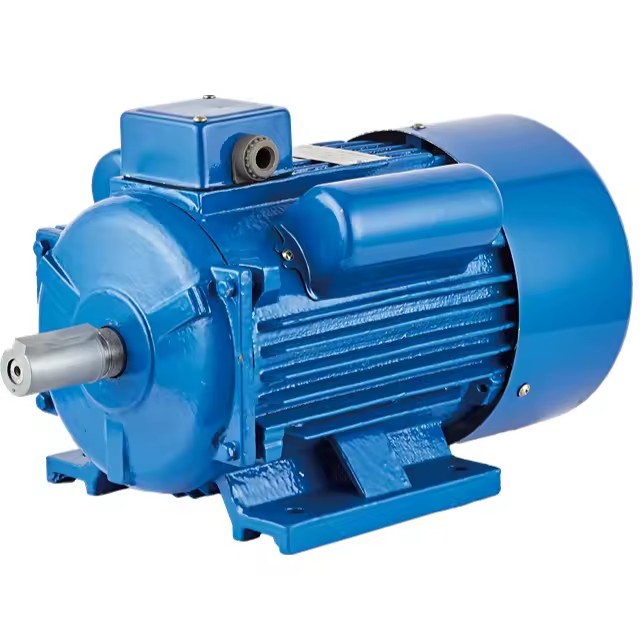

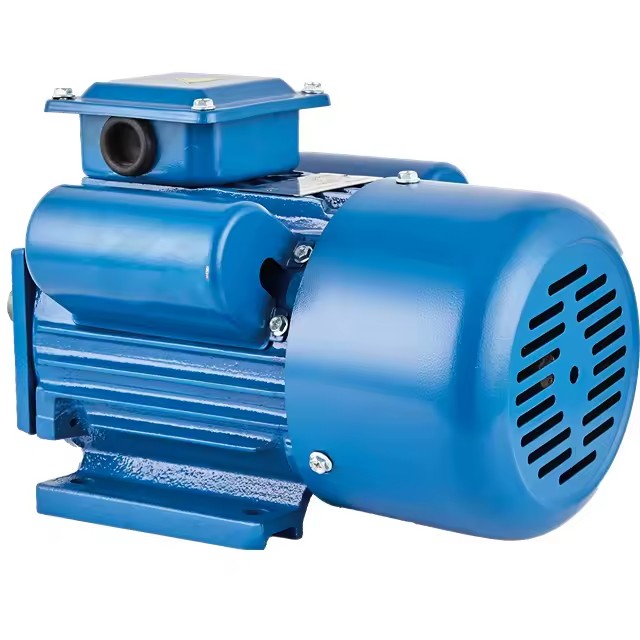

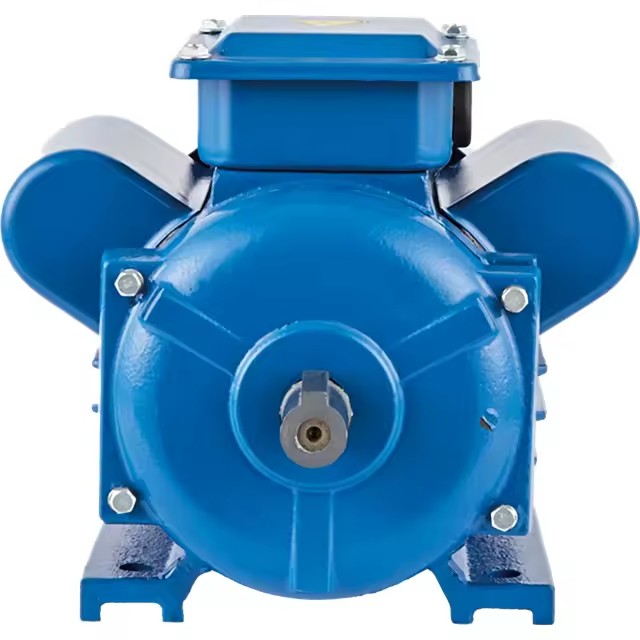

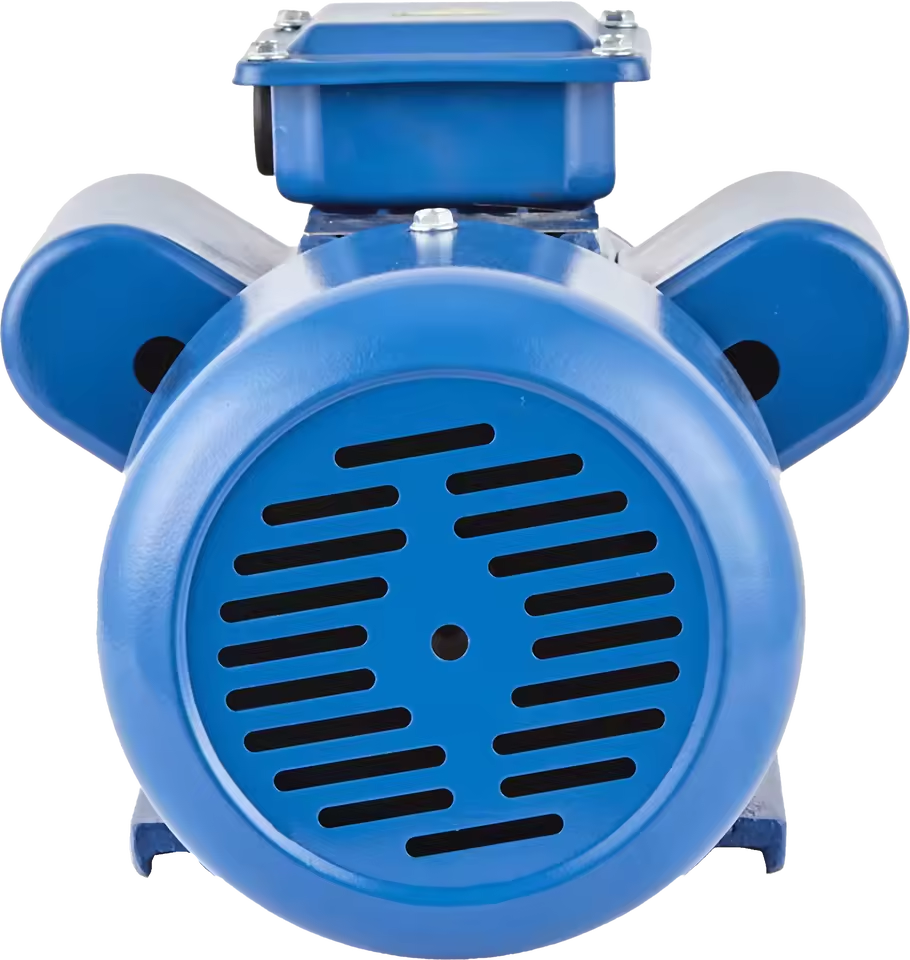

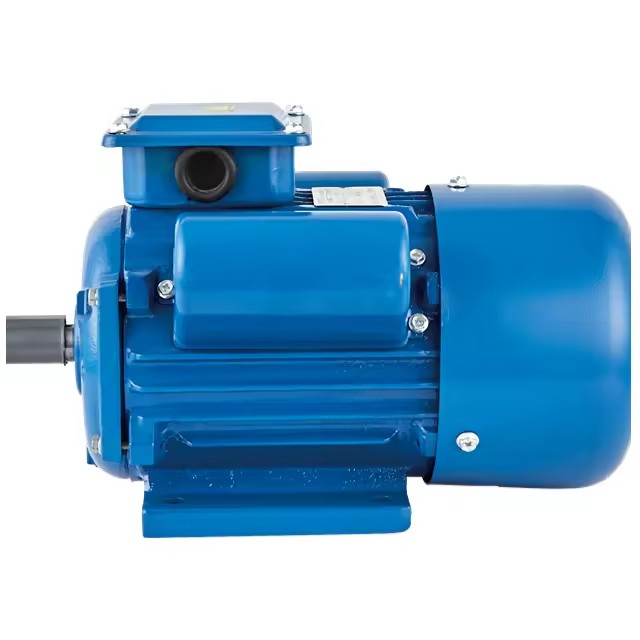

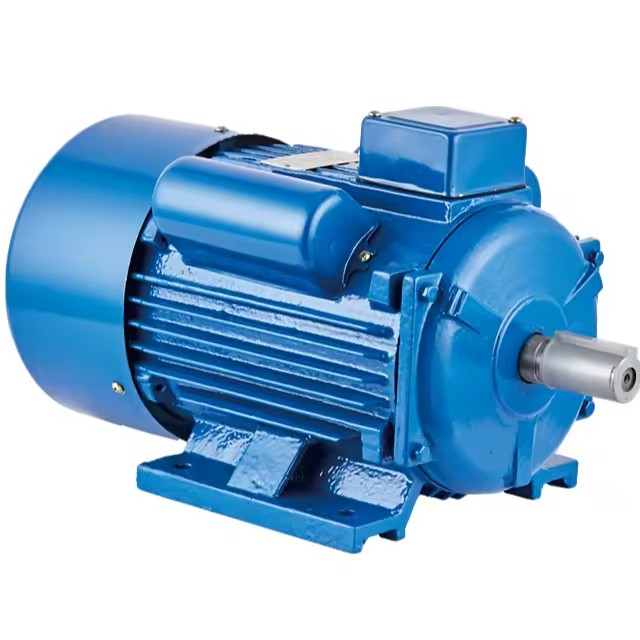

0.37KW 1450RPM YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR AC ELECTRIC MOTOR

Product Importer Gallery 01 · 064f773330

Product Importer Gallery 02 · 7e8757d099

Product Importer Gallery 03 · 61f07ef08f

Product Importer Gallery 04 · 54bf16aba6

Product Importer Gallery 05 · 15baf5a210

Product video

Certifications CCC.CE.ISO9001 · LVD(2)

0.37KW 1450RPM YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR AC ELECTRIC MOTOR

Name: 0.37KW 1450RPM YC SERIES MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR AC ELECTRIC MOTOR
SKU: YMGN-3T7T-Q86Z
Price: 80.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 80.00 80.0 USD $ 80.00

Minimum order quantity: 30 Units

Key attributes

View all

Input voltage

220 V

Horsepower

0.5 HP

Speed

1450 rpm, 750RPM/1000RPM/1500RPM/3000RPM

Frame

80 mm(3.15in)

Motor Mounting Type

Flange Mount

Warranty

3 months ~ 1 year

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

YC SERIES 5HP MOTOR ELECTRIC AIR COMPRESSOR SINGLE PHASE MOTOR AC ELECTRIC MOTOR

Motor Data

Rated frequency: 50 HZ or 60 HZ

TYPE	OUTPUT	VOLTAGE (V)	CURRENT(A)	SPEED(R/MIN)	EFF(%)	POWER FACTOR	IST/IN	TM.AX/TN
HP	KW
YC-80A-2	0.5	0.37	220	3.7	2880	62	0.73	6.5	1.8
YC-80B-2	0.75	0.55	220	5.3	2880	65	0.73	6.5	1.8
YC-80C-2	1	0.75	220	6.7	2880	68	0.75	6.5	1.8
YC-90S-2	1.5	1.1	220	9.1	2880	71	0.77	7	1.8
YC-90L-2	2	1.5	220	12.1	2900	72	0.78	7	1.8
YC-100L-2	3	2.2	220	17.1	2900	74	0.79	7	1.8
YC-112M1-2	4	3	220	21.4	2900	76	0.84	7	1.8
YC-112M2-2	8	3.7	220	24.8	2900	79	0.86	7	1.8
YC-80A-4	1/3	0.25	220	3.4	1450	56	0.6	6	1.8
YC-80B-4	0.5	0.37	220	4.5	1450	60	0.62	6	1.8
YC-80C-4	0.75	0.55	220	6	1450	64	0.65	6	1.8
YC-90S-4	1	0.75	220	7.7	1450	67	0.66	6.5	1.8
YC-90L-4	1.5	1.1	220	10.5	1450	70	0.68	6.5	1.8
YC-100L-4	2	1.5	220	13.5	1450	72	0.7	6.5	1.8
YC-112M-4	3	2.2	220	19.3	1450	72	0.72	6.5	1.8
YC-132SA-4	4	3	220	25.2	1450	74	0.73	6.5	1.8
YC-132SB-4	5	3.7	220	30	1450	75	0.74	6.5	1.8
YC-132M-4	7.5	5.5	220	32.5	1450	81	0.95	6.5	1.8

♦OPERATING CONDITIONS

♣Ambient temperature:-15°c<Θ<40°c

♣Altitude:not exceed 1000m

♣Rated voltage:220v

♣Rated frequency:50Hz/60Hz

♣Dyty:S1(continuous)

♣Insulation class:B/F

♣Protection class:IP44/IP54

♣Cooling method:IC0141

EXPLODEDVIEW

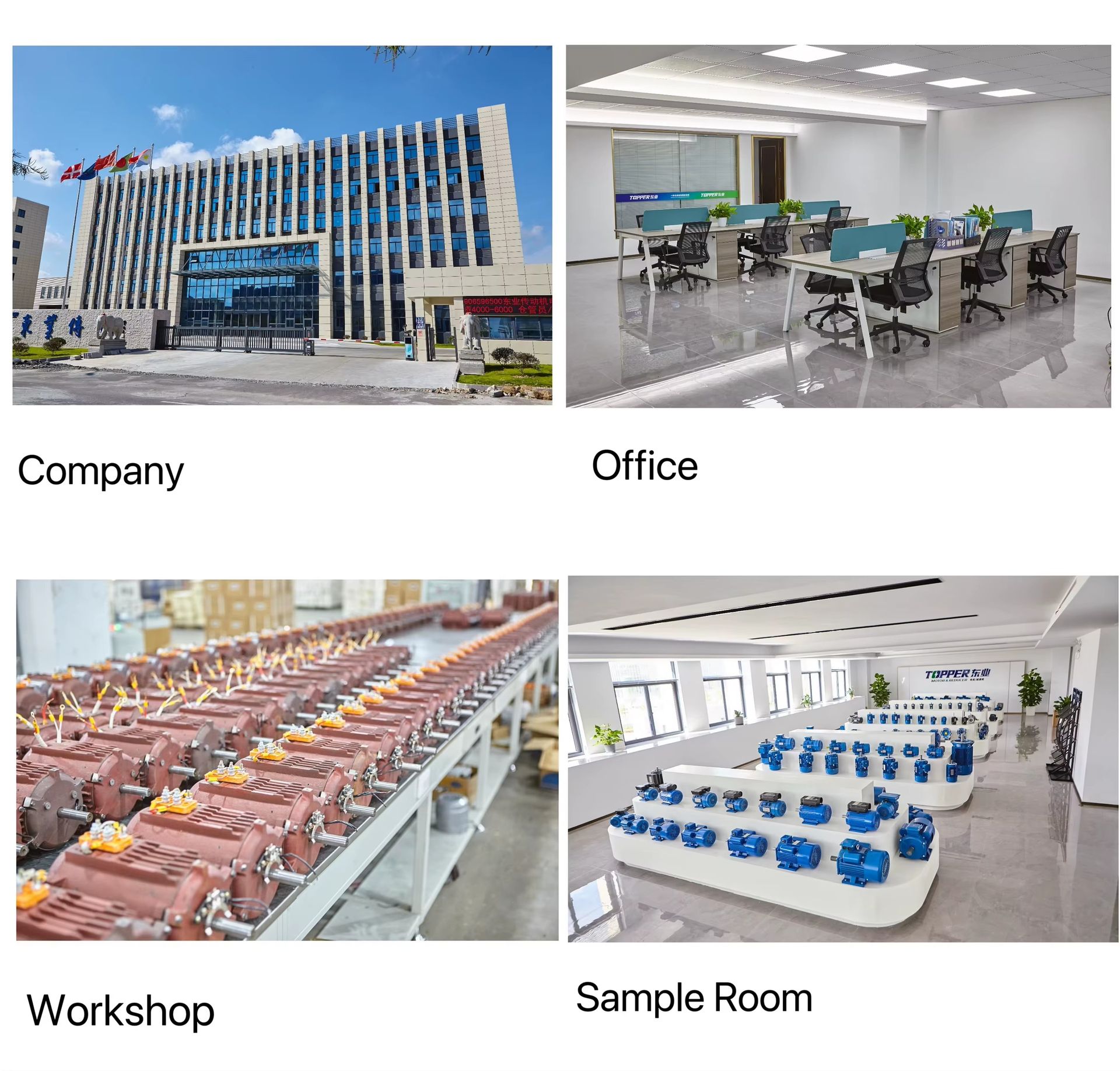

1. who are we? We are based in Zhejiang,, start from 2001,sell to South Asia(30.00%),South America(20.00%),Western Europe(20.00%),Southeast Asia(20.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 51-100 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Electric Motor, Worm Reducer, AC Gear Motor 4. why should you buy from us not from other suppliers? The company manufacture the motor and worm reducer is convenient to the customer. The company have more than 10 years' experience to produce electirc motor,we have strictly quality control system. 5. what services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery; Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese

Certifications & compliance

LVD(2)

Electrical Safety Compliance

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 30 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

40 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Input voltage

220 V

Horsepower

0.5 HP

Speed

1450 rpm, 750RPM/1000RPM/1500RPM/3000RPM

Frame

80 mm(3.15in)

Motor Mounting Type

Flange Mount

Warranty

3 months ~ 1 year

Model number (Specification)

YC80B-4

Place of origin

Zhejiang, China

Certification

CCC.CE.ISO9001

Protect Feature

Enclosed

Phase

Single-Phase

Structure

Asynchronous motor

Color

Customised

Protection Class

IP40/IP44/IP54/IP55/IP60orIP68

Selling Units

Single item

Single package size

30X22X19 cm

Single gross weight

20.0 kg

Certifications & Compliance

LVD(2)

Lead time

40 days

Minimum order

30 Units
