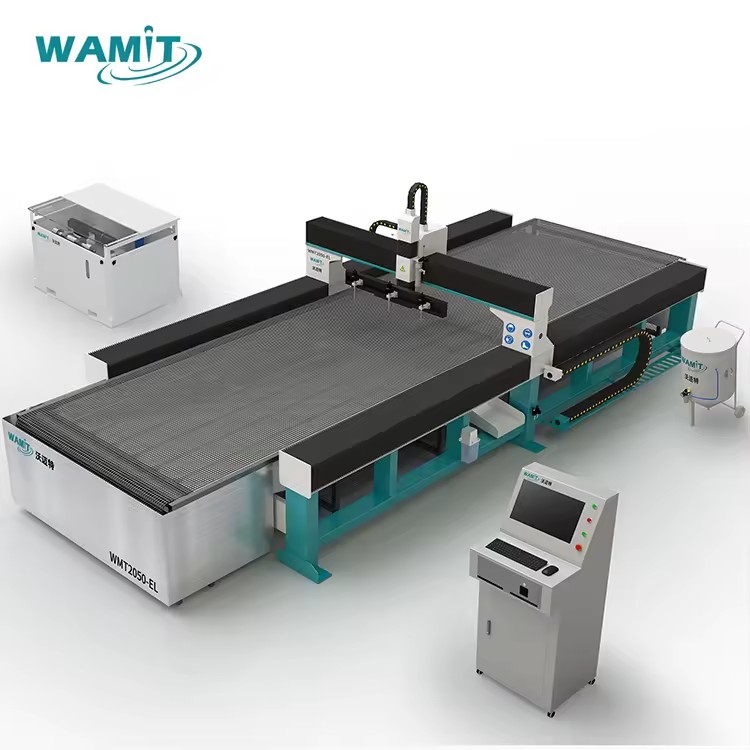

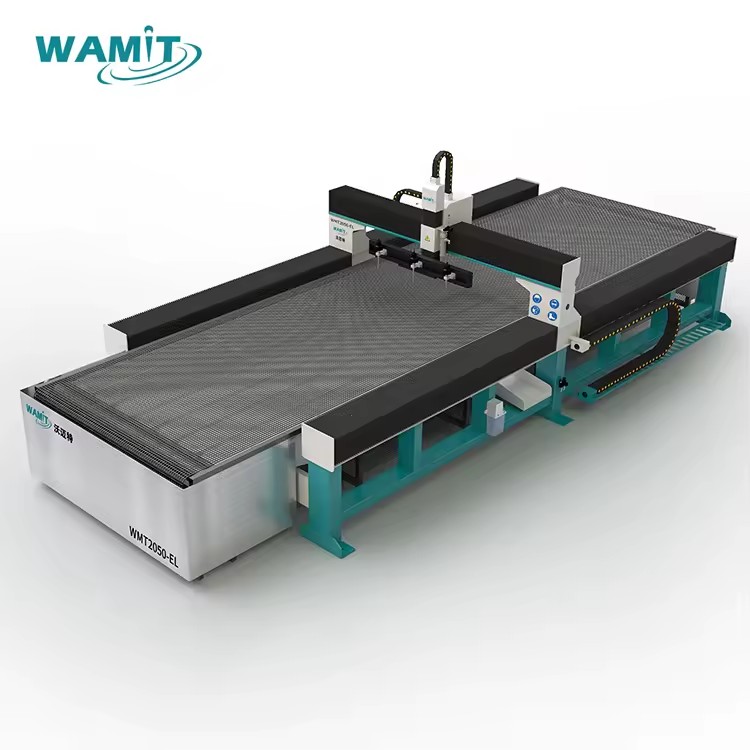

Customized Size Water Jet Cutting Machine Customized Bed High Quality Water Jet Cutter for Tile Stone Glass Metal

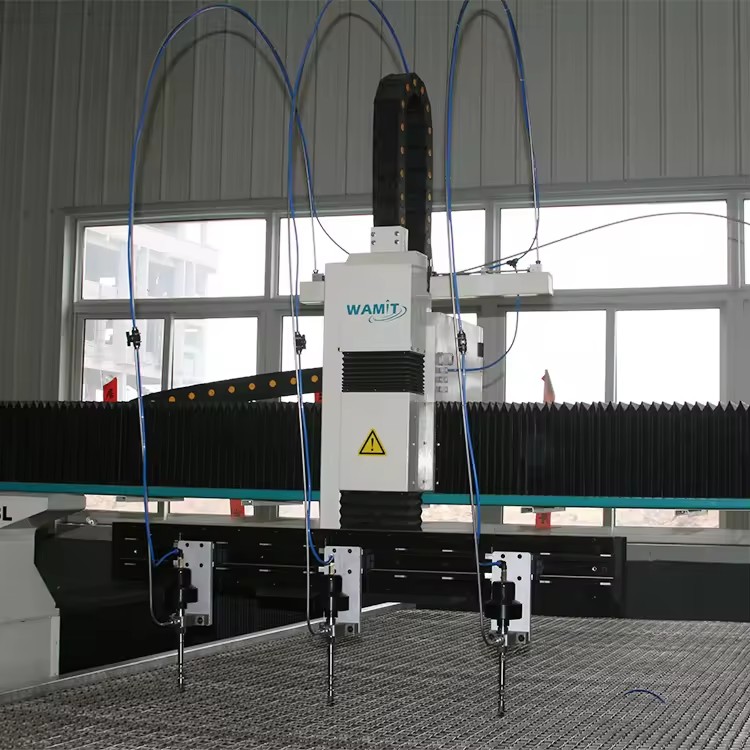

ECL 3 Axis Cutting Head

SPECIFICATION

Model

WMT500 2560

WMT500 2590

WMT500 3060

WMT500 3080

WMT500 30120

WMT5004060

WMT500 4080

Cutting Table

X axis(mm)

3000

3200

4200

Y axis(mm)

6500

9500

6300

8300

12300

Max Cutting Range(mm)

2500

4000

6000

9000

8000

12000

Z axis(mm)

150

Cutting Accuracy

±0.1mm/m

Repeat Repositioning Accuracy

±0.005mm

X/Y-axis Running Speed

50m/min

Z-axis Running Speed

5m/min

Products Description

1. Gantry-style balanced design structure is more stable and improves the accuracy of the machine.

has 3-axis and 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degree. 3. X/Y axis adopts 's high-quality guide rail and ball screw.

4.Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use.

5.'s first generation of self-designed ultra-high pressure servo direct drive pumps are more energy efficient, environmentally friendly and light, and ultra high pressure booster pumps are easier to operate and maintain.

6. CNC control system uses the WEIHONG professional waterjet cutting CNC system.

Cutting

Table

X/Y-axis

Running Speed

Optional Waterjet Cutting Head

“FLOW” ECL high efficiency cutting head: 15% faster cutting.

Compensation angle of cutting head is ±10 degree, suitable for fine cutting of tile mosaics and marble mosaics.

Compensation angle of cutting head is ±60 degree, suitable for bevel cutting of rock slabs and metal plates.

Product Details

Hydraulic Intensifier Pump

1. High energy conversion efficiency, sixty percent energy saving than conventional pumps.

2. More stable output and higher

quality cutting effect

3. Fast starting speed, improve cutting efficiency.

WEIHONG CNC Controller

pecially present good quality in details of cutting, optimized the trailing made by water stream.2. Easy draw with point, arc, polyline, shapes, ellipse, polygon, text.

3.Equipped with WEIHONG system as standard, high applicability to meet customer's cutting needs

Abrasive Delivery System

1. Provide abrasives for water jet cutting machine. 2. It can improve the automation of the machine and reduce the labor intensity

of the operator. 3. High-precision sensor reminds the operator when to replenish the abrasive material. 4. No need for electric

control, simple, reliable and maintenance-free operation.

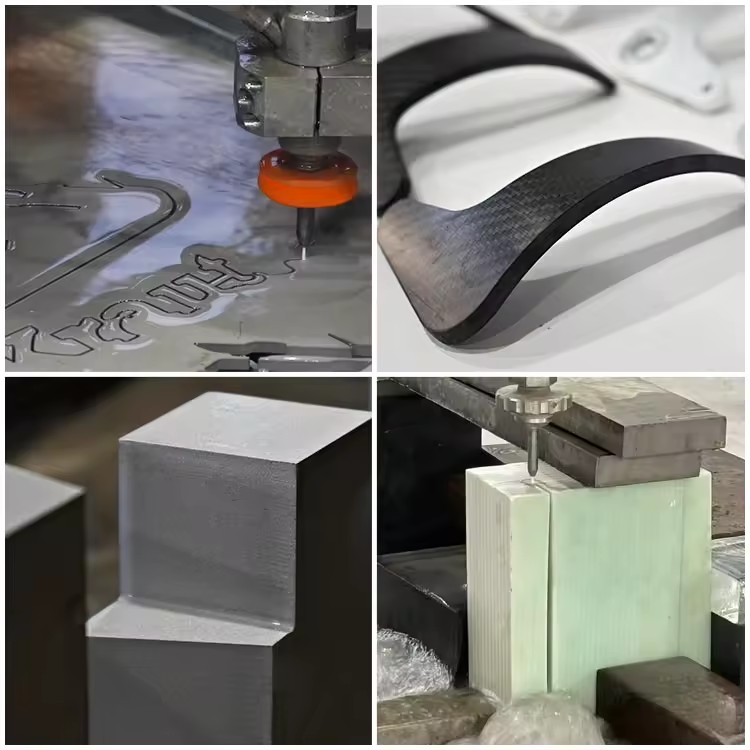

Cutting Sample

Our Customer

About Company

is a high-tech enterprise specializing in the development, manufacturing, sales, and technical services of CNC ultra-high-pressure water jet technology products.

The company's independently developed new generation of ultra-high pressure generators - servo direct drive pumps, have been widely praised since their launch in 2016. Their advantages of energy saving, environmental protection, high efficiency, and flexibility have been fully utilized.

is dedicated to the innovation and application of ultra-high pressure water jet technology, creating a brand with high quality, high cost-performance, and excellent service.

focuses on developing ultra-high pressure water jet technology, establishing a water jet laboratory for in-depth research and promoting new water cutting equipment aimed at reducing customer costs. The goal is to expand the application of water cutting technology from metals, stone, glass, and rubber/plastics industries to the food and medical sectors.

Innovative R&D is the foundation for the company's long-term survival, and the application of technology ensures meeting customer needs and contributing to society.

Certificates

Packing&Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are manufacturer of water jet cutting machine in Jinan, Shandong Province,. We have been established for more than 10 years, and have professional designers and R&D team, which can provide you with the best quality service.

2. What materials can your water jet cutting machine cut?

Our water jet cutting machine can cut many

materials, such as stone, ceramics, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel,titanium, nickel-chromium alloy and casting alloy.

3. What is the maximum cutting thickness of CNC water jet cutting machine?

Generally, if cutting steel, our water jet cutting machines can cut up to 240 mm thick, but we recommend cutting no thicker than 150 mm to ensure a smooth cut. Now our Z-axis distance is 170 mm and we can customize it for our customers. For regular thickness, please refer to: Marble 0-120mm; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel, Stainless Steel, Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm.

4. How do we provide after-sales service?

Some countries have after-sales service department, we will provide local service, if there is no local service, we will arrange engineers for overseas installation and training. The installation and training time is usually 7-10 days. We can also provide installation video.

5. What is your delivery time? Generally 7-15 working days if in stock, 30-40 working days for customized machine.
