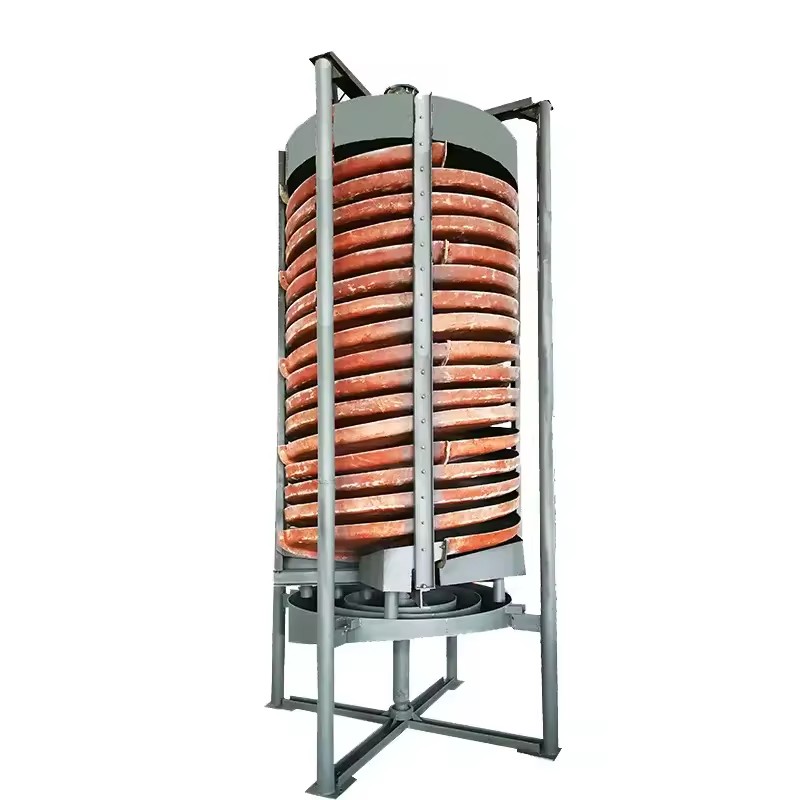

High Quality Coal Chrome Ore Gravity Separation Spiral Chute Separator Mineral Processing Equipment Gravity Spiral Concentrator

Available for enquiry 0.0 · 0 reviews
USD

$ 14,970.00 14970.0 USD $ 14,970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Sprial Separator, LI900, DL2000
Voltage
Customization
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Product description
ModleDL2000DL1500DL1200DL900DL600DL400
Outer diameter(mm)200015001200900600400
Inner diameter(mm)200015001200900600400
Pitch1200900720/540540/360390/360180
Dia.Span Ratio0.60.60.60.40.40.45
Tilt angle (°)999999
Head Number2-42-42-42-31-21-2
Number Of Turns3.544-54-54-54-5
Feeding size0.04-0.40.03-0.30.03-0.30.03-0.30.02-0.20.02-0.2
Feeding concentration(%)20-4020-4530-5030-5030-5030-50
Capacity(t/h)15-4510-254-62-30.8-1.20.5-0.2
Area(㎡)7521.20.50.25
Height(m)6.86.15.2342.61.3

A: At the client’s request, can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment.

A: The warranty period for all of ’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.

A: Hi, if you want us recommend a suitable type for you; please let us know as follows

A: Many thanks for your trust, we can provide you with proposal chart for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipment,drilling rig,loader,trucks,excavators and so on.

A: All equipment manufactured by is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur

A: Standard delivery time for stationary crusher plant is 15 days from receipt of deposit.

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 32 fields
Type
Sprial Separator, LI900, DL2000
Voltage
Customization
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
2 Years
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Production Capacity
1-50tph
Place of origin
China, Henan
Weight
3000 kg
Dimension (L*W*H)
Different Model
Name
spiral chute
Application
Gravity Separator
Material
Carbon Steel
Installation
Engineer Guidance
Function
mining separation
Capacity
Customize
After sale service
Life-long Service
Colors Available
Custom-engineered
Price
Negotiable
Applicable Industries
Manufacturing Plant, Energy & Mining, Other
Showroom Location
Kazakhstan, Nigeria, Malaysia, Russia, Sri Lanka, Kyrgyzstan, Uzbekistan, Tajikistan, Indonesia
Condition
New
Warranty of core components
2 years
Marketing Type
New Product 2023
Packaging Details
Nude packing or steel strip packing or as required
Port of dispatch
Qingdao, ShangHai, tianjin, ningbo, etc.
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
200 sets per Month
Model number
LI400, LI600, LI900, DL1200, DL1500, DL2000
Lead time
30 days
Minimum order
1 Units
