Product video
Certifications CE · ISO9001

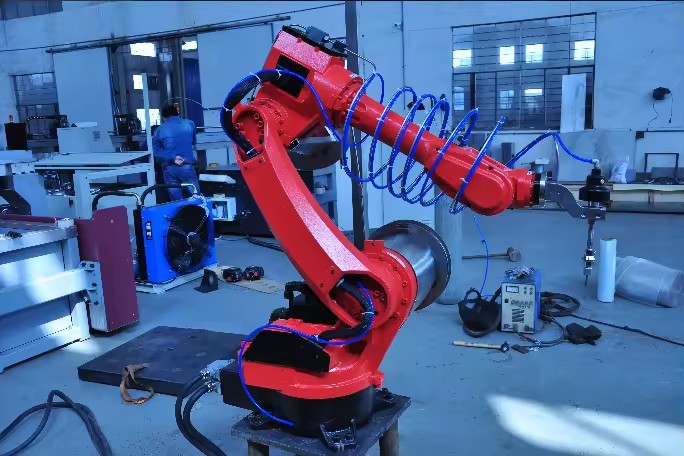

YCWJ Multifunctional Water Jet Cutting Machine Robotic Arm Water Jet Cutting Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 167,330.00 167330.0 USD $ 167,330.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Voltage
  • Number of axes
  • Repeatability (x/y/z) (mm)
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Dimension(L*W*H)
  • Key selling points
  • Rated power
  • Place of origin
  • Weight (kg)
  • Cutting accuracy(mm)
  • After-sales Service Provided
  • Cutting materials
  • Cutting thickness
  • Max. pressure
  • Cutting accuracy
  • Max.flowrate
  • AC servo control system
  • Ball screw
  • Certification
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Effective cutting range (mm)

This combination is unavailable.

Key attributes

View all
Voltage
380 V, 220 V, 420V
Number of axes
6
Repeatability (x/y/z) (mm)
±0.05
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Gearbox
Machinery test report
Provided
Warranty
1 Year
Product description
itemvalue
voltage380 V, 220 V, 420V
rated power30KW/40HP;37KW/50HP;75KW/100HP
place of origin
Jiangsu
core componentsGearbox, PLC, Engine, Bearing, Motor, Pressure Vessel, Gear
warranty1 Year
weight (kg)5000
repeatability (x/y/z) (mm)±0.05
number of axes6
video outgoing-inspectionProvided
machinery test reportProvided
cutting accuracy(mm)±0.1
brand nameYC
dimension(l*w*h)custom-made
key selling pointsMultifunctional
After-sales Service ProvidedEngineers available to service machinery overseas
Cutting materialsStainless steel, brass, aluminum,stone,plastic, glass.etc
Cutting thickness0-150mm
Max. pressure300-400mpa
Cutting accuracy+/-0.1mm
Max.flowrate3.7 L/Min
AC servo control systemMITSUBISHI
Ball screwHIWIN
CertificationCE; ISO9001

（Bevel Cutting 0-±10°）

3 axis Waterjet Cutting Machine

Max5 axis

Water Jet Cutting Machine

（Bevel Cutting 0-±45°）

Description images

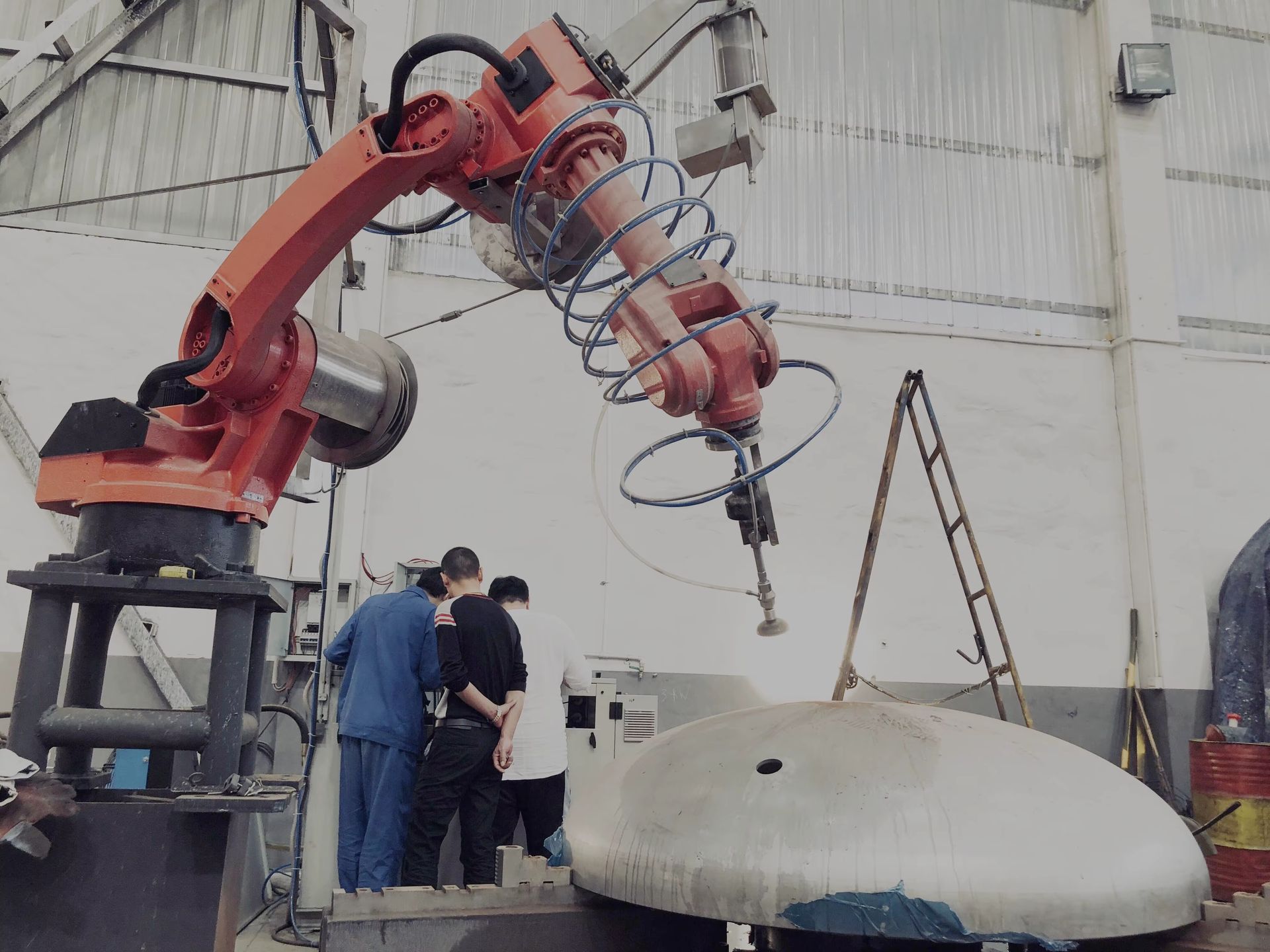

Product detail

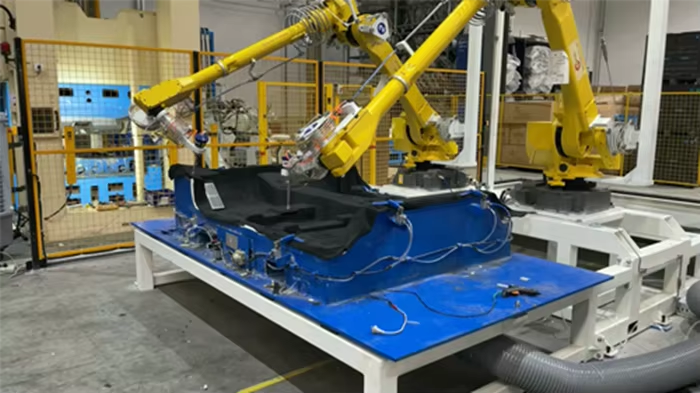

Product detail

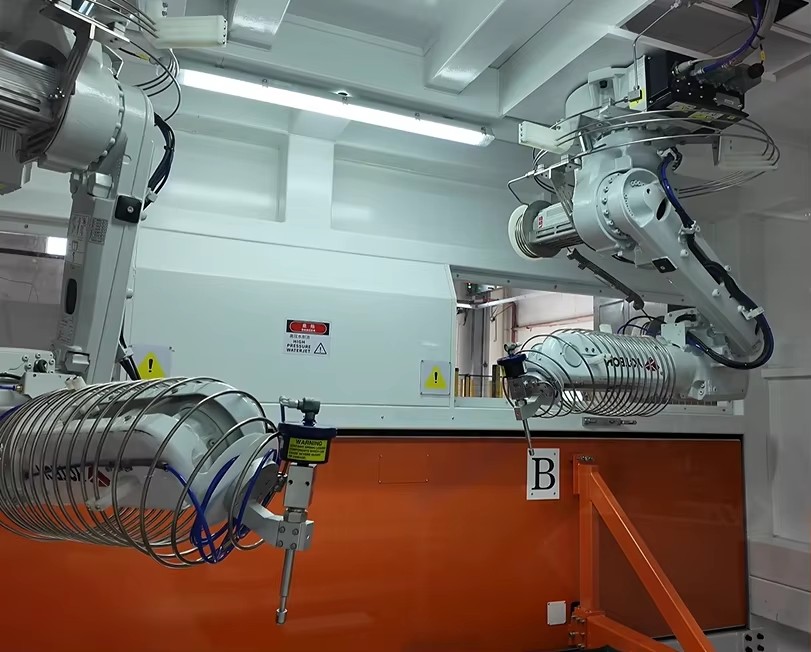

Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Voltage
380 V, 220 V, 420V
Number of axes
6
Repeatability (x/y/z) (mm)
±0.05
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Gearbox
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
custom-made
Key selling points
Multifunctional
Rated power
37KW/50HP, 30KW/40HP, 75kw/100hp
Place of origin
China, Jiangsu
Weight (kg)
5000
Cutting accuracy(mm)
±0.1
After-sales Service Provided
Engineers available to service machinery overseas
Cutting materials
stone, plastic, Stainless steel, brass, aluminum, glass.etc
Cutting thickness
0-150mm
Max. pressure
300-400mpa
Cutting accuracy
+/-0.1mm
Max.flowrate
3.7 L/Min
AC servo control system
MITSUBISHI
Ball screw
HIWIN
Certification
CE, ISO9001
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
YCWJ
Effective cutting range (mm)
4000×2000, 2500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 3000×1500, 3000×2000, 6000×2000, 2000×8000, 2500×1200, 2600×1600, 3000×8000, 3500×2000, 3100×1600
Lead time
30 days
Minimum order
1 Units
