Name: YCWJ Cnc Water Jet Cutting Machine Price High Pressure Glass Metal Cutting
SKU: B2B-231
Price: 41610.0 USD
Availability: PreOrder

Product description

3 axis waterjet cutting machine

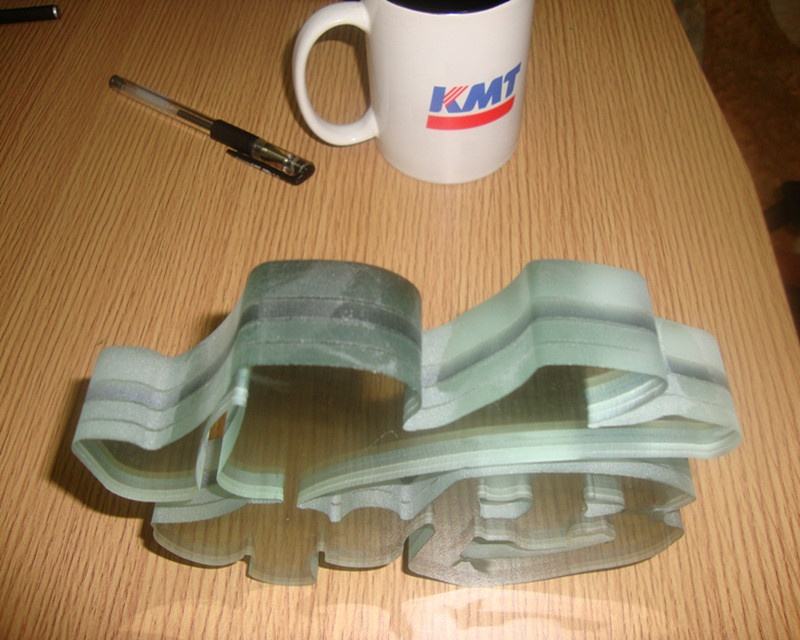

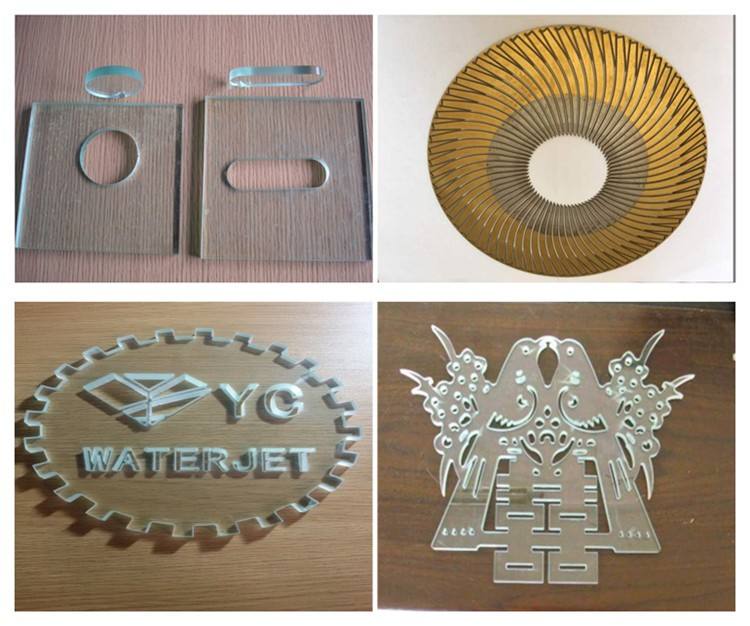

A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal, glass

plexiglass,ceramic,marble, granite, rubber and compound material etc.

Cutting accuracy: +/- 0.1mm

Repeat accuracy: +/- 0.05mm

CNC Water Jet Cutting Machine P arameter (L=Gantry type)
Parameters	Unit	YCWJ-L1010	YCWJ-L2015	YCWJ-L3015	YCWJ-L3020	YCWJ-L2060
Efficient Cutting Area	mm	1000×1000	2000×1500	3000×1500	3000×2000	2000×6000
Axis Travel	X	mm	1000	2000	3000	3000	2000
Y	mm	1000	1500	1500	2000	6000
Z	mm	150-180	150-180	150-180	150-180	150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy	mm	±0.1
Positioning Accuracy	mm	±0.2
X,Y Dry-run Speed	m/min	0-15 (if need 30m/min speed,we can do as request )
Cutting Speed	m/min	as to detail material and thickness

Water Jet High Pressure Pump

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

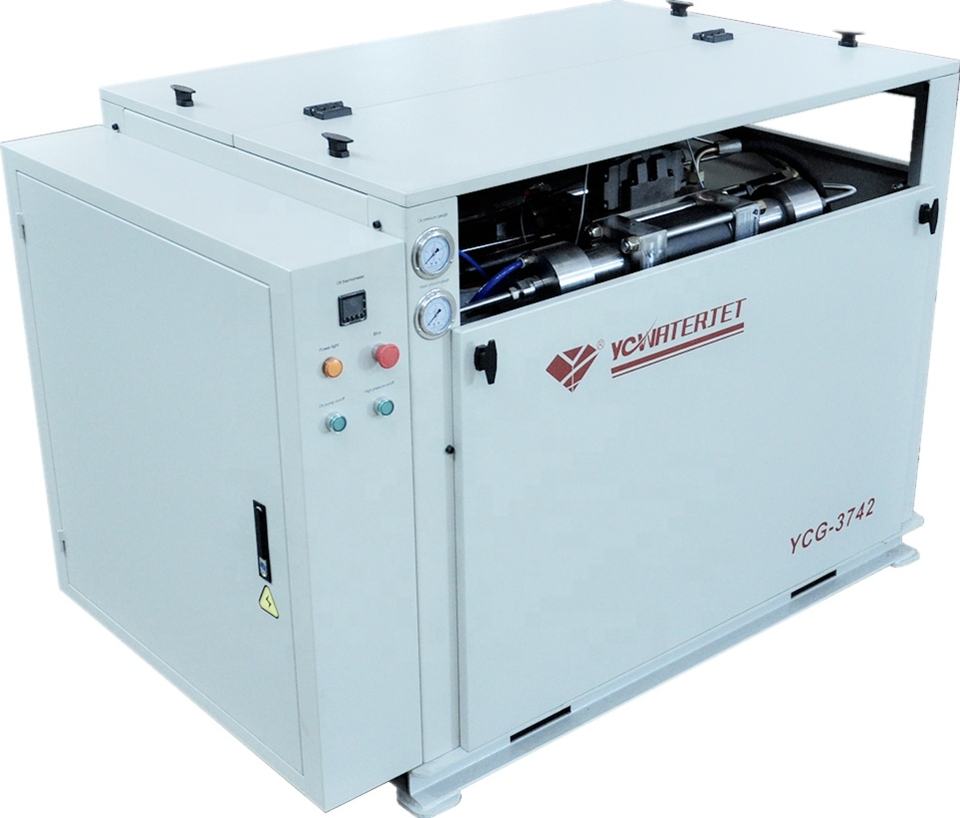

High Pressure Pump
Model	YCG-3038	YCG-3742S	YCG-7542S
Max Pressure	3800Bar/55,000Psi	4137Bar/60,000Psi	4137Bar/60,000Psi
Max Water Flow	3.7L/min	3.7L/min	7.4L/min
Max Orifice/Nozzle	0.011/0.03	0.013/0.04	0.016/0.05
Power	30KW/40HP	37KW/50HP	75KW/100HP

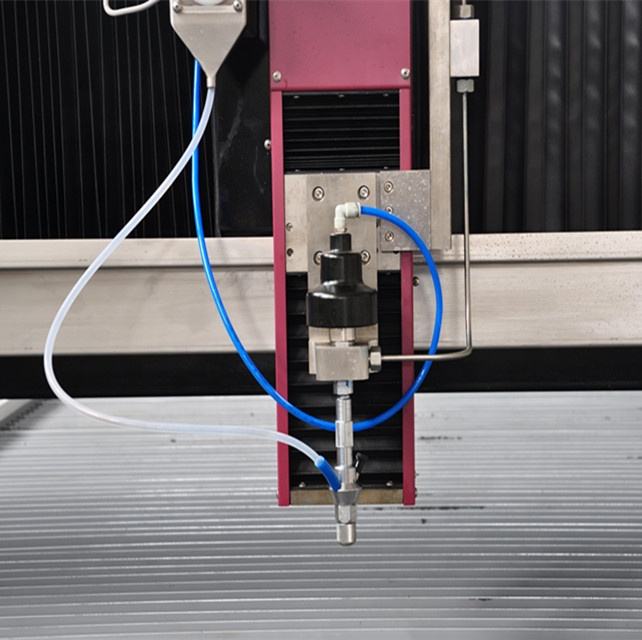

Cutting Head With Drilling

（Bevel Cutting 0-±10°）

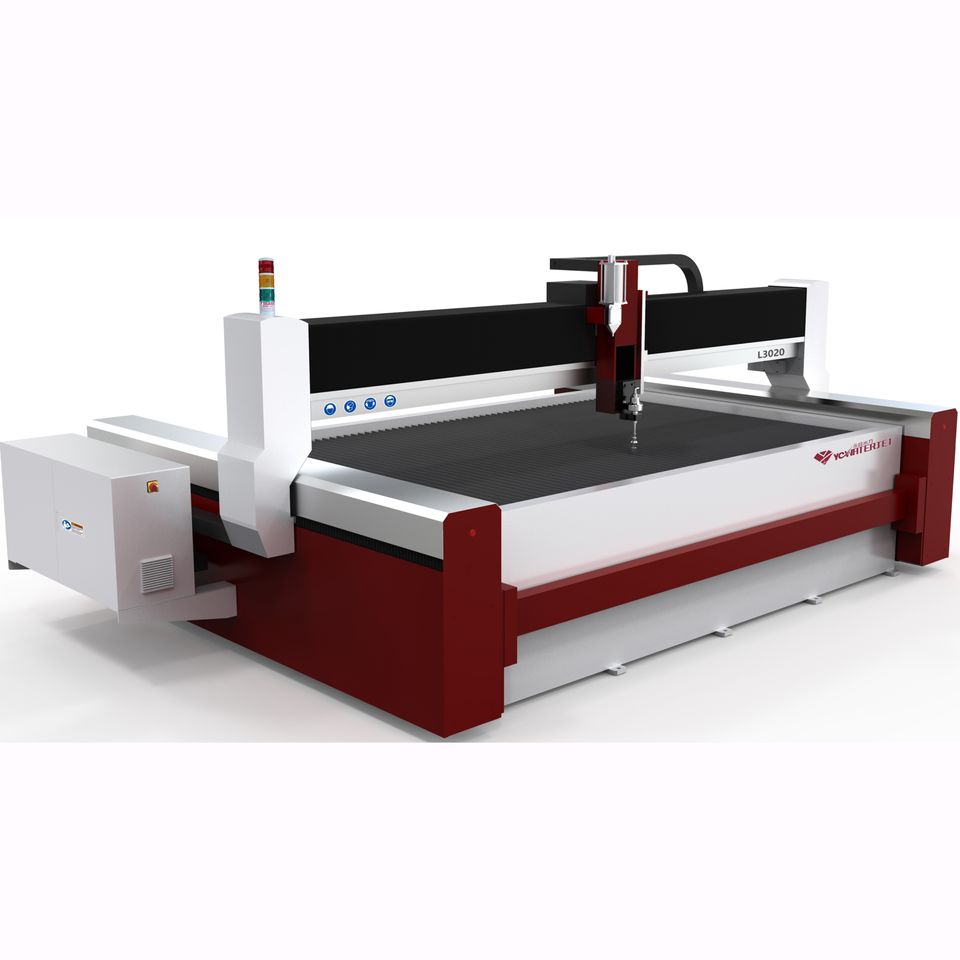

3 axis Waterjet Cutting Machine

Max5 axis

Water Jet Cutting Machine

（Bevel Cutting 0-±45°）

Development

1999, was established by Mr. Min, mainly engaged in manufacturing large

2019,YC has sold the products to more than 50 countries.

Why us

We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.

Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience. YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.

For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs. Our Engineers go to many countries for installation and debugging every year.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Key attributes 24 fields

Voltage

220V/380V/420V

Number of axes

Repeatability (x/y/z) (mm)

0.025

Core components

Pump

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

according to machine model

Key selling points

Multifunctional

Rated power

30KW/37KW/75KW

Place of origin

China, Jiangsu

Weight (kg)

2500

Table travel (z) (mm)

180

Cutting accuracy(mm)

0.1

Machine name

water jet cutting machine price high pressure glass metal cutting

After-sales Service Provided

Engineers available to service machinery overseas

Cutting materials

stone, plastic, Stainless steel, brass, aluminum, glass.etc

High pressure

380-420mpa

Cutting thickness

0-150mm

Cutting accuracy

+/-0.1mm

Max.flowrate

3.7 L/Min

Accumulator ca.

1Liters

Drive system

AC servo and screw, guideway

Certification

CE, ISO9001

Packaging and delivery 3 fields

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Product options 2 fields

Model number

YCWJ-L2015/L3015/L3020/L2060

Effective cutting range (mm)

1500×3000, 2000x3000, 2000×6000, 6000×2000, Customization

Lead time

35 days

Minimum order

1 Units
