Product description

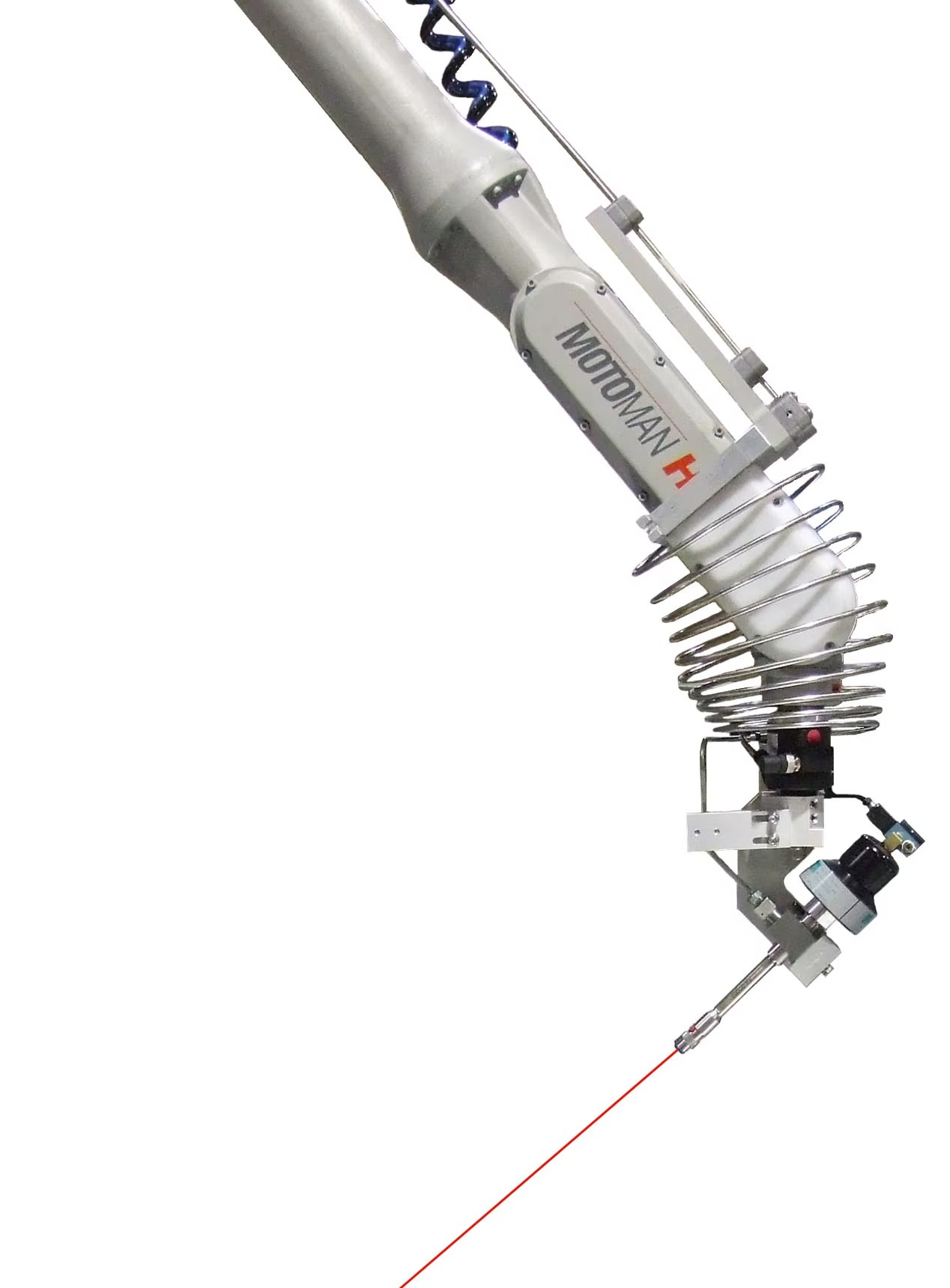

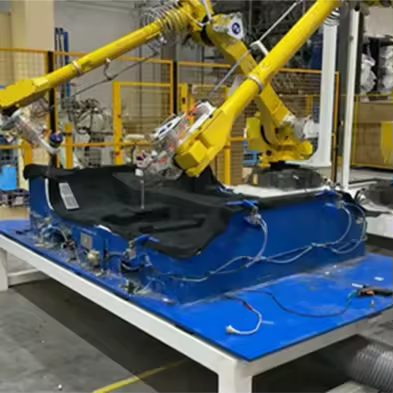

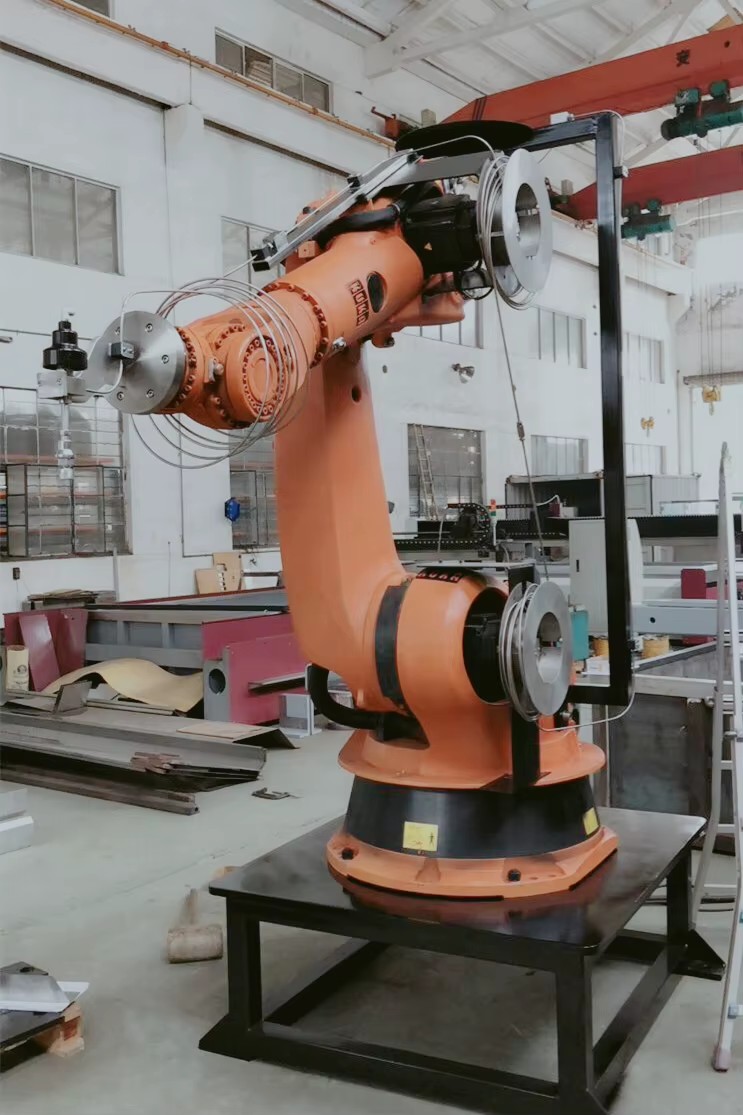

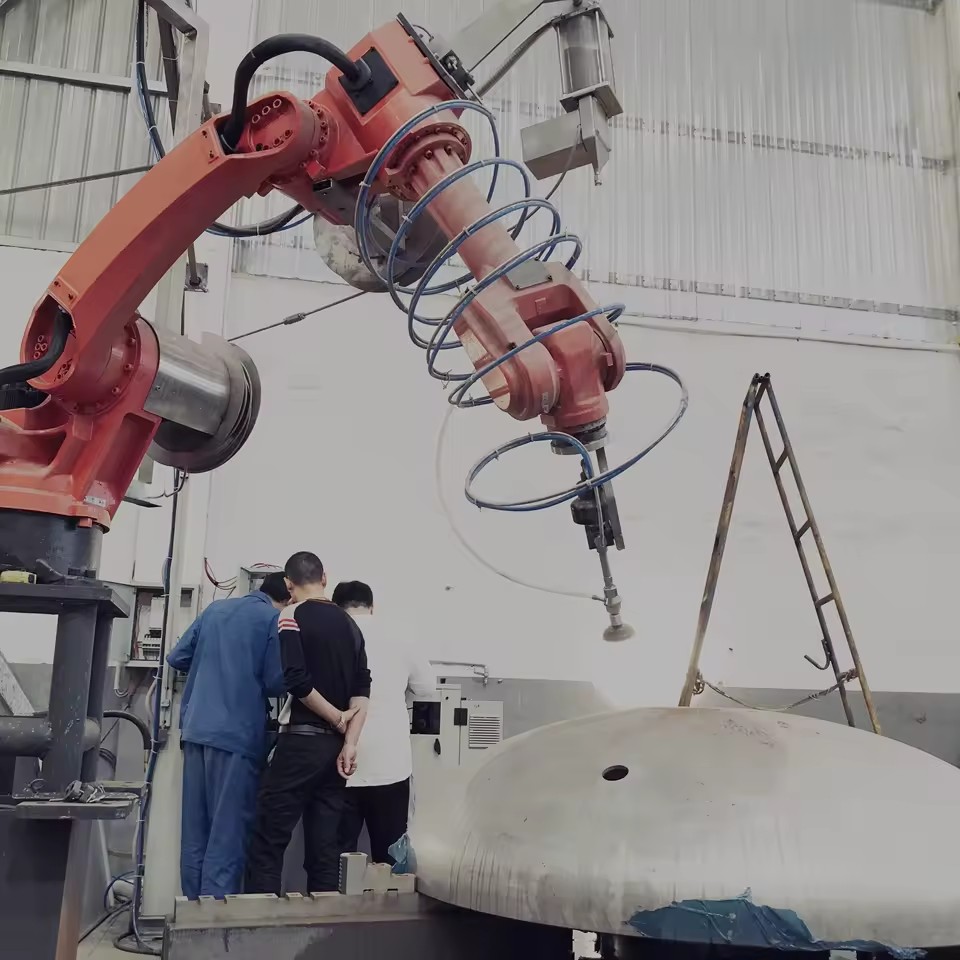

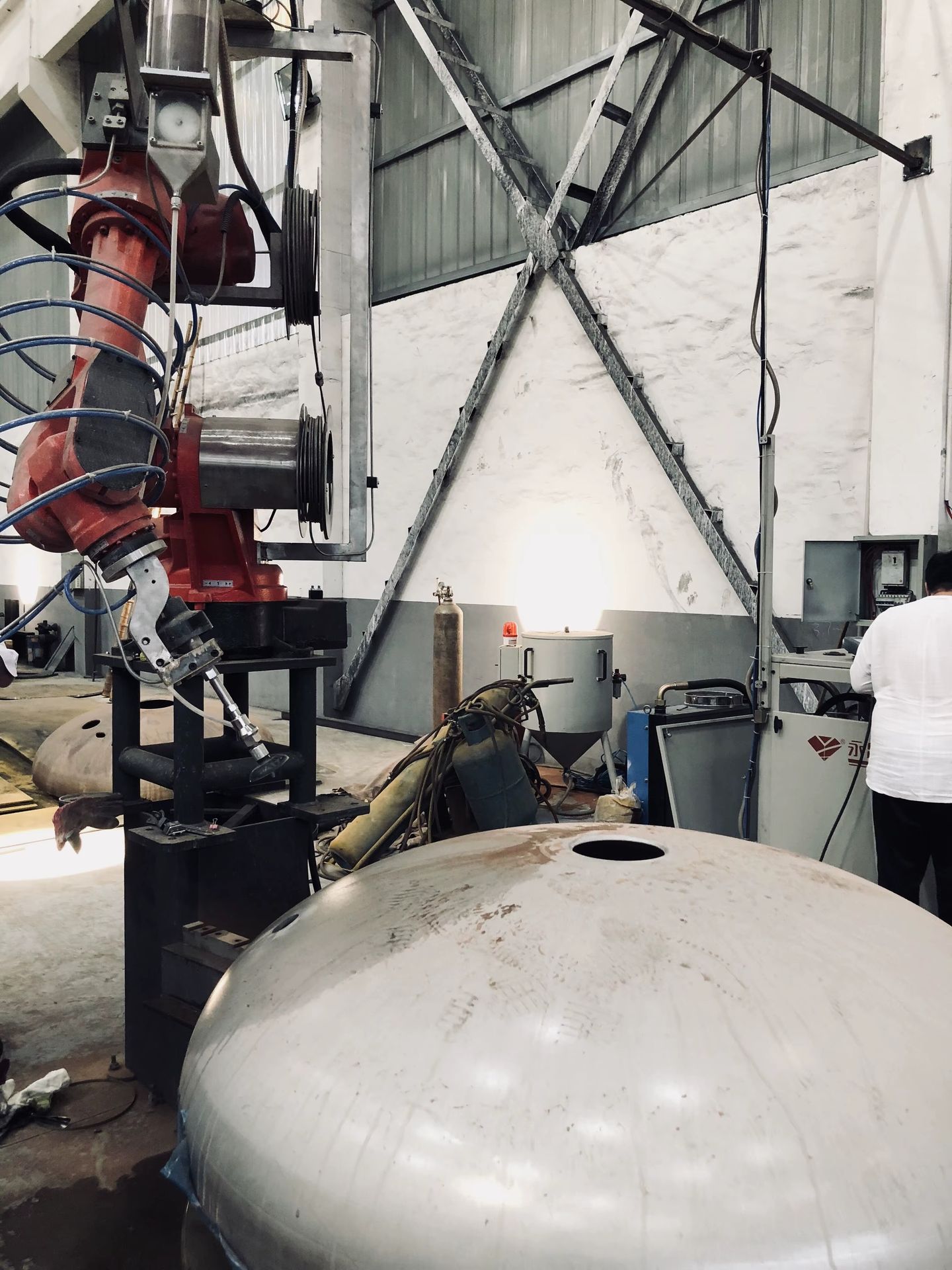

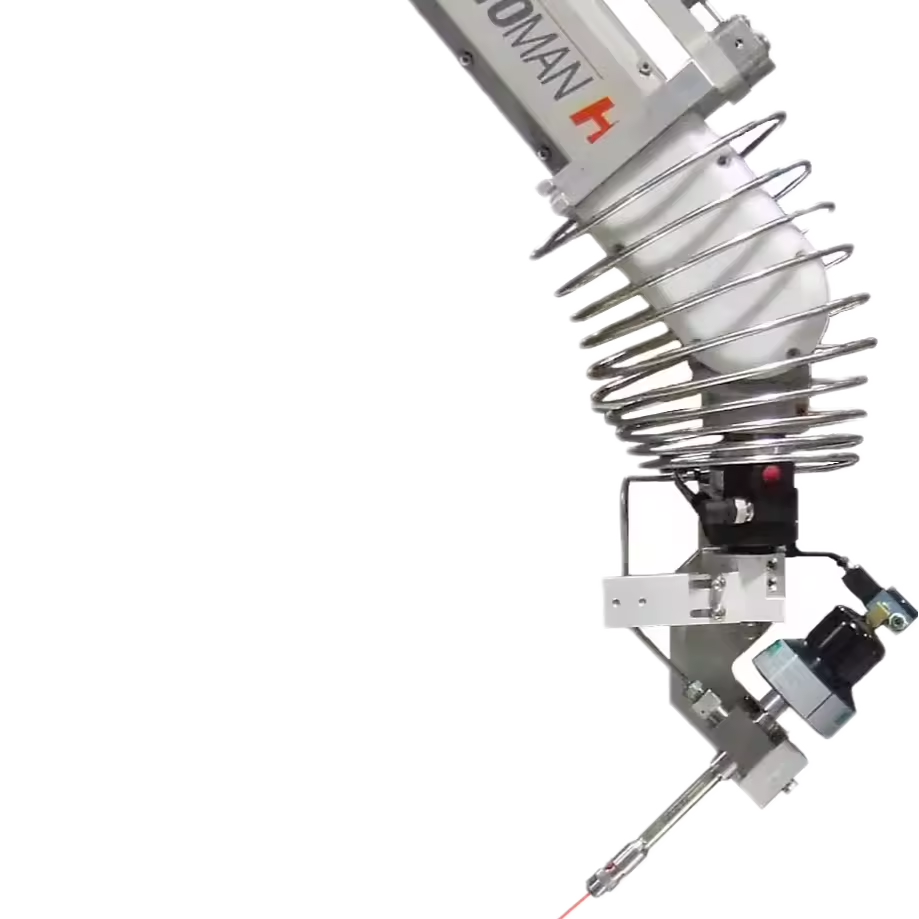

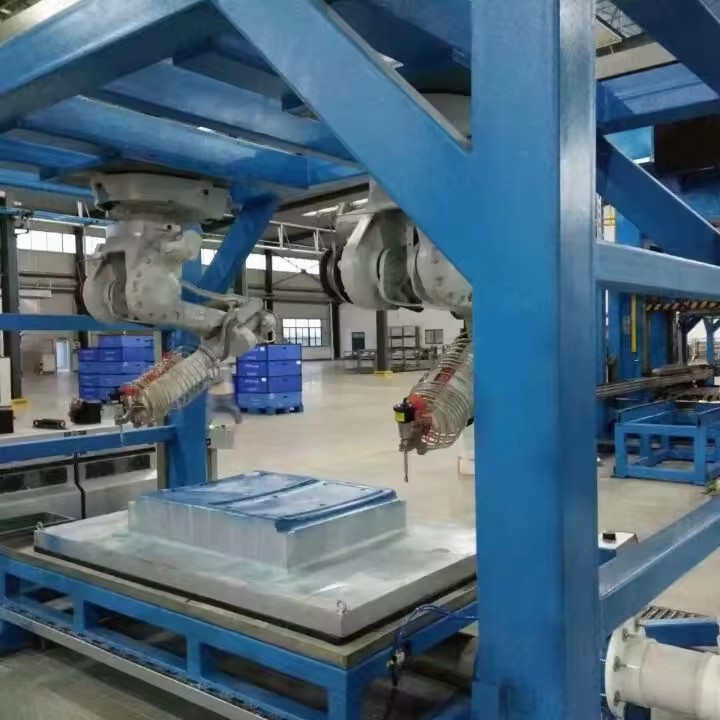

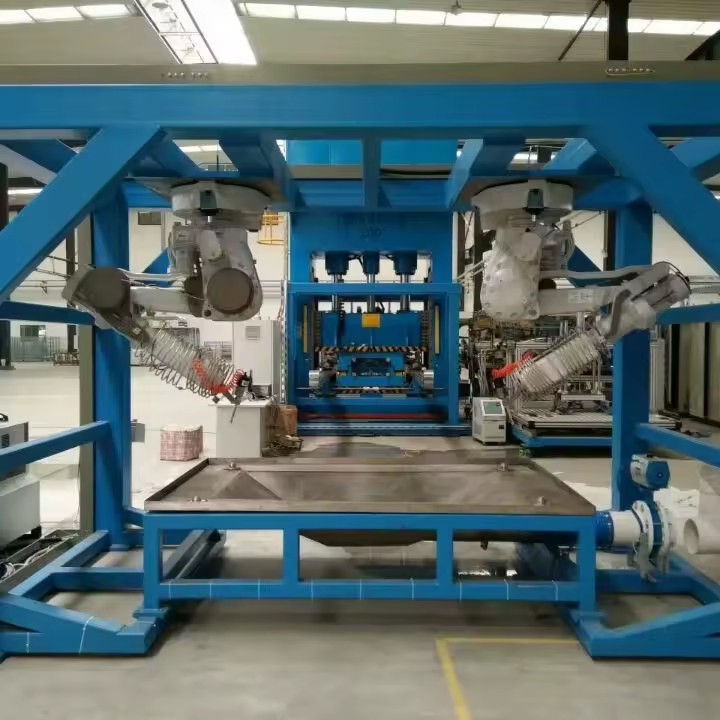

Robotic Waterjet Cutting System

CNC Water Jet Cutting Machine P arameter (L=Gantry type)
Parameters	Unit	YCWJ-L1010	YCWJ-L2015	YCWJ-L3015	YCWJ-L3020	YCWJ-L2060
Efficient Cutting Area	mm	1000×1000	2000×1500	3000×1500	3000×2000	2000×6000
Axis Travel	X	mm	1000	2000	3000	3000	2000
Y	mm	1000	1500	1500	2000	6000
Z	mm	150-180	150-180	150-180	150-180	150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy	mm	±0.1
Positioning Accuracy	mm	±0.025
X,Y Dry-run Speed	m/min	0-15 (if need 30m/min speed,we can do as request )
Cutting Speed	m/min	as to detail material and thickness

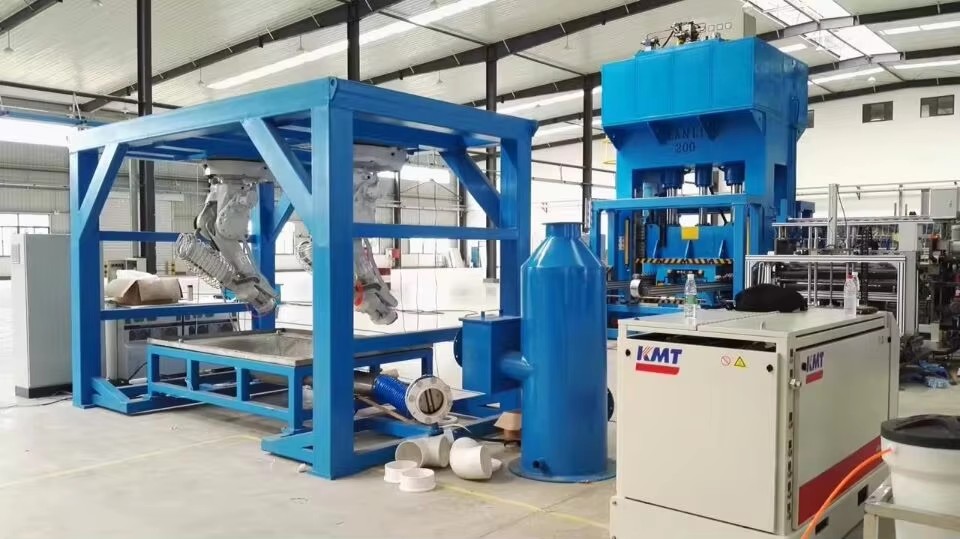

Water Jet High Pressure Pump

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

High Pressure Pump
Model	YCG-3038	YCG-3742S	YCG-7542S
Max Pressure	3800Bar/55,000Psi	4137Bar/60,000Psi	4137Bar/60,000Psi
Max Water Flow	3.7L/min	3.7L/min	7.4L/min
Max Orifice/Nozzle	0.011/0.03	0.013/0.04	0.016/0.05
Power	30KW/40HP	37KW/50HP	75KW/100HP

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 27 fields

Voltage

220V/380V/415V

Number of axes

Repeatability (x/y/z) (mm)

±0.025

Core components

PLC, Motor, Pressure Vessel, Gear, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

according to machine model

Key selling points

Multifunctional

Rated power

30KW/37KW/75KW

Place of origin

China

Weight (kg)

2000

Cutting accuracy(mm)

±0.1

After-sales Service Provided

Engineers available to service machinery overseas

Cutting materials

stone, plastic, Stainless steel, brass, aluminum, glass.etc

Power

30KW/37KW,40/50HP

High pressure

300-400mpa

Cutting accuracy

+/-0.1mm

Max.flowrate

3.7 L/Min

Max. Orifice diameter

0.33mm(0.013'')

Accumulator ca.

1Liters

Intensifier assembly

(Accustream), (H2OJET)

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

YCWJ

Effective cutting range (mm)

4000×2000, 2500×1500, 1300×1300, 1500×1500, 2000×1500, 2000×6000, 3000×2000

Lead time

35 days

Minimum order

1 Units
