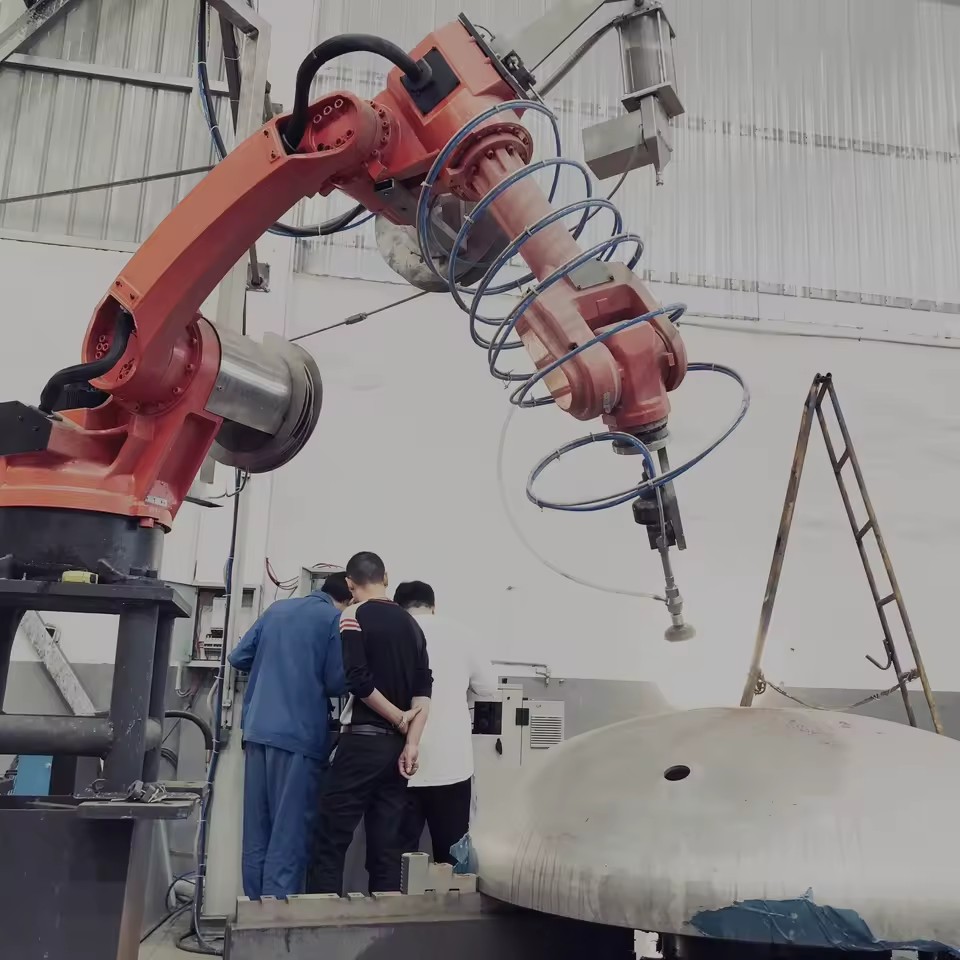

Name: YC CNC Robot Waterjet Cutting Machine With Pure Water Cutting or Abrasive Cutting
SKU: B2B-14746
Price: 183060.0 USD
Availability: PreOrder

Product description

Water jet cutting platform

CNC Water Jet Cutting Machine Parameter (L=Gantry type)
Parameters	Unit	YCWJ-L1010	YCWJ-L2015	YCWJ-L3015	YCWJ-L3020	YCWJ-L2060
Efficient Cutting Area	mm	1000×1000	2000×1500	3000×1500	3000×2000	2000×6000
Axis Travel	X	mm	1000	2000	3000	3000	2000
Y	mm	1000	1500	1500	2000	6000
Z	mm	150-180	150-180	150-180	150-180	150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy	mm	±0.1
Positioning Accuracy	mm	±0.025
X,Y Dry-run Speed	m/min	0-15 (if need 30m/min speed,we can do as request )
Cutting Speed	m/min	as to detail material and thickness

Water jet high pressure system

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

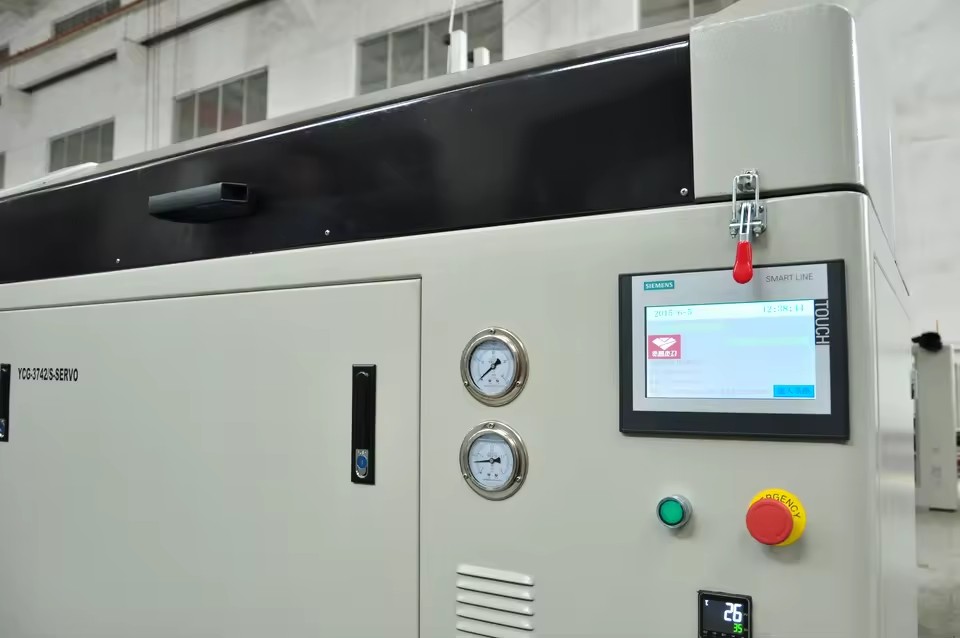

High Pressure Pump
Model	YCG-3038	YCG-3742S	YCG-7542S
Max Pressure	3800Bar/55,000Psi	4137Bar/60,000Psi	4137Bar/60,000Psi
Max Water Flow	3.7L/min	3.7L/min	7.4L/min
Max Orifice/Nozzle	0.011/0.03	0.013/0.04	0.016/0.05
Power	30KW/40HP	37KW/50HP	75KW/100HP

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Voltage

220/380/400V,3ph,50/60HZ

Number of axes

Repeatability (x/y/z) (mm)

±0.025

Core components

PLC, Motor, Pressure Vessel, Gear, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

as to machine model

Key selling points

Multifunctional

Rated power

30KW/37KW/75KW

Place of origin

China, Jiangsu

Weight (kg)

2500

Cutting accuracy(mm)

±0.1

After-sales Service Provided

Engineers available to service machinery overseas

Machine name

high pressure steel water jet cutting machine price 3D waterjet

Cutting materials

stone, plastic, Stainless steel, brass, aluminum, glass.etc

High pressure

300-400mpa

Cutting accuracy

+/-0.1mm

Max.flowrate

3.7 L/Min

Abrasive name

garnet

Accumulator ca.

1Liters

Drive system

AC servo and screw, guideway

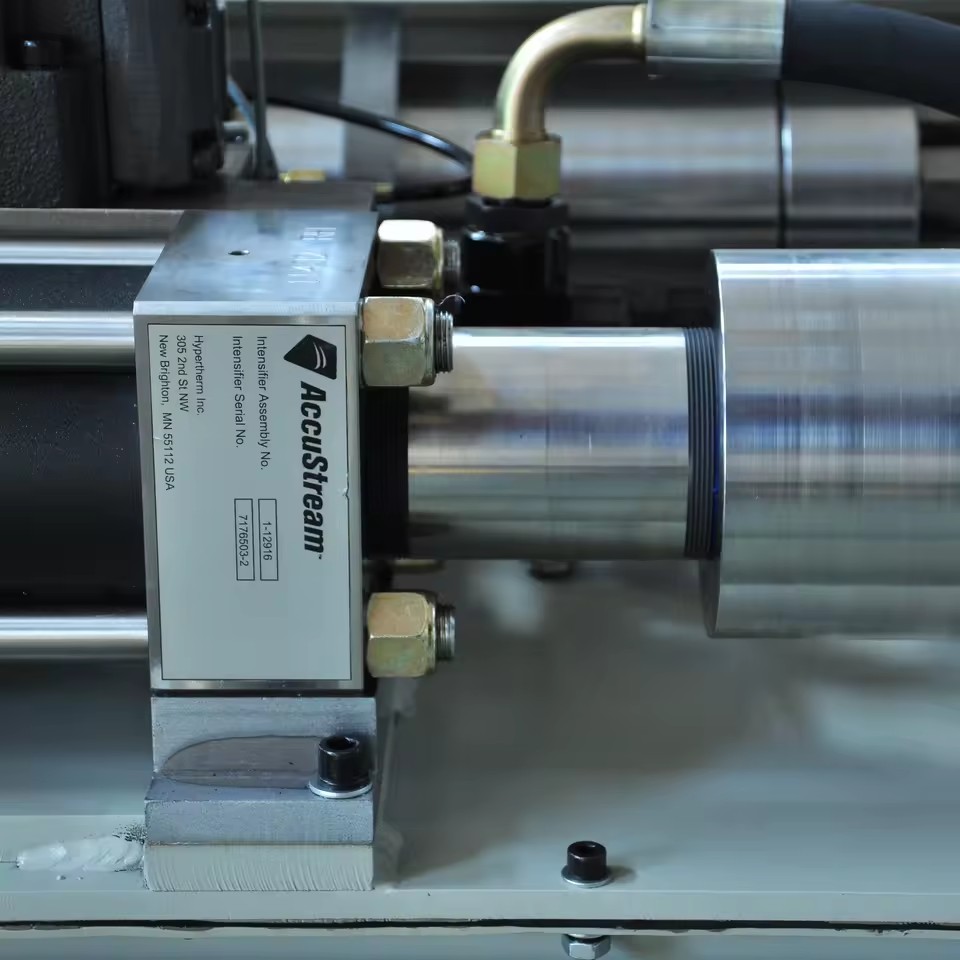

Intensifier assembly

Accustream, H2OJET

Selling Units

Single item

Single package size

XX cm

Single gross weight

0.0 kg

Model number

YCWJ-R

Effective cutting range (mm)

4000×2000, 3000×2000

Lead time

35 days

Minimum order

1 Units
