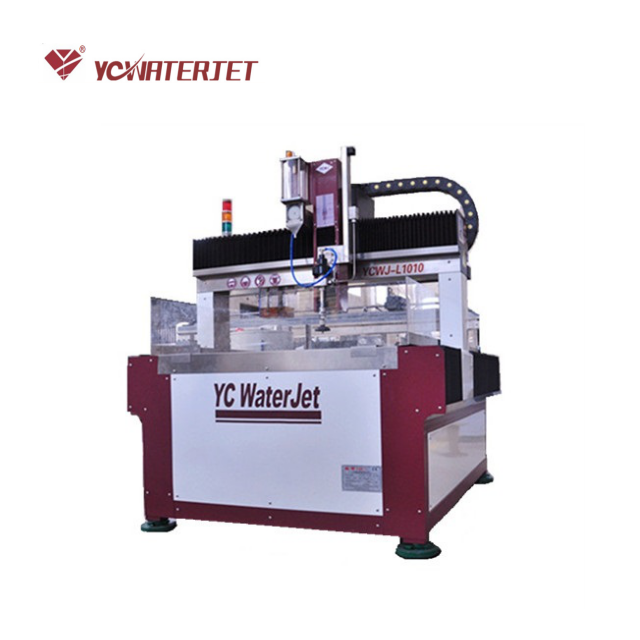

YCWJ Small Portable Waterjet Cutting Machines for Marble Tile

Available for enquiry 0.0 · 0 reviews
USD

$ 34,170.00 34170.0 USD $ 34,170.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Water Jet Cutters
Voltage
380/220/400VAC, 50Hz ,3 phase
Rated power
30kw/40hp or 37kw/50hp
Warranty
1 Year
Key selling points
High-Accuracy
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Gearbox
Product description

Dynamic 5axis waterjet cutting

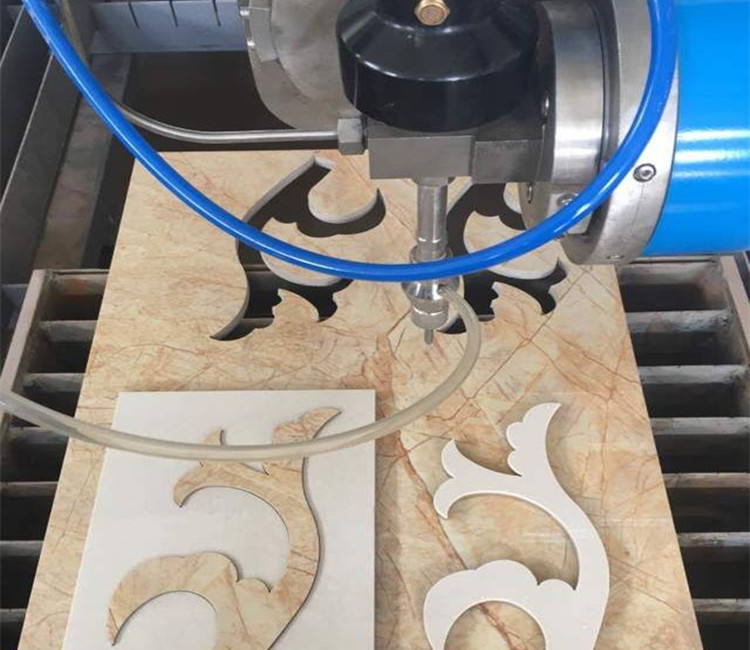

This Dynamic 5 axis water jet cutting machine is specially used to cut marble and granite, it can compensate ±10° cutting angle. It is one kind of bevel cutting machine.

Due to the water jet cutting is a flexible cutting, therefore,there will be a certain degree of inclination on the product cross section after cutting by the traditional 3 axis water jet order to ensure the accuracy of vertical cutting section, it must reduce the cutting speed. However, our 5 axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor.

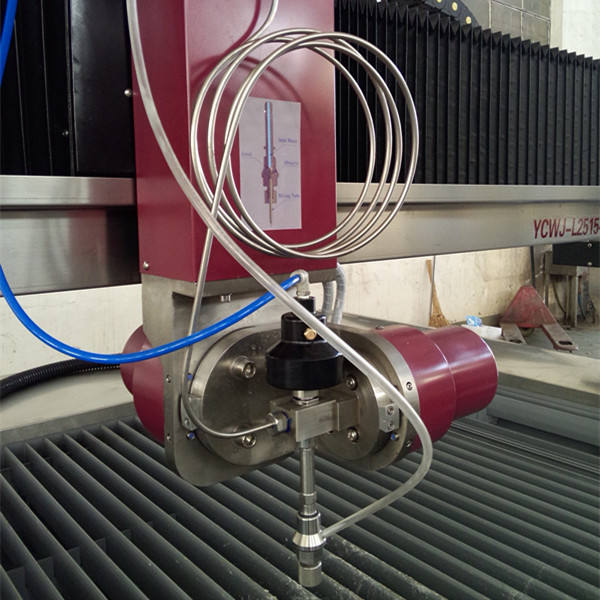

Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°

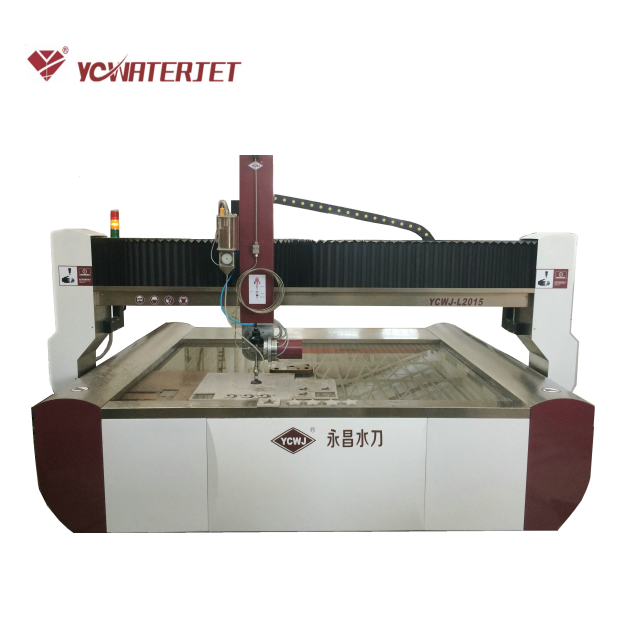

1. Waterjet cutting platform

CNC Water Jet Cutting Machine P arameter (L=Gantry type)
ParametersUnitYCWJ-L1010YCWJ-L2015YCWJ-L3015YCWJ-L3020YCWJ-L2060
Efficient Cutting Areamm1000×10002000×15003000×15003000×20002000×6000
Axis TravelXmm10002000300030002000
Ymm10001500150020006000
Zmm150-180150-180150-180150-180150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracymm±0.1
Positioning Accuracymm±0.025
X,Y Dry-run Speedm/min0-15 (if need 30m/min speed,we can do as request )
Cutting Speedm/minas to detail material and thickness

2. Waterjet high pressure system

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

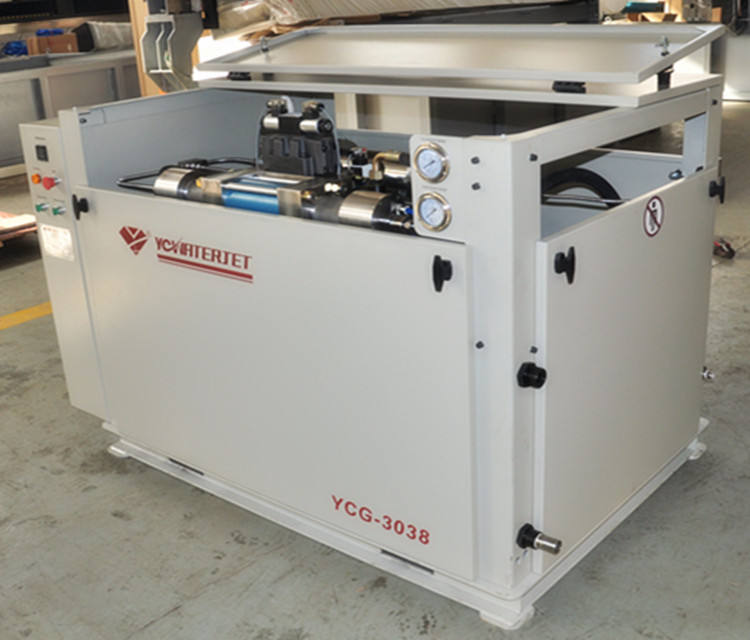

High Pressure Pump
ModelYCG-3038YCG-3742SYCG-7542S
Max Pressure3800Bar/55,000Psi4137Bar/60,000Psi4137Bar/60,000Psi
Max Water Flow3.7L/min3.7L/min7.4L/min
Max Orifice/Nozzle0.011/0.030.013/0.040.016/0.05
Power30KW/40HP37KW/50HP75KW/100HP

3. Waterjet controlling system

（Bevel Cutting 0-±10°）

3 axis Waterjet Cutting Machine

Max5 axis

Water Jet Cutting Machine

（Bevel Cutting 0-±45°）

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    25 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Key attributes 21 fields
Type
Water Jet Cutters
Voltage
380/220/400VAC, 50Hz ,3 phase
Rated power
30kw/40hp or 37kw/50hp
Warranty
1 Year
Key selling points
High-Accuracy
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Gearbox
Machinery test report
Provided
Video outgoing-inspection
Provided
Place of origin
China, Jiangsu
Weight (kg)
3000
Dimension(L*W*H)
according to the model of machine
Machine name
small YCWJ portable waterjet cutting machines for marble tile
Cutting materials
Stainless steel, brass, aluminum, glass.etc
Structure type
Gantry type or Cantilever type
Max. operating pressure
380mpa or 420mpa
Cutting accuracy
0.1mm
Max. water flow
3.7 L/Min
Max. Orifice diameter
0.33mm(0.013'')
AC servo control system
MISUBISHI
Ball screw
HIWIN
Intensifier assembly
Accustream)
Packaging and delivery 3 fields
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Product options 1 field
Model number
YCWJ
Lead time
25 days
Minimum order
1 Units
