3 Axis Waterjet Cutter Metal Granite Stone Water Jet Cutting Machine CNC Waterjet Cut Machine

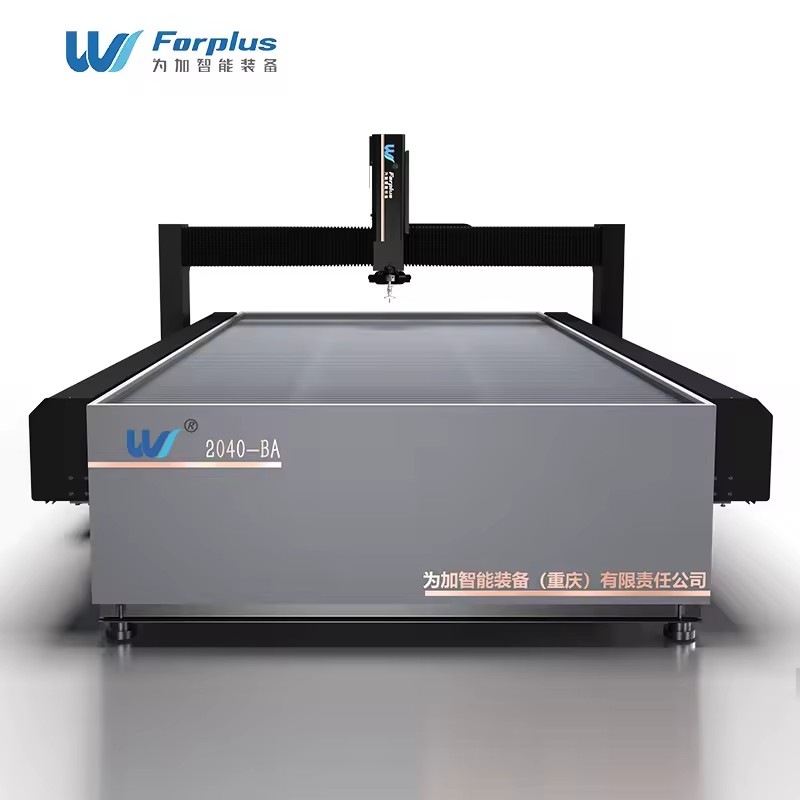

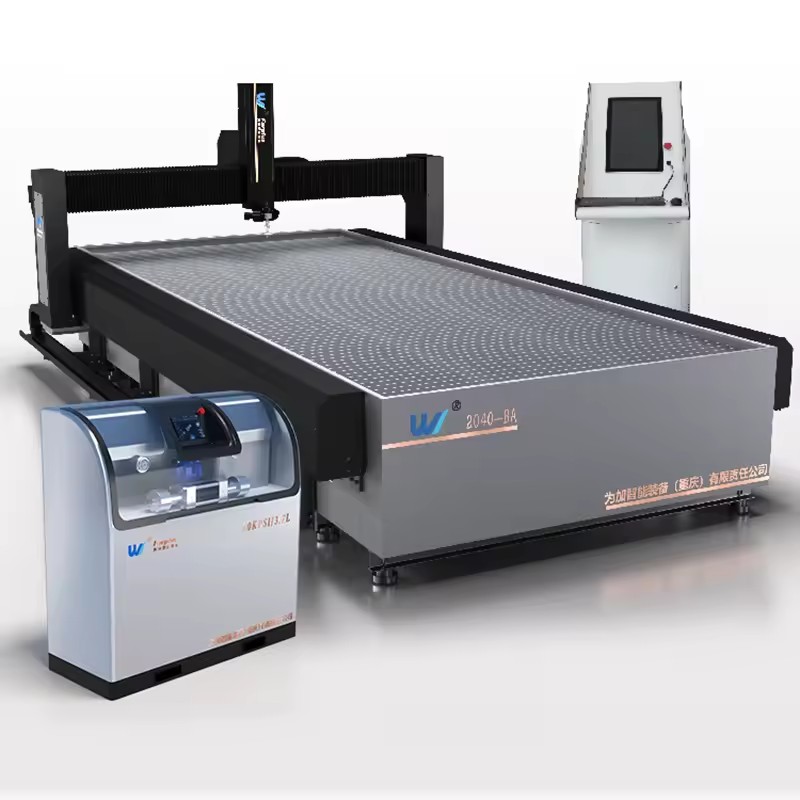

Forplus standard waterjet cutting platform

Model

Forplus-L1520-Z150

X、Y、Z travel

1500mm、2000mm、150mm

Machine structure

gantry structure

Transmission mode

ball screw,linear guide rail

Positioning accuracy

±0.05mm

Re-positioning accuracy

Max no-load speed

10M/min

Abrasive feeding system

continuous abrasive feeding module

Abrasive removal system

spiral-flow type auto abrasive removal system

Cutting head assembly

standard 3-axis,AC centring 5-axis,AC standard 5 axis (optional)

Water tank platform

linear grid,corrugated grid,honeycomb (optional)

Height measurement

laser-measurement

Power requirement of electric cabinet

single phase 220V 50HZ

Compressed air pressure

≥5bar

Compressed air caliber

φ12mm

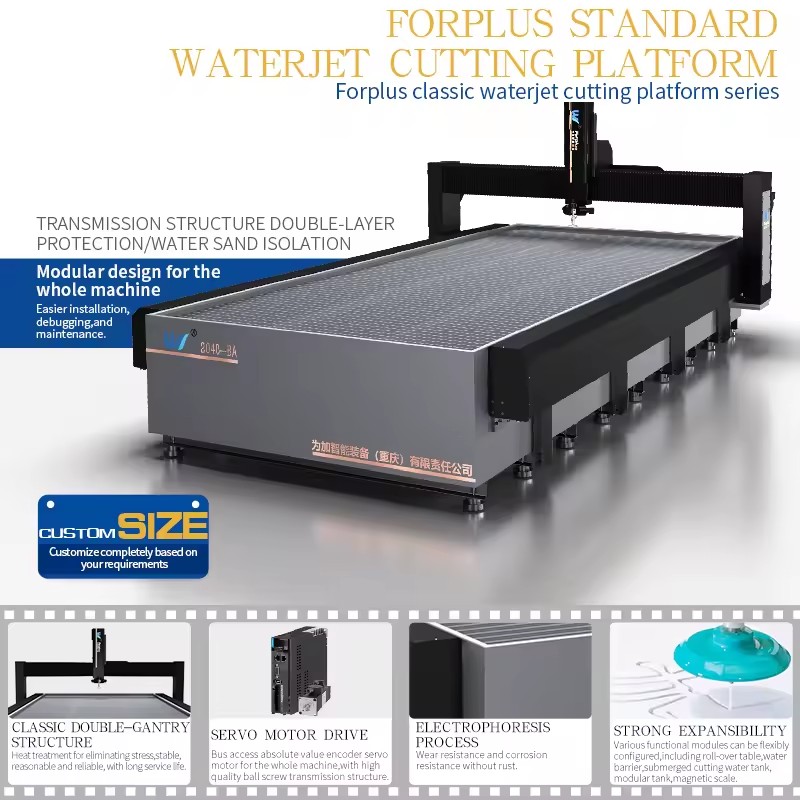

Products Description

1.Standard double gantry structure,heat treatment for eliminating stress,stable without deformation,longlife time. 2.Strong expansibility.Modular design of machine tool,unified interface. for each installed module，Various modules can be flexibly configured.

including but not to machine body,fully enveloped module,automatic lifting module,turning table,3-axis and 5-axis cutting head assembly,various auxiliary spindles,automatic abrasive supply module, quantitative abrasive removal module,and swirl abrasive removal module etc.

Including but not to height detection,grating scale，angle detection, drilling,level regulating water tank etc.

3.Servo motor drive for the whole machine，Bus access absolute value encoder servo motor for the whole machine,with high quality ball screw transmission structure. 4.Standard ECS professional water jet cutting CNC control system. 5.Double-layer protection for transmission mechanism,isolating water and abrasive.

Details Images

Standard double gantry structure

heat treatment for eliminating stress,stable without deformation,longlife time.

Transmission structure is double-layer protection

X, Y, Z axis is designed with double sealing, external steel shell and high quality dust folding cloth are adopted, which can provide effective hard protection and full sealing for the machine, and it is the current effective sealing form of waterjet cutting machine.

CNC control system

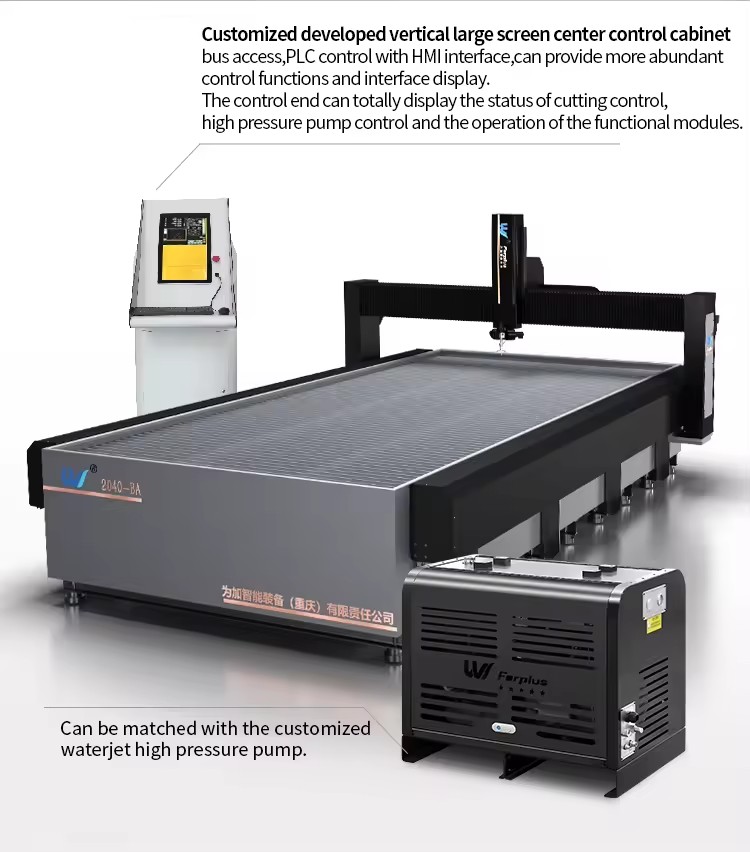

Standard Italian ECS Professional waterjet cuting CNC control system.Servo-motor drive for the whole machine,Absolute value encoder closed-loop control.High precision, reliable control, and simple connection.

Cutting display
