Manual Operated Ss304 316 L T

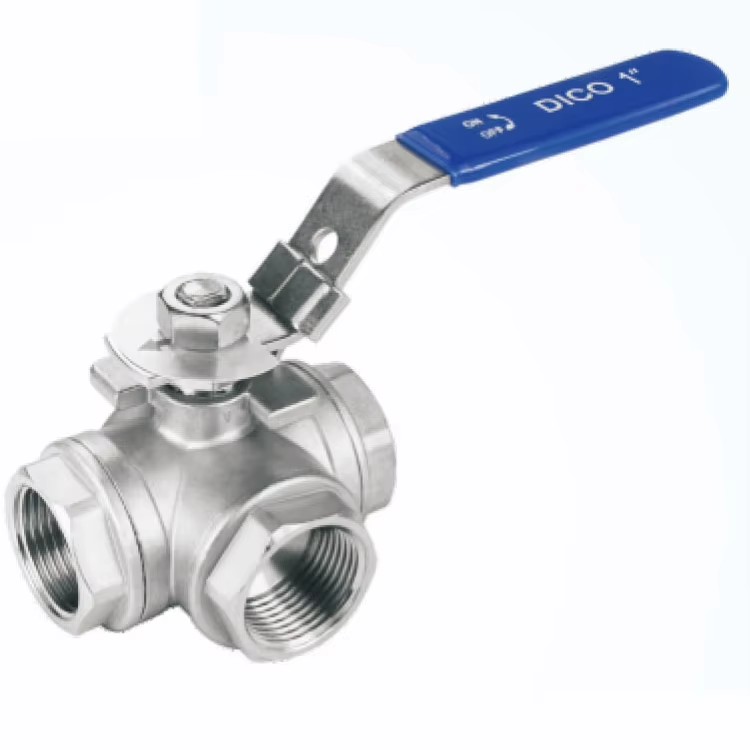

Manual Operated SS304/316 L T type NPT/BSP Female Thread three way ball valve 3/4 inch

• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS.

• OEM / ODM service available.

1.Reduce bore size:1/4"-2" 2.working pressure:1000PSI 3.Threaded end: BSPT.NPT.ISO288/1 4.ISO 5211 top- mount pad 5.Optional locked device handle 6.Materials: CF8M(SS316),CF8(SS304)

Typical Applications

Air Drying Equipment Pollution Control Equipment Process Control Applications Laundry Equipment Textile Dyeing & Drying Bottling & Dispensing Equipment Ink & Paint Dispensing Industrial Compressors Chemical Process Industry Pharmaceutical Chemical Industr

End Connections

Threaded · 1/4"-4" Tri-Clamp · 1/2" to 3" Socket Weld · 1/2" to 4" Flanged · 1/4"-4

Feature

1. 3 way ball valve Fluid resistance is small 2. Ball valve has a Simple structure, small size and light weight

3. Reduce Port

4. Convenient operation, open and close rapidly,as long as 90 degree rotation

5. Testing according to API 598 6. Blow-Out Proof Stem

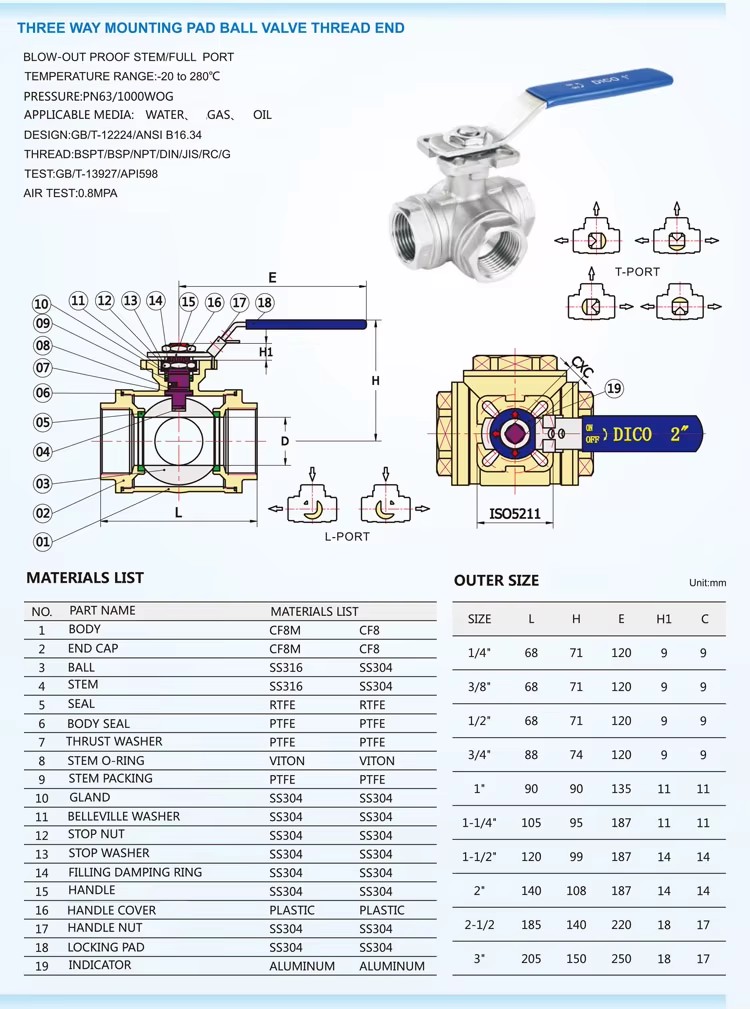

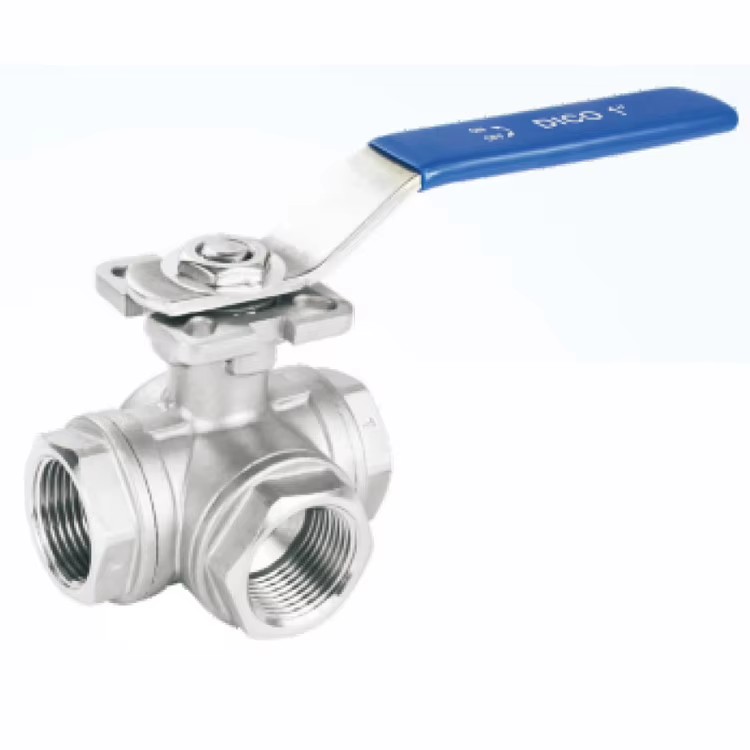

7. ISO 5211 Direct mounting pad, can eqqiped with pneumatic or electric actuator

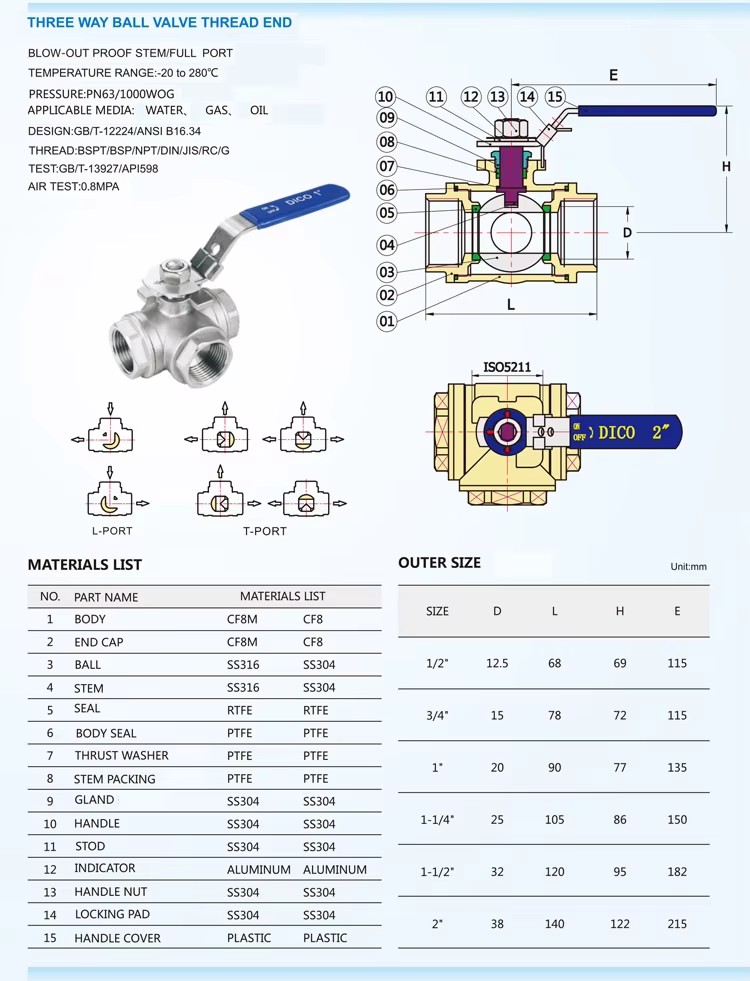

Main Components and Materials

3 way ball valve according to core devided into L-type and T-type, Widely used in chemical, petrochemical, oil refining, energy, offshore drilling, marine, pulp and paper, pharmaceutical, biotechnology, food and beverage.
