High-precision Low-latency Stainless Steel Micro-proportional Valve with High Gas Flow Control Function

Name: High-precision Low-latency Stainless Steel Micro-proportional Valve with High Gas Flow Control Function
SKU: XX7X-VZZV-QEAG
Price: 90.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 90.00 90.0 USD $ 90.00

Minimum order quantity: 2 Units

Key attributes

View all

Structure

Control

Connection Size

1/4 in, 1/8in, 6mm

Operational Pressure Range

0-1 MPa

Operating Temp. Range

0-50°C

Media

Gas, air, gas(Oxygen, CO2...)

Power

Solenoid, 12VDC/24VDC

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Model	1000 Series
1005	1010	1020	1030	1040	1050	1060
Orifice diameter (mm)	0.05	0.08	0.28	0.5	0.75	1.3	1.5
Pressure	Withstand vo- ltage	1MPa
Operating pressure difference	~0.98MPa	~0.6MPa	~0.4MPa	~1MPa
Control	Source	12VDC or 24VDC
Power consumption	≤2W
Hysteresis	< 15%
Filter	20um（IN ，OUT）	No filters
Operating temperature range	0-50℃
Save temperature range	5-70℃
Contact medium material	C3604, SUS430F, chlorinated rubber, FFKM, SUS316, SUS304, SUS316L

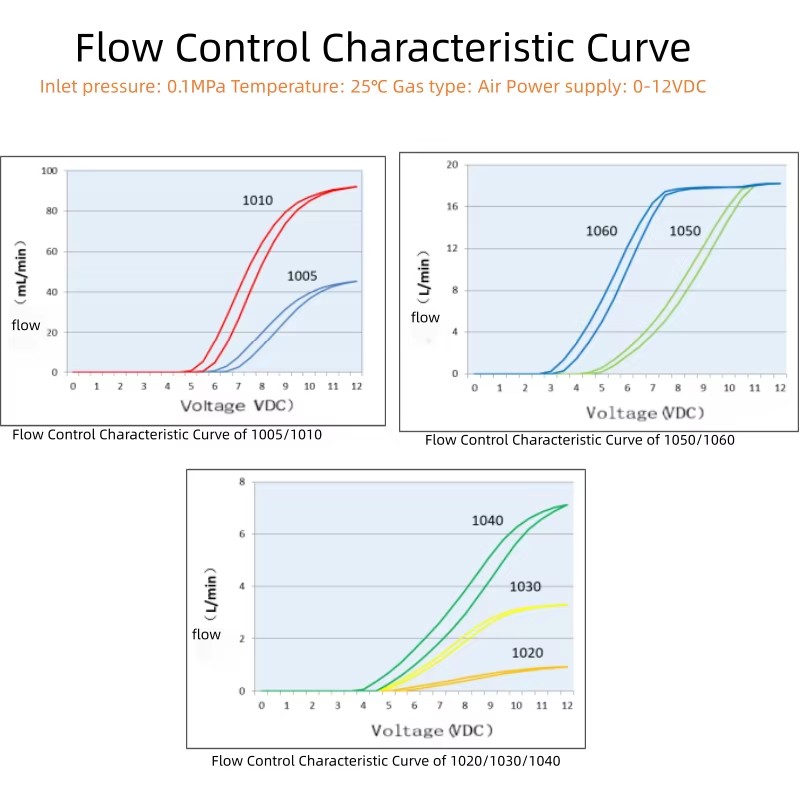

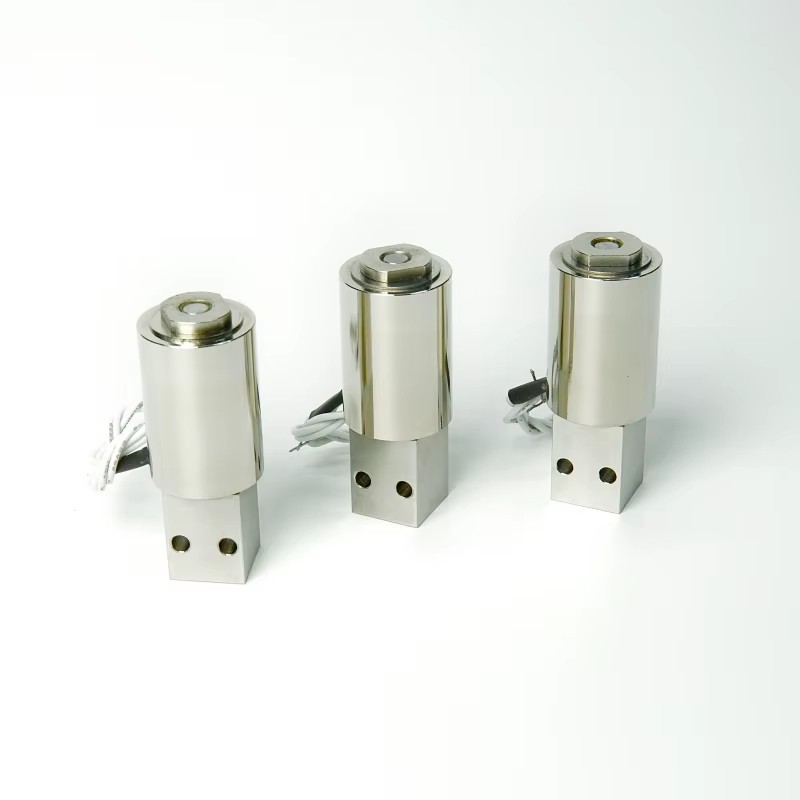

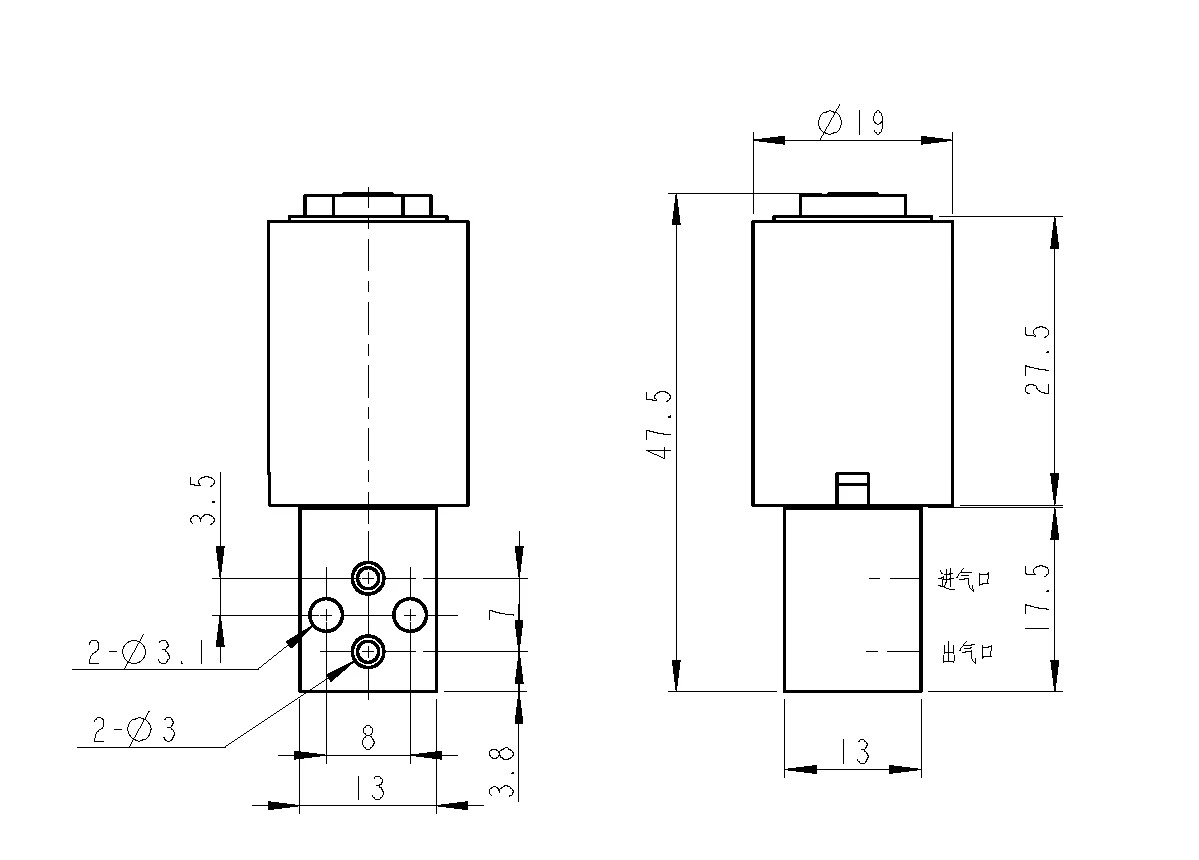

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Structure

Control

Connection Size

1/4 in, 1/8in, 6mm

Operational Pressure Range

0-1 MPa

Operating Temp. Range

0-50°C

Media

Gas, air, gas(Oxygen, CO2...)

Power

Solenoid, 12VDC/24VDC

Voltage

Dc 24V, Dc 12V

Port Size

1/4 in, 1/8 in, 6mm

Customized support

OEM, ODM

Warranty

1 years

Temperature of media

Normal Temperature

Application

General

Model number (Specification)

1010SF

Place of origin

Zhejiang, China

Material(

C3604,SUS430F, FKM, FFKM, SUS316,SUS304,SUS316L(

Selling Units

Single item

Single package size

19X14X5 cm

Single gross weight

1.0 kg

Size (Product option)

Material (Product option)

Stainless Steel

Lead time

35 days

Minimum order

2 Units
