Products Description
| HDPE Steel Reinforced Thermoplastic Pipes |
| Materials | High-density Polyethylene (HDPE) PE100 |
| Processing Service | Molding, Cutting |
| Application | Oil, Gas, Water, Firefighting |
| Features | Corrosion Resistance, High Pressure, Durability and Long Service Life |
| Type | Streight Pipes |
| Length | 5.8 m/PC, 11.8m/PC or Customized |

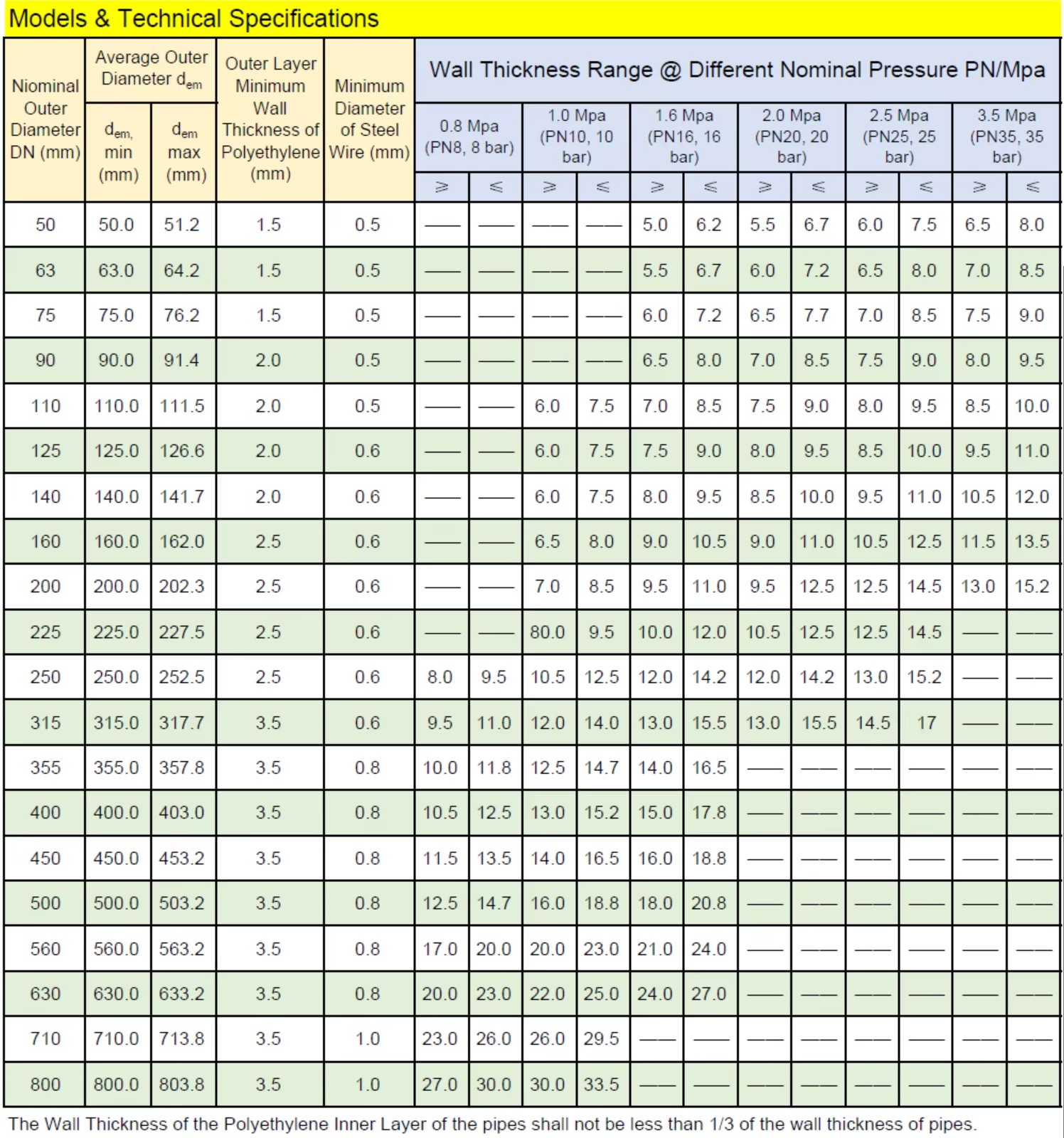

| Specifcaition | DN50-DN800 |
| Colors | Black or Customized as requirements |
| Wall Thickness | As Standard, Customized as requirements |
| Production Capacity | 500Ton/Day |
| Working Pressure | 35 /25 / 20/ 16/ 10/ 8 bar or 3.5/2.5/2.0/1.6/0.8 Mpa |
| Life Span | 50+ Years |
| Standard | ISO9001/ISO14001/ISO45001 |

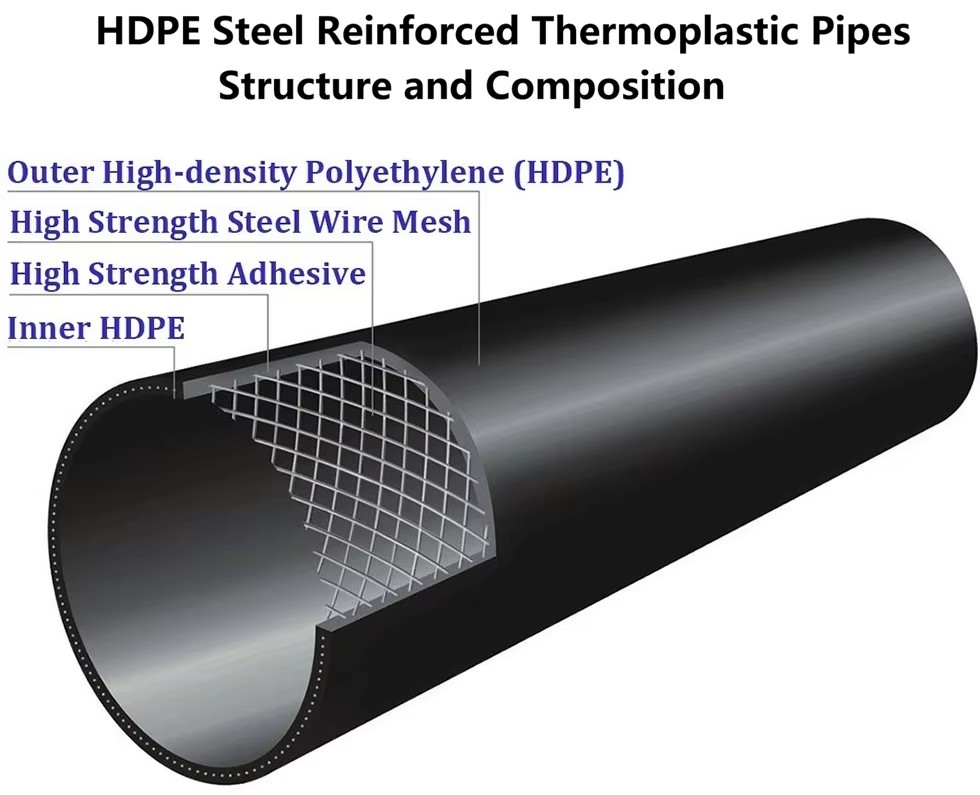

Steel Reinforced Thermoplastic Pipes (SRTP), Steel Wire Mesh Skeleton Composite Pipe is a high-performance composite pipeline product that integrates the advantages of metal materials and thermoplastic materials. It is composed of a high-strength steel wire mesh skeleton as the reinforcement layer and thermoplastic resin (such as HDPE, PE80, PE100) as the inner and outer anti-corrosion and pressure-bearing layers. Through advanced hot-melt bonding technology, the steel wire mesh and the plastic layer are firmly combined into an integrated structure, which effectively overcomes the shortcomings of single-material pipes (such as poor pressure-bearing capacity of pure plastic pipes and easy corrosion of metal pipes) and has become an ideal alternative to traditional pipelines in many fields.
Inner Thermoplastic Liner: This layer, usually made from materials like High-Density Polyethylene (HDPE), Polyamide (PA-11, PA-12), Polypropylene (PP), or Polyvinylidene Fluoride (PVDF), provides excellent corrosion and abrasion resistance. It ensures a smooth flow of the conveyed fluid and prevents chemical interaction with the reinforcement layer.
Reinforcement Layer: This is the core strength component. In steel-reinforced pipes, this layer consists of helically wound high-strength steel wires or cords. The winding angle and number of layers are carefully designed to withstand internal pressure and external loads. Other RTP types might use aramid, glass, or carbon fibers for reinforcement.
Outer Thermoplastic Jacket: An external protective layer, often made of HDPE or similar thermoplastic, safeguards the reinforcement layer from external damage, UV radiation, and environmental degradation during installation and operation.

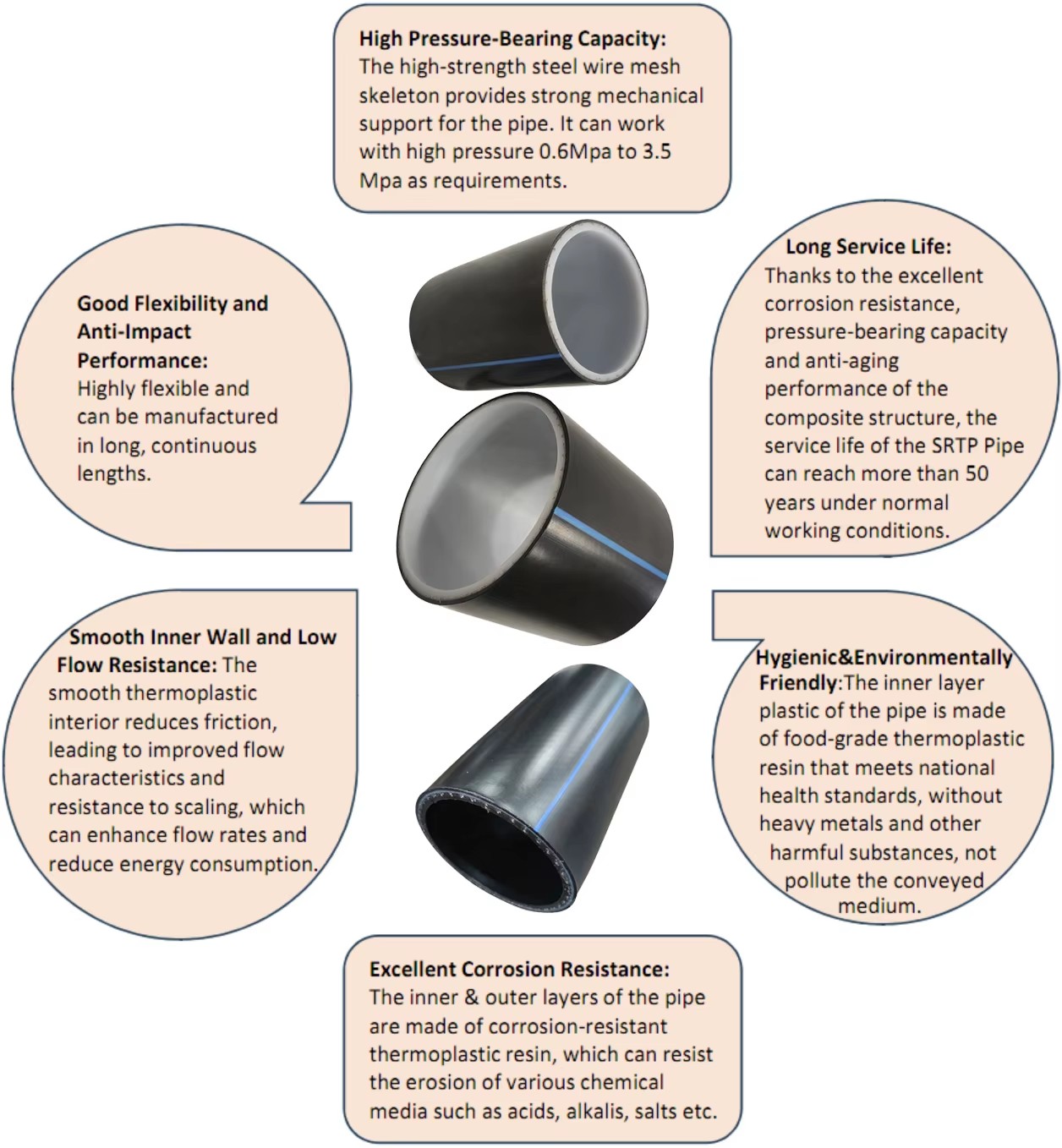

Product Characteristics

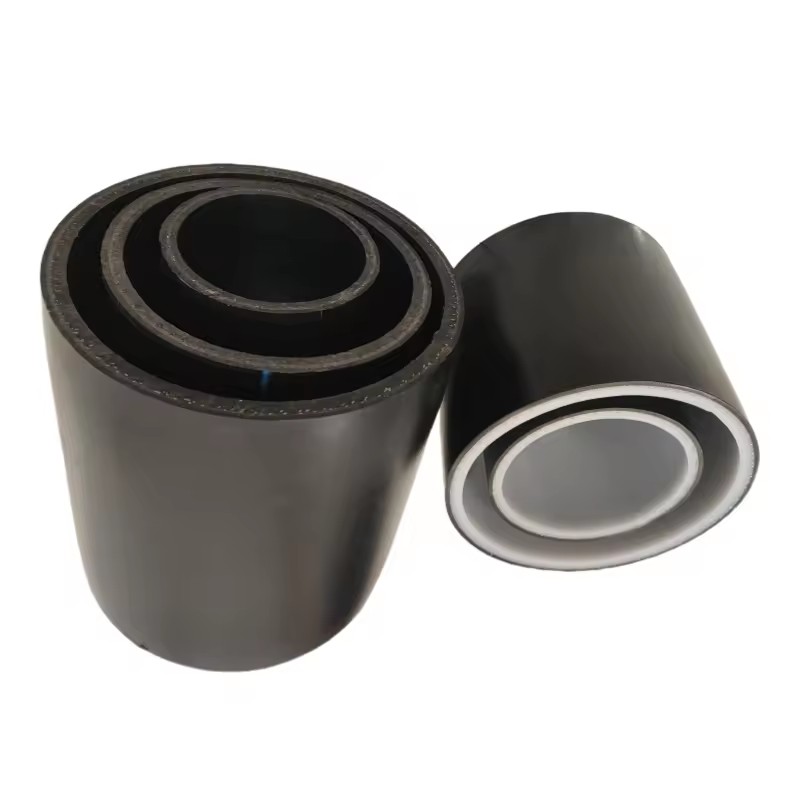

Steel Wire Mesh Skeleton Composite Pipe

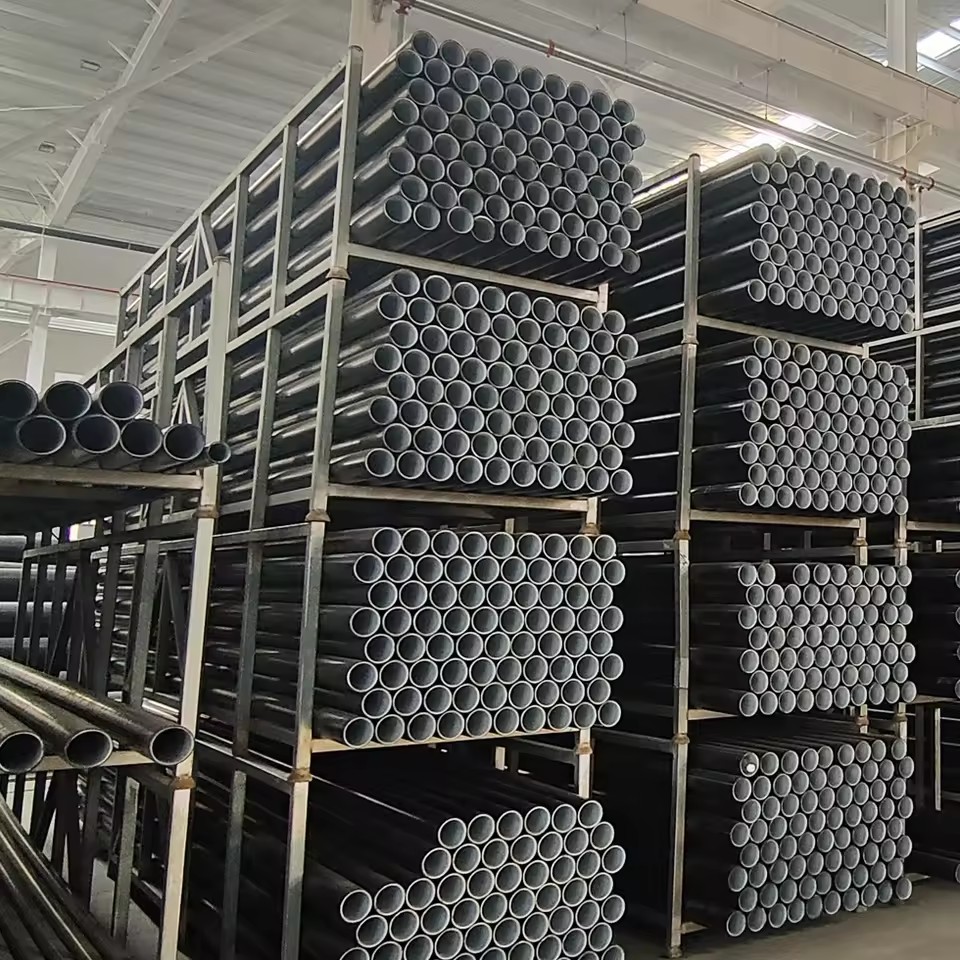

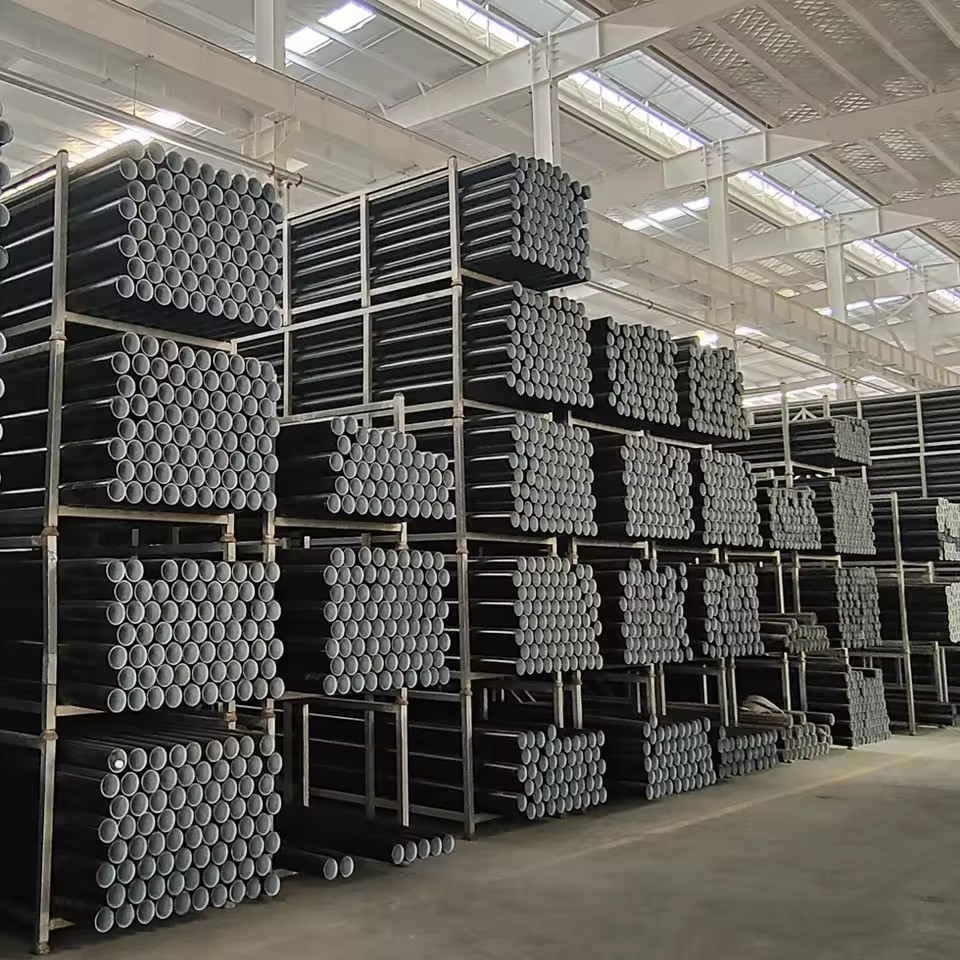

Production Lines
Products Applications
Steel Reinforced Polyethylene Pipes widely used in various demanding industries and applications, including
• Water Supply Engineering: Urban water supply networks, residential area water supply pipelines, rural safe drinking water projects, industrial water supply pipelines (such as cooling water, process water transportation).
• Gas Transportation: Urban natural gas transmission pipelines, liquefied petroleum gas (LPG) distribution pipelines (for low-pressure and medium-pressure gas transmission).
• Oil Industry: Gathering and transmission lines for crude oil, and refined products. Water injection lines for enhanced oil recovery.
• Sewage and Wastewater Treatment: Sewage discharge pipelines in residential areas, industrial wastewater treatment pipelines (especially for corrosive wastewater), and reclaimed water reuse pipelines.
• Industrial Pipeline Systems: Chemical industry (transportation of non-strong oxidizing chemical media), petroleum industry (auxiliary pipeline systems), power plants (circulating water pipelines, desulfurization pipelines).
• Agricultural Irrigation: Farmland irrigation pipelines, water-saving irrigation systems (drip irrigation, sprinkler irrigation main and branch pipes).
• Other Fields: Landscaping water supply pipelines, fire-fighting water supply pipelines, and pipeline systems in coastal and saline-alkali areas.
company is a Chinese leading manufacturer which specializes in supplying a diverse range of plastic pipelines, conduits & fittings, including HDPE silicon core pipes, PE water supply pipeline, corrugated optic ducts, MPP cable protection pipelines, drainage pipeline, PVC-C power pipes, double -wall corrugated pipes, metal corrugated pipes, PE communication pipes, carbon corrugated pipes, and corresponding pipe fittings.
Adhering to the principle of “High Quality, Excellent Service," our products have found their way to the different markets in the world. They are extensively applied across multiple sectors and purposes, such as water supply, drainage, wire and cable, sewage treatment, telecommunications, fire protection, and construction etc.
We are committed to providing customers with a one-stop procurement experience. Our comprehensive services cover customized design, production, procurement, installation, and after-sales maintenance. To ensure product quality, every specification of our pipes and fittings comes with an independent third-party test report. With a focus on research and development
Shipping Terms
1. Port of Lading: QINGDAO Seaport,.
2. Price terms accept EXW, FOB, CFR, CIF, DDP.
3. Support multiple transportation methods including sea transportation and air transportation.
About the payment, we accept a variety of payment methods for your convenience.
And the sample can be sent to you by Express.
RFQ
Q1: Where are you?
A: We are in Shandong Province,. We are a one-stop solution provider in pipeline systerms, specializing in Plastic Pipes and Fittings.
A:We are manufacturers. We have our own factory for production and processing, and can customize according to customer requirements.
Q3:Do you provide customized product services?
A:Of course, we can design and produce the products you need based on your specifications and drawings. For example: special sizes, special controls, OEM, etc.
Q4:Can we get some samples? Is there a fee?
A:Yes, we will provide you with the samples you want. The samples are free, but customers may need to pay for shipping.
Q5:Can we visit your factory?
A:Of course, we welcome you to visit
Q6:How do you ensure the quality of your products?
A:All products must undergo three inspections throughout the manufacturing process, including production, cutting, and packaging. The factory inspection report is provided with the goods. If necessary, third-party inspections such as SGS can be accepted.
Q7:What is your delivery time?
A:Different products and purchase quantities have different delivery times. The product will be delivered as soon as possible on the basis of quality assurance. Usually, normal delivery time is 2-3 weeks after sight of the deposit payment.
Q8:Can you arrange shipment?
A:Of course, we have many years of cooperation with freight forwarders. We can provide you with the most favorable prices and professional services.
