Synthetic Ruby Water Cut Nozzle for Cnc Water Jet Cutter Machine

Click the picture to view more

Jewel setting assembly contains a series of products: cup jewel, flat-end surface bearing, flat surface straight holed bearing, flat surface olive holed ring, single cup straight holed ring, single cup olive holed ring, double cups straight holed ring, double cups olive holed ring, hyperboloid straight holed ring, hyperboloid olive holed ring. These components are always embedded with stainless steel, aluminum alloy, brass, and red copper, etc.

Jewel setting assemblies are intensively used as movable and supporting parts on accurate measuring instrument and military apparatus.

Jewel nozzles are made of synthetic sapphire/ruby and embedded with brass, red copper, stainless steel and alloy. They are chiefly applied to accurate measuring instrument, machinery, high-pressure water jet, liquid cutting, medicine and various auto-memorizing apparatuses.

MAN MADE CORUNDUM PROPERTY

General

Chemical Formula

Al2O3

Crystal System

Trigonal

Class

Hexagonal-scalenohedral

Melting Temperature

2030°c

Thermal

Thermal Expansion

Parallel to C-axis: 6.7× 10-6

Perpendicular to C-axis: 5.0×10-6

Specific Heat

0.18 Cal/gmoK（25℃）

Mechanical

Density

3.98 ~ 4.1g/cm3

Hardness

9Moh’s Scale

（Hv）≥1700kg/mm2

Modulus Of Elasticity

340-380Gpa

Compressive Strength

2.1Gpa

Tensile Strength

0.19Gpa

Optical

Index of Refraction

Parallel to C-axis:1.769

Perpendicular to C-axis:1.76

Index of IR Transmission

85%

Electrical

Electrical Resistance

1016 Ω/cm(25°c)

Dielectric Constant

7.5-10

Chemical

Corrosion Resistance

Can not be corroded by acid or alkali at normal temperature, only can be corroded by HF at 300°c

Products Description

Specification

Material

Can not be corroded by acid or

alkali at normal temperature, only can be corroded by HF at 300°c

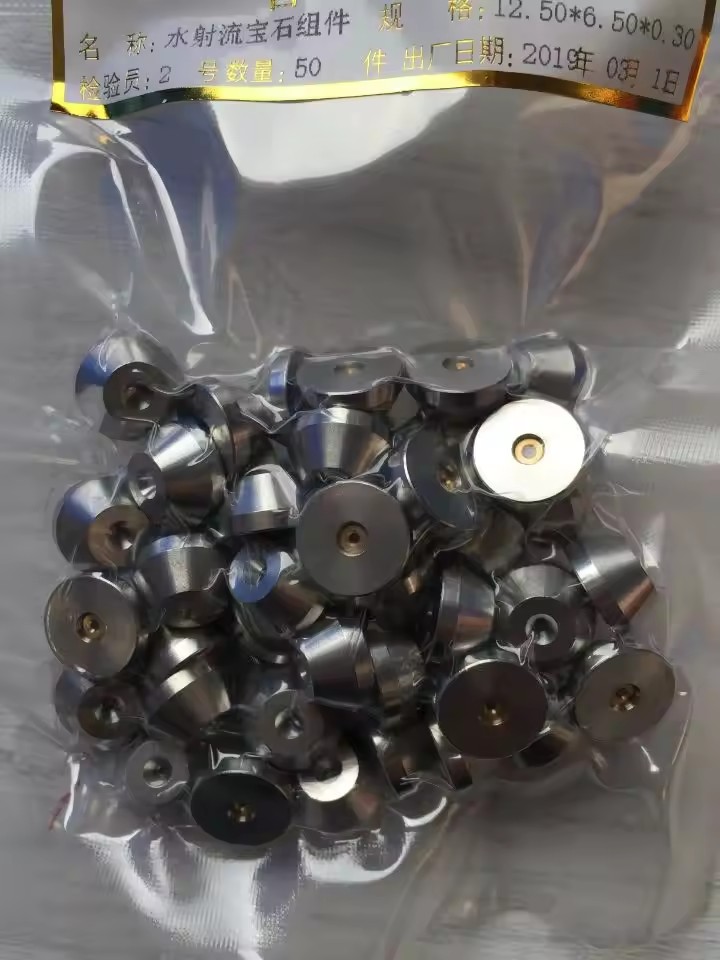

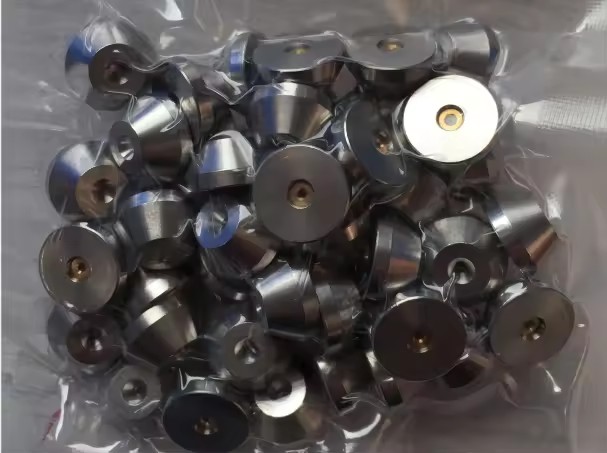

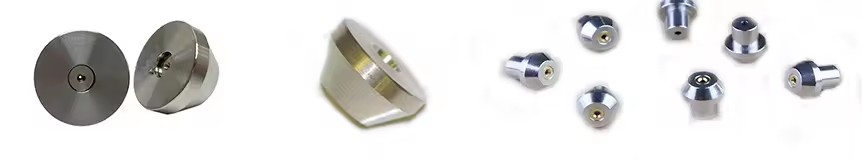

Product Show

Recommend Products

Packing and shipment

We will choose the most suitble express company to promise the shiping time and to save money for our customers.

Our Workshop

Company Profile

C

we focus on designing, producing of the synthetic sapphire and ruby bearing, marine equipments etc. more than 15 years. and have rich experice in importing and exporting.

To explore new market for our products, our company often launches various products worldwide as well.

We are the company with first-rate teamwork and our motto is "to foster sustainable development, to set up sincere reputation, to improve service, to optimize investing environment, to form close strategic partnerships with customers, to serve customers wholeheartedly and to develop together with customers".

Now, facing the keen competition of the market, and with rich experience in international trade, we have a high reputation, good quality products and competitive price. We have had cooperation with worldwide enterprises. We hope that our work can make your business perfect. We are looking forward to establishing relationships with you in the near future.
