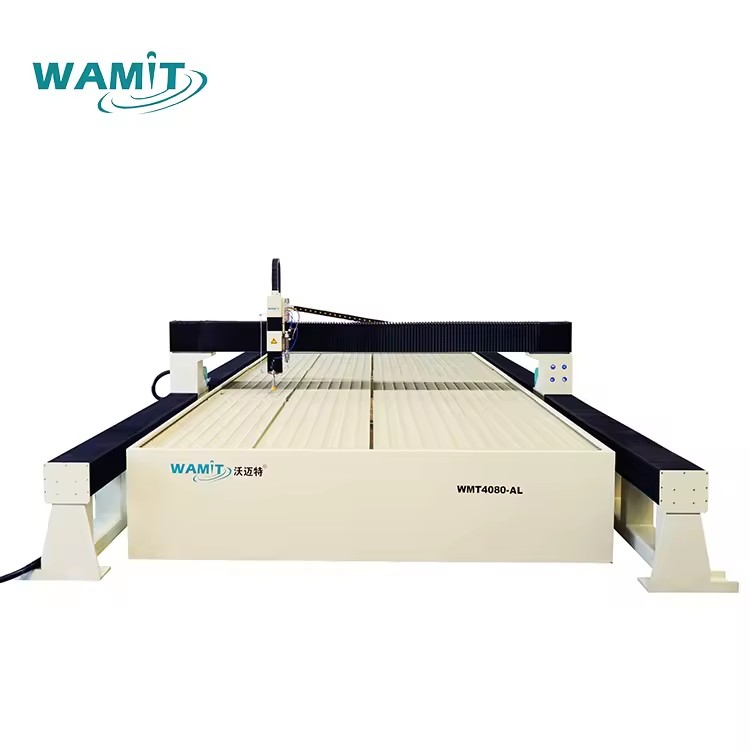

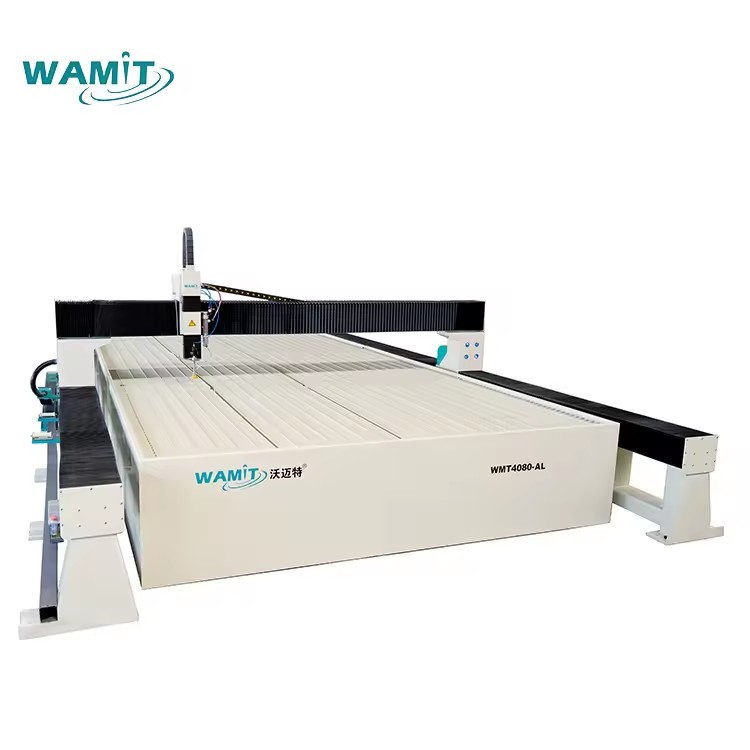

Ultra High Pressure Waterjet Cutting Machine Gantry Type High Precision Water Jet Cutter

Available for enquiry 0.0 · 0 reviews
USD

$ 60,080.00 60080.0 USD $ 60,080.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380 V, 220 V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.05
Core components
Motor, Engine, Pump
Machinery test report
Provided
Warranty
1 Year
Product description

Max Pressure

600mpa / 420mpa

Max Cutting Thickness

300mm

CNC System & Software

FLOWEDGE / ECS

Servo Motor

Panasonic / INOVANCE

Electrical Components

Schneider

PLC

SIEMENS

Linear Guide & Ball Screw

HIWIN

Rack & Pinion

YYC

Auto-lubrication System

HERG

Certification

CE & ISO

Model

WMT500 2560

WMT500 2590

WMT500 3060

WMT500 3080

WMT500 4080

WMT500 40100

Table size

X axis(mm)

2700

3200

4200

Y axis(mm)

6200

9200

8200

10200

Cutting Size

2500

3000

4000

6000

9000

8000

10000

Z axis(mm)

150

Cutting Accuracy

±0.1mm

Repeated Positioning Accuracy

±0.05mm

Driving Mode

Alternating Current Servo

Maximum Operating Speed

50000mm/min

Product Parameter

Product Display

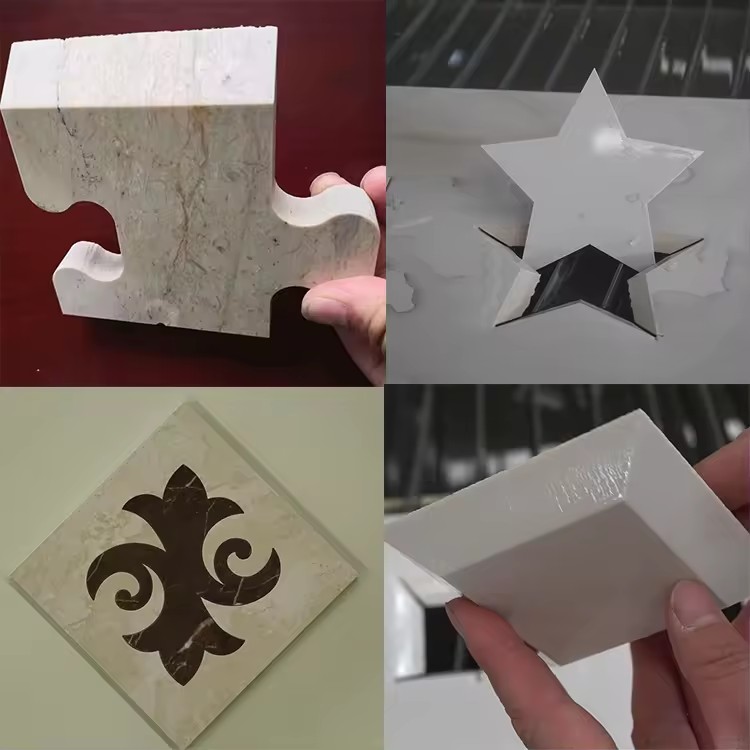

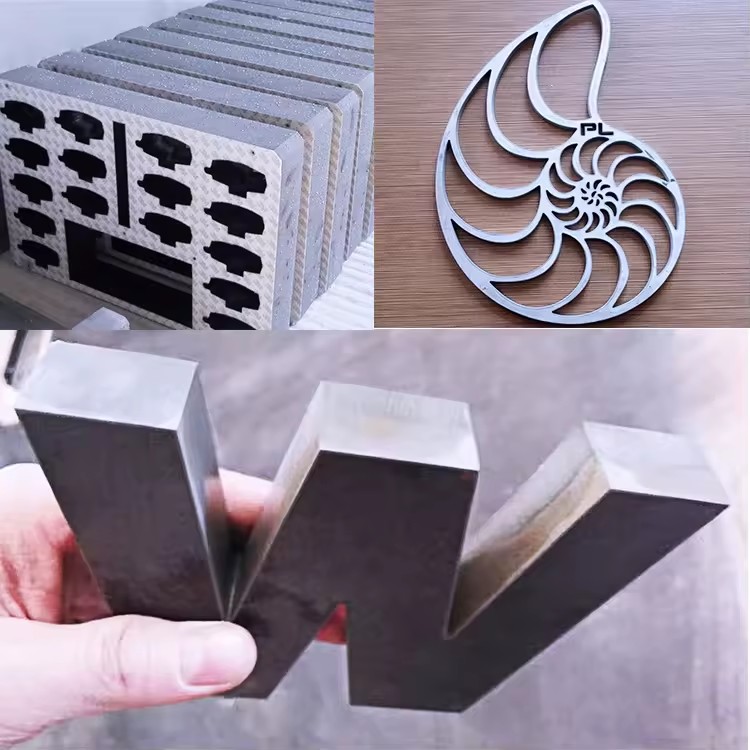

Cutting Samples

Company Profile

Packing&Shipping

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A

waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    35 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Voltage
380 V, 220 V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.05
Core components
Motor, Engine, Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Key selling points
High-Accuracy
Rated power
15KW/37KW
Place of origin
China, Shandong
Weight (kg)
8000
Table travel (x) (mm)
4000
Table travel (y) (mm)
8000
Table travel (z) (mm)
150
Cutting accuracy(mm)
0.1
Cutting accuracy
0.1mm
Cutting thickness
0-200mm
Max pressure
420Mpa
Continuous Working Pressure
350-380mpa
Power Requirement
(415v/50hz), 380V/50HZ, ( 220v/60hz), 3 phrase
Intensifier assembly
imported from USA
Linear guider
HIWIN
Way of drive
servo motor and driver
Working area (Specification)
4000*8000mm
Keyword
Waterjet Cutting Machine
Selling Units
Single item
Single package size
320X1000X300 cm
Single gross weight
4000.0 kg
Model number
WMT500
Effective cutting range (mm)
Other
Lead time
35 days
Minimum order
1 Units
