Stone Machinery HKNC-450J Automatic 5 Axis Bridge Saw Stone Cutting Machine Cnc Stone Sawjet Water Jet Cutters

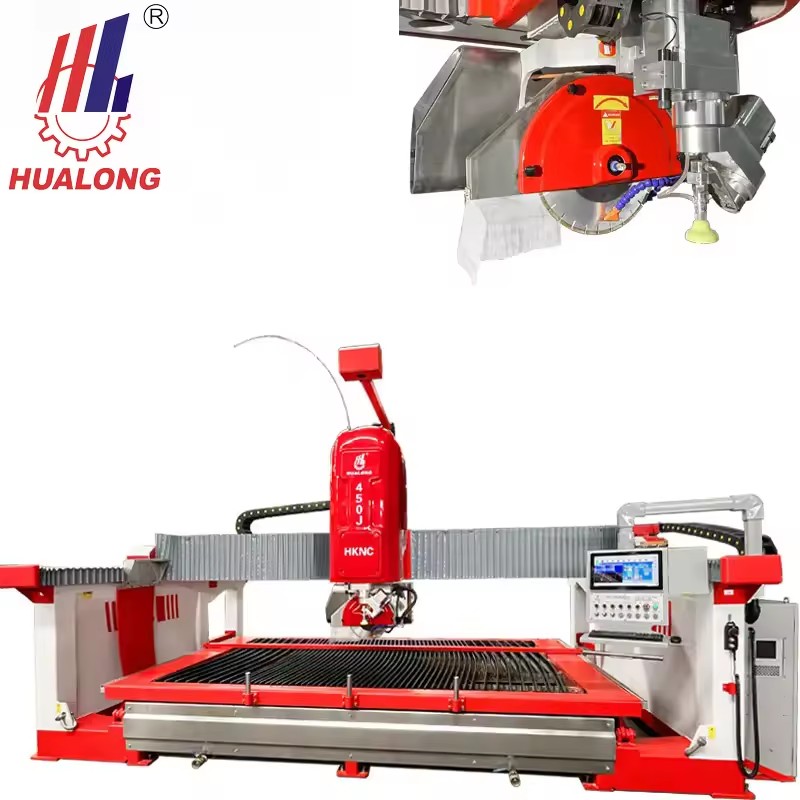

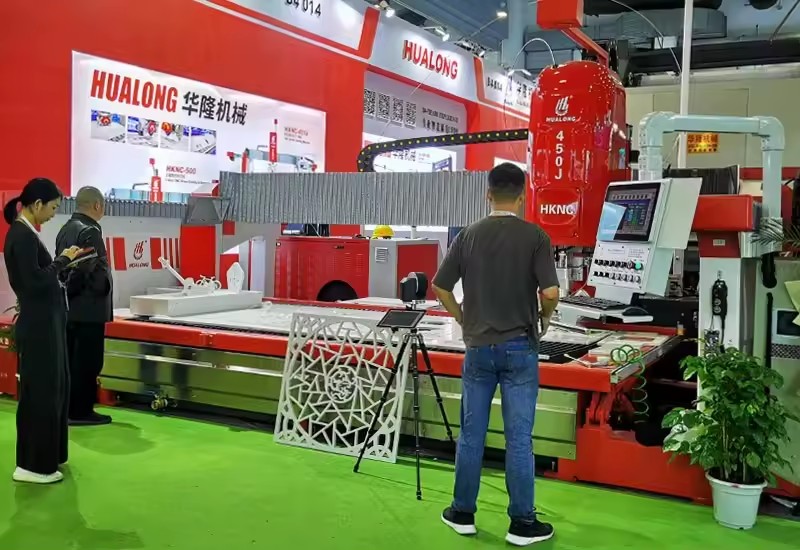

5 Axis Stone CNC Sawjet HKNC-450J

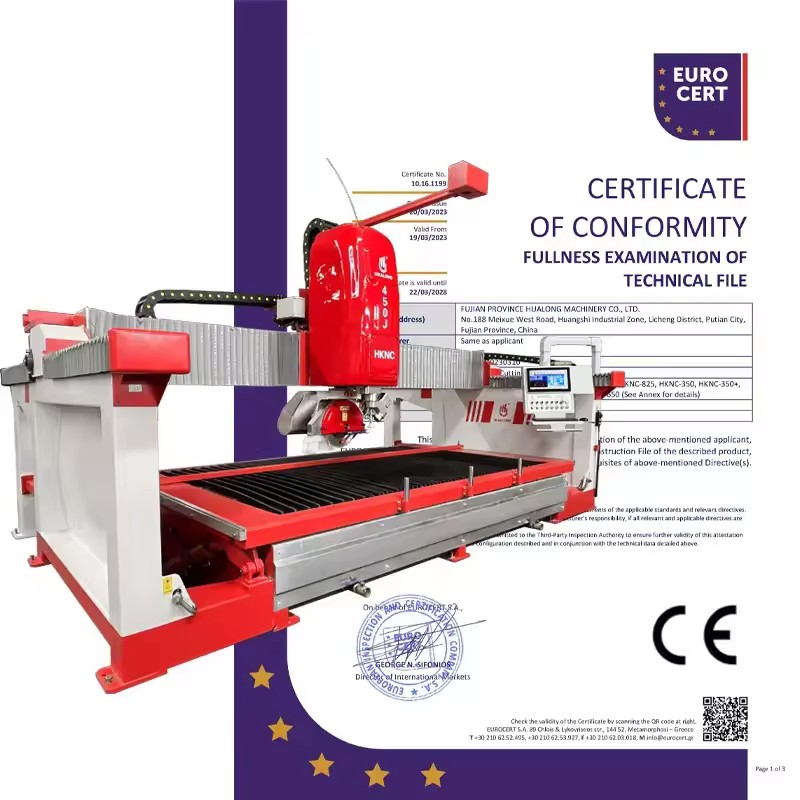

TECHNICAL DATA FOR HKNC-450J

Diameter of saw blade

ø350-ø450

mm

Dimension of working platform

4150x2250

X axis stroke

3500

Y axis stroke

2000

Z axis stroke

500

Max. cutting thickness

100

Max. lifting stroke

320

Power of saw blade motor

26.4

kw

Power for abrasive waterjet

37

Max. operating water pressure

450

mpa

Required pressure of inflow

0.4

Water consumption

11.4-16.7

l/min

Gross weight

10000

kg

Dimensions (L x W x H)

6000x3820x320

with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts,limestone and the rising new ceramic C saw is used for cutting stone slabs, countertops and sinks, blade profiling, engraving and more.

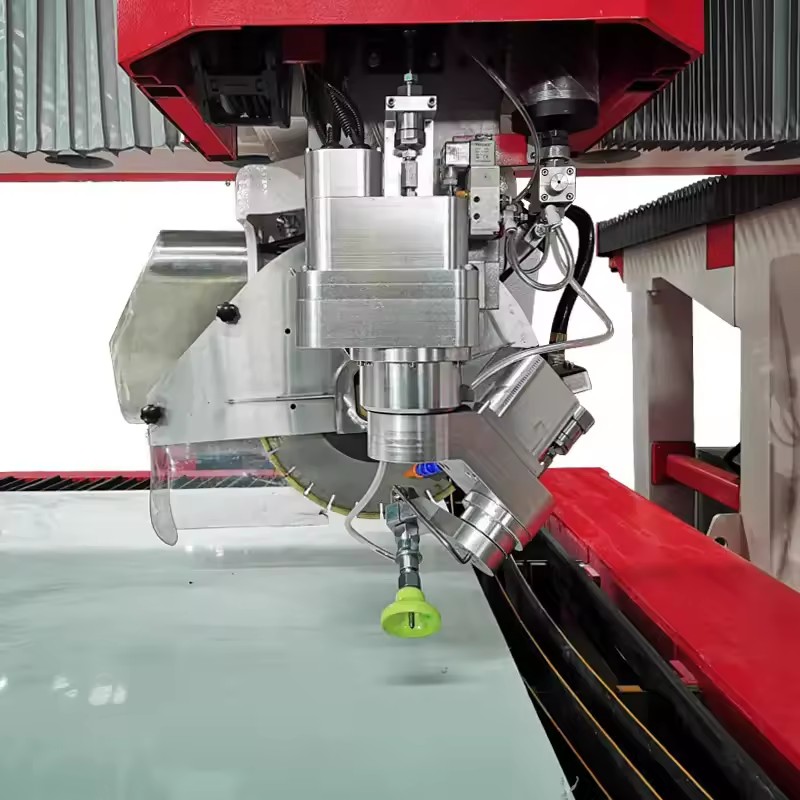

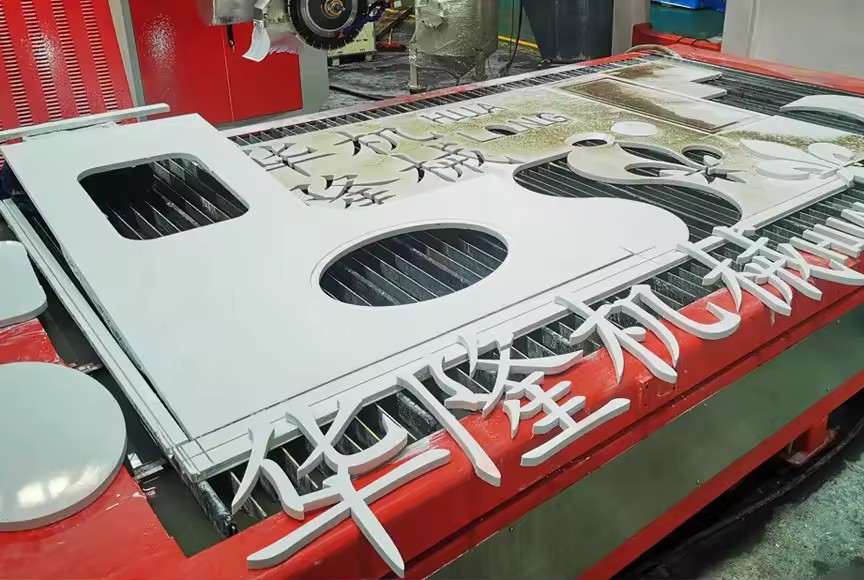

The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and

angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.

Main Features

5-axis Saw · this machine is a fully interpolated 5 axis bridge saw

* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large

production runs, at the same time containing costs.

* It can implement different complex curved surface processing and combines the functions of cutting, drilling, milling, engraving

into an oganic whole.

5-axis Waterjet · this machine is a fully interpolated 5 axis waterjet either

* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise

inside-corner fabrication for mitered edge.

* KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor.

1) 5 axis linkage control with Italian CNC Esa system.

2) Easy to use interface with 19" color touch-screen.

3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge

4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files

6) Working platform can tilt 85 degrees, easy for slabs loading.

7) Photo slab for nesting and avoiding defects.

8) Nesting manual / automatic to optimize slab surface usage

9) RTCP tool point tracking function ensure precision machining easy.

10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.

* Low investment, Double capability, small room occupied.

* Enjoy both advantages of cnc bridge saw and cnc waterjet.

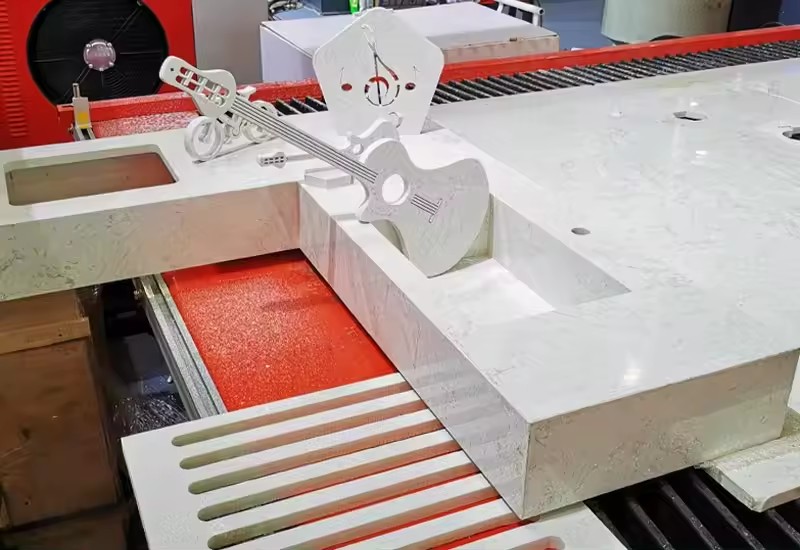

Mamaximizes cutting time by using a CNC saw for straight cuts, then switches to a precision waterjet for tight angles. This powerful sawing station saws 3 times faster than conventional bridge saws, reducing your costs and increasing your capacity.

Control system · CNC

Brand

Esa

Original

Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job

easy, perfect and high efficient.

Digital Servomotor

YASKAWA

A permanent magnet servomotor with intergrated drives, well matching with Esa’s CNCs, creates a reliable controlling power for X, Y, Z, C and A axises

Laser Reticule Apparatus

Origin

Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.

Electro-spindles

of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so

granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.

Internal water passage

Software - Pegasus CAD/CAM

Brand: Pegasus

Original

* Easy to Use · Very user-friendly, it does not require any advanced computer skill.

* Reliable · Frequent updates and high-quality support.

* Powerful · Different modules and tools for plenty of technologies and machinings

Slab Image Capture (Optional)

The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the

acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to

be machined; it is also possible to qualify the slab edge geometrically.

Blade Presetting Unit (optional)

Automatically measuring blade diameter and diamond tool

Slab Thickness Detector (optional)

System to automatically detect the thickness of the slab.

Fixing Bar (optional)

Keep the working piece not moving during processing.

Linear Guide

Hiwin

Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
