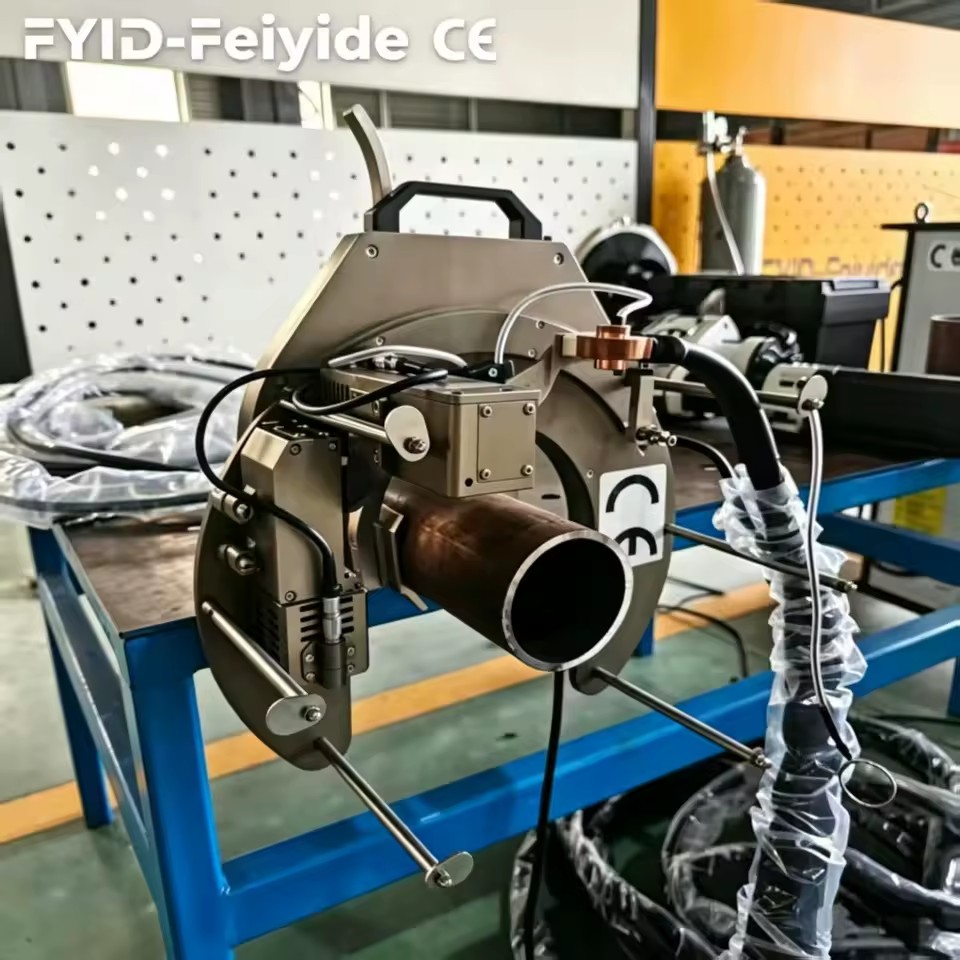

FYID- DC Motor Orbital TIG Welding Machine Automatic Stainless Steel Pipe Welder Portable for Sealed Tube and Round Tube

Product Importer Gallery 01 · 56cc106995

Product Importer Gallery 02 · 856d31f17d

Product Importer Gallery 03 · 07afc32262

Product Importer Gallery 04 · 2b31fae982

Product Importer Gallery 05 · 0674d39b80

Product video

Certifications CE

FYID- DC Motor Orbital TIG Welding Machine Automatic Stainless Steel Pipe Welder Portable for Sealed Tube and Round Tube

Name: FYID- DC Motor Orbital TIG Welding Machine Automatic Stainless Steel Pipe Welder Portable for Sealed Tube and Round Tube
SKU: XDGH-TS7D-4QX7
Price: 7270.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 7,270.00 7270.0 USD $ 7,270.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380 V, 220 V, 110 V

Condition

New

Frequency

50 Hz, 60 Hz

Warranty

1 Year

Tube Diameter

20-315

Place of origin

China

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Product Details

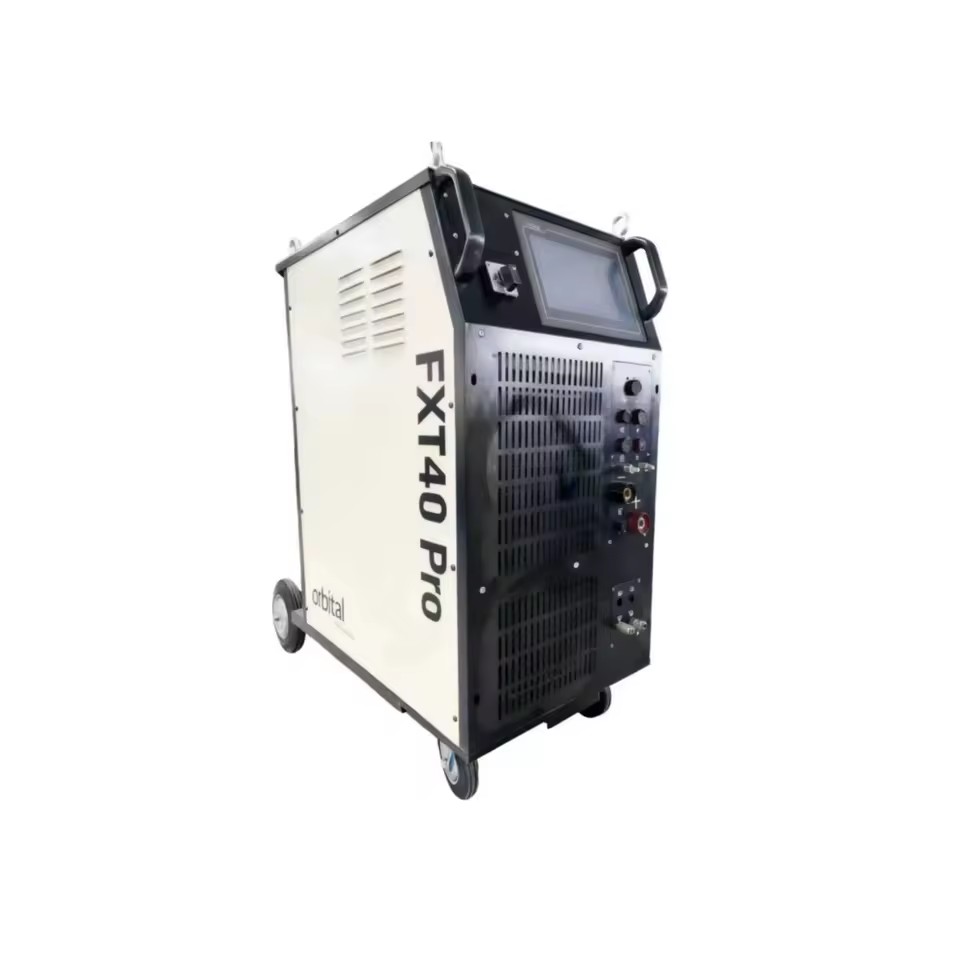

Model	FXT40 Pro Inverter welding power supply
Current input(V)	380V ± 10% (AC)	Current output (A)	5-400A(DC)
No-load voltage (V)	80	Power(KVA)	21.5
Temporary load rate
Current input	Average output	Temporary load rate
380V	400A	60%
380V	310A	100%
Other
Protective gas	Argon	Cooling method of welding torch	Water-cooling
Overall dimension(mm)	1100x454x951	Weight (KG)	95
control mode	PLC	Store parameters	50 Groups
Function control	DC/pulse current, rotational motion, wire feeding motion, protective gas control, arc length control, yaw control

Performance characteristic

Welding gun Model	K76	K114	K168	K219	K273	EK600
Welding Range(mm)	Φ19-Φ76	Φ25-Φ114	Φ60-Φ168	Φ89-Φ219	Φ168-Φ273	Φ300-Φ2000
Maximum Thickness(mm)	≤10	≤10	≤10	≤10	≤10	≤12
Cooling method	Circulating water cooling
Protective Gas	Argon
Main distribution power	FXT40 Pro Full Position welding Power
Mainly weldable material	Carbonsteel, stainless sleel, titanium alloy, etc
Docking form	Straight pipe, elbow, tee
Groove form	V	V	V or U	V or U	V or U	V or U

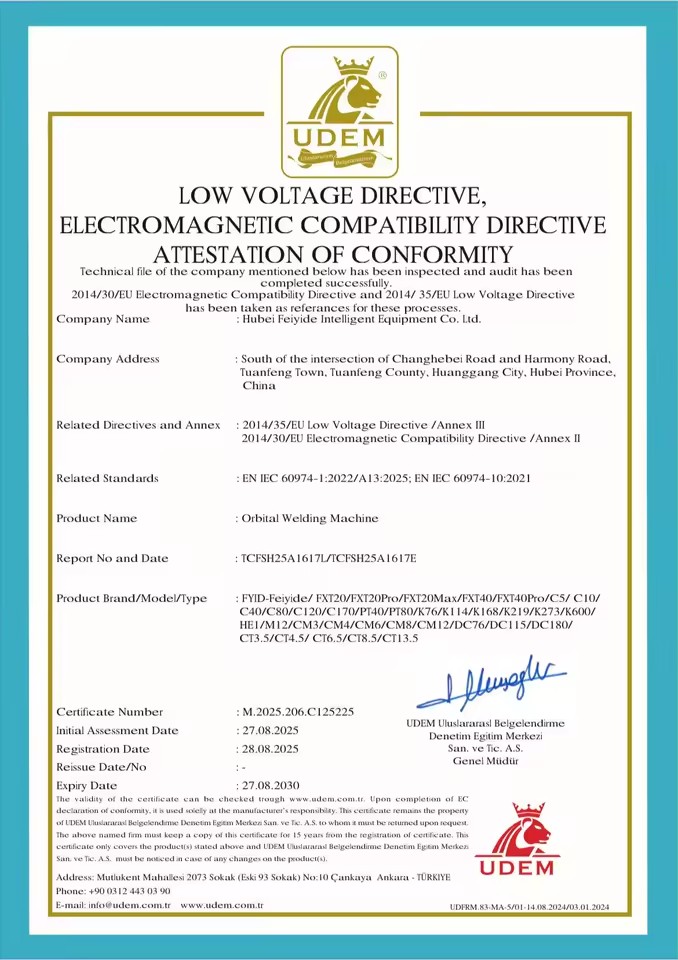

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 15 fields

Voltage

380 V, 220 V, 110 V

Condition

New

Frequency

50 Hz, 60 Hz

Warranty

1 Year

Tube Diameter

20-315

Place of origin

China

Dimensions

640*410*650mm

Usage

electrofusion fitting welding

Weight (kg)

Selling Units

Single item

Single package size

110X46X95 cm

Single gross weight

95.0 kg

Model number

K76

Power(W) (Product option)

5-400A

Certifications & Compliance

Lead time

31 days

Minimum order

1 Units
