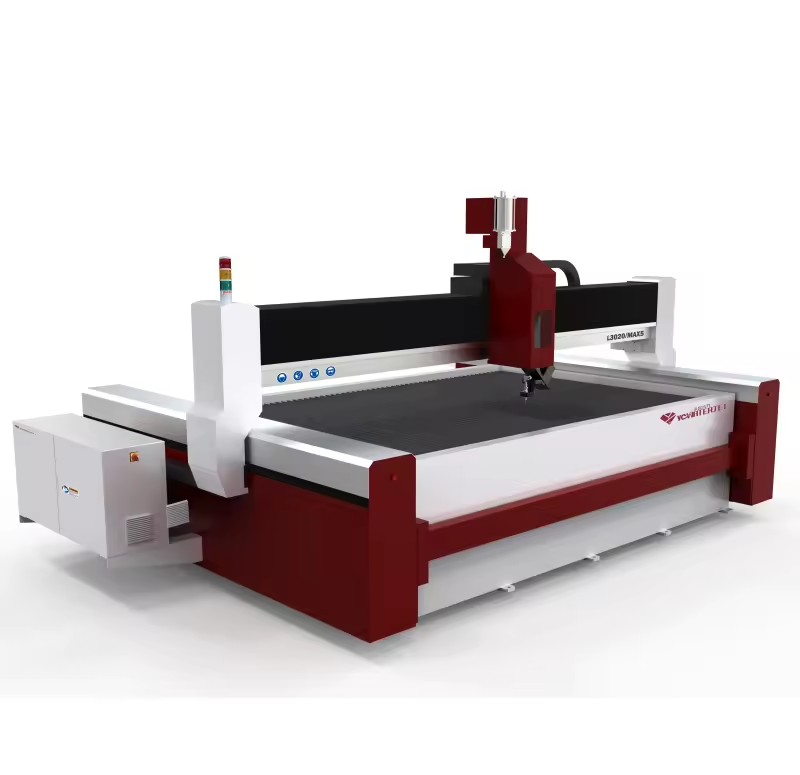

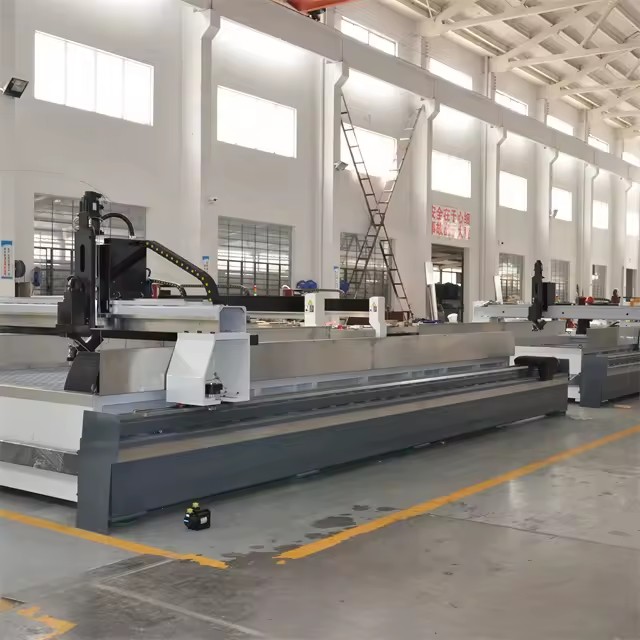

YCWJ High Pressure Carbon Steel 5axis Waterjet Price 3D 5axis Water Jet Cutting Machine

Max5 axis waterjet cutting machine

MAX5 series 5 axis water jet cutting machine unlike a conventional 3-axis waterjet cutting machine, this product is added with A-axis (in a vertical direction) and C-axis (which rotates around the Z axis).By using state-of-the-art technology and the Italian ECS control system, it can produce 0-±45° inclined cuts with a maximum rotation angle of up to ±540°. Currently, this state-of-the-art cutting equipment has been applied by a wide variety of advanced processing industries.

It can cut the product cross section without inclination, and cut bevel at any angle, as well as cut the workpiece vertically, especially cut cone, curved impeller, gear, etc.

Technical Parameters

Bevel axis (A): ±45°

Rotary axis (C): ±540°

Control accuracy: ±0.01mm

Angle accuracy: 0.01°

CNC Water Jet Cutting Machine Parameter (L=Gantry type)

Parameters

Unit

YCWJ-L1010

YCWJ-L2015

YCWJ-L3015

YCWJ-L3020

YCWJ-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.025

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

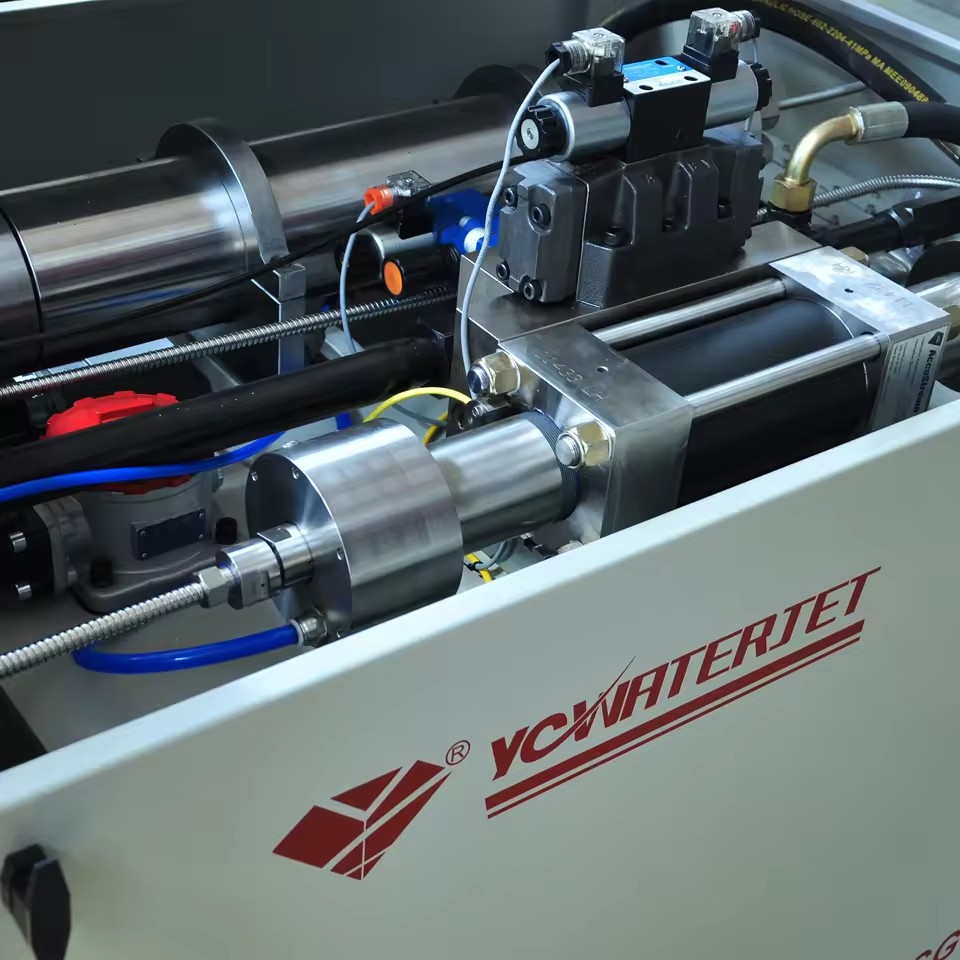

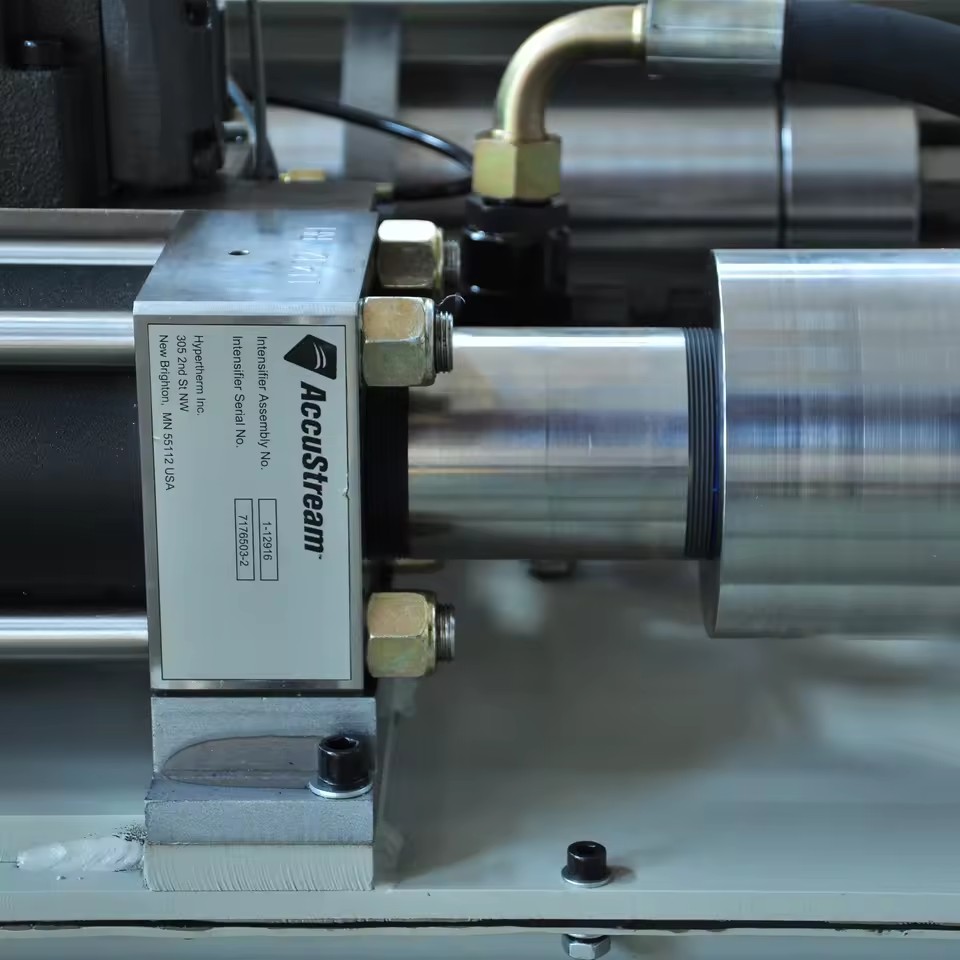

High Pressure Pump

Model

YCG-3038

YCG-3742S

YCG-7542S

Max Pressure

3800Bar/55,000Psi

4137Bar/60,000Psi

Max Water Flow

3.7L/min

7.4L/min

Max Orifice/Nozzle

0.011/0.03

0.013/0.04

0.016/0.05

Power

30KW/40HP

37KW/50HP

75KW/100HP

Product Details

Max5 axis waterjet cutting

machine

CNC Water Jet Cutting Machine Parameter

(L=Gantry type)

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

S-SERIES

Structure：

It is hygienic and reliable. Totally enclosed glass cutting space, clean and dust-free. we can clearly watch the cutting

process.

It will be shut down if open the window, it's safe and smart.

The SS collecting tank can concentrate the residue and the waste water after cutting.

Movable cleaning window is simple and convenient to operate.

Main Feature

Control: PLC

Shifting: electro-hydraulic

Control Cooling: cooler/oil heat exchanger

Inlet water filter accuracy: ≤0.45μm

Oil-return filter accuracy: 20 μm

Working temp: 0-50°c

Outlet: UNF 3/8" Cooling in/out-let: NPT1"

Max orifice size: 0.33mm

Waterjet CNC

Controller

1. 17ʺLCD liquid crystal display.

2. DNC on-line working function.

3. Functions of returningarbitrary point,bending and circular are working auto deceleration.

4. Function of cutting figure imitation display.

5. 80GB memory hard disk.

6. MITSUBISHI AC servo driver and motor.

7. 1GB memory card.

8. Multilingual function(Chinese English etc.).

9. Drive-by-wire and hand-hold controller.

10. NAIKY PCIMC-6A special software is special for YC.

Italian ECS Controlling system

Specification Parameters：

1. Up to 16 axes interpolated.

2. Hardware Architecture dual core ( Kontron).

3. With high performance and low power.

4. Monitor 15" LCD - Integrated Touch Screen(Optional).

5. Peripheral interface: EtherCAT.

6. Node EtherCAT to manage EcsLink.

7. Mechatrolink® 2 and analogic drives.

8. Up to 2048 I/O with EtherCAT.

9. Modular machine panel (Optional).

10. Alphanumeric keyboard (Optional).

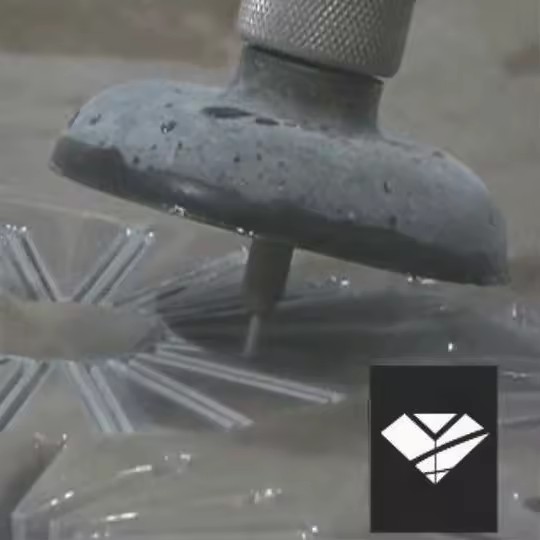

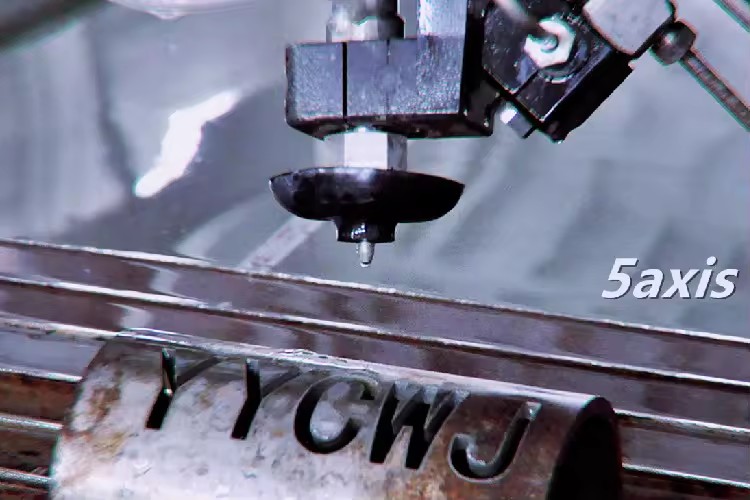

Cutting sample
