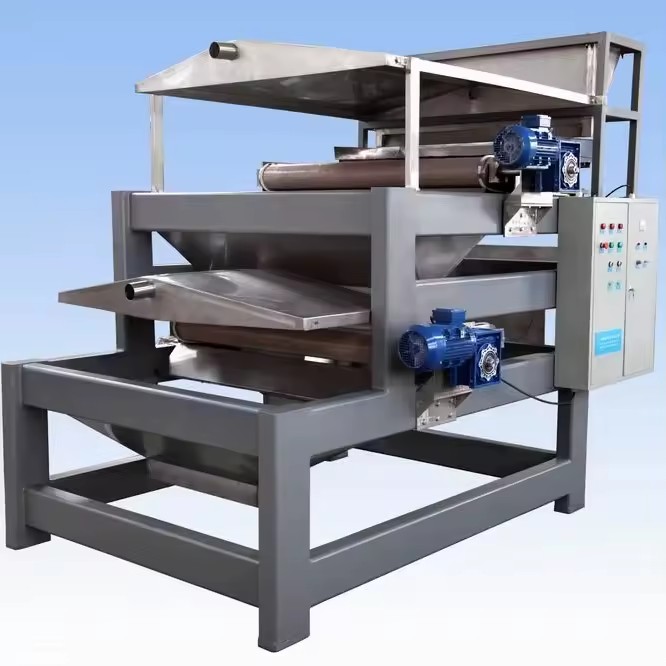

0.37KW Industrial Dry Type Magnetic Drum Separator 15000GS Automatic Iron Removal Machine for Mineral Beneficiation

Product Importer Gallery 01 · fca38e177c

Product Importer Gallery 02 · c4becca970

Product Importer Gallery 03 · 138b42b39d

Product Importer Gallery 04 · 72a78c8315

Product Importer Gallery 05 · 41f89ea0ca

Product video

Certifications (EU) 2015/863

0.37KW Industrial Dry Type Magnetic Drum Separator 15000GS Automatic Iron Removal Machine for Mineral Beneficiation

Name: 0.37KW Industrial Dry Type Magnetic Drum Separator 15000GS Automatic Iron Removal Machine for Mineral Beneficiation
SKU: X8SX-7XBZ-8YWZ
Price: 3570.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 3,570.00 3570.0 USD $ 3,570.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Magnetic Separator

Core components

High-intensity Magnetic Roller, Feeding System, Conveying System, Driving System

Warranty

1 Year

Key selling points

High-intensity iron removal

Production Capacity

500~1700 KG/H(1102.31~3747.85lb/h), 500~1700 KG/H

Place of origin

China

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Product details

15,000GS+ Ultra-High Magnetic Intensity,Ensures maximum purity by capturing fine iron and weak magnetic oxides.

400 Mesh to 50mm Wide Sizing Range,Versatile separation from fine powders to large granules in one machine.

300°C Exceptional Heat Resistance,Engineered for stable performance in high-temp environments up to 300°C.

Automatic & Continuous Separation,Auto-cleaning design for 24/7 non-stop, high-efficiency production.

Flexible Single/Multi-Layer,Customizable roller layers to match your specific purity and budget needs.

99% High Separation Efficiency,High-gradient circuit design minimizes iron content for superior product quality.

Certifications & compliance

(EU) 2015/863

RoHS compliant

Frequently asked questions

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Yes,we have magnetic materials in stock to help you to get the samples as soon as we can.

Every production process is controlled by professional technicians,and we have a perfect QC system,which has 100%quality inspection before delivery.

Production cycle: - Samples (1-50pcs): 7-10 workdays (conventional); 10-15 (special/complex); - Bulk (≥1000pcs): 15-25 workdays; +7-10 for custom injection molds; - Peak season (Q4) may extend 3-5 workdays; plan in advance.

f you have any inquiry,please kindly advise the following items: 1)Product shape,size,grade,coating,working temperature(normal or high temperature) magnet direction, etc. 2)Order quantity. 3)Attached the drawing if customized. 4)Any special packing or other requirements.

Full-process quality control: 1) Raw material: Component analysis; 2) In-process: Dimension/magnetization sampling, parameter adjustment; 3) Finished product: 100% Gauss/dimension test; temperature/corrosion sampling; 4) Qualifications: ISO9001, third-party reports (SGS, CTI).

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Type

Magnetic Separator

Core components

High-intensity Magnetic Roller, Feeding System, Conveying System, Driving System

Warranty

1 Year

Key selling points

High-intensity iron removal

Production Capacity

500~1700 KG/H(1102.31~3747.85lb/h), 500~1700 KG/H

Place of origin

China

Weight

240 KG(529.11lb)

Application

Mineral beneficiation(iron ores, non-metallic minerals excluding iron)

Belt Width

500~1700 mm

Motor power

0.37~0.75 kw

Number of magnetic separation stages

1 or 2 or 3 or more

Magnetic field strength (Gauss)

2000~20000 Gs

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

XPRM

Power (W) (Product option)

0.37~0.75 kw

Certifications & Compliance

(EU) 2015/863

Lead time

15 days

Minimum order

1 Units
