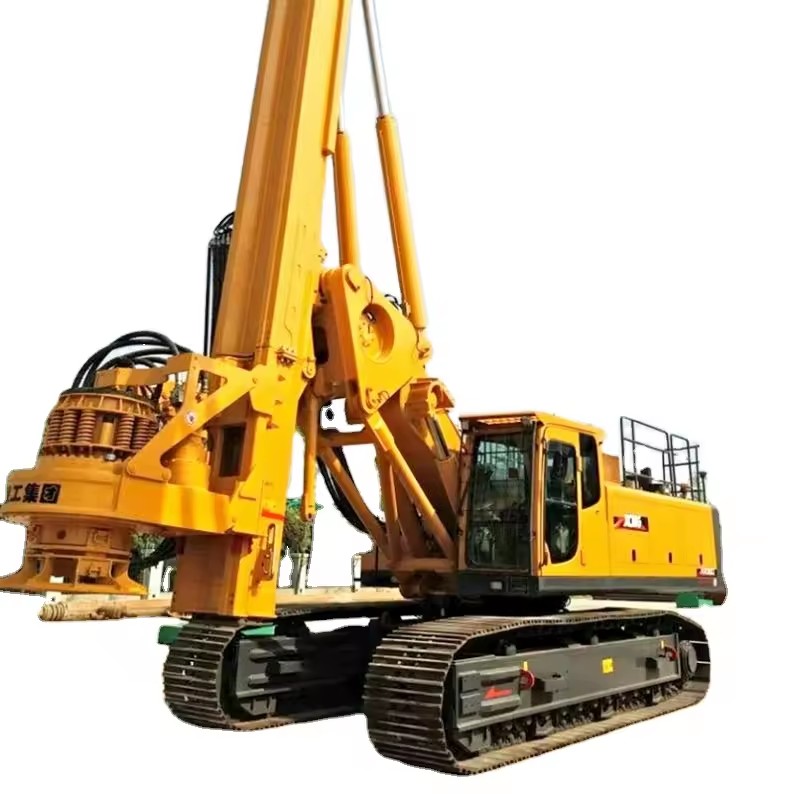

Official Mining Drilling Rig DH47A-H, High Quality Mining Drilling Rig Chinese Heavy Drilling Rig with Attachment

Available for enquiry 0.0 · 0 reviews
USD

$ 64,370.00 64370.0 USD $ 64,370.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
92-185 mm
Drilling Diameter
115-185 mm
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Product description

Product Description

ModelDH47A-H
Borehole Diameter115-185 mm
Pipe Sizes64/76/89*3000 mm
Hammer Size3''/4''/5''/6''
Max Rotation Speed70 rpm
Max Rotation Torque3680 N·m
Feeding Stroke3750 mm
Feed Extension1260 mm
Feed Speed0.59 m/s
Feed Force12 kN
Pull Up Force30 kN
Length of Feed Beam6300 mm
Max Walking Speed3 km/h
Track Oscillation±13 °
Ground Clearance320 mm
Grad Ability32 °
Rated Power73.5/75 kW
EngineYuChai/WeiChai
Length6500 mm
Width2310 mm
Height2450 mm
Weight6800 kg

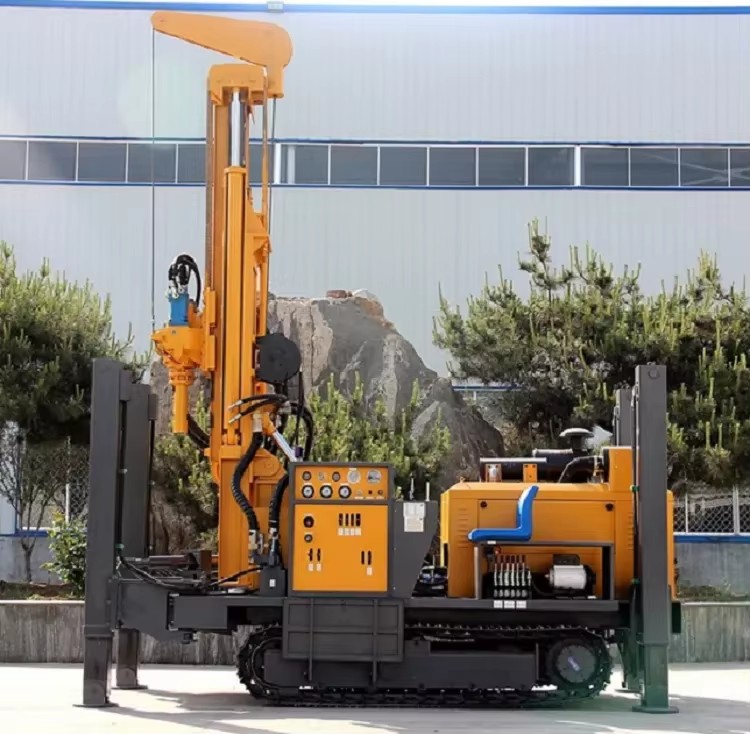

Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    40 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 24 fields
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
92-185 mm
Drilling Diameter
115-185 mm
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Famous Brand Low Voltage Components
Place of origin
China, Hunan
Weight
6800 KG
Dimension (L*W*H)
6500*2310*2050mm
Borehole Diameter
92-185 mm
Pipe Sizes
64/76/89*3000 mm
Max Rotation Speed
70 rpm
Max Rotation Torque
3680 N.m
Max Walking Speed
3 km/h
Rated power
75 kW
Selling Units
Single item
Single package size
1X1X1 cm
Single gross weight
1.0 kg
Model number
DH47A-H
Power (W) (Product option)
75kw
Lead time
40 days
Minimum order
1 Units
