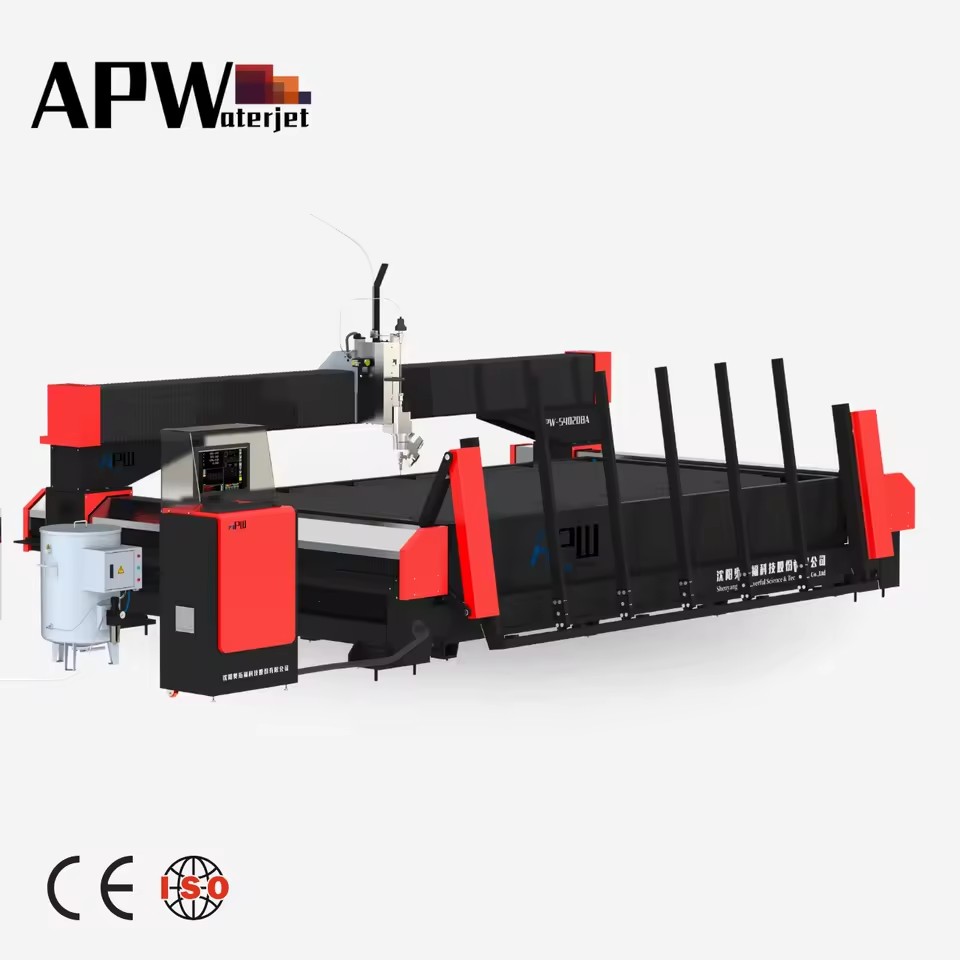

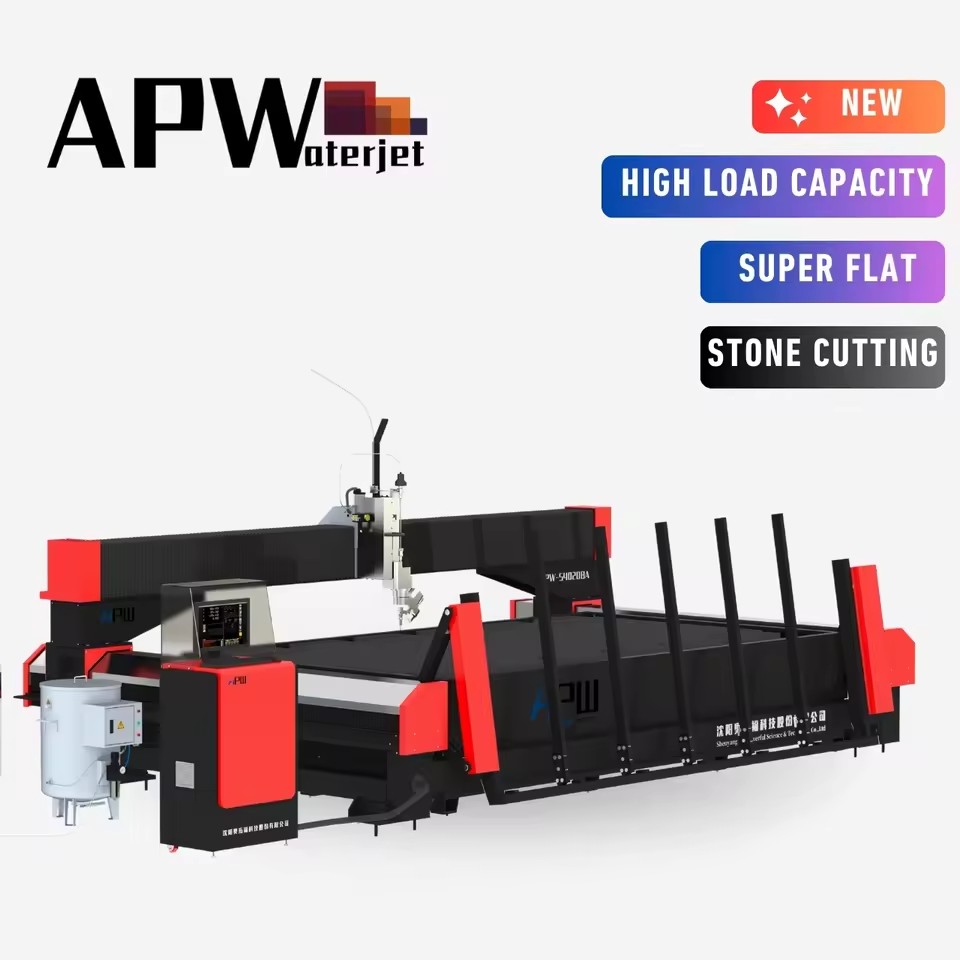

APW 5 Axis Water Tile Cutter ForStone Glass Cutting Water Jet Marble Cutting Machine Price with CE Certifications
Price
$
52340.00
Product information
Attributes
Type
Water jet Cutter
Use
Marble
Voltage
220V/380V
Cutting thickness (max)
150mm(5.91in)
Max Cutting Length
1500mm(59.06in)
Power(w)
37KW/50HP
Core components
PLC, Motor, Pump
Key selling points
Low Noise Level
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Color
red
Place of origin
China, Liaoning
Weight
3800 kg(8377.57lb)
Dimension(L*W*H)
4000mm*2000mm*1500mm(157.48in*78.74in*59.06in)
After-sales Service Provided
Provide on-site equipment installation, debugging, and training
Control accuracy
+/-0.01mm
Max.pressure
410Mpa
Cutting accuracy
+/-0.1mm
Way of drive
AC servo
Intensifier
Made in USA
PLC
Omron
Main Motor
Siemens
Continuous Working Pressure
340 - 360Mpa
Max.available orifice diameter
0.3mm
Selling Units
Single item
Single package size
XX cm
Single gross weight
0.0 kg
Production Capacity (Product option)
100sets/month
Model number
APW-S4020BA
Working Area
4000*2000mm(157.48*78.74in)
Fulfilment
Delivery
Lead time
45 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
