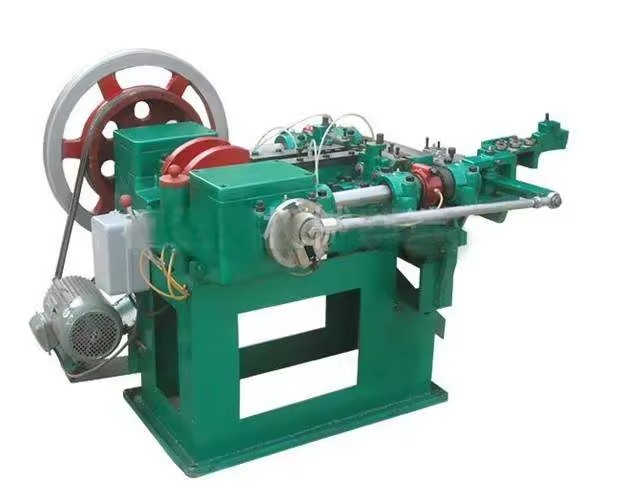

Nails screw making machine
Introduction of screw making machine

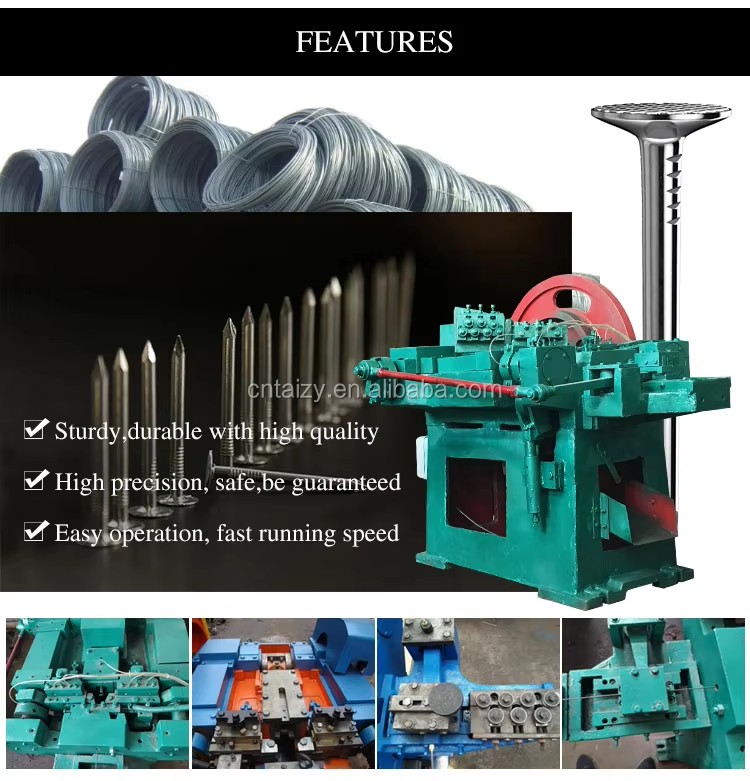

This machinea doptsp lunger type structures o as to ensuret he features such as high speed, lownoise and less impact. Especially, it can make the high quality of oil rivel nail and other shaped nails usedf or highs peedw eldingn ailer and nail gun.
1.Both of the scrap iron wire and the new steel rod can be used to make nails. 2.This nails machine can feed the materials automatically. 3.This nails machine has the features of high speed, low noise, less impact.
4. All the main components are made of quality steel, such as shaft, cams and gear.
5. The nails made by the machine will be straight, the point of the nails will be sharp and symmetrical, the nails cap will be round, every nail will be perfect.
Parameters of screw making machine
| Technical parameters | unit | Z94-5c | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Max. diameter | mm | 6 | 4.5 | 3.1 | 2.8 | 1.6 |
| Min. diameter | mm | 2.5 | 2.8 | 1.8 | 1.2 | 0.9 |
| Max. length | mm | 150 | 100 | 75 | 50 | 25 |
| Min. length | mm | 50 | 50 | 30 | 16 | 9 |
| Projected output | pcs /min | 180 | 280 | 300 | 320 | 460 |
| Motor power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
| weight | kg | 2500 | 2000 | 1800 | 1450 | 1200 |
| Overall dimension | mm | 2600*1650*1750 | 2200*1600*1650 | 2000*1400*1400 | 1700*1300*1400 | 1500*1300*1200 |

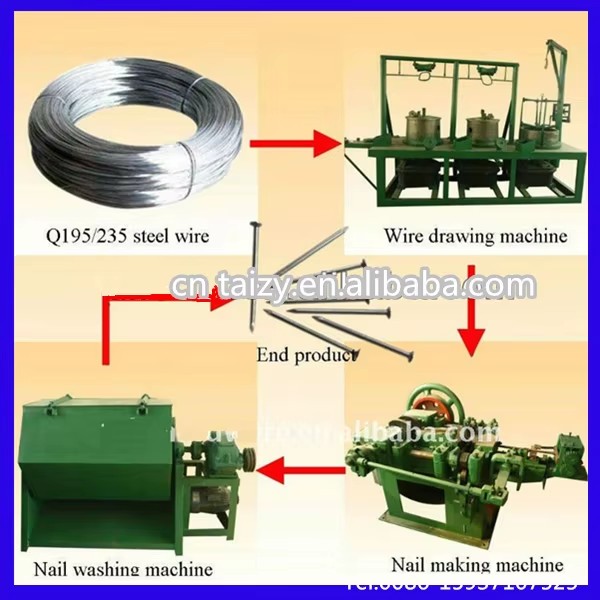

Process of screw making machine
Steel wire · wire drawing · nail making · nail polishing – finished nails
This is the wire drawing machine, it can process the wire thinner, then you can get the diameter that you need.
More pictures for you about the nail machine
1. About the machine and service?
If you have any problems after receiving the machine or during use (machine installation, use method, replacement parts, how to maintain, precautions, etc.), please feel free to contact me, we will provide the best solution. 24 hours online service to solve any problem. Your satisfy is our pursuit. Sincerely hope our cooperation.
2. If we have problems when using this machine, what should we do?
If you have any problem, just
3. Does your company accept customization?
We have excellent design team,and we can accept OEM.
4. How to identify 304 stainless steel and 201 stainless steel?
Once you buy our machine, we will give you a stainless steel identification solution to meet your requirements.
5. Can you guarantee your quality?
Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.




-
