Dynamic 5-axis cutting head

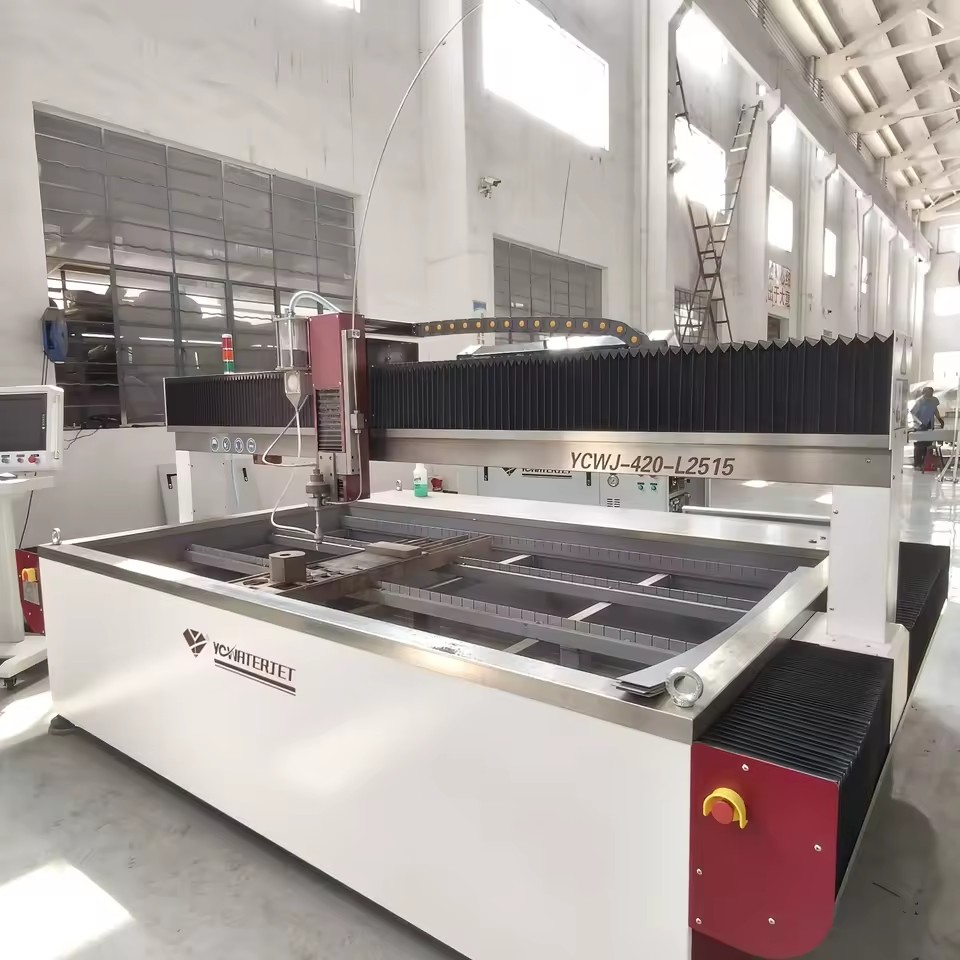

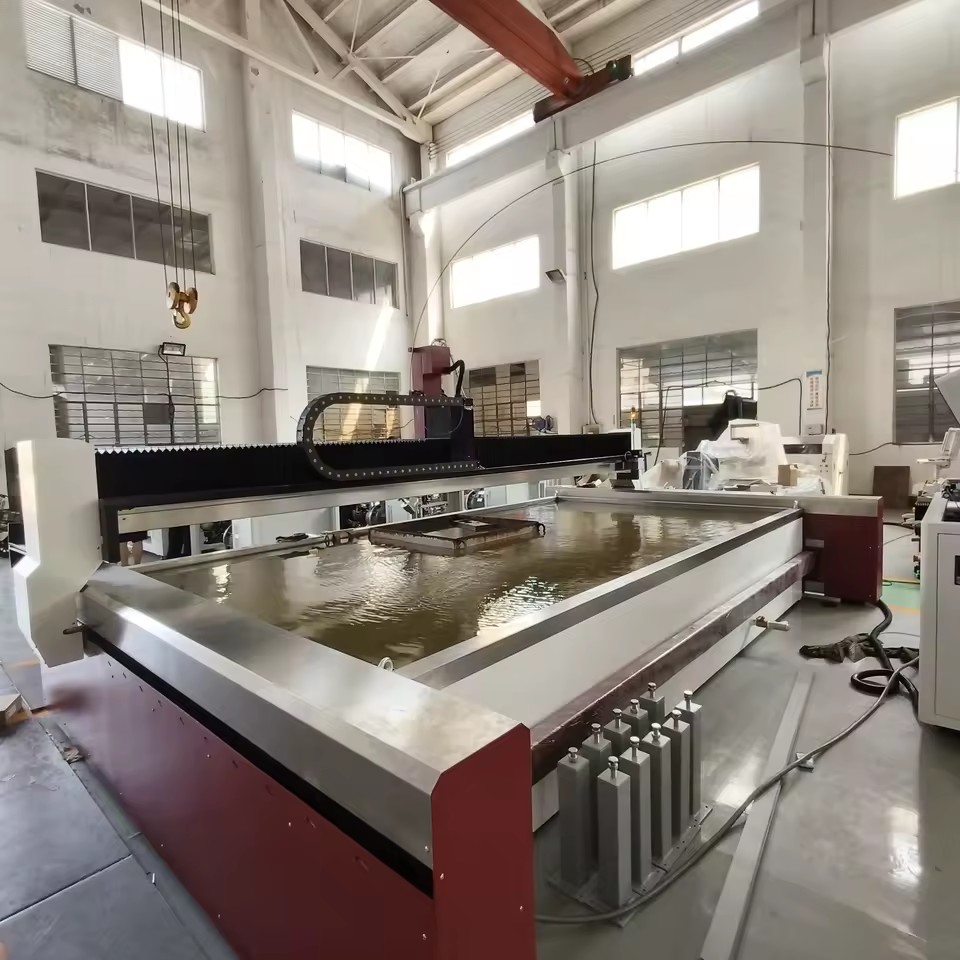

CNC water-Jet Cutting machine(L=Gantry type)
Model
Unit
L3020
L4020
L2560
L2060
Efficient Cutting Area
mm
3000*2000
4000*2000
2500*6000
2000*6000
Axis Transmission
X
3100
4100
2600
2100
Y
6100
Z
180
Cutting Accuracy
±0.1(Upper surface)
Repeatability Accuracy
±0.025
Running Speed
mm/min
0-15
Parameter
Specification
Rated Voltage
220/380/400V, 3ph, 50/60hz
Rated Power
30KW/37KW/55KW, 40/50/75hp
Cutting materials
stone,plastic,Stainless steel, brass, aluminum, glass.etc
High pressure
300-400mpa
Max.flowrate
3.7 L/Min
Core components
motor, pressure vessel, pump
Brand name
YCWJ
Drive system
AC servo and screw,guideway
Abrasive name
Garnet
Warranty Period
1 Year
Dimension (L * W * H)
According to machine model
Weight
Products Description
The dynamic 5-axis water jet cutting machine is specifically designed for cutting marble and granite, and can compensate for a 10° cutting angle. It is a type of oblique cutting machine.
Due to the fact that water jet cutting is a flexible cutting method, the product cross-section after traditional 3-axis water jet
cutting will have a certain degree of inclination (with in 1 °). To ensure the accuracy of the vertical cutting section, it is
necessary to reduce the cutting speed. However, our 5-axis water jet cutting machine can ensure the accuracy of the vertical cutting part by compensating for the cutting angle, without reducing the cutting speed. Can be used for fine metal cutting, stone mosaic cutting, and mosaic cutting, without the need for secondary polishing, saving time and effort.
The split-type cutting machine means convenient assembly and disassembly, which is conducive to better packaging and transportation.
The existing models of the
L series split-type dynamic 5-axis cutting machine
models include
L3020, L4020, L3040, L2060
. For other models, you can choose from the S series or G series, or customize according to your needs.
Dynamic 5-axis

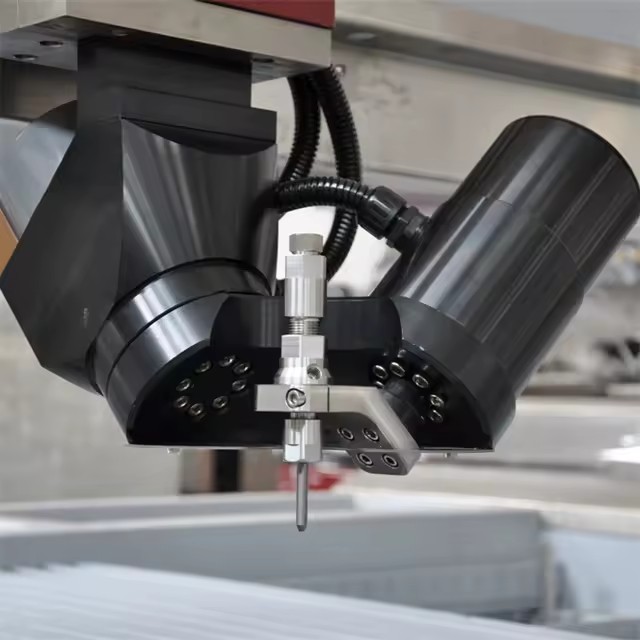

cutting head
Our dynamic 5-axis water jet cutting machine can ensure the accuracy of vertical cutting section by compensating the cutting angle, without reducing the cutting speed. So that it can be used for cutting parquet stone, the parquet flooring does not need to be polished again, which can save time and labor. Dynamic 5 axis cutting head X、Y、Z axis for transmission A,B axis for compensation 0°-±10°.
* Solves inherent inclination issues of 3-axis cutting by dynamically adjusting cutting angles
* Maintains vertical cutting accuracy without reducing speed (vs traditional 3-axis systems requiring speed reduction)
* Eliminates post-polishing for stone parquet flooring, saving 20-30% processing time
* Stone Industry: Produces flawless medallions and complex patterns in single-pass cutting (marble/granite)
* Metalworking: Performs true vertical cuts and taper compensation for precision edges (critical for aerospace/automotive parts)
* 5-axis configuration: X/Y/Z for spatial movement + A/B axes for real-time angular compensation (0°-±10°)
* Integrated dynamic head maintains optimal nozzle distance and cutting angle throughout complex contours
Product Paramenters

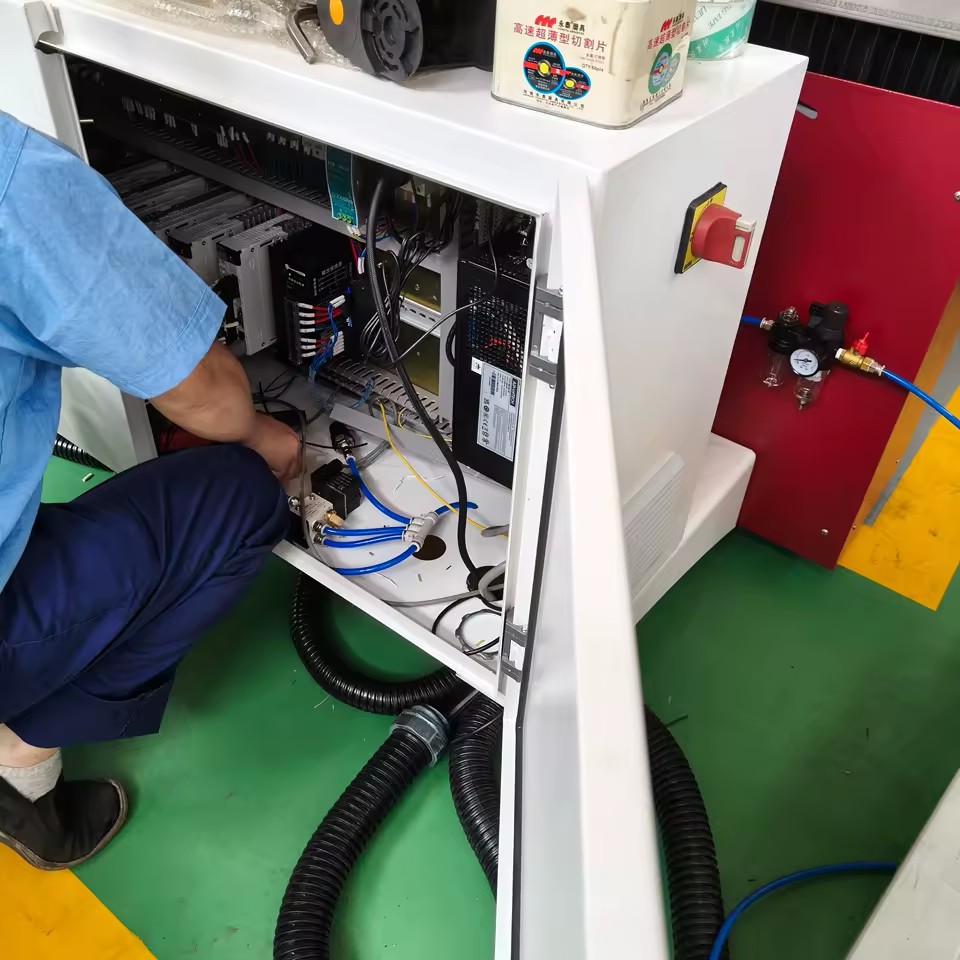

The WEIH0NG-V9 water jet cutting operation system is a new generation control system developed by our company based on years of rich work experience in the field of water jet cutting control. It mainly has the following functions
Can directly support G code, PLT code format, ENG code format, DXF file format generated by various CAD/CAM software such as UG, MASTERCAM, AUTOCAD, etc. Continuation of breakpoints, program skipping execution
Small aperture, automatic deceleration, pause and other functions for small arcs, sharp corners, and corners. Real time simulation and simulation of graphics. Predict processing time, pre load processing trajectory, and dynamically display tracking.
IGEMS is a professional team dedicated to water jet cutting. IGEMS is also a modern software that makes part design and cutting on water jet cutting machines easier, and is committed to improving the products you use every day.
YC water jet cutting pump is a kind of high pressure pump with unique design, which not only facilitates the installation and maintenance for customers, but also ensures stable working pressure and improves working efficiency. Now we have three kinds of high pressure pumps： 30KW / 40HP, 37KW / 50HP and 75KW / 100HP. You can choose the right water jet high pressure pump according to your cutting material and thickness.
The YCG-SERVO high-pressure pump system is an efficient servo-driven solution for precise pressure/flow control.
Smart Pressure Regulation
Combines servo-controlled oil pumps/motors with high-pressure sensors for accurate real-time adjustments.
Auto-Matching Nozzle Performance
Automatically adapts pressure/flow based on nozzle size through closed-loop pipeline monitoring.
Rapid Response
Accelerates to 2700 RPM in 50-60ms and stops instantly when idle, eliminating energy waste.
Italian ECS-905 system/suitable for all sheet metal cutting applications
To set of the start and stop points and their parameters
To apply a series of attributes to the selected profile (changes of Scale, mirror image, rotation)
To repeat the selected profile until a plate of set dimensions has been completed or on a matrix with a defined number of lines and columns
To graphically simulate the programmed operation
To save the operation and to call it back later; the selection is provided by a graphic help
To automtically select the preset operation or to call it back and to immediately carry it out
In addition to our own water jet high pressure pump, we also provide high pressure pumps of famous foreign brands, such as KMT, Hypertherm, and BFT pump.
As the authorized Chinese agent for American
ACCUSTRREAM
HYPERTHERM
the high-pressure pumps we import from them are designed and manufactured in compliance with EU CE standards, featuring easy maintenance. With consistently stable pressure output and minimal fluctuation, these pumps guarantee 24/7 continuous operation performance.
Recommend Products
3 axis Standard Waterjet Cutting Machine
Dynamic 5axis Waterjet Machine
（Bevel Cutting 0-±10°）
Max5 axis Waterjet Cutting Machine
（Bevel Cutting 0-±45°）
Multi- head WaterJet Cutting Machine
Cut with drill
Waterjet Cutting Machine
Robotic Waterjet
Optional Equipment & Accessories
The optional configuration include sand supply system, fan cooling system, sludge removal system, oil cooler, etc. Additionally, water cutting accessories include hydraulic piston, ceramic plunger, check valve repair kit, and so on.
