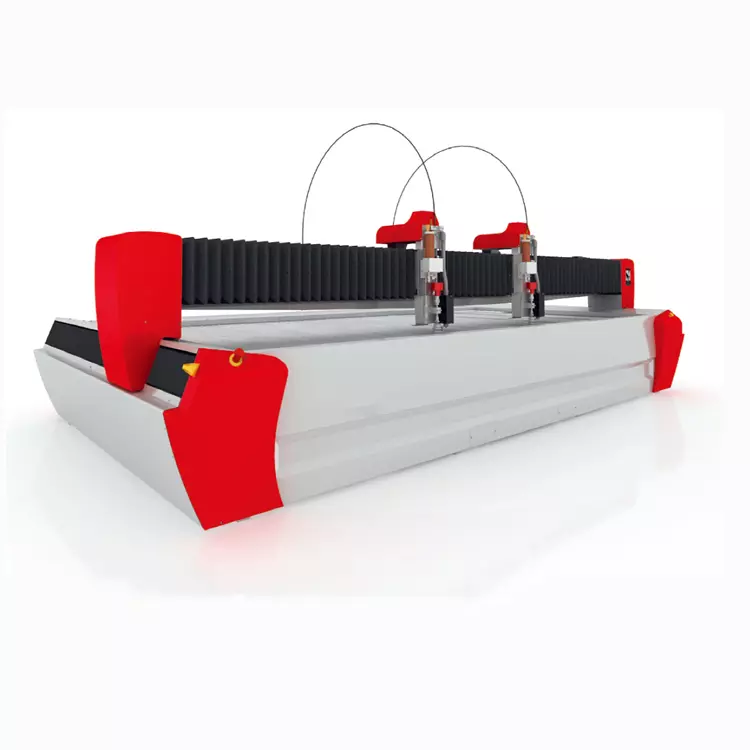

Precision CNC Water Cutter Water Jet Cutting Machine

Product Importer Gallery 01 · 4e94115d40

Product Importer Gallery 02 · 740cf0ac52

Product Importer Gallery 03 · 7ec9e858a3

Product Importer Gallery 04 · a7b7b96226

Product Importer Gallery 05 · 9d62867795

Product video

Precision CNC Water Cutter Water Jet Cutting Machine

Name: Precision CNC Water Cutter Water Jet Cutting Machine
SKU: WK2Y-7HAP-TA4R
Price: 18230.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 18,230.00 18230.0 USD $ 18,230.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380v/280V

Repeatability (x/y/z) (mm)

0.08

Core components

PLC, Motor, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 116.96 for 1 set · Transit time: Est. 16-23 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$14,014-20,020 / set

X Axis Cutting Stroke	3m
Y Axis Cutting Stroke	1.8m
Z axis Stroke	180mm
CNC Control	SEMYX
CAM Software	Included
Cutting Speed	0-15m/min
Free Speed	20m/min
Acceleration	1m/s2
Accuracy	0.08mm
Drivers	AC Servo Motors
Motion for X Axis	Ball Screw
Motion for Y Axis	Ball Screw
Motion Part Protection	Bellow
Pump	50HP
Pump pressure	4000Bar
Z -axis	1
Water Treatment System	optional
Abrasive Tank Capacity	50 L
Abrasive Feeder	Automatic
Abrasive Removal	optional
Layout	See the layout

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 116.96 for 1 set · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Key attributes 24 fields

Voltage

380v/280V

Repeatability (x/y/z) (mm)

0.08

Core components

PLC, Motor, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

By model

Key selling points

High Safety Level

Rated power

50HP

Place of origin

CHINA JIANGSU

Weight (kg)

1000

Table travel (x) (mm)

300

Table travel (y) (mm)

180

Table travel (z) (mm)

180

X Axis Cutting Stroke

Y Axis Cutting Stroke

1.8m

Z axis Stroke

180mm

CNC Control

SEMYX

CAM Software

Included

Cutting speed

0-15m/min

Free Speed

20m/min

Pump pressure

4000Bar

Water Treatment System

optional

Abrasive Tank Capacity

50 L

Packaging and delivery 3 fields

Selling Units

Single item

Single package size

42X42X42 cm

Single gross weight

68.0 kg

Product options 1 field

Effective cutting range (mm)

1000×1000

Lead time

45 days

Minimum order

1 Units
