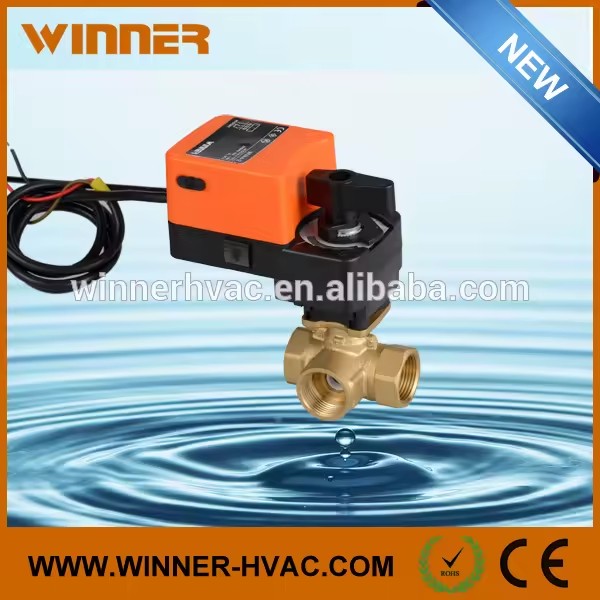

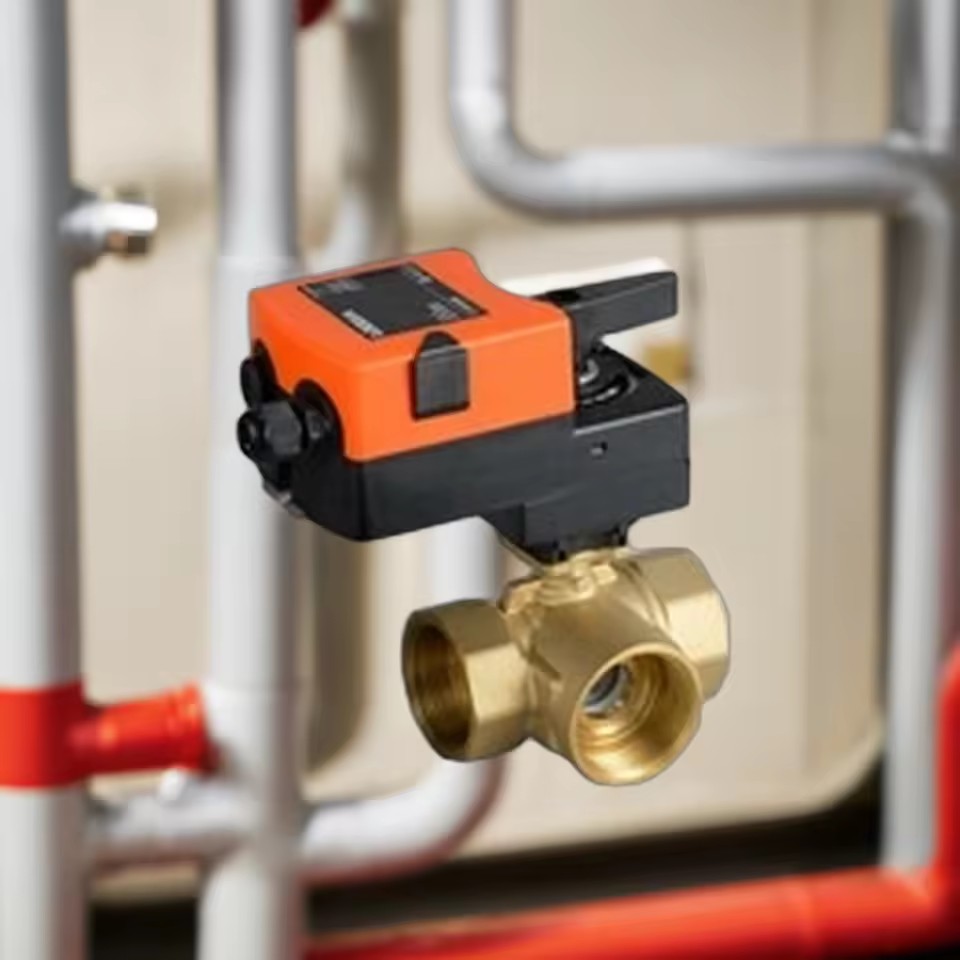

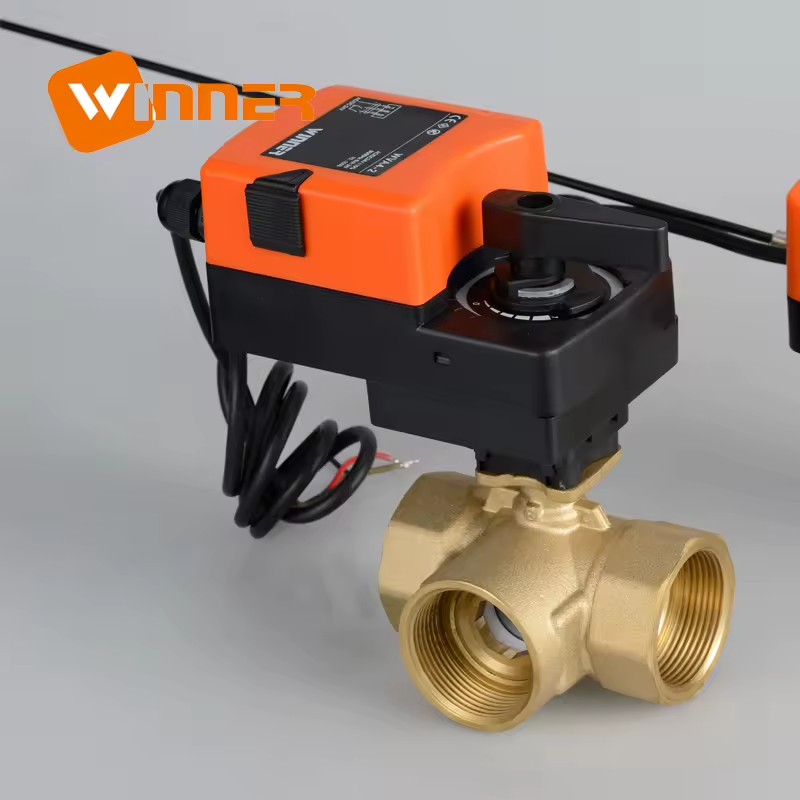

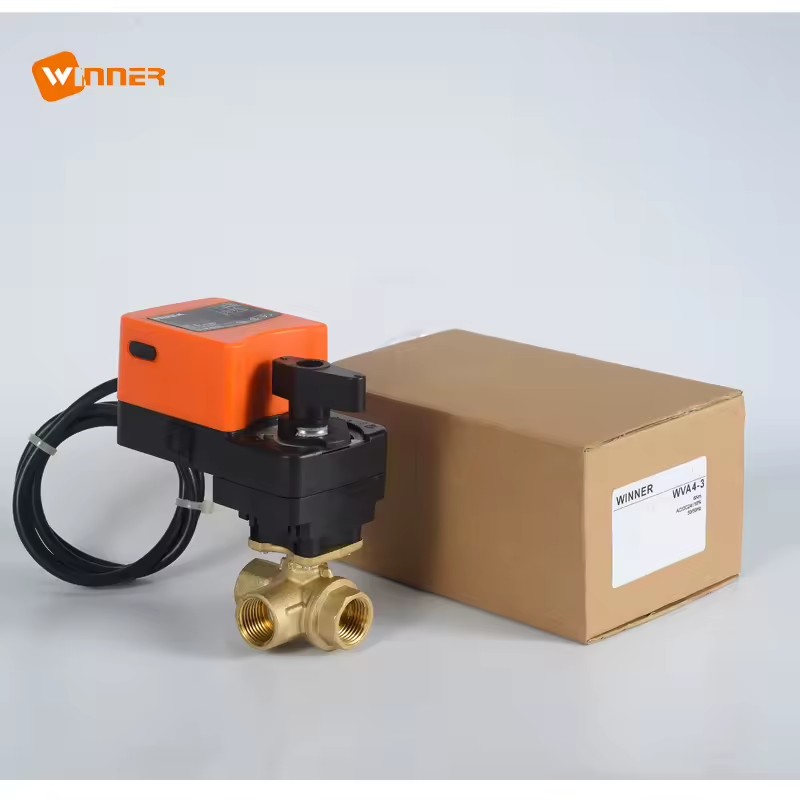

Name: Winvall Water Treatment 0-10V 4-20mA Motorized Control 3 Way Brass Ball Valve 24V AC/DC Actuator Electric Proportional Valves
SKU: B2B-12746
Price: 170.0 USD
Availability: PreOrder

Product description

control ball valve is motor-operated by a type of W AV4-3 04 actuator. The actuator is controlled by a modulating proportional control system and move the ball of the valve, to the opening position dictated by the control signal.

Application

HVAC system Heating system Water treatment system Industrial equipments

Valve body

Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C

Rated pressure: PN20 Pipe connector: internal thread

Ambient temp. range: − 5…+60°C; 0…90%RH Flow characteristic: equal percentage, on/off

Material

V alve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: stainless steel brass Stem: EPDM

Valve connector: PC Valve spindle: aluminum alloy

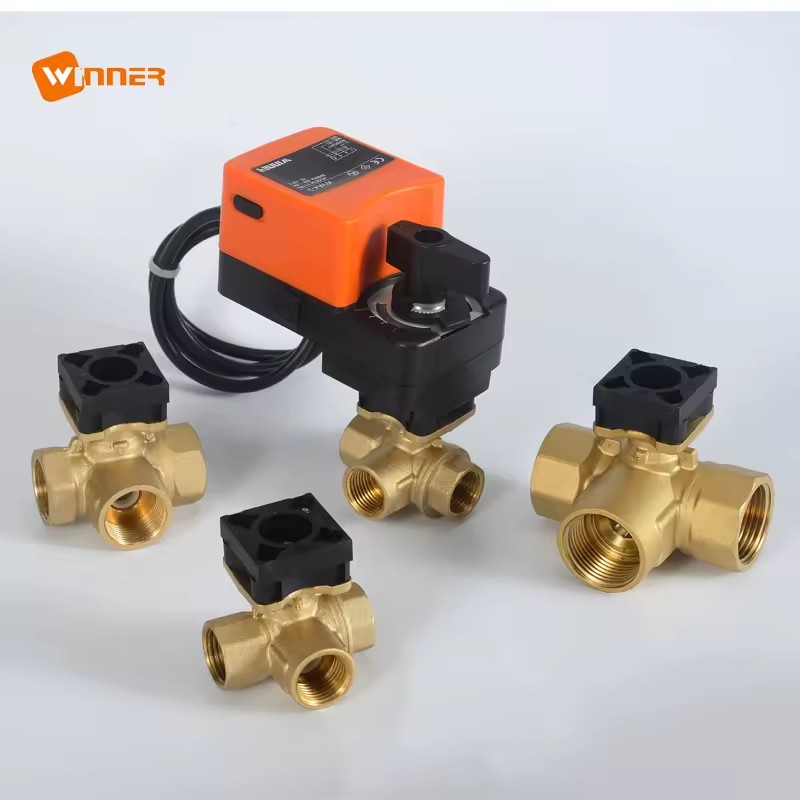

Model No.	DN(mm)	Inch	Kvs(m 3 /h)	Pvmax ( M Pa)	Ps (KPa)
WCBS325	DN25	1	10.86	2.5Mpa	1400
WCBS332	DN32	1 1/4	16	2.5Mpa	1400
WCBS340	DN40	1 1/2	25	2.5Mpa	1400
WCBS350	DN50	2	40	2.5Mpa	1400

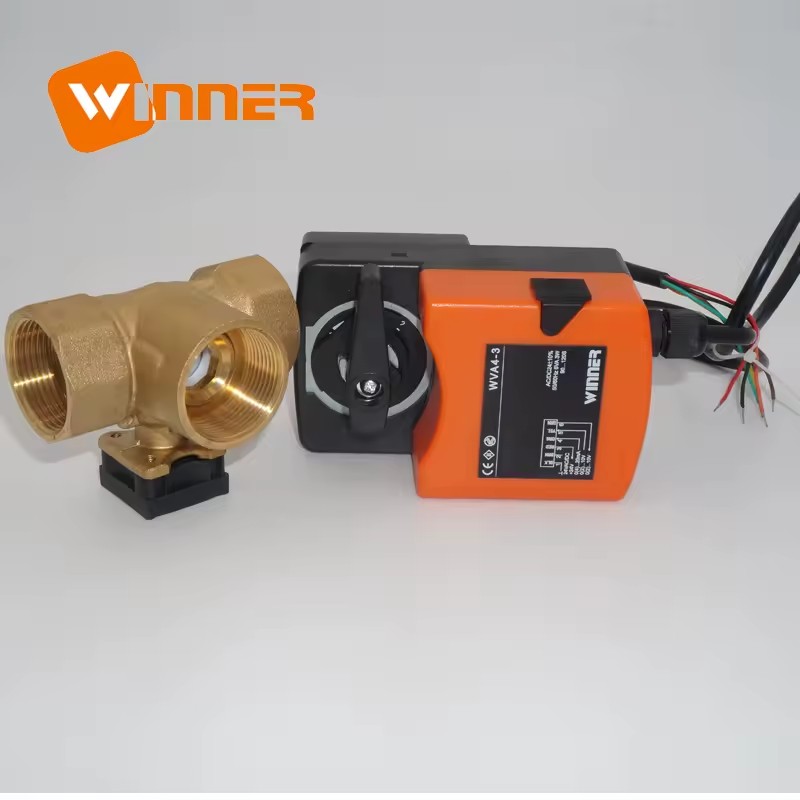

Actuator

Function ( proportional type )

The actuator is controlled by a modulating proportional control signal, using high transmitting ratio gear drive to fix and lock.

Model No.	Working Voltage	Actuator type	Output torque	Consumption	Valve body
WVA4-306	24VAC/DC±15%	3-point	0-10V/4-20mA	6VA	DN25,DN32,DN40,DN50

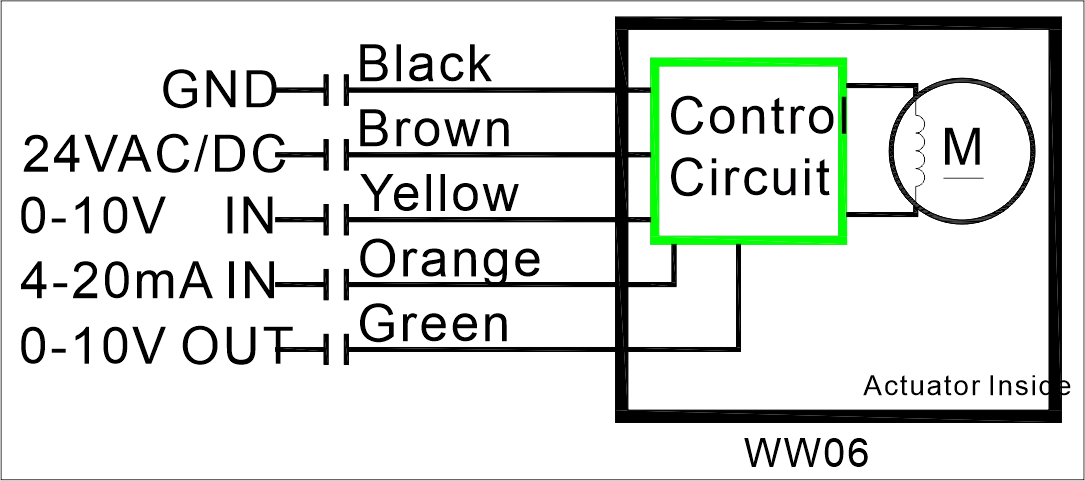

Wiring Diagram

WRA-53 Series	220v ON/OFF, 3-Point
WRA-63 Series	220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series	220V/24V ON/OFF, Proportional
WRA3-.. AC Series	220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series	24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series	24V/12V/3V, ON/OFF, Proportional

Certifications & compliance

Complies with EU standards

Description images

Winvall Water Treatment 0-10V 4-20mA Motorized Control 3 Way Brass Ball Valve 24V AC/DC Actuator Electric Proportional Valves

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

16 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Media

water,50glycol

Power

electric

Port Size

1/2'' 3/4'' 1''

Application

General

Temperature of media

Medium Temperature

Structure

Ball

Customized support

OEM, ODM

Place of origin

China, Hunan

Model number (Specification)

WVA4-306+WCBS3..

Standard or Nonstandard

Standard

Certificate

CE/ROHS

Power supply

24VAC/DC

Output Torque

6N.m

Power Consumption

6VA

CONTROL WAY

0-10VDC

Pipe Connection

G/BSP

Waranty

18 months

OEM

Acceptable

Valve type

3-way

Selling Units

Single item

Single package size

XX cm

Single gross weight

0.0 kg

Material (Product option)

Brass

Pressure (Product option)

Medium Pressure

Size (Product option)

1 in, 1 1/4 in, 1 1/2 in, 2 in

Certifications & Compliance

Lead time

16 days

Minimum order

2 Units
