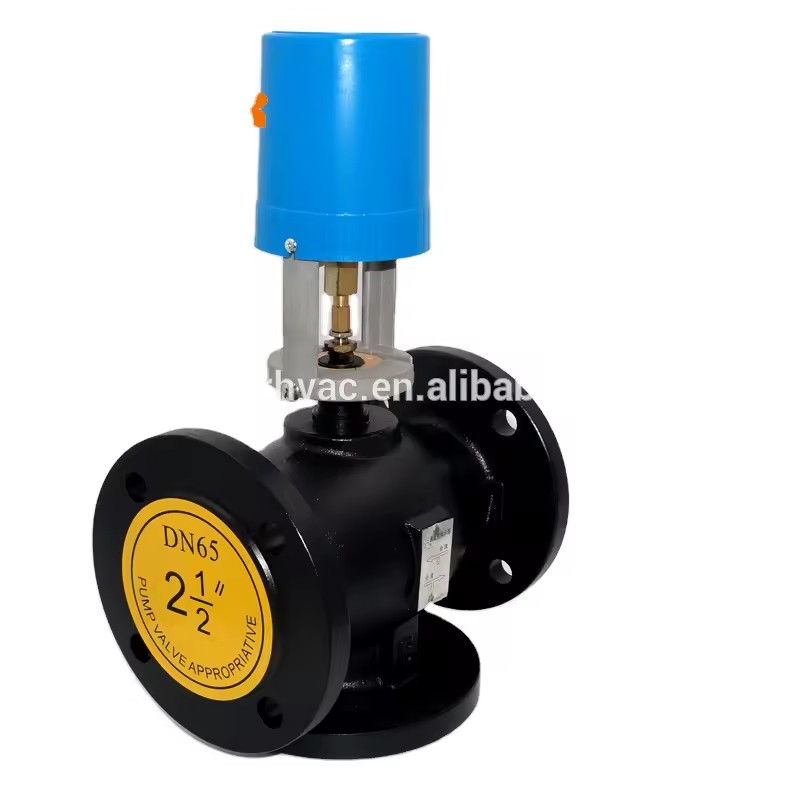

Name: Winvall Air Conditioning 0-10V 3 Way Electric Flange Valve DN65 DN80 Motorized Actuated Control Seat Valve Globe Valve
SKU: B2B-12797
Price: 330.0 USD
Availability: PreOrder

Product description

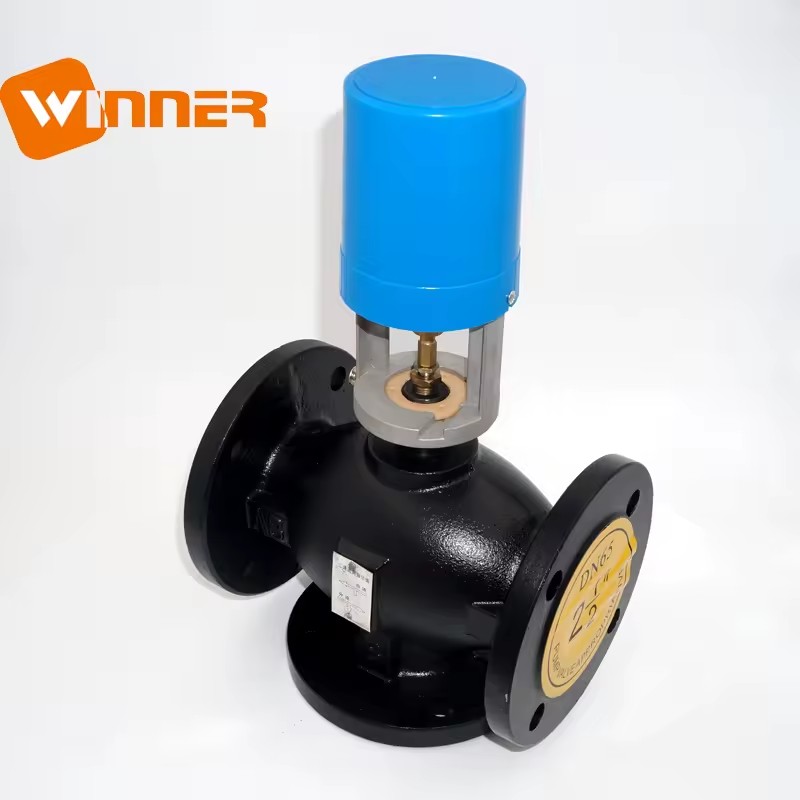

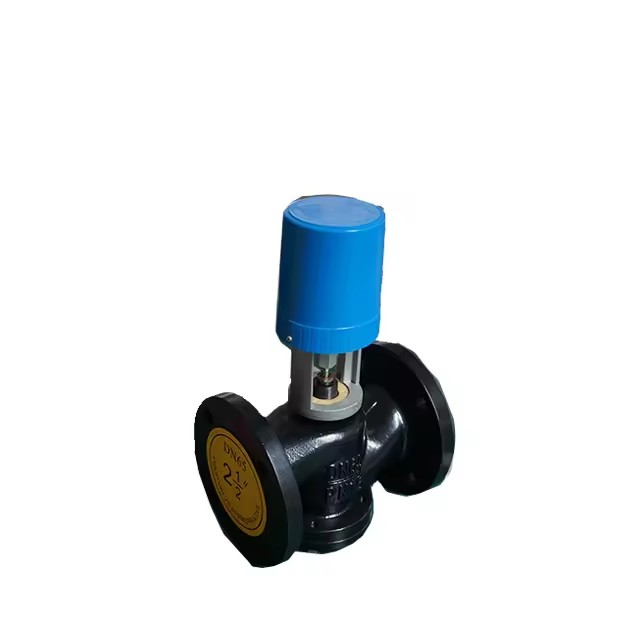

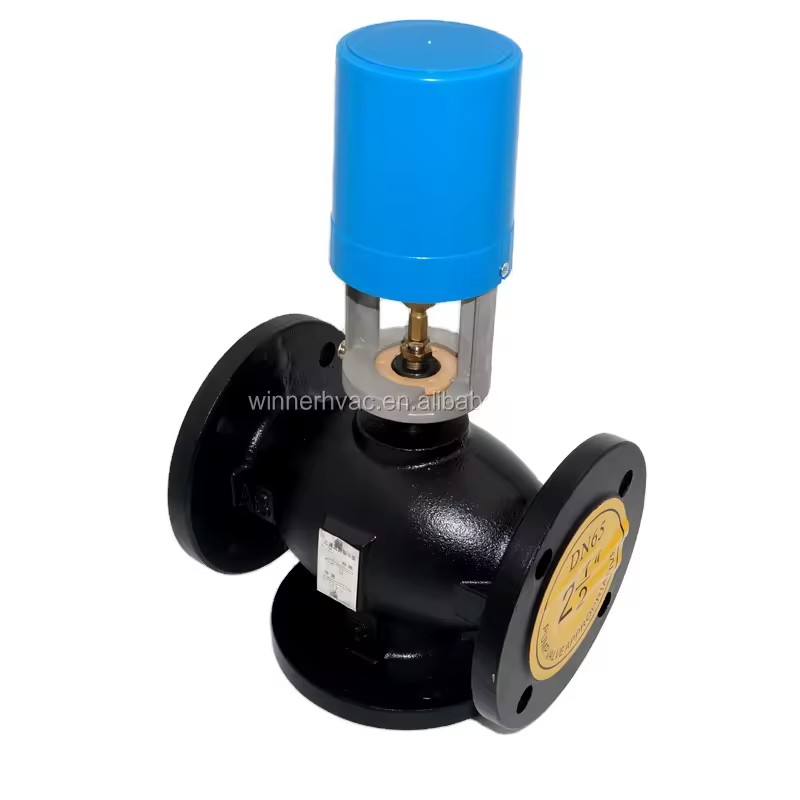

Electric Actuator Globe Valve

Control valve consists of WVA32-2-(..2500) series rotary actuator and WVT-3-..series valve body. Equal percentage flow characteristic guarantees the valve performances of staility. Mode code as following

WVA32-1-D2500 Incremental control by reversible motor

WVA32-2-A2500 Proportional control with input & output signal 0~10vdc/4~20mA

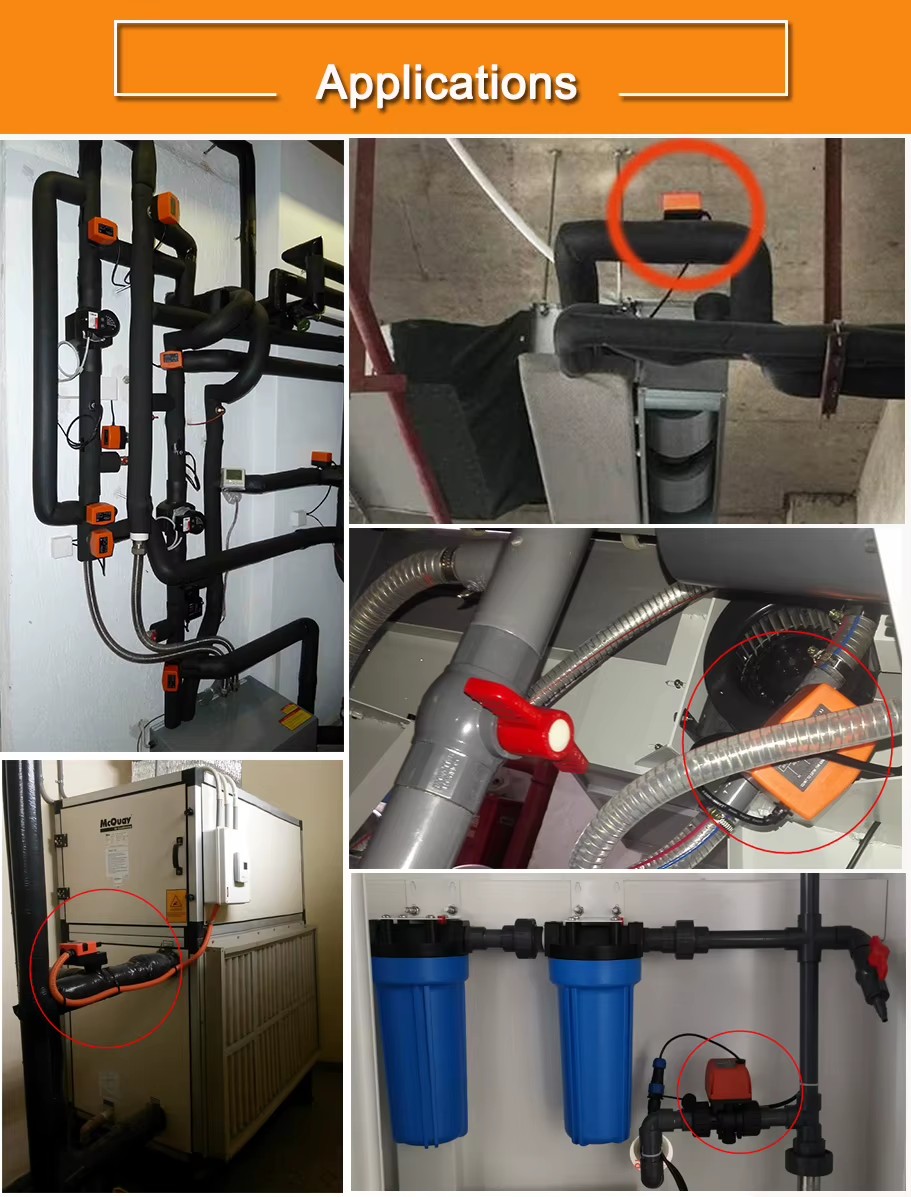

Electric Actuator Globe Valve Application

1. HVAC System

2. Heating system

3. Water treatment system

4. Industrial equipments

Electric Actuator Globe Valve Features

AC24V Lower power supply voltage, synchronous motor

1. magnetic clutch

2. use a central screw sleeve connection the valve shaft and positioning by leve scale

3. valve opening status indication

4. ABS flame retardant engineering plastics

5. Easy installation type

6. Proportional control, CW/CCW switch rotating direction by press key 2, LED2 on CW, LED2 off CCW

7. Proportional control, input signal switch by press key 3, LED3 on 0~10vdc, LED3 off 4~20mA.

Glove Valve Specfications

WVT-2/3-Series 2 way or 3 way flanged valve consists of valve body, cap, valve clack, stem, shaft seal and sealing elements.

Rate Pressure (Bar): 5

Valve body: WCB

Valve cap: Q235A

Valve clack: Brass

Valve Stem: 1Cr18Ni9(AISI302) Stainless Steel

Flow characteristic: Equal percentage

Sealing elements: Teflon ring +NBR O ring

Max. Temp: 200 C degree

Min. Temp: 10 C degree

Rated Pressure: PN16

Leakage Rate: 0.03% Kvs

Model Code	WVA32-2-D1000	WVA32-2-A2500
Control Type	Reversible and increase control	Proportional control, CW/CCW
Power &Signal	Power: 24V AC, 50/60Hz Input signal: 0~10vdc or 4~20mA
Motor Type	Bidirectional Synchronous motor
Electric Parameters of Motor	24V AC, 50/60Hz (dual frequency) 10VA
Circuit Consumption	2VA
Working Torque	2500 N.m (*4000N.m optional )
Material	Gear: Stainless steel, brass
Speed reducer panel: Zinc plated steel sheet
Holder: Die casting aluminum allos
Shell: ABS Flame retardant engineering plastics
Running Time	50Hz, 4.6s/mm (*4000N.m type: 50Hz, 8.3s/mm)
60Hz, 3.8s/mm (*4000N.m type: 60Hz, 6.9s/mm)
Ambient Temp	working: -5 C degree~ +500 C degree
Storge: -20 C degree ~ + 65 C degree
Max. Relative Humidity	<90% RH Non-condenstate
External Cable	0.75~1.5mm2
Factory Setting	Input Singal: 0~10v dc
Accessories	Clamp nut, connect nut, simicycle snap ring
N.W.	4.1kgs	4.3kgs

electronic was established in 2005 in Wuhan,Hubei province,. electronic is the first company to develop, produce and sell small automotive electric ball valve and put the ball valve for central air condition system. After first generation, second generation, third generation improvement, our products are now widely used for HVAC system, hospital equipment system and environmental control system. All our valves are our patent products and they are CE, ROSH certified. has developed to be the most professional which has the longest experience in electronic ball valve manufacturer. In 2010, set up its branch in Changsha,Hunan Province to match up the fast developing market.

company is a professional supplier of motorized ball valves, automatic control valves and thermostats, which are widely used in HVAC equipment, water treatment systems and some industrial equipments. With high-quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus

Q1: Only Bulk Orders?

No, Sample orders are aslo welcome.

Q2: How to place orders?

Q3: How many days for delivery?

Usually it takes about 3 working days if stock available.

Q4: How to make payment?

After confirming all details, our sales will provide a PI with payment method (TT/WESTERN UNION/PAYPAL/LC).

Q5: Quality Guarantee?

18months

Q6: After-Sales services?

We shall be grateful if pictures or videos can be provided once there is any problem when you use our product. Our sales will

give prompt response and solving method will be provided in the first time.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

16 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Other Valves, globe valves

Media

Water

Port Size

Standard

Temperature of media

High Temperature

Application

Air Conditioning

Power

electric, 24VAC

Structure

Globe valve

Customized support

OEM, ODM

Warranty

18 month

Place of origin

China, Hunan

Model number (Specification)

WVT-3-65/80+WVA32-2

Standard or Nonstandard

Standard

Name

electric globe valve

Input Signal

0-10V

Actuator Torque

4000N.m

Running time

4.6s/mm

Circuit Consumption

2 VA

Valve structure

3 Way

Valve size

DN65 DN80

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Material (Product option)

ductile iron

Pressure (Product option)

Medium Pressure

Size (Product option)

2 1/2 in, DN80

Lead time

16 days

Minimum order

2 Units
