Winvall 2 Way 3 Way Small Electric Valves 220V 110V 24V Actuator On/off Control Type Motorized Brass Ball Valve

Available for enquiry 0.0 · 0 reviews
USD

$ 50.00 50.0 USD $ 50.00

Not Available For Sale

Minimum order quantity: 2 Units
  • Media
  • Power
  • Port Size
  • Application
  • Temperature of media
  • Structure
  • Customized support
  • Place of origin
  • Model number (Specification)
  • Standard or Nonstandard
  • Valve Application
  • Actuator Control type
  • Actuator Power
  • Valve type
  • Valve port
  • Valve threaded
  • Ball Valve Material
  • Type
  • Packaging Details
  • Port of dispatch
  • Selling Units
  • Single volume
  • Single gross weight
  • Supply Ability
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Media
Water
Power
other
Port Size
1/2"~1"
Application
General
Temperature of media
Medium Temperature
Structure
Ball
Product description

Description of Motorized Water Valve

m otorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.

electric ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.

Technical data

Material

Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: chrome-plated brass Stem: EPDM O-rings

Ball Valve

Model No.Valve typeInner Dia.InchKvs(m3/h)Pmax(KPa)Ps(KPa)
WBBV2152 -way12mm1/2''8.610001400
W8BV22015mm3/4''21
W8BV22520mm1''26
W8BV3153-way10mm1/2''8.6
W8BV32014mm3/4''21
W8BV32518mm1''22

Actuator

WRA- 63...A; AC 230/110/24V, 50/60Hz, on/off

Model No.Working VoltageActuator typeOutput torqueConsumptionOn/off timeValve body
WRA- 6320A230VAC± 15%On/off3.5N.m5W50Hz:16S 60Hz:12SW8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325
WRA-6310A110VAC± 15%
WRA- 6302A24VAC± 15%

Installation

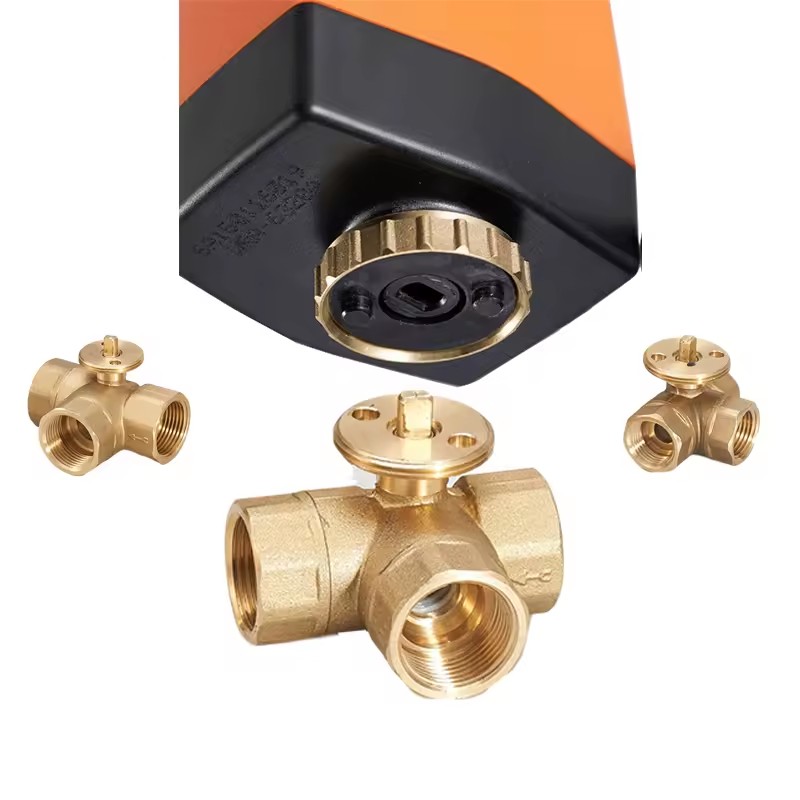

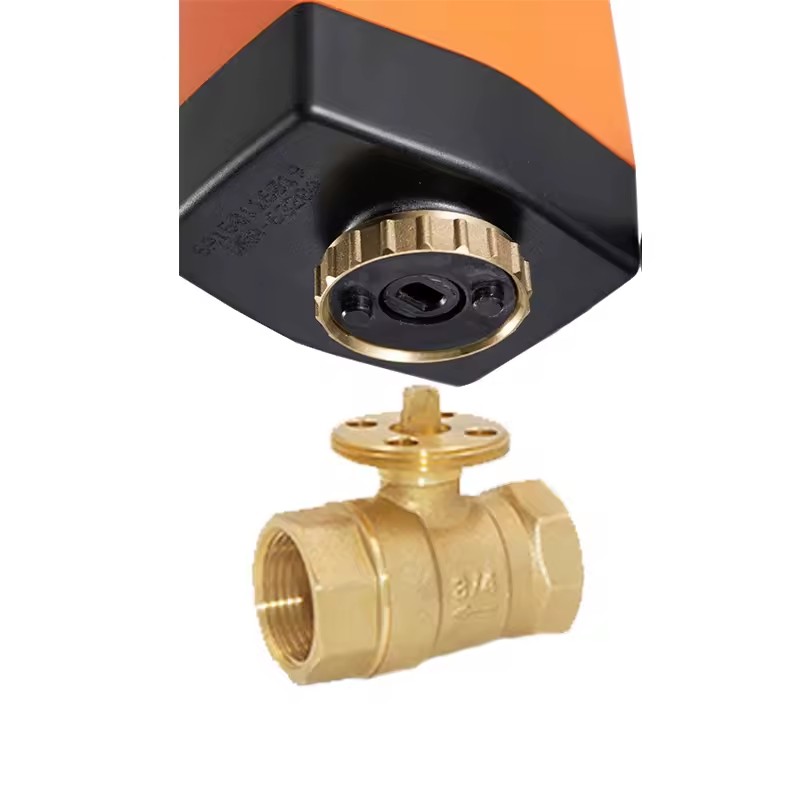

insert the valve stem to the b o tto m of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve ’ s mounting hole. Then screw down the brass cap nut

WRA-53 Series220v ON/OFF, 3-Point
WRA-63 Series220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series220V/24V ON/OFF, Proportional
WRA3-.. AC Series220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series24V/12V/3V, ON/OFF, Proportional
Certifications & compliance
CE
Complies with EU standards
RoHS
RoHS compliant
Description images
Winvall 2 Way 3 Way Small Electric Valves 220V 110V 24V Actuator On/off Control Type Motorized Brass Ball Valve
Winvall 2 Way 3 Way Small Electric Valves 220V 110V 24V Actuator On/off Control Type Motorized Brass Ball Valve
Winvall 2 Way 3 Way Small Electric Valves 220V 110V 24V Actuator On/off Control Type Motorized Brass Ball Valve
Winvall 2 Way 3 Way Small Electric Valves 220V 110V 24V Actuator On/off Control Type Motorized Brass Ball Valve
CE
RoHS
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 2 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    3 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Media
Water
Power
other
Port Size
1/2"~1"
Application
General
Temperature of media
Medium Temperature
Structure
Ball
Customized support
OEM, ODM
Place of origin
China, Hunan
Model number (Specification)
WRA-63..A+W8BV2/3..
Standard or Nonstandard
Standard
Valve Application
HVAC System, Chemical equipment, Water treatment
Actuator Control type
ON/OFF or 3~Point
Actuator Power
AC220V/110V/24V
Valve type
2 Way/3 Way
Valve port
Reducing Port
Valve threaded
BSPP
Ball Valve Material
Brass
Type
BALL VALVES
Packaging Details
carton
Port of dispatch
Guangzhou/Shenzhen/Shanghai
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Supply Ability
2000 sets per Month
Material (Product option)
Brass
Pressure (Product option)
Medium Pressure
Size (Product option)
1/2 in, 3/4 in, 1 in
Certifications & Compliance
CE, RoHS
Lead time
3 days
Minimum order
2 Units
