1. Free warranty for the whole machine for one year or 2000 high-pressure/hour (except wearing parts and the replacement of wearing parts) 2. Training of two personnel for operation and maintenance of equipment and one computer operator for the user 3. On-Site installation and commissioning (the user is responsible for board and lodging) 4. Lifetime maintenance 5. To Guarantee long-term supply of spare parts
6. To enjoy upgrade of special prices when there are new products and technologies 7. Repair response time: during the quality assurance period, when the user’s equipment fails, respond within 24 hours after receipt of written notice. For a common failure, direct the user to resume production as soon as possible by way of
Q: What is the advantage of water jet cutting machine?
A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate?
A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatioN
n.
Application and advantages of PMT waterjet cutting
PMT Waterjet Cutting Machine is an effective tool for any shape of artistic creation. The traditional cutting method is saw cutting only in a row. When cutting the curves, the model should be made according to the size and then polished. Waterjet Cutting Machine can cut any shape of models under the control of the CNC program.
1. Smooth cutting quality is.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and water jet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
Product Description
Attributes

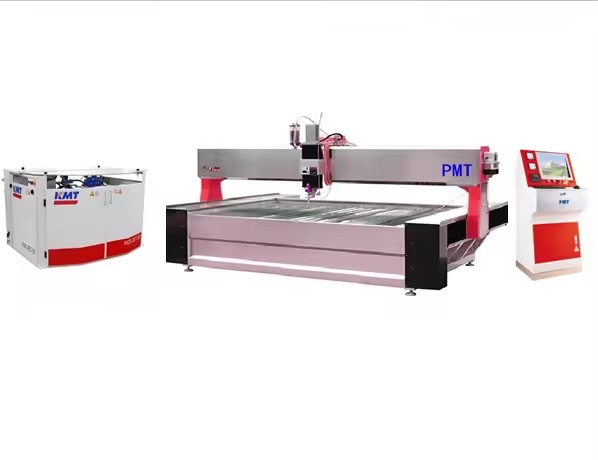

PMT waterjet cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis, suitable for processing a variety of complex big size parts.
Power supply: AC220V 50/60Hz
Drawing system: Auto-CAD
Computer system: Windows 7

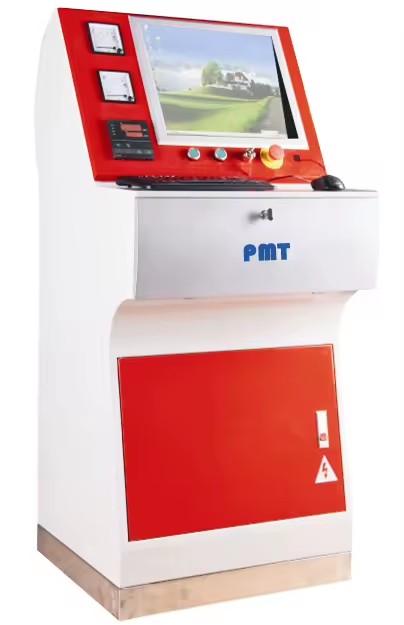

Function Moving controllerscreen: Apply 19 inch LCD
Water jet software:NC-Studio-V10Support DXF file and anyauto programming software to produce NC code

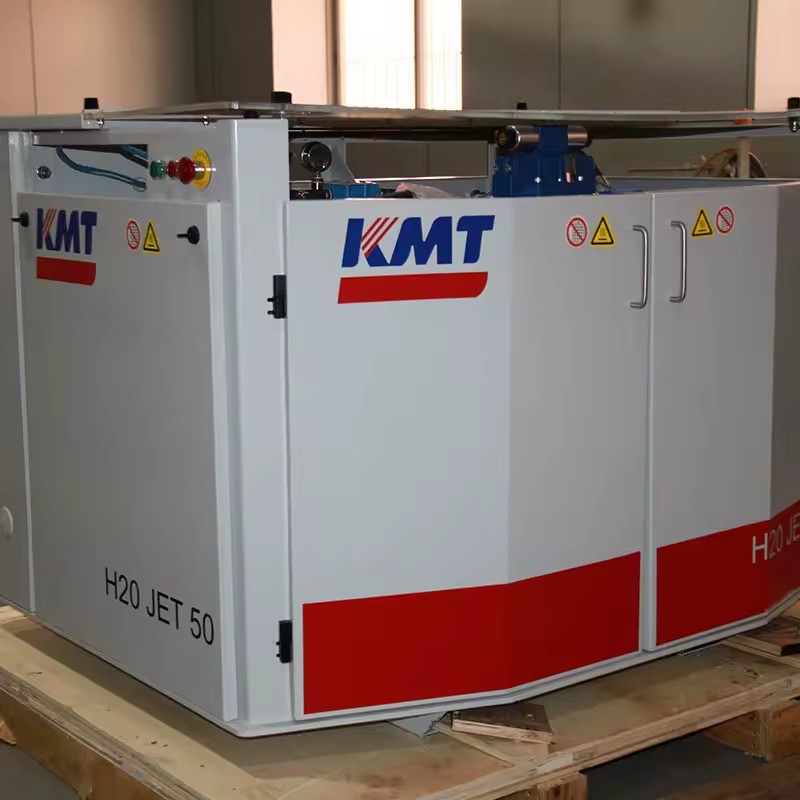

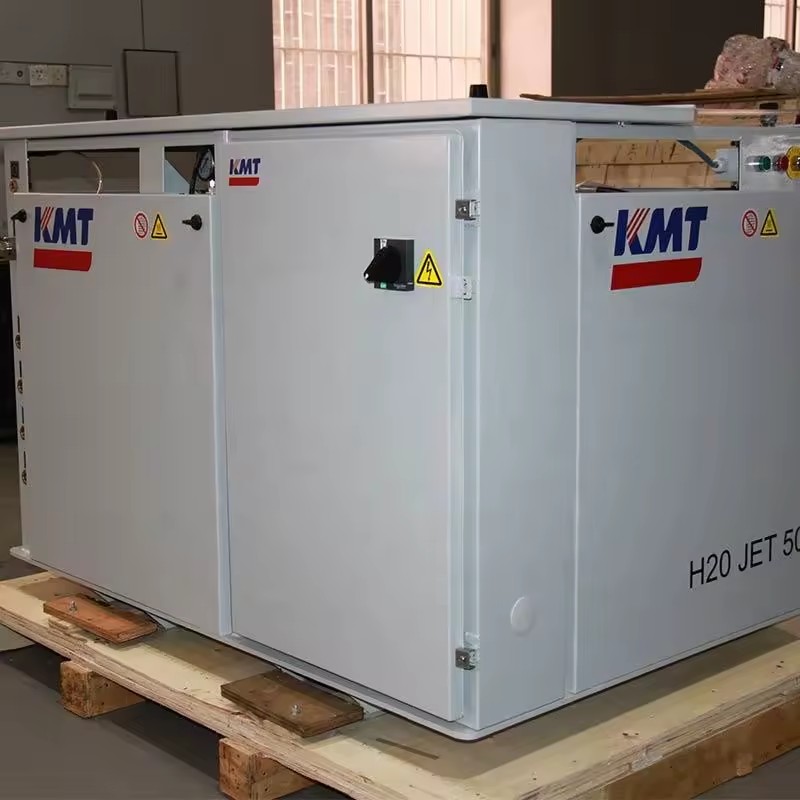

KMT H2OJet50
WaterJet cutting machine
Advantages
1.the high pressure pump kmt co,it is very high quality pump,suitable 24hours working every day.
2.the working pressure will be 360Mpa-400Mpa,it is very strong cutting power.
3.cutting head from KMT H2O IDE, diamond cutting head working life 1000-1500hours
4,spare parts working life so long and popular, easy to take in anywhere.
Specification
Dimension(L*W*H)1750*1000*1350mm
Weight 1150Kg
Power rate 37kw/50hp
Max. pressure 420Mpa /4200bar
Working pressure350-400Mpa
Max. oil discharge104L/min
Max. Flow rate3.8L/min
Φ of orifice 0.30-0.35mm
Power supply380V 50hz
Water supply ≥15.1L/min
Cooling systemWater
cooling system
Origal KMT Waterjet-corp

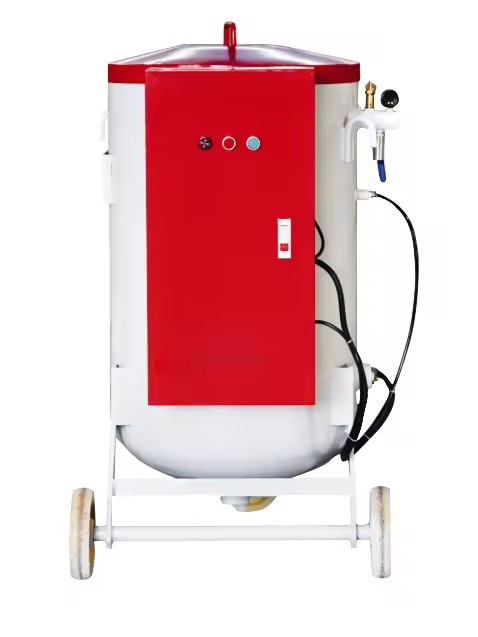

ABRASIVE FEEDING SYSTEM
• 170 liter capacity
• High-precision sensors alert operators when they need to replenish sand
• Safety relief valve
• Working pressure: 0.2-0.3MPa
• Water separator
No need electronic control, simple operation, reliable, maintenance-free.
Can supply the cutting sand quantity. Need less than 0.2Mpa compressed gas pressure.
Provide sand storage for the water jet cutter and automatically transfer the sand to the sand bucket.
Can increase the automation of the equipment and reduce the labor intensity of the operator.
Features of PMT water jet cutting machinery auto desanding system
A: D
oes not affect the normal cutting of water jet cutting machinery.
The sand removing device can perform sand removing work
while the water jet machine is working. The equipment has improved the traditional sand removal operation (the machine must be
shut down, the water and sand of the tank are cleaned out and the water is filled again), which has gained valuable time for
normal work.
B: Simple operation, complete sand removal and fast sand removal.
It takes only 5 steps to complete the sand removal
work: 1. The equipment is in position → 2. the air source is switched → 3. The sand suction head is placed in the water tank → 4
open the air source switch to remove sand → 5, the sand chamber is full of shutdown and dump the waste sand. Sand removal rate of
the equipment More than 90%.
C: Large capacity.
The device has a diameter of 630 (720) mm, a height of 2.1 M, and a sand removal
of up to 460 (610) L. For example, a water tank of 2 m * 3 m can be used continuously after removing 3-4 cans at a time.
D: Thick
steel plate, hydraulic system.
The equipment tank is made of 8mm thick steel plate, and an advanced water sand separation
system is integrated inside the tank. Base is 20mm thick steel plate for durability. The switch base uses a manual hydraulic
system and is equipped with safety bolts to make the base switch and seal become simple, safe and convenient.
E: Powerful and
stable.
The equipment uses an advanced pneumatic diaphragm pump to generate a constant flow of high-pressure water under the drive
of high-pressure gas. Sand removal provides powerful power. F: energy saving. The entire sand removal process of the equipment
does not lose water in the water tank and does not cause waste of water resources.
G
The device is equipped
with a ear holder for forklift fork picking, which is convenient to move, and one sand removing device can be used for multiple
water jets.
Related Products
The cutting speed for PMT water jet cutting machine
The cutting speed of mini waterjet cutting machine varies depending on the material, thickness, desired cut quality, water pressure and the machine itself configuration, Generally for PMT waterjet, you could find the following speed just for your reference.
