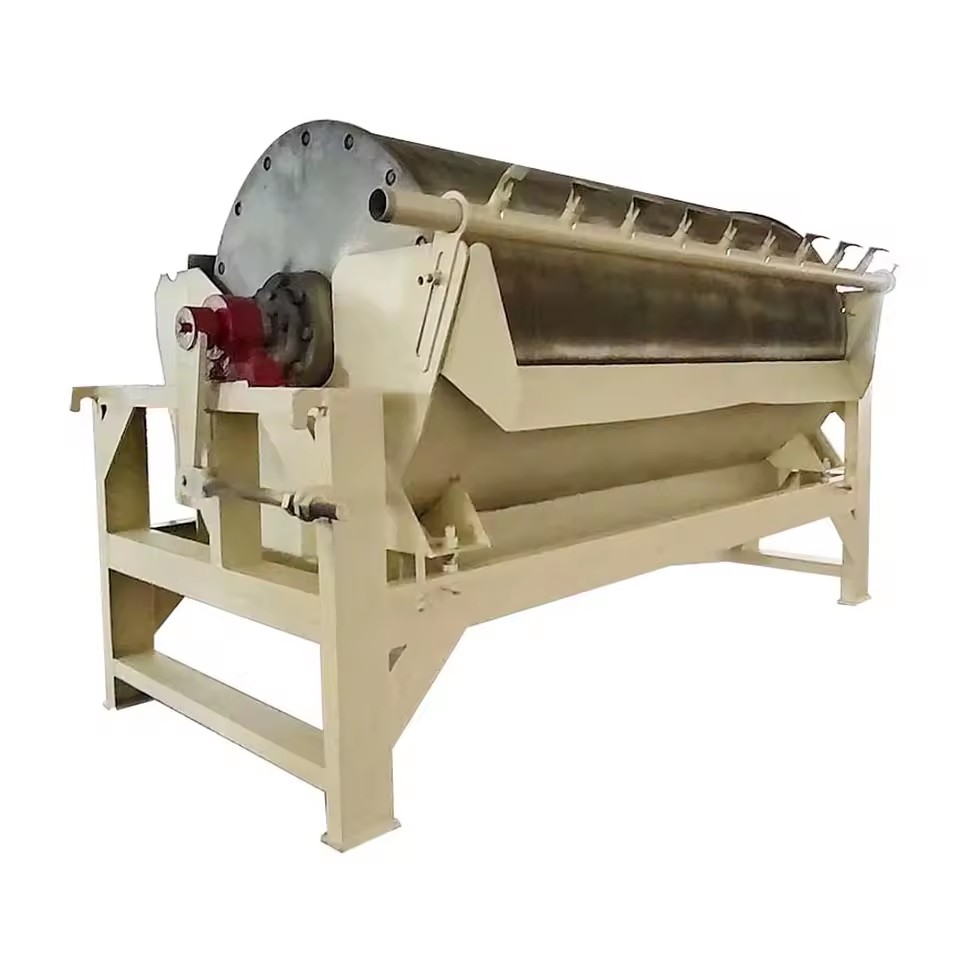

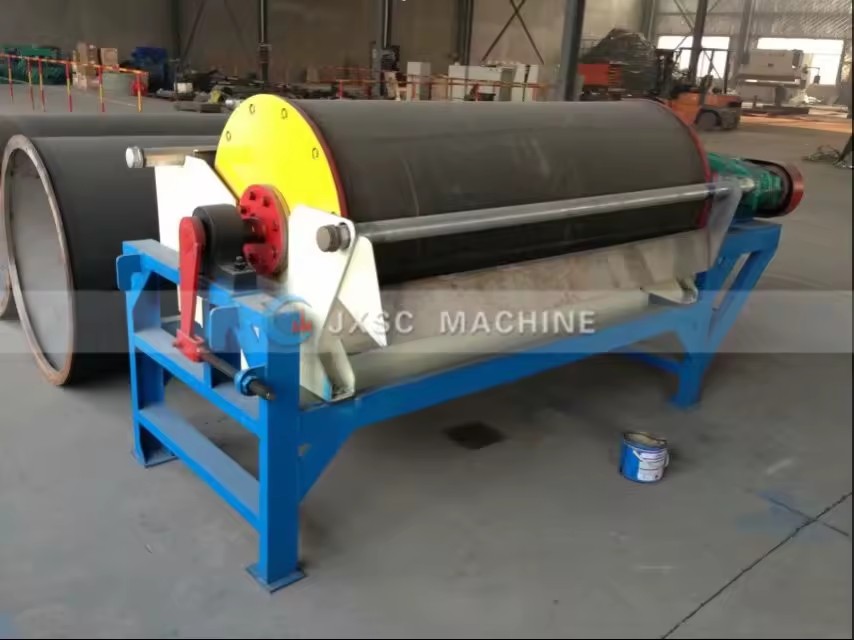

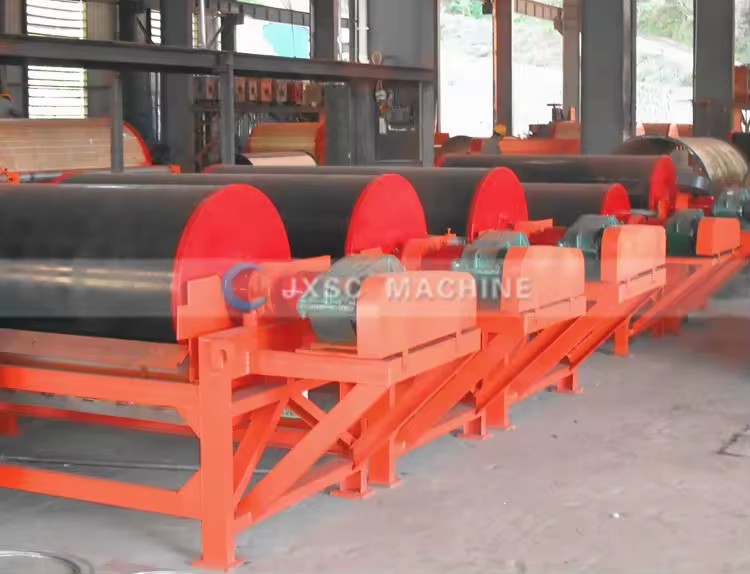

Professional Factory Magnetic Drum Separator Price Magnetite Iron Ore Separation Machine

Product Importer Gallery 01 · 9d4f8932aa

Product Importer Gallery 02 · 981f3c8dca

Product Importer Gallery 03 · 46aebeb915

Product Importer Gallery 04 · 465bbc5cb0

Product Importer Gallery 05 · 4ea6ab8983

Product video

Certifications CE ISO

Professional Factory Magnetic Drum Separator Price Magnetite Iron Ore Separation Machine

Name: Professional Factory Magnetic Drum Separator Price Magnetite Iron Ore Separation Machine
SKU: WBDN-MZPZ-2QA4
Price: 14970.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 14,970.00 14970.0 USD $ 14,970.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Magnetic Separator

Voltage

220 V, 380V

Core components

Motor, Pump

Machinery test report

Provided

Warranty

Unavailable

Video outgoing-inspection

Provided

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Multimodal transport · Approx. shipping fee: $ 358.06 for 1 unit · Estimated delivery in 38-48 business days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

We can produce all kinds of magnetic separators

3. Features

Model	Shell Diameter(mm)	Shell Length(mm)	Shell Rotation Speed(r/min)	Feeding Size (mm)	Processing Capacity(t/h)	Power(kw)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-180	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5

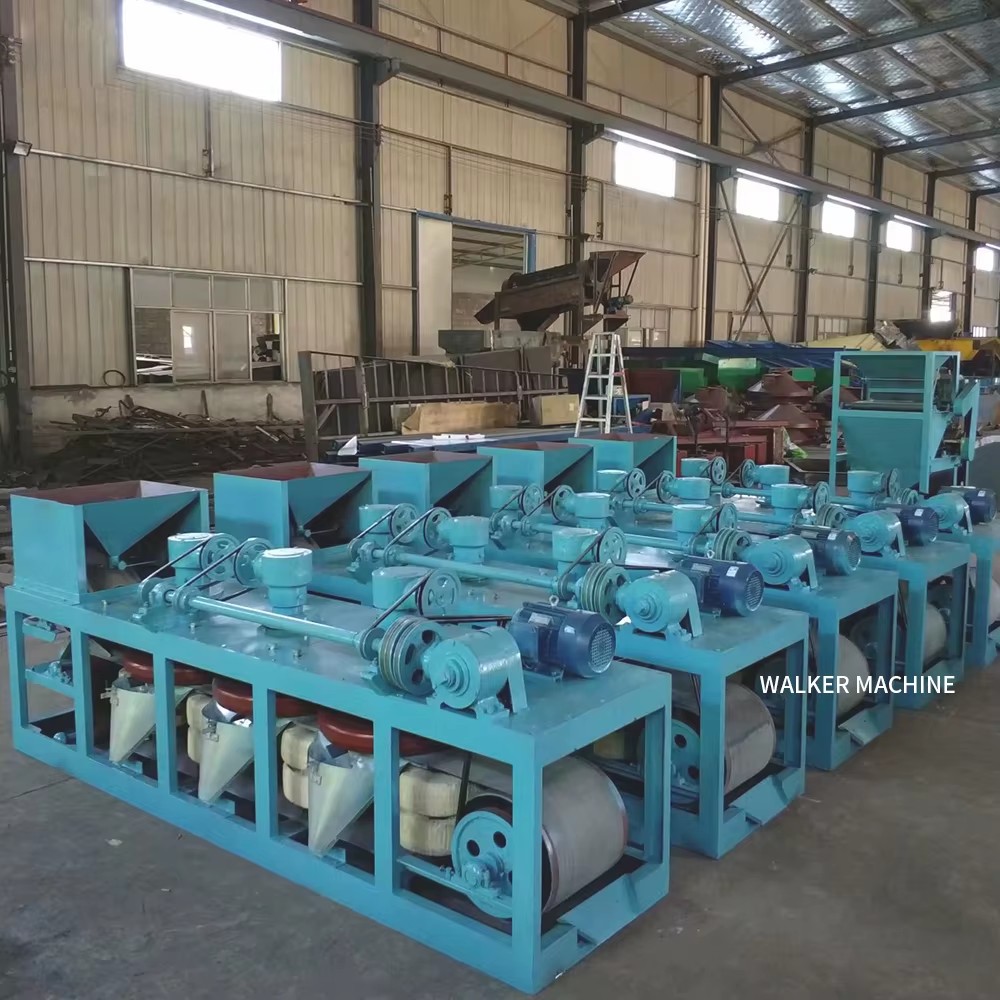

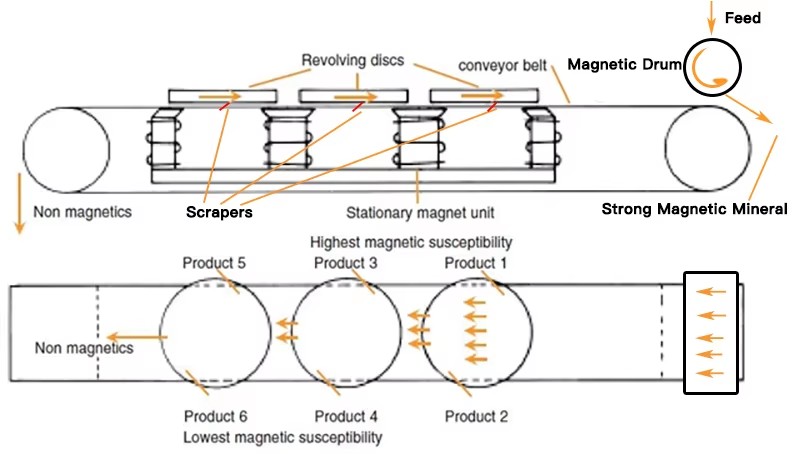

Model	CP-855	CP3-500	CP3-500 (rare-earth separation)	CP3-600
Magnetic Intensity	1500mT at 2mm height	1700mT at 2mm height	2000mT at 2mm height	1800mT at 2mm height
Disc Quantity	1	3	3	3
Disc Rotation Speed	28-30r/min	25-40r/min	22-38r/min	22-38r/min
Disc Diameter	885mm	500mm	500mm	500mm
Power	380V 3P	380V 3P	380V 3P	380V 3P
Excitation Coil	2	4	4	4
Excitation Power	1.5kW	1.5kW	1.5kW	1.5kW
Max. Coil Temperature	65℃	65℃	65℃	65℃
Rated Current of Coil	3.5A	1.2-1.9A	1.2-1.9A	1.2-1.9A
Max. Feeding Size	4mm	2mm	2mm	2mm
Dimension	250010301600mm	28008001220mm	31509001250mm	31509001250mm
Capacity	300-1600kg/hr	100-500kg/hr	80-800kg/hr	120-800kg/hr
Weight	3200kg	1900kg	2300kg	2200kg

Model	Adaptive belt width（mm）	Suspension height (mm)	Material thickness （≤mm）	Magnetic field intensity (≥mT)	Driving Power (≤kw)	Adaptive belt speed （m/s）	Weight（kg）	Dimension（mm） L×W×H
RCYD-5	500	150	80	60	1.5	≤2.5	750	1600×820×850
RCYD-6	600	175	125	60	1.5	920	1700×920×850
RCYD-6.5	650	200	150	70	1.5	1200	1750×970×850
RCYD-8	800	250	200	70	2.2	1400	1900×1150×900
RCYD-10	1000	300	250	70	3	2120	2140×1350×950
RCYD-12	1200	350	300	70	4	3350	2340×1550×950
RCYD-14	1400	400	350	70	4	4450	2600×1750×950
RCYD-16	1600	450	400	70	5.5	6200	3420×1180×2210
RCYD-18	1800	500	450	72	5.5	8100	3580×1210×2450
RCYD-20	2000	550	500	72	7.5	9700	3800×1300×2700

Model	Adaptive belt width（mm）	Adaptive belt speed （≤m/s）	Material thickness （≤mm）	Suspension height （mm）	Magnetic field intensity （≥mT）	Dimension （mm） L W H	Weight（kg）
RCYB-4	400	2.5	80	130	45	400300210	115
RCYB-5	500	100	150	50	500400210	180
RCYB-6	600	130	180	60	600500210	300
RCYB-6.5	650	150	200	65	650500210	450
RCYB-8	800	200	250	70	800600210	680
RCYB-10	1000	250	300	70	1000800210	980
RCYB-12	1200	300	350	70	12001000210	1300
RCYB-14	1400	350	400	70	14001300210	2100
RCYB-16	1600	400	450	70	16001500210	2580

Model	Adaptive belt width (mm)	Adaptive belt speed (≤m/s)	Material thickness (≤mm)	Suspension height (mm)	Magnetic field intensity (≥mT)	Size (mm)	Weight (kg)
RCDB-3	300	2.5	50	75	50	210×250×400×280	135
RCDB-4	400	70	100	50	240×280×500×400	250
RCDB-5	500	90	150	60	280×325×610×450	380
RCDB-6	600	120	175	60	280×325×710×500	530
RCDB-6.5	650	150	200	70	280×325×816×640	580
RCDB-8	800	200	250	70	310×355×960×780	800
RCDB-10	1000	250	300	70	310×360×1200×920	1370
RCDB-12	1200	300	350	70	310×365×1400×1000	2100
RCDB-14	1400	350	400	70	405×485×1650×1400	2800
RCDB-16	1600	400	450	70	460×540×1900×1650	4650
RCDB-18	1800	450	500	70	530×610×2150×1800	6750

Type	Belt	Power	Weight	Size
Feeding width (mm)	Feeding length (mm)	Feeding	Capacity (m3/h)	Power (kw)	Weight (kg)	Length (mm)	Width (mm)	Height (mm)
GTFX-4	400	1500	≥1 mm2	4	7	600	4600	1660	1700
GTFX-5	500	6	730	1760
GTFX-6	600	10	895	1860
GTFX-6.5	650	15	950	1910
GTFX-8	810	20	1225	2060
GTFX-10	1015	25	1555	2260
GTFX-12	1215	30	1875	2460
GTFX-14	1420	1800	35	2275	4900	2660
GTFX-16	1600	2000	40	2850	5100	2860

Model	Adaptive belt width (mm)	Suspension height (mm)	Material thickness (≤mm)	Magnetic field intensity (≥mT)	Driving Power (≤kw)	Adaptive belt speed (m/s)	Weight (kg)	Size (mm) ABCDE
RCDD-5	500	150	100	60	1.5	≤4.5	950	19809207507081000
RCDD-6	600	175	130	60	1.5	1380	214011007508581200
RCDD-6.5	650	200	150	70	2.2	1490	227511008208881240
RCDD-8	800	250	200	70	2.2	1770	2520135086510881300
RCDD-10	1000	300	250	70	3	2380	2750163594013351500
RCDD-12	1200	350	300	70	4	3170	2950175095015181700
RCDD-14	1400	400	350	70	4	4800	3150205095017551900
RCDD-16	1600	450	400	70	5.5	6300	37502240118019802050
RCDD-18	1800	500	450	70	7.5	8800	39502450129022002200
RCDD-20	2000	550	500	70	7.5	11200	43502600135022502300

1.Small parts packed in the wooden cases.

2.Big parts packed by plastic membrane.

3.The whole big machine is loaded in the container.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Multimodal transport · Approx. shipping fee: $ 358.06 for 1 unit · Estimated delivery in 38-48 business days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Magnetic Separator

Voltage

220 V, 380V

Core components

Motor, Pump

Machinery test report

Provided

Warranty

Unavailable

Video outgoing-inspection

Provided

Key selling points

High Productivity

Production Capacity

98%

Place of origin

China, Jiangxi

Weight

3000 kg(6613.87lb)

Dimension (L*W*H)

Diffrent Model

Max feeding size

14mm

Wet or Dry process

Both are available

Magnetic Intensity

1000 gauss to 8500 gauss

Processing Capacity

0-200 tons per hour

Operation Manual

Provided after order

Foundation drawing

Provided after order

Delivery lead time

20-30 days

Certification

CE ISO

Recovery rate

90% up

Selling Units

Single item

Single package size

60X60X60 cm

Single gross weight

68.0 kg

Model number

Iron Ore Magnetic Separator

Power (W) (Product option)

Depends

Lead time

30 days

Minimum order

1 Units
