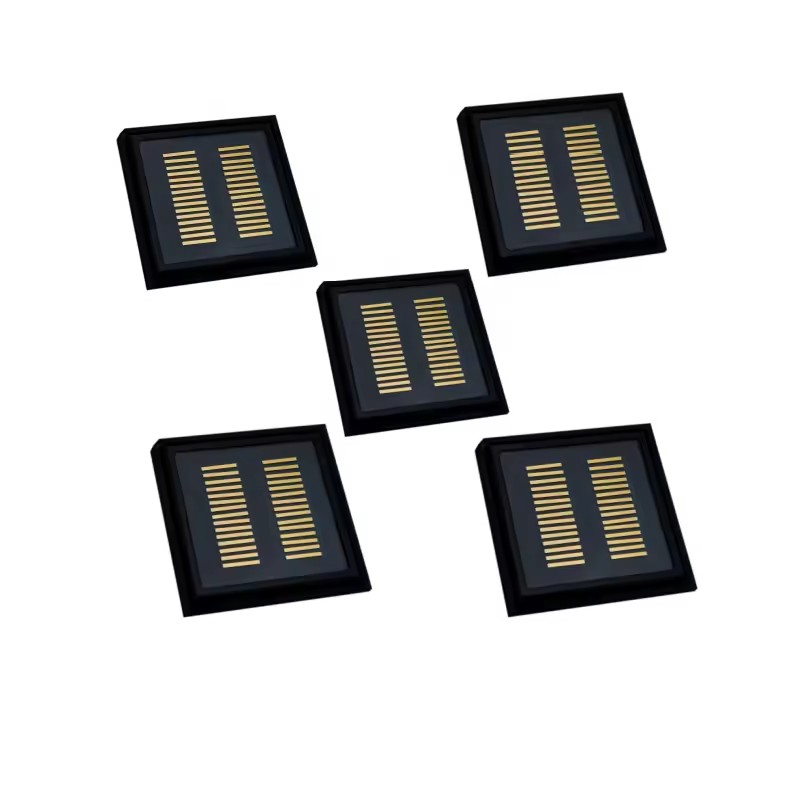

Name: Wavelength 808nm CW High Power Diode Laser Bars 50W 100W
SKU: JQ4H-A77E-EGYW-01
Price: 50.0 USD
Availability: PreOrder

Product description

Perfmance Parameters	Symbol	Type	Unit
Central Wavelength	λc	808	808	808	808	nm
Optical Output power	Popt	3	5	7	10	W
Operation mode	CW	CW	CW	CW
Emitter Width	W	100	150	200	200	μm
Emitter Pitch	P	500	500	500	500	μm
Cavity Length	L	1.5	2	3	4	mm
Bar Thickness	D	140	140	140	140	μm
Fast Axis Divergency (FWHM)	θ⊥	30	30	30	30	deg
Slow Axis Divergency (FWHM)	θ∥	<8	<8	<10	<10	deg
Spectral Bandwidth (FWHM)	Δλ	<3	<3	<3	<3	[nm]
Slope Efficiency	1.3	1.28	1.2	1.2	[W/A]
Conversion efficiency	η	60	60	55	55	[%]
Threshold Current	Ith	0.4	0.5	1	1.5	[A]
Operating Current	Iopt	2.8	4.8	7	10	[A]
Operating Voltage	Vop	1.8	1.9	<2	<2	[V]
Temperature Characteristics(dλ/dT)	0.28	0.28	0.28	0.28	nm/ºC
Polarization	TE/TM	TE/TM	TE/TM	TE/TM
Operating TemperatureRange	10~35	10~35	10~35	10~35	ºC
Storage Temperature Range	40~70	40~70	40~70	40~70	ºC

Perfmance Parameters	Symbol	Type	Unit
Central Wavelength	λc	808	808	nm
Optical Output power	Popt	50	100	W
Operation mode	CW/QCW	CW/QCW
Emitter Width	W	130	100	μm
Emitter Pitch	P	500	200	μm
Number of Emitters	L	19	48	mm
Bar Width	B	10000	10000	μm
Cavity Length	L	1000	1500	μm
Bar Thickness	D	135	135	μm
Slope Efficiency	1.3	1.2	[W/A]
Conversion efficiency	η	60	55	[%]
Threshold Current	Ith	7	18.5	[A]
Operating Current	Iopt	49	105	[A]
Operating Voltage	Vop	1.82	1.8	V
Operating TemperatureRange	25	25	ºC

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Type

laser diode chip

Place of origin

China, Jilin

Model number (Specification)

808nm

Center Wavelength

808nm

Output Power (Specification)

50W 100W 200W

Operation mode

CW/QCW

Emitter Width

130 μm

Emitter Pitch

500 μm

Bar Width

10000 μm

Cavity Length

1000 μm

Bar Thickness

135μm

Threshold Current

7 A

Operating current

49A

Selling Units

Single item

Single package size

25X10X25 cm

Single gross weight

1.0 kg

Specification

50W, 100W, 200W

Certifications & Compliance

Lead time

31 days

Minimum order

100 Units
