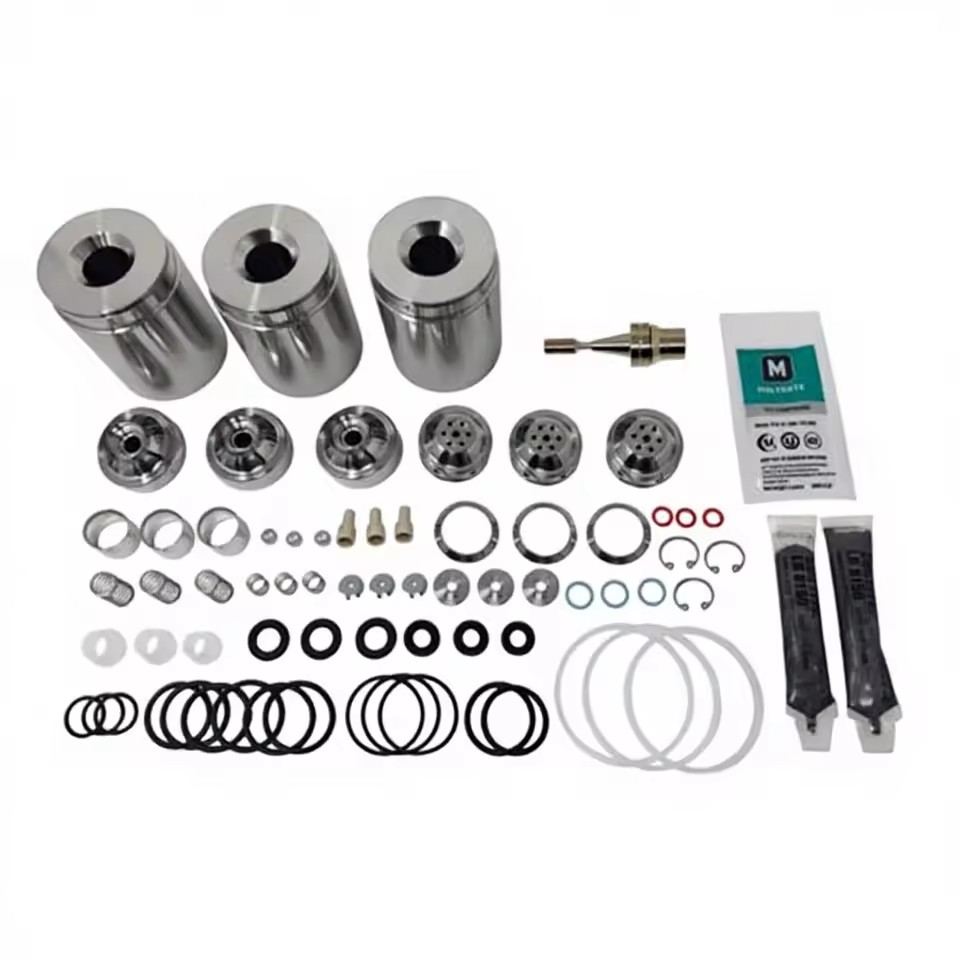

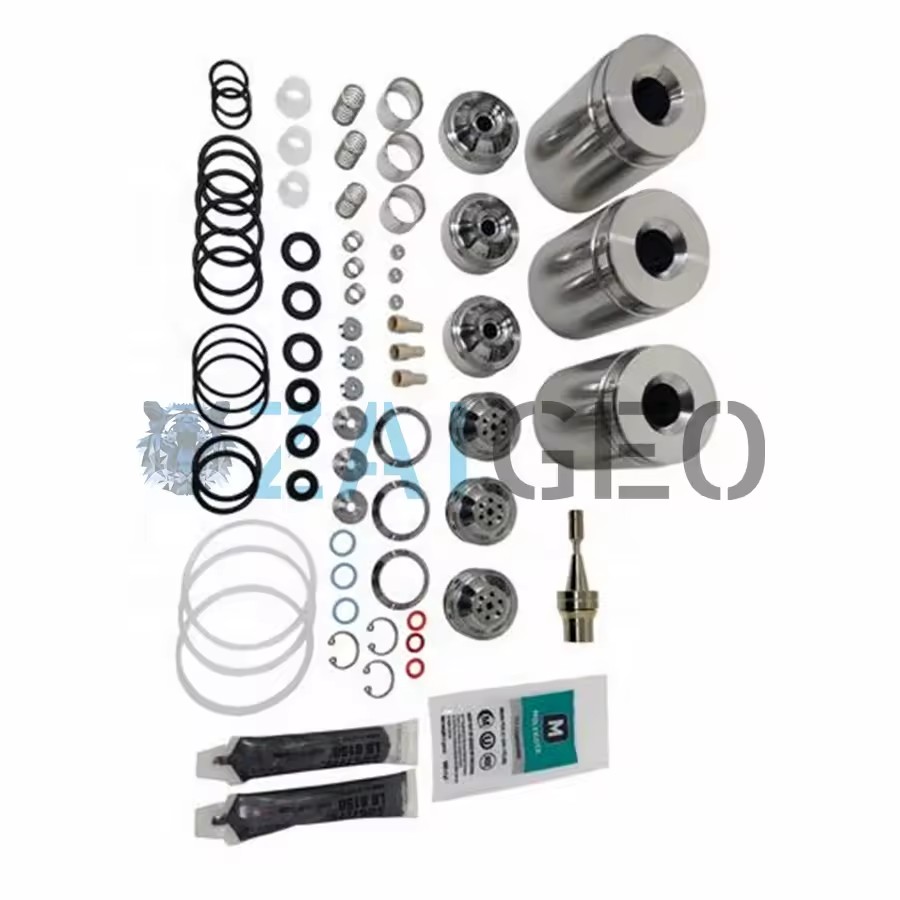

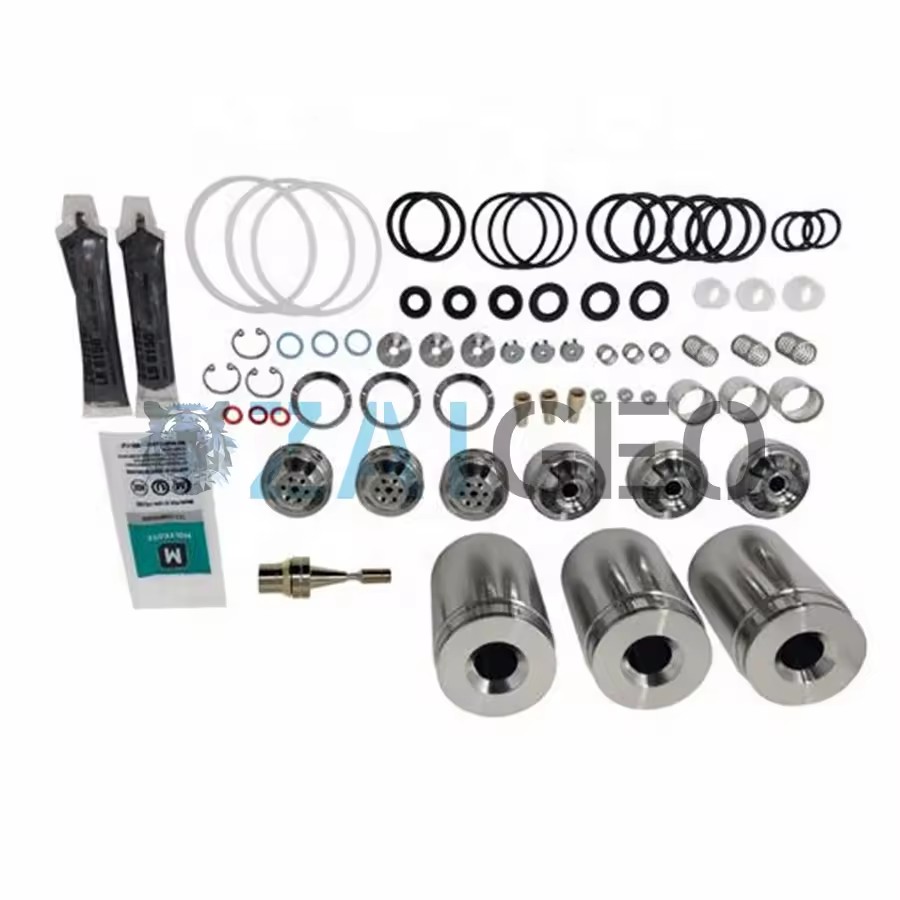

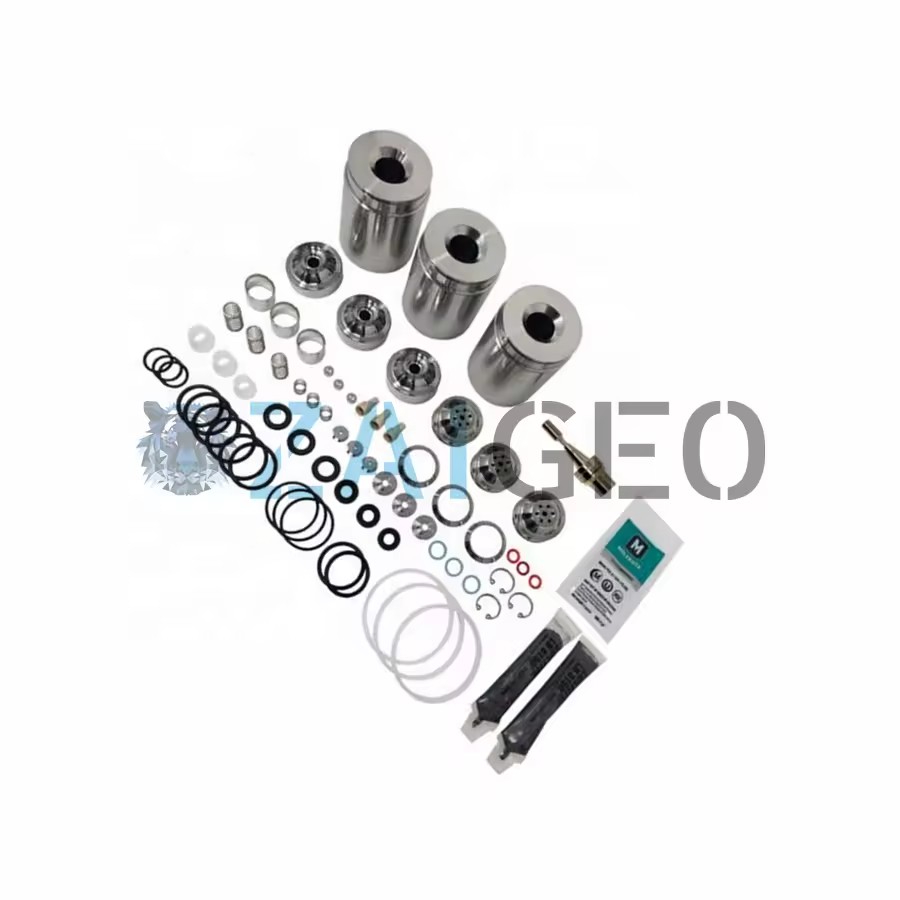

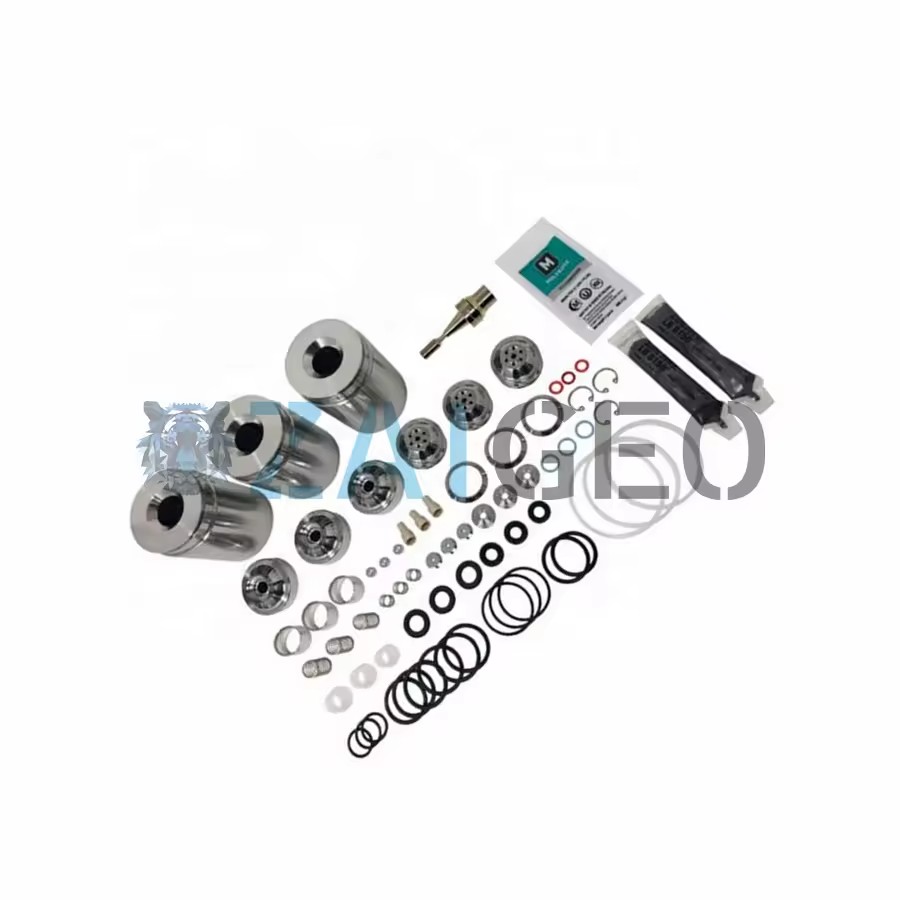

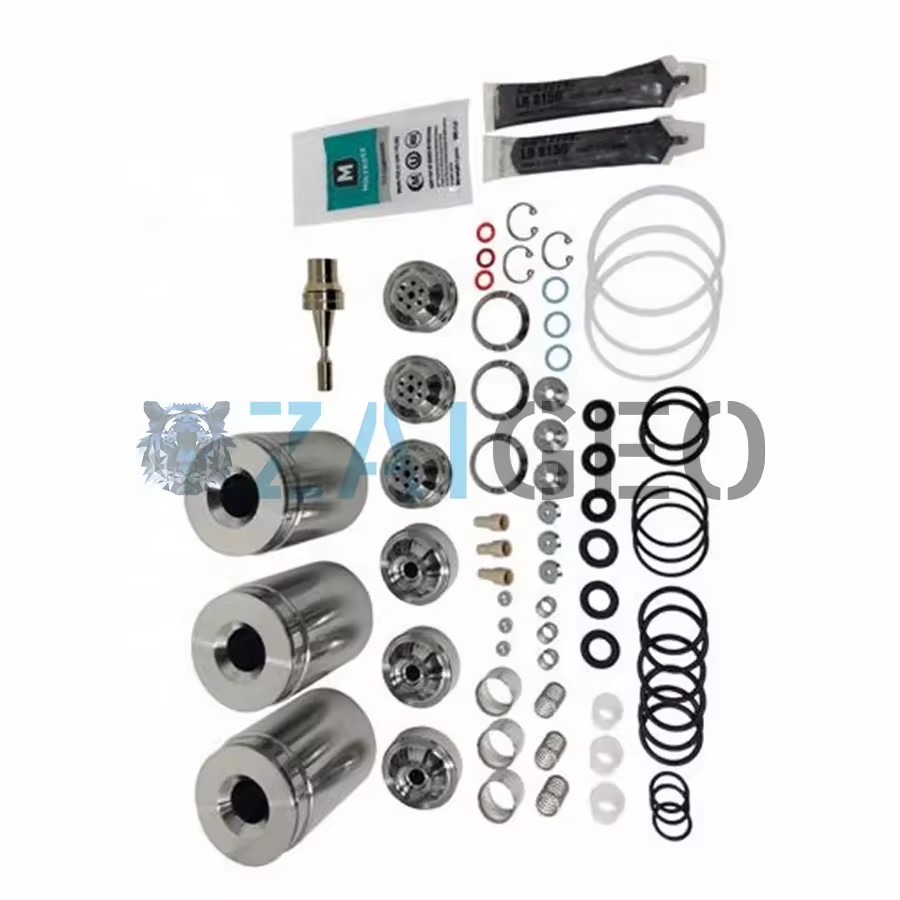

Name: Waterjet Parts FLOW 712101-2 Hyplex Major Maintenance Kit Water Jet Cutter Machine Intensifier Pump Spare Parts Replacement
SKU: D625-W7VF-HREM-01
Price: 1580.0 USD
Availability: PreOrder

Product description

Title

Description

Part Number

712101-2 For FLOW

Part Name

Hyplex Major Maintenance Kit

Pump Type Compatibility

HyPlex, JetPlex

Specifications

712101-2: MAINTENANCE KIT;HP;HYPLEX;MAJOR

Name

Qty

011051-1

SEAL;DYNAMIC;EAGLE;5/16 ID;HDS WHITE

A-00621-33

SEAL;ROD;NA;DISOGRIN;7/16 ID;11/16 INCH OD;1/8 INCH

011042-1

POPPET;INLET;CHECK VALVE;EAGLE;STAINLESS STEEL

011040-1

GUIDE;NA;OUTLET POPPET;CHECK VALVE;EAGLE;NA

011039-1

POPPET;OUTLET;CHECK VALVE;HYPLEX;STAINLESS STEEL

011041-1

SEAT;OUTLET;POPPET;EAGLE;STAINLESS STEEL

042145-1

POPPET/SEAT ASSEMBLY;PRESSURE CONTROL VALVE;HYPLEX HYBRID

A-0275-033

O-RING;BUNA-N;70 (SHORE A);-033

A-0275-025

O-RING;BUNA-N;70 (SHORE A);-025

013933-1

SEAL CARRIER ASSEMBLY;NA;EAGLE;55 KSI

011043-1

SEAL;STATIC;END CAP;1 ID;STAINLESS STEEL

013932-1

CYLINDER;HIGH PRESSURE;NA;EAGLE;55 KSI

013383-1

BODY;CHECK VALVE;EAGLE;NA;55 KSI;NA

011350-1

SLEEVE;NA;FILLER TUBE;EAGLE

A-00720-31

SEAL;ROD;NA;NITRILE;5/16 ID;9/16 OD;1/8 INCH

A-9223

SPRING;COMPRESSION;STAINLESS STEEL;NONE;.27 ID;.322 OD;.40 INCH;4.0 LBS/IN;CLOSED & GROUND

A-0290-010

O-RING;DISOGRIN;HIGH RESILIENCY;-010

A-0275-015

O-RING;BUNA-N;70 (SHORE A);-015

006760-1

BACK-UP RING;MANIFOLD;COUGAR;LSP BLUE

014172-1

SPACER;RING;TIE ROD;HYPLEX;UHMW;NA

A-4689

GREASE;FOOD GRADE;1/4 OUNCE TUBE

SB-0170

SB;INSTALLING HYPLEX MAJOR MAINT. KIT

A-20386-1

LUBRICANT;ANTI-SEIZE;NA;5 GRAMS

012306-DWG

HIGH PRESSURE ASSEMBLY;55 KSI HYPLEX;NA;NA

A-12219

SPRING;COMPRESSION;STAINLESS STEEL;NONE;.352 ID;.42 OD;.81 INCH;3.7 LBS/IN;CLOSED & GROUND

A-0265-062

RETAINING RING;INTERNAL;NA;NA;STAINLESS STEEL;NA;5/8 INCH

A-0275-119

O-RING;BUNA-N;70 (SHORE A);-119

A-0275-120

O-RING;BUNA-N;70 (SHORE A);-120

011045-1

PLUNGER ASSEMBLY;UHP;CERAMIC;EAGLE

A-12217

SPRING;COMPRESSION;STAINLESS STEEL;NONE;.362 ID;.48 OD;.75 INCH;64.8 LBS/IN;CLOSED & GROUND

A-12218

SPRING;COMPRESSION;STAINLESS STEEL;NONE;.336 ID;.48 OD;.88 INCH;123.7 LBS/IN;CLOSED & GROUND

Products Description

Specialize In Supplying

400-700MPA Waterjet Cutting Parts

For 10 Years

Product Informations

Detailed Photos

Company's Products

Waterjet Sapphire/Ruby/Diamond Orifice

Sapphire, ruby and diamond orifice.

Sapphire and ruby orifice start at just $1.99.

Diamond lifetime is more than 1000 hours.

Focusing tube/Mixing Tubes/Nozzles

OD 6.0, 6.35, 7.0, 7.14, 7.62, 7.97, 9.0, 9.45mm...

Length 50.8, 76.2, 79.5, 101.6, 120mm...

Waterjet Diamond Cutting Heads

For FLOW, KMT, OMAX, WJS, H2O, BFT...ect.

Lifetime is more than 1000 hours.

Waterjet Replacement Parts

For FLOW, KMT, OMAX, WJS, BFT, H2O, Dardi...ect.

High Pressure Components

1/4", 3/8", 9/16'' Tube

Elbow, Tee, Cross, Nipple

Straight Coupling, Swivel and Thread Tool...

UHP Industrial Cleaning Nozzles

1/4", 3/8", 7/16", M3, M4, M5, M6, M8, M10...

ID from 0.05mm to 1.50mm.

Company Profile and Factory

Zaigeo waterjet has been specializing in 480-680 MPa (60K-90K) waterjet cutting parts and UHP (Ultra High Pressure) industrial cleaning nozzles for 10 years. Our primary product range includes waterjet nozzle, mixing/focusing tubes, waterjet sapphire, ruby, diamond orifice, diamond cutting heads and waterjet replacement parts for various brands such as FLOW, OMAX, KMT, WJS, Jet Edge H2O, Dardi, BFT, Accustream etc.

Furthermore, we manufacture a wide variety of high-pressure cleaning nozzles and industrial cleaning nozzles, available in specifications including 1/4", 3/8", 7/16", M3, M4, M5, M6, M8, M10. These nozzles perform exceptionally well, withstanding pressures of up to 480 MPa. Our applications cover a broad spectrum, including industrial washing, ship cleaning, sidewalk and driveway cleaning, zebra crossing cleaning, sewer cleaning, wall cleaning, and more.

Leveraging our state-of-the-art facilities and extensive experience in the waterjet industry, we possess the capability to design a wide array of plastic and metal components for waterjet applications. This includes high-pressure cylinders, mixing chambers, diamond cutting heads, and many shapes of waterjet nozzles. We also offer specialized customization to meet your specific requirements.

Cooperation Partner

Packing&Delivery

Why Choose Zaigeo

(1) Competitive Price

Our standard products start at just $1.99.

(2) Premium Quality

Our premium products match the original performance and lifespan but cost only around 50%.

(3) Extensive Inventory

We maintain a substantial inventory of over 2000 units for each specification, ensuring delivery in as little as 1 day.

(4) Trusted by Many

Over 5000 users have chosen Zaigeo products.

(5) High Repurchase Rate

Our products have achieved a remarkable repurchase rate of over 80%.

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Economy · Estimated delivery: Sep 5–Oct 8 (5–38 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 20 fields

Voltage

220v

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Warranty

Unavailable

Rated power

37kw(49.62hp)

Place of origin

China, Shanghai

Weight (kg)

Code

FLOW 712101-2

Company Type

Manufacturer

Application

Stone, WATERJET CUTTING MACHINE, Metal, Ceramic, Glass, Plastic

Condition

New

After Warranty Service

Online Support

Style

Waterjet Machine

Type

Waterjet Machine

Transport Package

Carton/Wooden Box

Power source

WATERJET CUTTING MACHINE

Selling Units

Single item

Single package size

10X10X10 cm

Single gross weight

8.0 kg

Effective cutting range (mm)

6000×2000

Model number

Standard 712101-2, Premium 712101-2

Lead time

7 days

Minimum order

1 Units
