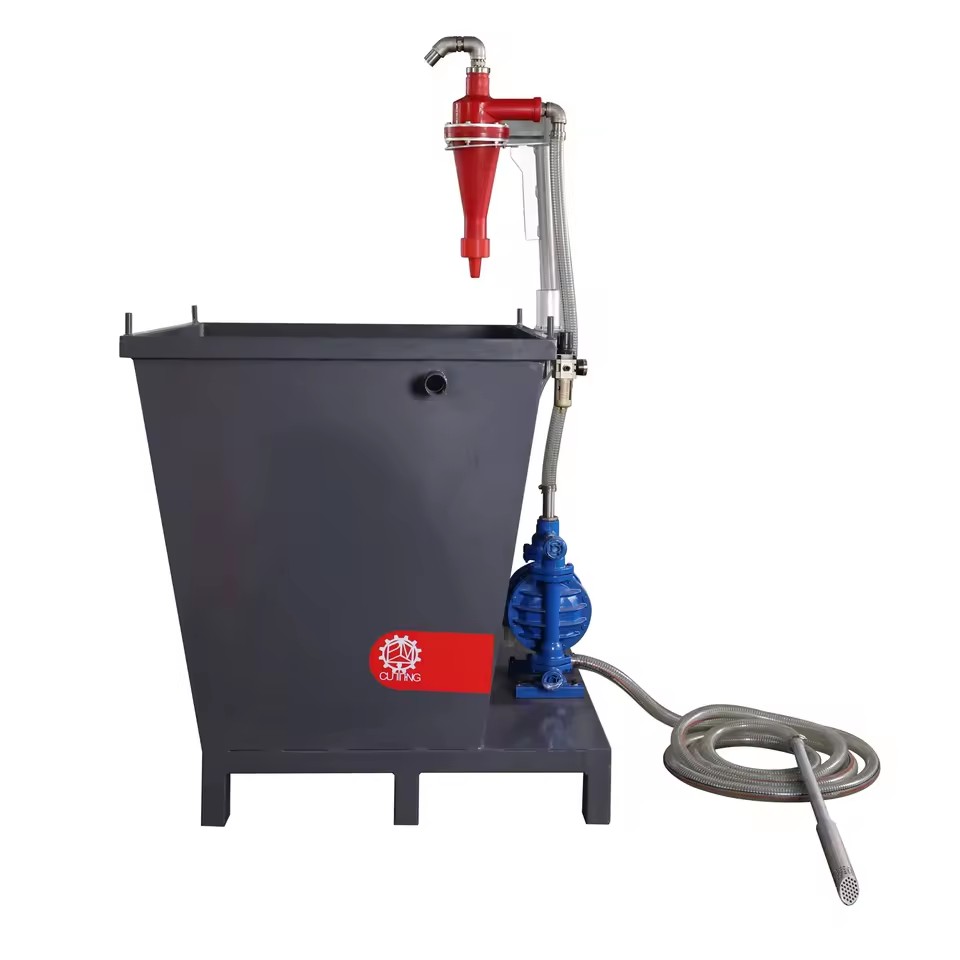

Name: Waterjet Cutter Sludge Removal System for Waterjet Cutting Machine
SKU: B2B-2693
Price: 4890.0 USD
Availability: PreOrder

Product description

PMT Advantages of a Sludge removal system

Product Description

00:00

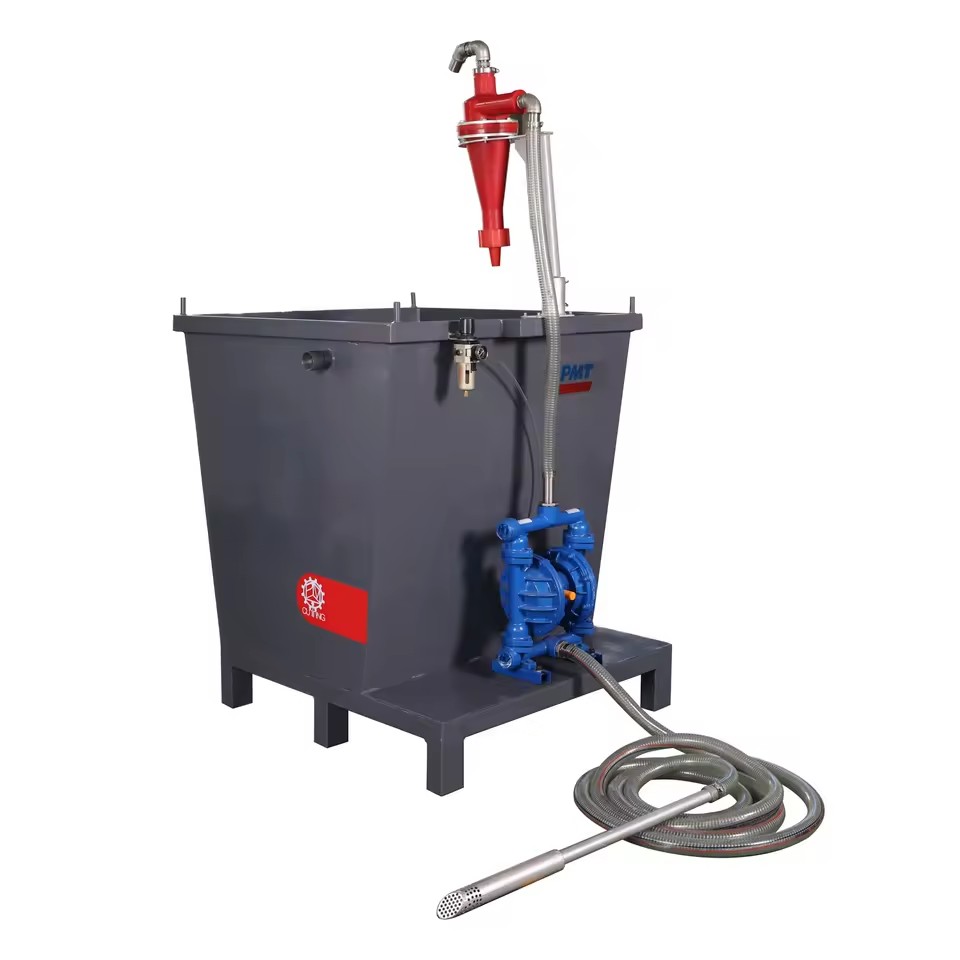

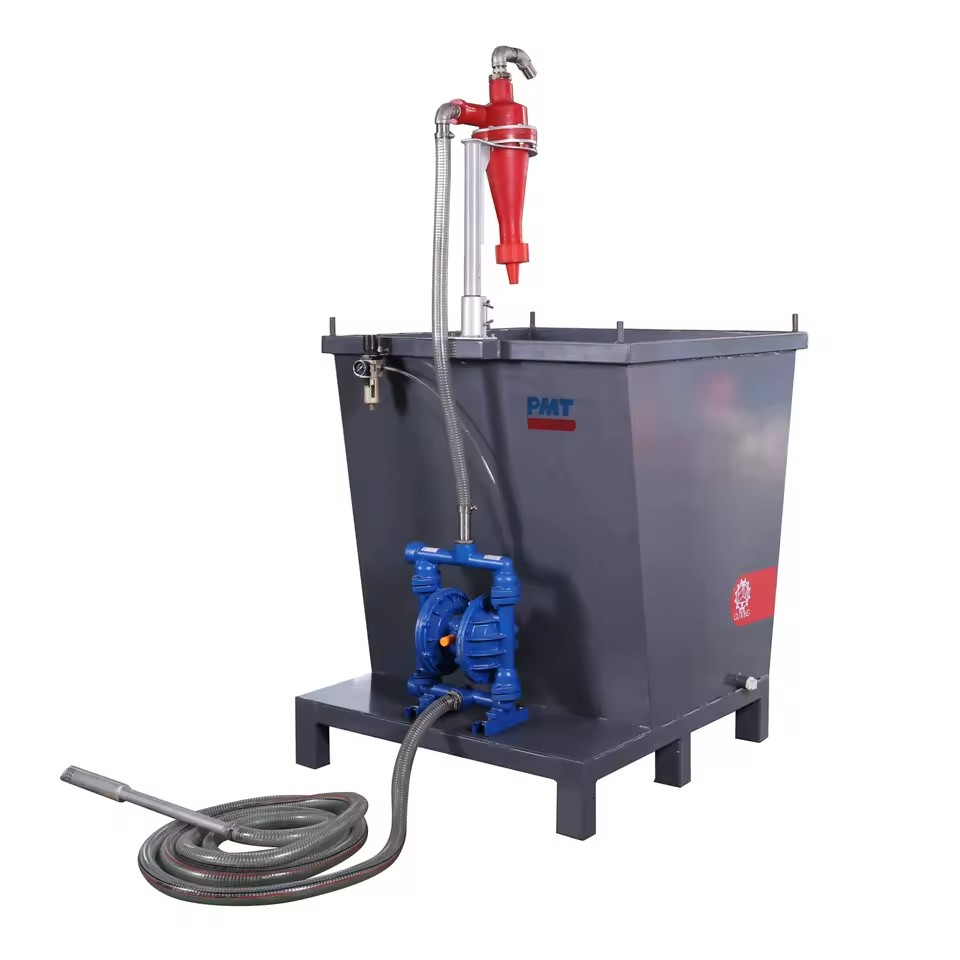

Sludge removal system

There are significant amounts of water mud and sand mud generated during the cutting process. Over time, more and more sand sediment accumulates, leading to the eventual filling of the water tank.

Cleaning the water tank is a laborious and exhausting task, requiring 1-2 days for two people to complete. Moreover, the machine must be halted during this cleaning period, causing inconvenience to the user.

PMT Advantages of a

To address these challenges, PMT has leveraged its extensive practical experience to develop a sullage removal system.

This innovative system utilizes embedded pipes installed at the bottom of the water tank and employs a highly efficient automatic clearing pump. The pump circulates the mud-laden water out of the tank into a ton bag within the sludge removal system.

The excess sewage is then redirected back into the water tank, creating a continuous cycle. This process continues until the ton bag is fully filled with mud, which can then be removed using a forklift or crane. This entire process eliminates the need for manual labor and allows the machine to operate uninterrupted, ensuring a clean working environment.

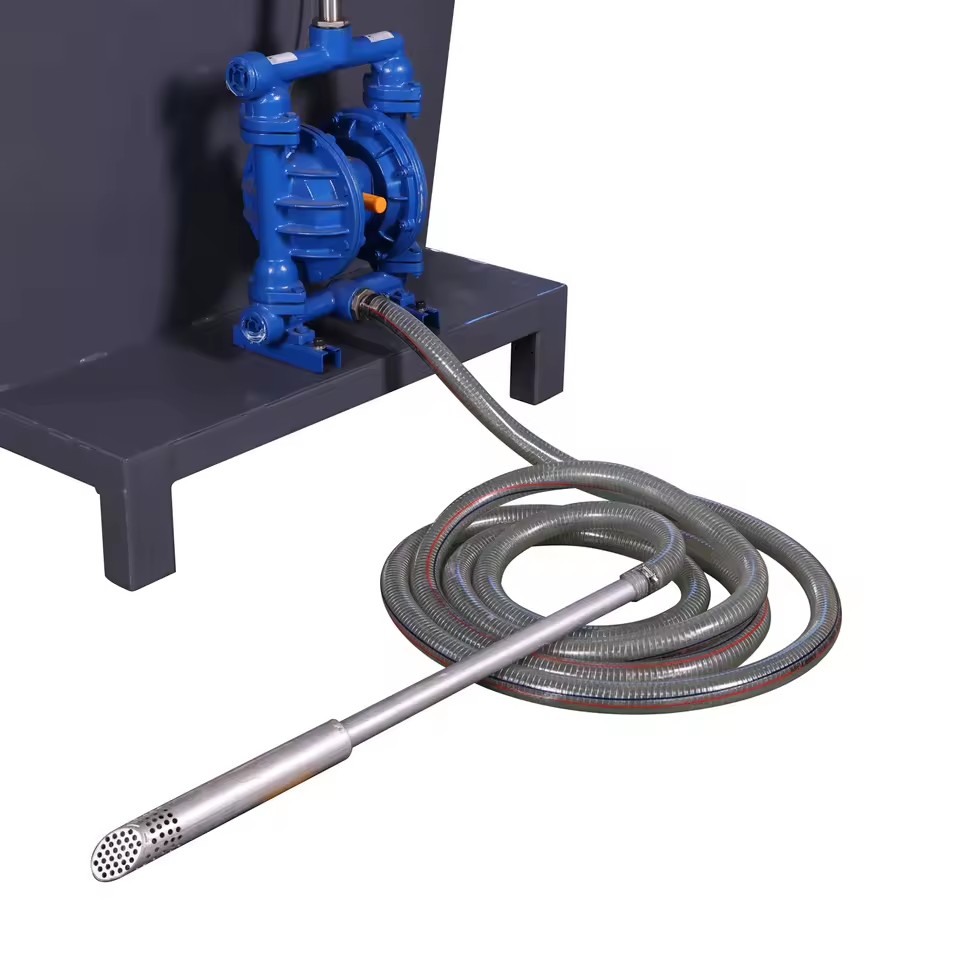

the designer of this simple yet highly efficient sludge removal system, follows the principle of using a high-efficiency automatic sludge pump (pneumatic diaphragm pump) during the cutting process.

The embedded pipes with small holes located at the tank's bottom effectively suction the mixed mud sewage, pumping it into a large container within the sluge removal system, typically a ton bag.

After sedimentation, the wastewater returns to the water tank while the sand mud remains in the ton bag until it reaches full capacity.

At that point, it can be easily removed using a crane. This entire process is automated and does not require any human intervention.

Ralevant Products

Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on!!!

1, basic working principle of the super-high pressure water jet cutting machine2, working principle of the high-pressure system

and supercharge

3, replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts

4, maintenance of the high-pressure system and judgment and troubleshooting of common failures

5, CNC Programming&operation&operation of the NC cutting platform

6, daily maintenance of the NC cutting platform

7, equipment installation

8, abrasive control and transportation operation and CNC communication

9, operation of the CAD / CAM software and CNC communication

10, working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional

parts, high-pressure water switches and abrasive cutting head

1, Free warranty for the whole machine for one year or 2000 high-pressure/hour 2, Training of two personnel for operation and

maintenance of equipment and one computer operator for the user

3, On-line installation and commissioning (the user is responsible for board and lodging)

4, Lifetime maintenance

5, To Guarantee long-term supply of spare parts

6, To enjoy upgrade of special prices when there are new products and technologies

7, Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after

receipt notice. For a common failure, direct the user to resume production as soon as possible by way of

Product packaging

Wate jet cutting machine package

wooden package out side, inside soft packages or all of soft film and ensure safety. including hp pump,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm, 4000-6000kgs,whole one set waterjet machine equiment.

Water jet

spare parts

soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.

Delivery time for machines

15-30days Delivery time

waterjet spare parts

1-7days

Company Profile

Certifications

FAQ

Q: What is the advantage of water jet cutting head machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universalcutting machine.

Q: How to choose the cutting table for waterjet cutting machine?

A:You need to offer the size of the materials.you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting for waterjet machine?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate for waterjet cutting machine?

A:Wonlean intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network.

The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatio.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Voltage

380V

Number of axes

Repeatability (x/y/z) (mm)

±0.001

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Dimension(L*W*H)

4000x2000x150mm(157.48x78.74x5.91in)

Key selling points

Long Service Life

Rated power

50Hz

Place of origin

China, Guangdong

Weight (kg)

6000 KG(13227.74lb)

Table travel (x) (mm)

2000

Table travel (y) (mm)

6000

Table travel (z) (mm)

150

Cutting accuracy(mm)

0.1

Type

Water Jet Cutters

Name

Sludge removal system

Cutting material

Stone, Steel, Glass, marble, granite, metal

Power

37KW/50HP

Keyword

Waterjet Cutting Machine

Maxi pressure

4000bar/4000mpa/60000psi

Port of dispatch

Guangzhou

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

5 acres per Month

Model number

Sludge removal system

Effective cutting range (mm)

2500×1500, 1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 1300x1300, 1000×3000, 1500×2500, 2000×8000, 2500×1200

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
