3 axis waterjet cutting machine
A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal, glass
plexiglass,ceramic,marble, granite, rubber and compound material etc.
Cutting accuracy: +/- 0.1mm
Repeat accuracy: +/- 0.05mm
CNC Water Jet Cutting Machine P arameter (L=Gantry type)
Parameters
Unit
YCWJ-L1010
YCWJ-L2015
YCWJ-L3015
YCWJ-L3020
YCWJ-L2060
Efficient Cutting Area
mm
1000×1000
2000×1500
3000×1500
3000×2000
2000×6000
Axis Travel
X
1000
2000
3000
Y
1500
6000
Z
150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy
±0.1
Positioning Accuracy
±0.2
X,Y Dry-run Speed
m/min
0-15 (if need 30m/min speed,we can do as request )
Cutting Speed
as to detail material and thickness
Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm
Unique design of this water jet pump makes the installation and the maintenance easier. Stable working pressure to ensure the working efficiency. We cooperate with Accsutream/Hypertherm since 2008,most water jet parts of the high pressure pumps are imported directly.

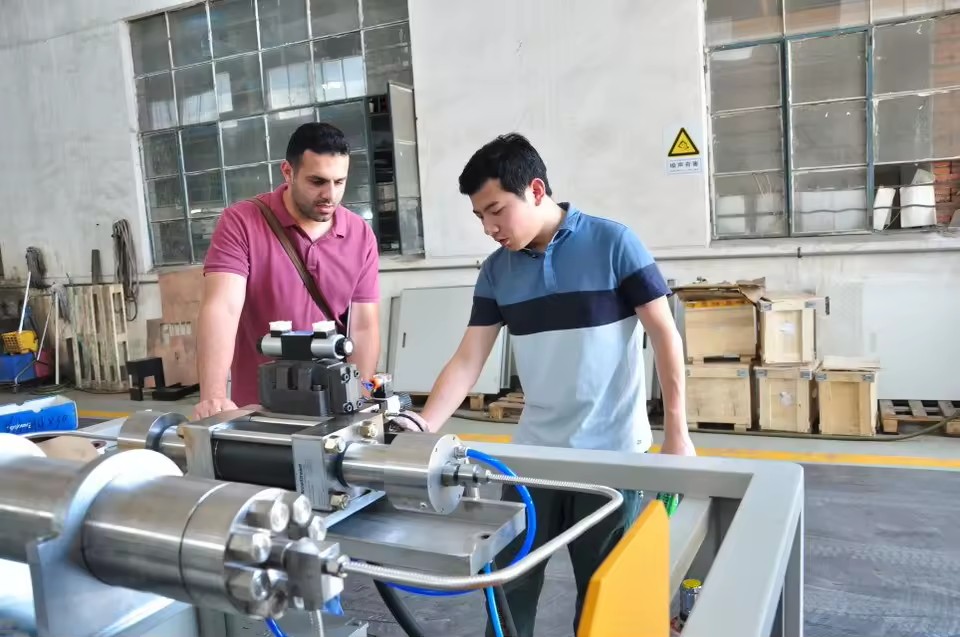

High Pressure Pump
Model
YCG-3038
YCG-3742S
YCG-7542S
Max Pressure
3800Bar/55,000Psi
4137Bar/60,000Psi
Max Water Flow
3.7L/min
7.4L/min
Max Orifice/Nozzle
0.011/0.03
0.013/0.04
0.016/0.05
Power
30KW/40HP
37KW/50HP
75KW/100HP
（Bevel Cutting 0-±10°）

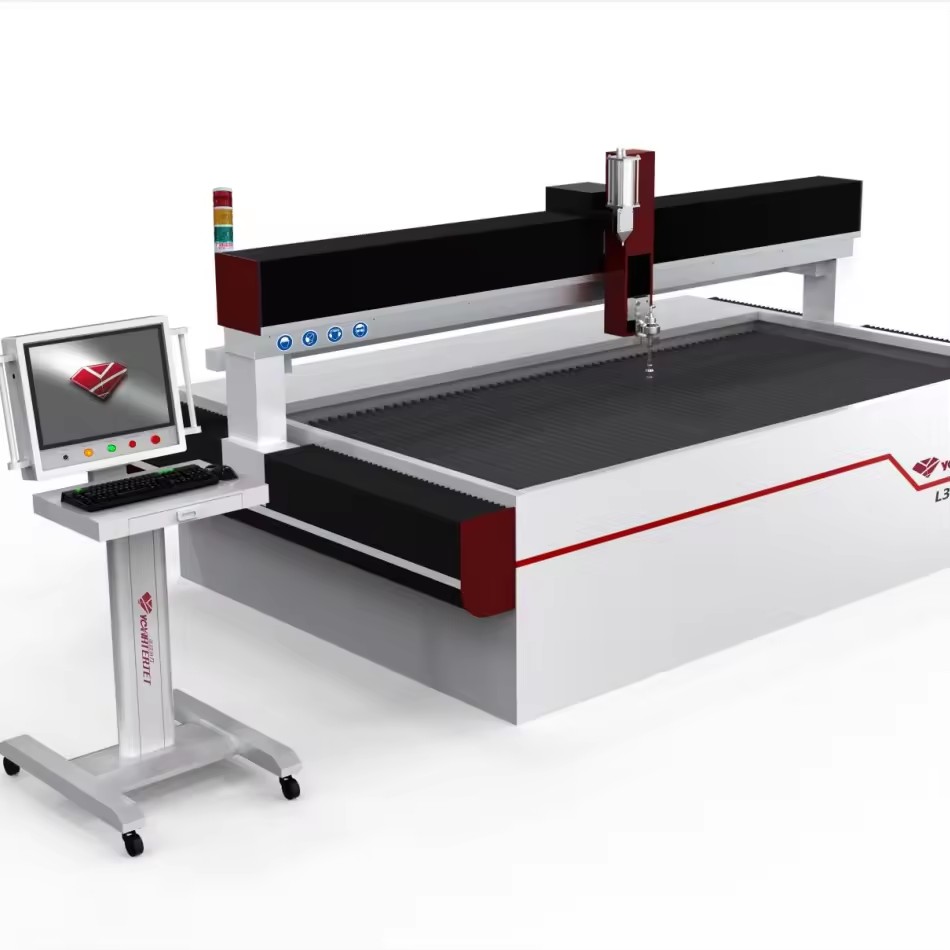

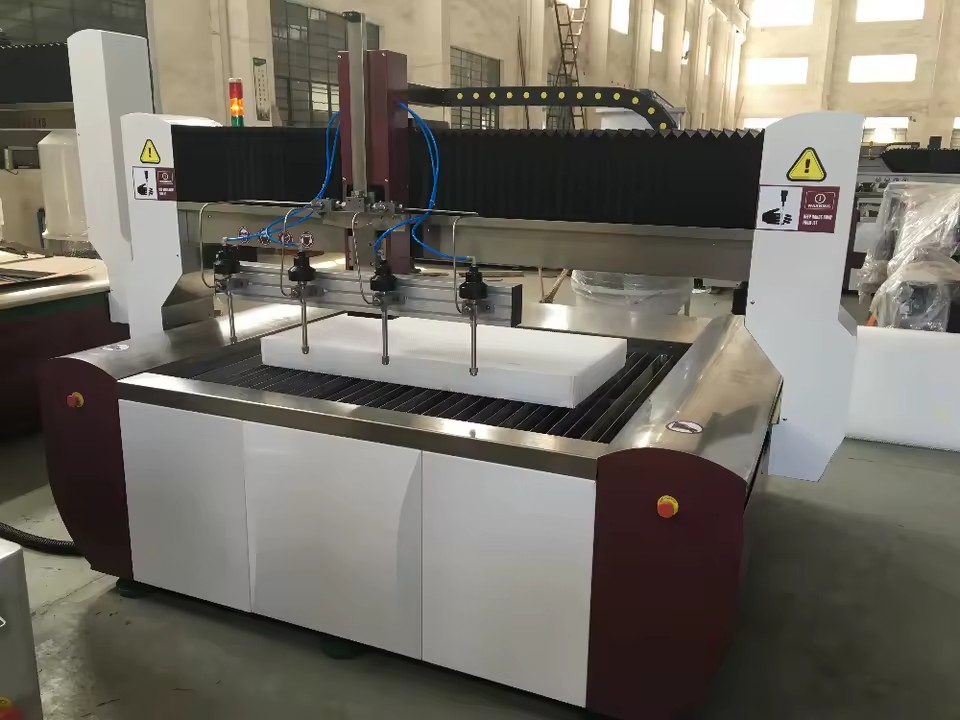

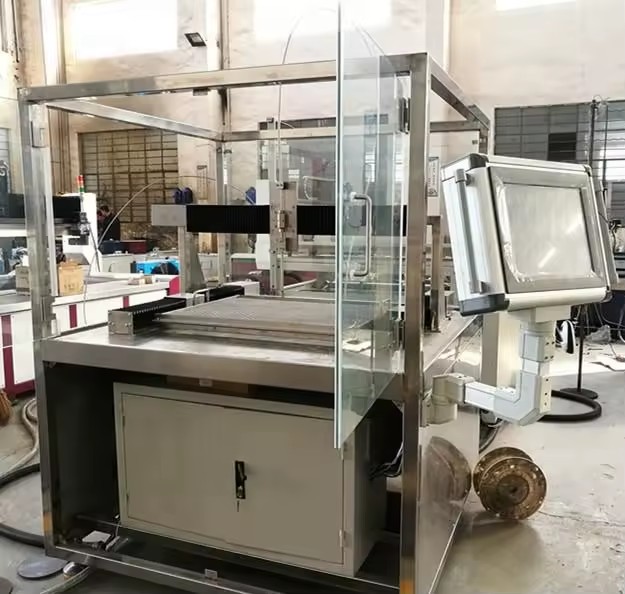

3 axis Waterjet Cutting Machine
Max5 axis
Water Jet Cutting Machine
（Bevel Cutting 0-±45°）
Product Details
3 axis waterjet cutting
machine
A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal
glass
Cutting accuracy
+/- 0.1mm
Repeat accuracy
+/- 0.05mm
CNC Water Jet Cutting Machine P
arameter
(L=Gantry type)
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt
MITSUBISHI or Yaskawa
Main Feature
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm
Unique design of this water jet pump makes the installation and the maintenance easier. Stable working pressure to ensure the working efficiency.
We cooperate with Accsutream/Hypertherm since 2008,most water jet parts of the high pressure pumps are imported directly.
Waterjet CNC Controller
1. 17ʺLCD liquid crystal display.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).
9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
Italian ECS Controller for your choice
Specification Parameters：
1. Up to 16 axes interpolated.
2. Hardware Architecture dual core
( Kontron).
3. With high performance and low power.
4. Monitor 15" LCD - Integrated Touch Screen(Optional).
5. Peripheral interface: EtherCAT.
6. Node EtherCAT to manage EcsLink.
7. Mechatrolink® 2 and analogic drives.
8. Up to 2048 I/O with EtherCAT.
9. Modular machine panel (Optional).
10. Alphanumeric keyboard (Optional).
Optional Accessories
Auto sludge removal system
Remove the abrasive from the tank automatically, separate the abrasive and water.
Reduce the labor force,improve work
efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are
plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are
collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
Water Soften System
Hydraulic Loading System
Cutting Head With Drilling
Related Products
Dynamic 5axis Waterjet Machine
Cut with drill
Waterjet Cutting Machine
Robotic
Waterjet

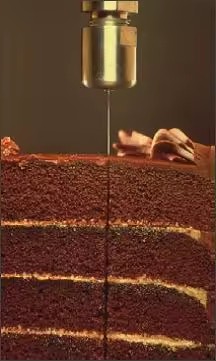

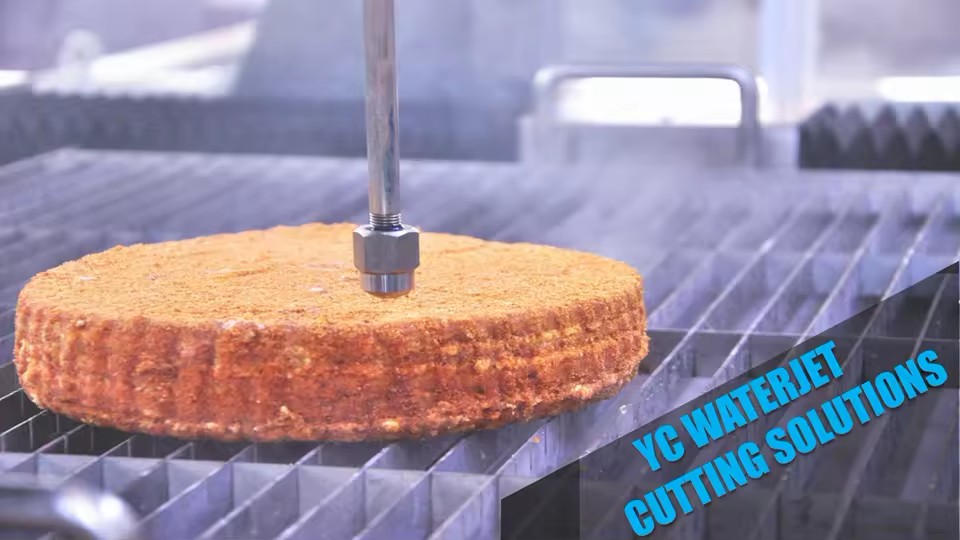

Cutting Samples
Company Profile
WHY CHOOSE OUR WATERJET CUTTING MACHINE?
Production facilities
YC has more than enough in production facilities to ensure your order of waterjet cutting machine will never be held up waiting for production.
Since 1999
We are engaged in machinery manufacturing since the year 1999, There are two production managers have been working here since YC established, and there are more than 5 workers with more than 10 years experience in water jet cutting field.
Over 25 years experience
Our Chief engineer Mr. Tian has more than 25 years experience in water jet cutting field, he started his research of water jet cutting machine when he was a university student. There are two electrical engineers and one mechanical engineer who have 20 years experience in water jet cutting field. So our technical team can provide you professional support of waterjet machine.
YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers,Absorb advanced technology and ideas of water jet cutting industry
Customer reviews
FAQ
Q
Can you provide your
certifications
?
A
Yes, our products comply with CE, ISO,SGS and other standards. We ensure all certifications remain valid (the renewal process takes approximately one month).
How about the
delivery time
Standard Motors (380V, 50Hz, 3-Phase): 3-Axis Standard Models: Approximately 25-30 days. AC 5-Axis Models: Approximately 35 days. G-Series Large Gantry Models: Approximately 45 days. Non-Standard Motors (e.g., 220V/50Hz/3-Phase, 380V/60Hz/3-Phase, 400V/50-60Hz/3-Phase): Approximately 50 days, as custom motor procurement takes about 45 days.
Q: How to choose a standard cutting table?
A: You need to offer the size of the materials you want to process or the size of the cutting table.
Q: How to solve the incision bevel problem by 3 axis water cutting?
A: It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle compensation in the software.
Can I
customize products
Yes, we can customize the branding based on client requirements. For instance: If a client acts as a middleman, we can affix their company's logo instead. For domestic trading companies handling export, if they wish to prevent end-clients from directly identifying our factory, we can omit any YC-related logos entirely. In addition, you can customize the color, size, cutting range, etc. of the machine. Please send your detailed customized requirements to us.
What
logistics company
do you use?
For courier services, we offer options such as FedEx, DHL, and UPS for shipping the spare parts and wear parts of water jet cutting machines. We also have ocean freight forwarding companies available, and we support pricing based on Incoterms CIF and DAP, depending on your delivery location. Door-to-door service is also available.
What is your
payment terms
Option 1: 30% deposit by T/T after signing the contract, with 70% balance payable by T/T before shipment. Option 2 (Subject to approval): 30% deposit by T/T after signing the contract, with 70% balance payable by L/C upon presentation of shipping documents.
Do you offer
after-sales service
Yes, we provide comprehensive after-sales support: 1. A one-year warranty covers the machine (excluding consumable parts). Free replacement parts are shipped for non-manual defects. 2. Remote guidance (with manual and video support) is provided. On-site engineer assistance (e.g., for split type waterjets) is available, with costs (travel, visa, accommodation, fee) borne by the client. 3. Each unit undergoes rigorous pre-delivery testing. We provide prompt responses to ensure
