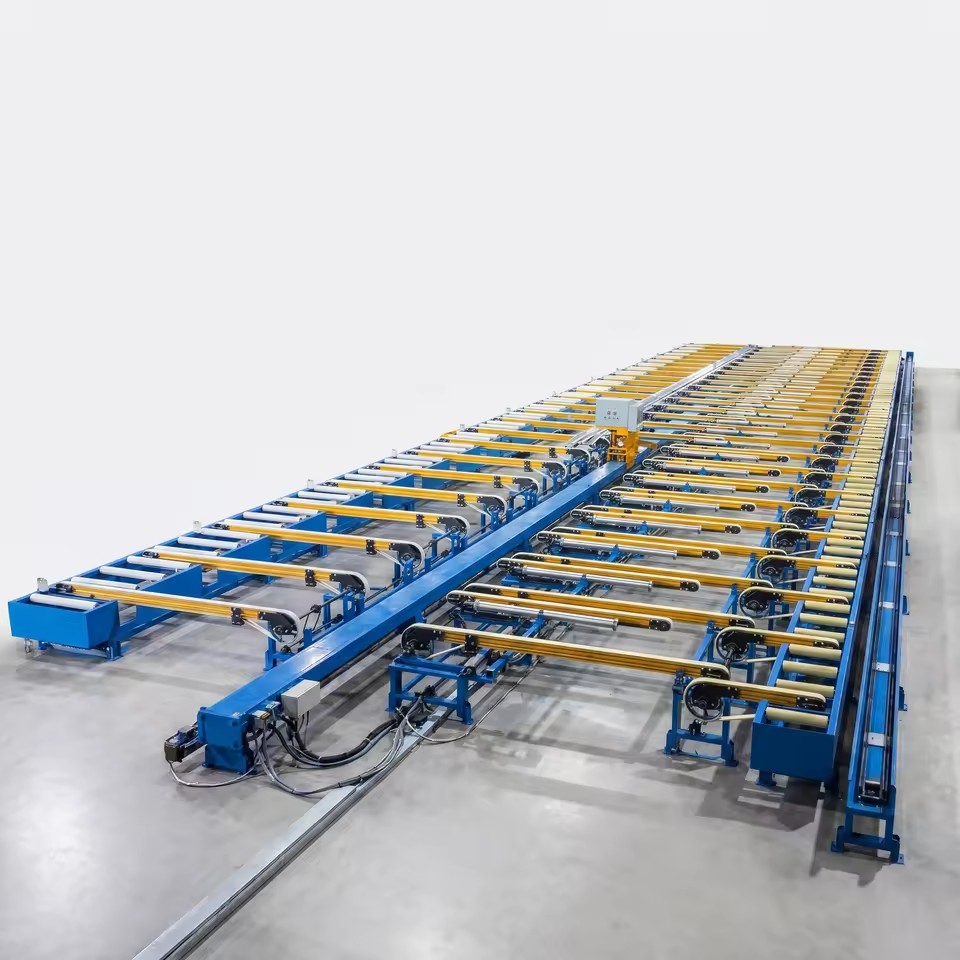

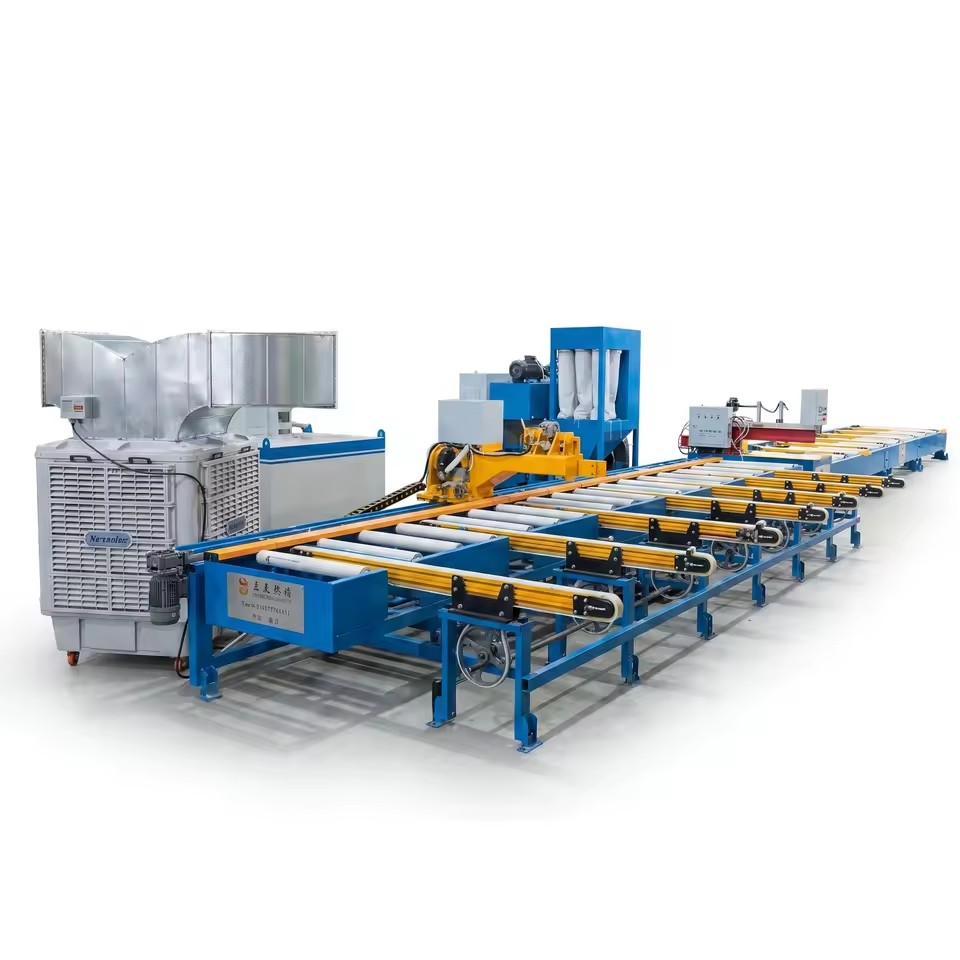

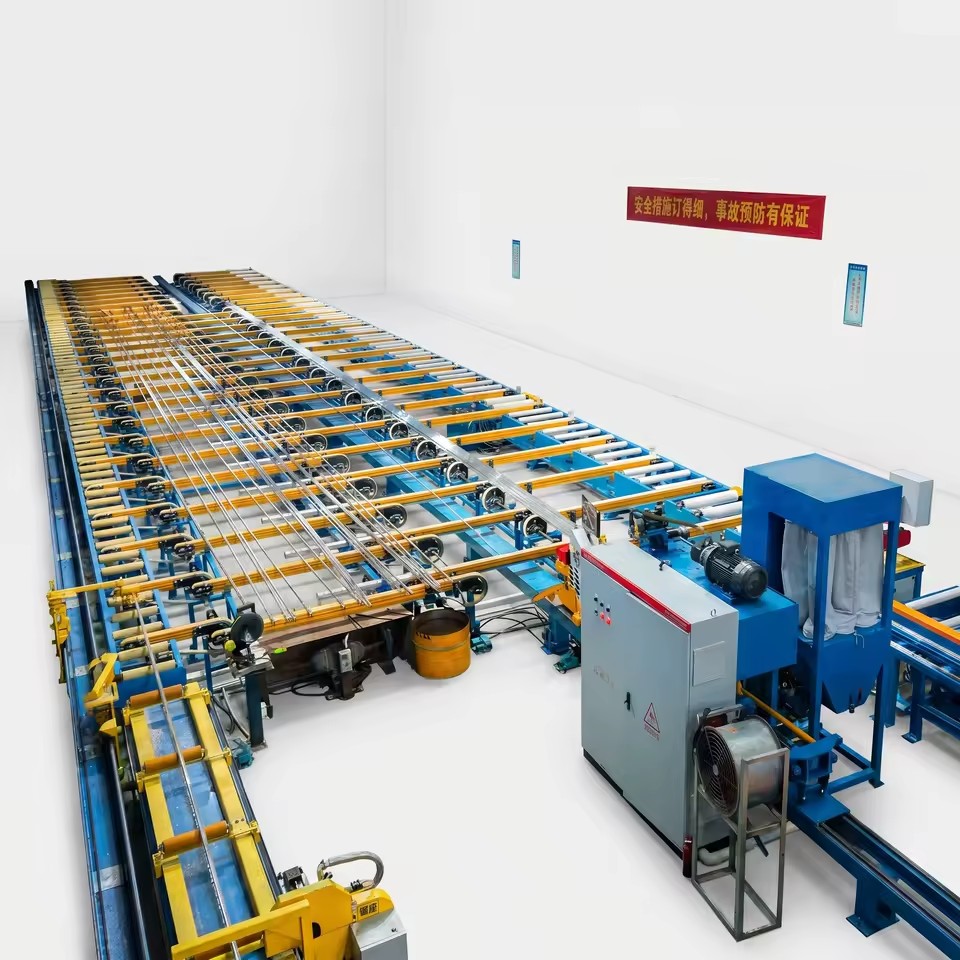

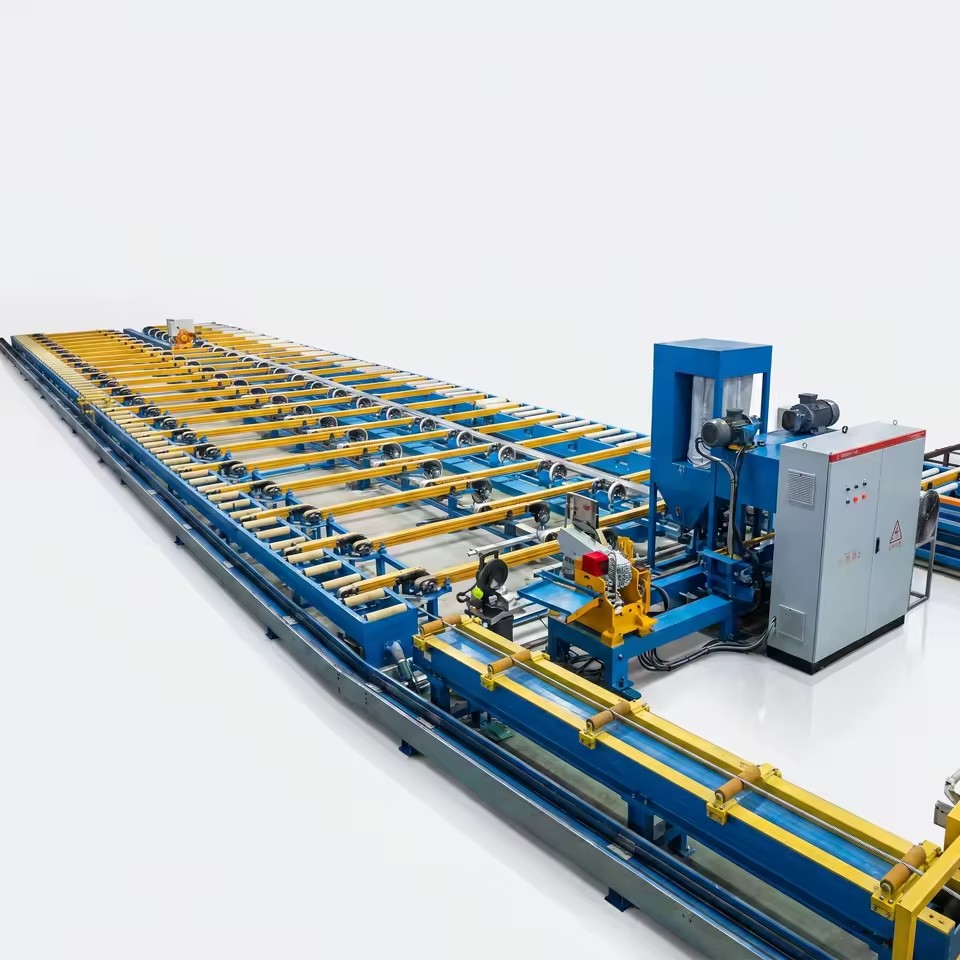

YZ-CB-600T Cooling Bed 26m 4-Stage Aluminum Extrusion Run-Out Table

Product Importer Gallery 01 · 0a4d21e13b

Product Importer Gallery 02 · f5bf9dd2d7

Product Importer Gallery 03 · c7df7316bf

Product Importer Gallery 04 · 85ec1b4ab7

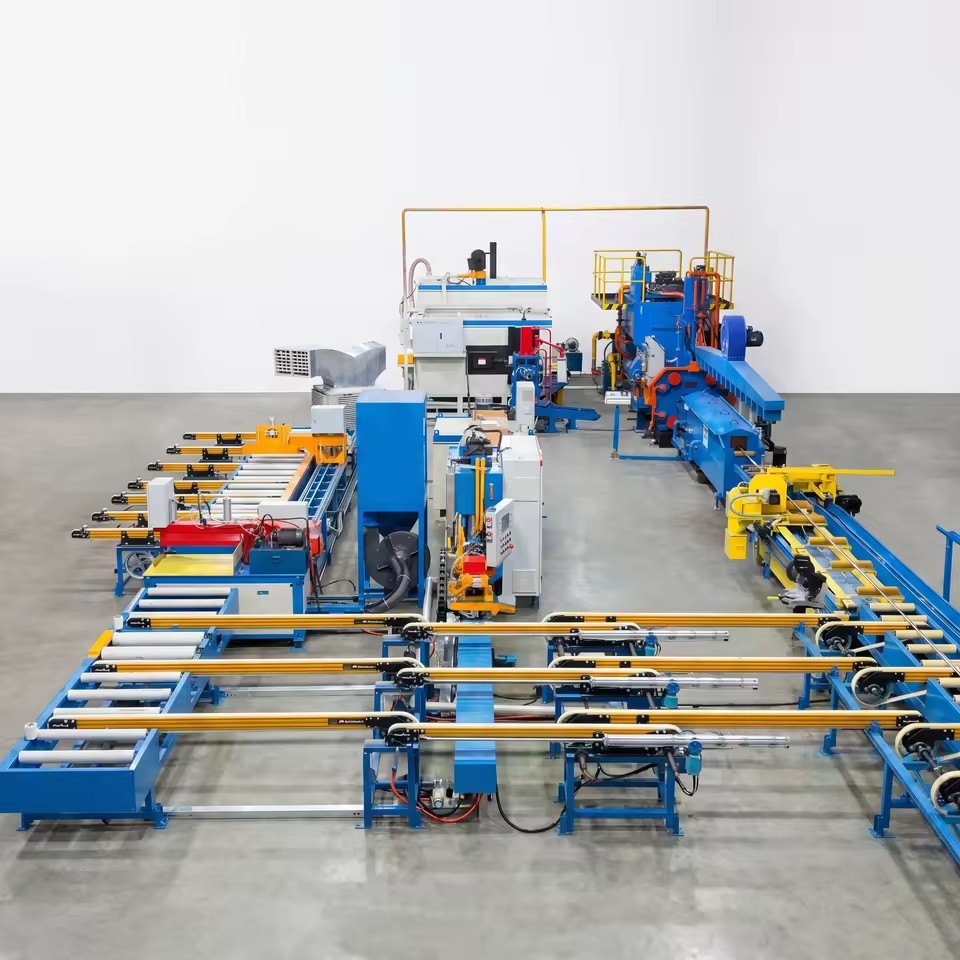

Product Importer Gallery 05 · 37f4fe03e8

YZ-CB-600T Cooling Bed 26m 4-Stage Aluminum Extrusion Run-Out Table

Name: YZ-CB-600T Cooling Bed 26m 4-Stage Aluminum Extrusion Run-Out Table
SKU: WAJ5-Z5FH-JN36
Price: 41880.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 41,880.00 41880.0 USD $ 41,880.00

Minimum order quantity: 1 Units

Key attributes

View all

Machine type

continuous casting machine

Voltage

380v 60hz

Core components

PLC, Motor

Machinery test report

Provided

Video outgoing-inspection

Provided

Warranty

1 Year

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

Bullet 1: 600T Press Matched Designed for 600T aluminum extrusion press, 26 meter standard length. Fits 6.5-7 meter workshop width. Ideal for small extrusion lines.

Bullet 2: 4-Stage Transmission, Efficient Cooling 4-stage conveyor structure. Profiles automatically conveyed from press, straightened, cooled, and cut. No manual handling required. Bullet 3: Includes Puller Straightener and Finished Saw Equipped with 20T hydraulic straightener and 16 inch finished saw. One machine integrates cooling, straightening, and cutting. Bullet 4: Powerful Fan Cooling System Top mounted 3KW centrifugal fan plus 5 drum fans at bottom. Forced air cooling, profiles rapidly cooled to room temperature.

Bullet 5: High Cost Performance, Low Price Reference Price: RMB 100,000 to 150,000, USD 14,286 to 21,429 (at exchange rate 7). Suitable for small plants with budget.

Frequently asked questions

Cooling bed is the FINAL stage of aluminum extrusion line, also called run-out table. Functions: Receive hot profiles from press (450-500C) Forced air cool to room temperature Straighten (correct deformation) Cut to customer required length Stack for packing Core Components: Multi-stage belt conveyor (4-5 stages) Top and bottom fans (forced air cooling) Straightener (hydraulic) Finished saw (cutting) Length measurement cart

Because the structure is relatively simple: No heating system (cooling only, not heating) No PLC programming control (mainly mechanical) No burner (only motor-driven fans) No expensive components (no Riello burner, no ceramic fiber) So cooling beds are much cheaper than aging ovens, RMB 100-200k range.

Because of larger specifications: Length 32-38m (vs 26m) Width 8-9m (vs 6.5-7m) Straightener 50-160T (vs 20T) Finished saw 20-26 inch (vs 16 inch) Double the fan quantity 5-stage transmission (vs 4-stage) Price range RMB 400-600k.

4-stage transmission: Cooling bed width within 9 meters For 600T-1450T presses Relatively simple structure, lower price 5-stage transmission: Cooling bed width 10-11 meters For 1450T+ large presses 5 stages, suitable for wide profiles Price higher by 10-15%

Standard dimensions: CB26 (600T): 26m length plus 9-12m discharge, total 35-38m, 6.5-7m wide CB26-1100 (1100T): 26m plus 9-14m discharge, total 35-40m CB32 (1250T): 32m plus 10-14m discharge, total 42-46m CB38 (1800T): 32-38m plus 12-16m discharge, total 44-54m Height: typically 1.5m (excluding control console)

Knock-down (CKD) packaging: 600T-1200T: 40HQ x 1 container 1250T plus: 40HQ x 1-3 containers On-site assembly 7-15 days Assembly drawings and video provided Customer provides local labor and lifting equipment

Orders above USD 100,000: FREE on-site installation (our engineer) FREE video installation guide (Chinese and English) Customer covers: engineer airfare, visa, accommodation, local transport Installation period: 7-15 days (depending on size) FREE remote commissioning support

1 year whole machine (all mechanical parts including motor, reducer, fans, straightener, saw) 3 years electrical components (PLC, HMI, contactors) Lifetime technical support Wearable parts inventory (saw blade, felt belt, conveyor belt) Spare parts kit: 3% of contract value included

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 15 fields

Machine type

continuous casting machine

Voltage

380v 60hz

Core components

PLC, Motor

Machinery test report

Provided

Video outgoing-inspection

Provided

Warranty

1 Year

Material

Galvanized Steel

Key selling points

Automatic, Easy To Operate, Competitive Price, Multifunctional, High-Accuracy, Long Service Life, High Productivity, Energy Saving, Low Noise Level, Remote Monitoring, Flexible Manufacturing, Low Maintenance Cost, Other, High Rigidity, Remote Control, Patented Product, Accurate Temperature Control, Famous Brand PLC, IOT, Digital, Famous Brand Motor

Power(w)

550

Place of origin

China, Guangdong

Weight (kg)

160

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Model number

YZ-CB-600T

Lead time

30 days

Minimum order

1 Units
